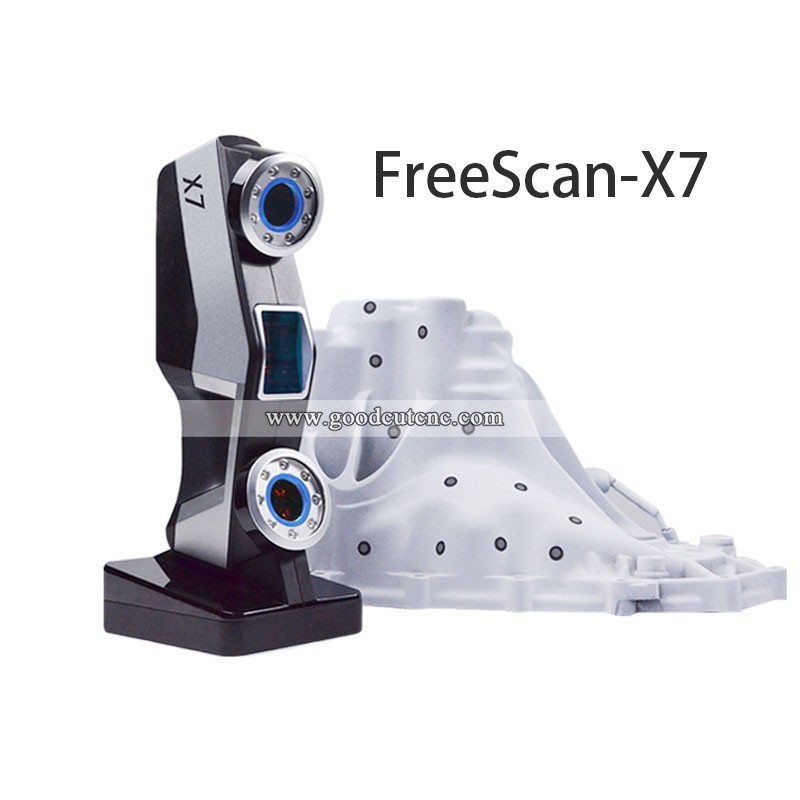

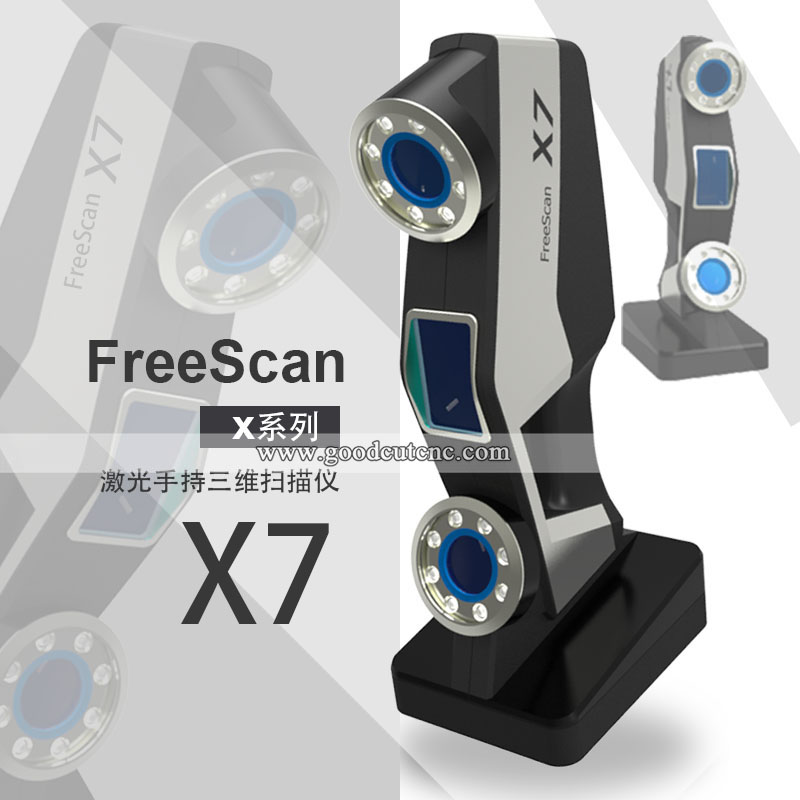

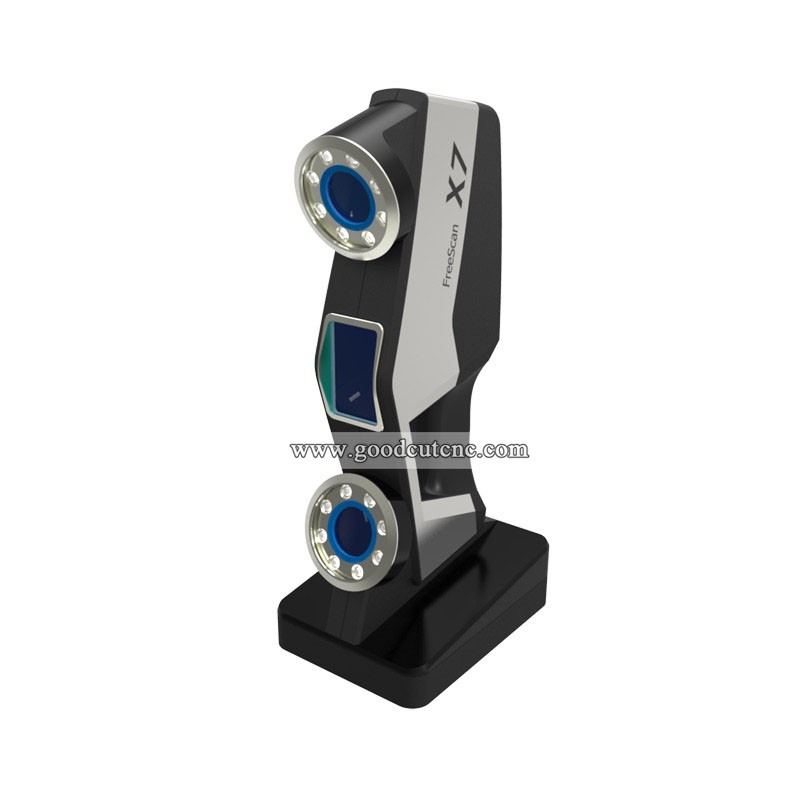

Freescan X7 Handheld 3d Laser Scanner

Type: laser 3d scanner
Single Shot Accuracy: 0.03mm
Scan Speed: 240, 000 points/s
Light Source: 6 line laser ray
Volume Precision: 0.020mm+0.025mm/m
Weight: 0.95kg

EMAIL

Freescan X7 handheld 3d laser scanner

Parameters of 3d portable FreeScan X series X7 head scan surveying laser scanner for industrial using:



Single Shot Accuracy

0.03 mm

Volume Precision

0.02 mm+0.1 mm/m

Volume Precision (Combined with DigiMetric)

0.020mm+0.025mm/m

Resolution

0.1 mm

Scan Speed

240, 000 points/s

Single Scan Range

280×250mm

Scan Range

100-6000 mm

Working distance

300mm

Scan Depth

250mm

Supporting Program for Extended Measurement

DigiMetric

Light Source

6 line laser ray

Laser Category

Class II ( eye safe )

Software

3DScan

Output Date Format

Stl, obj, fbx, ma, asc, ply, dae, etc .,

and compatible with the mainstream 3D software

OS System Support

win10 64bit

Operation Temperature

-10-4 0"C

Transmission Mode

USB 3.0

Weight

0.95 kg

Dimension130 x 90 x 310 mm

Features of 3d portable FreeScan X series X7 head scan surveying laser scanner for industrial using :

Without the need of cables to connect to computers, you can
enjoy complete freedom of 3D scanning.

Real-time visualization

Real-time data display on your smartphone or tablet, for ease of scanning of large objects and scenes.

Portable and user-friendly

Light-weight 3D scanner & “AirMaster”, intuitive workflow for
easy operation.

Long battery life

Adaptable to measurement tasks in indoor, outdoor and other complex environment;

Advanced operation

AirMaster wireless computational processor, with a built-in het-erogeneous multi-core SOC processor, offers a calculation of image data completely driven by the hardware.

Features of Competitive price GoodCut FreeScan-X5 handheld 3d scanner laser for cnc :


1.Light body and easy operation: Light and handy (0.95kg), narrow space operation accessible. FreeScan X7 can operate without any external clamping positioning.


2.Large measurement space: Almost unlimited 3D scanning size, not affected by size, texture and color of the object.


3.High accuracy, high speed: Accuracy up to 0.03 mm, measured under the German VDI/VDE 2634 standard. The 3D scanning speed can reach up to 240000 points/s.


4.High compatibility: Compatible with 3D photogrammetric systems, which allows the measuring of very large parts (0.1 - 6 m, extendable).
