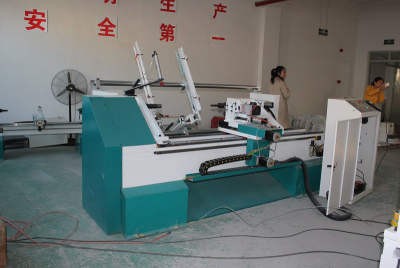

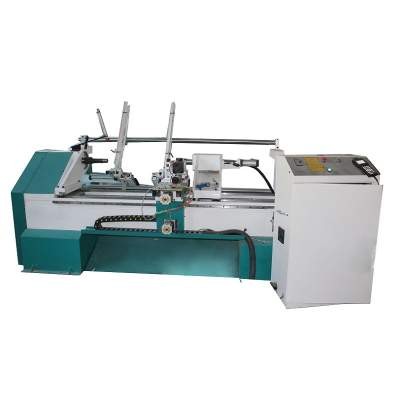

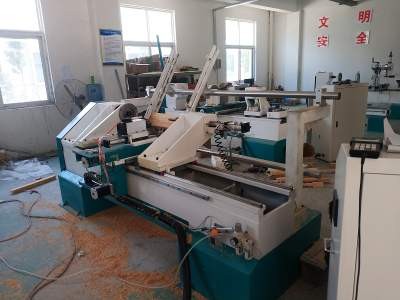

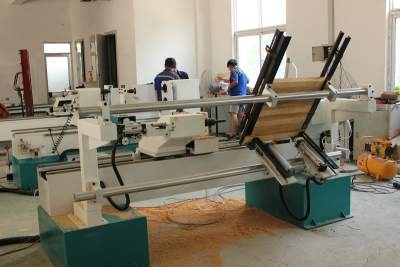

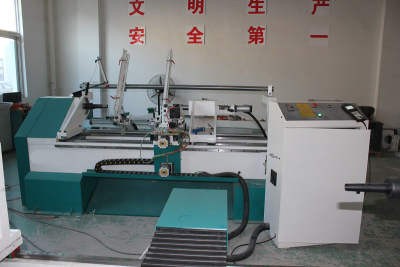

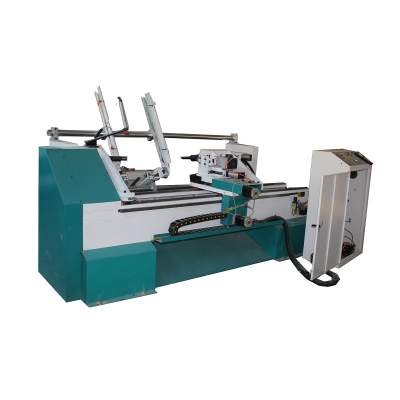

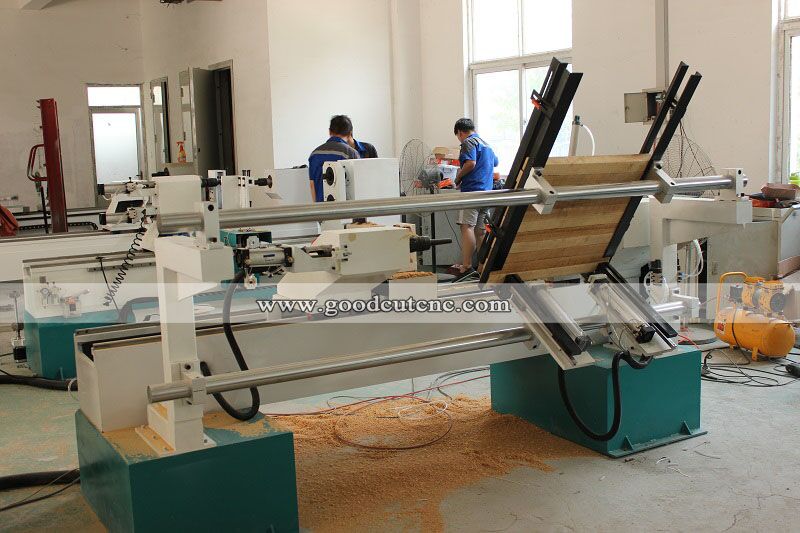

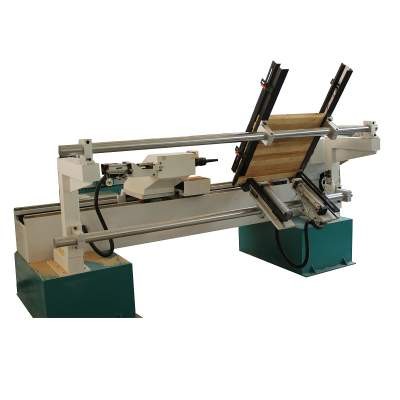

GC1530WL-AF Auto feeding Wood lathe

Max working diameter: 300mm
Max working length: 1500mm

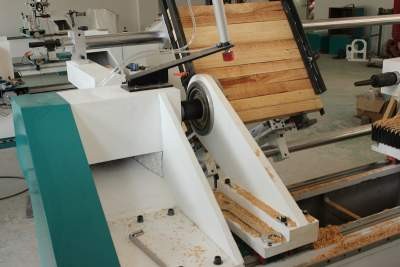

Automatic feeding part: including
Feeding size:
Feeding diameter 30mm-100mm
Feeding length 200-1200mm
Knife: High speed lathe knife

EMAIL



Item

 Specification

Max processing length

1500mm(can custom 2000/2500/3000mm)

Max turning diameter

300mm

Air pressure

0.6-0.8Mpa

Power supply

AC 380V 3 phase 50HZ/60HZ(can custom 220V)

Max feed rate

200cm/min

Min setting unit

0.01cm

Transimission type

ballscrew for X,Z axis,gear for Y axis

Guider

Taiwan Hiwin orbit

Main shaft rotating speed

0-3000r/min

Spindle power

3.5kw

Cutter material

Super hard alloy

Control System

professional cnc wood lathe with LCD

Motor

Stepper motor

Driver

Yako2811 driver

Inverter

Fuling inverter

Drawing Software

AutoCAD

Features:

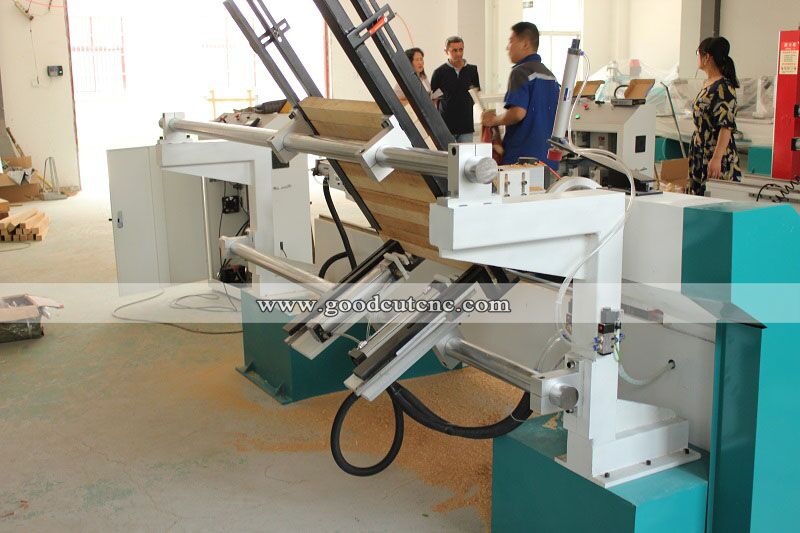

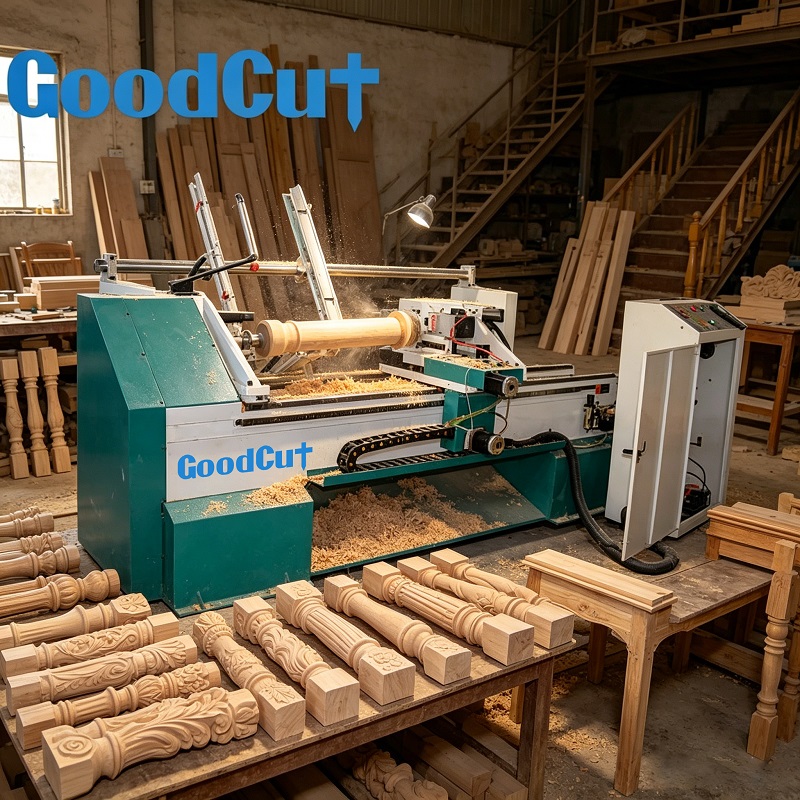

autofeeding lathe (8).jpg

Specification:

1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.



2. Specialused for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.



3.Adopting advanced handheld DSP system with USB port which is easy for operating even without a computer.



4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.



5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.



6. Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel



7. One time tool setting to finish the whole work piece.



8.Turning,broaching and engraving can be done with one machine by high speed.
