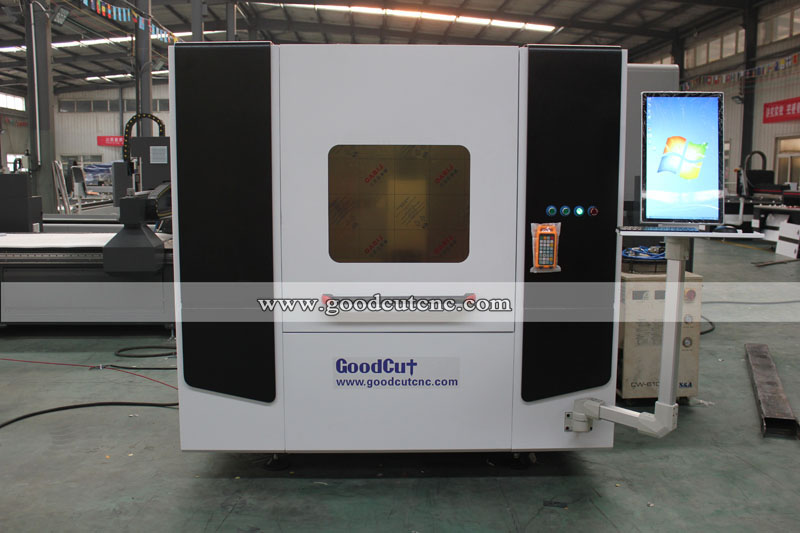

GC3030FC GC4040FC GC6090FC GC1390FC Small Size Fiber Laser Cutting Machine for Metal

Machine price: 10000$-12000$
600*900mm working size
stainless steel, carbon steel etc metal materials

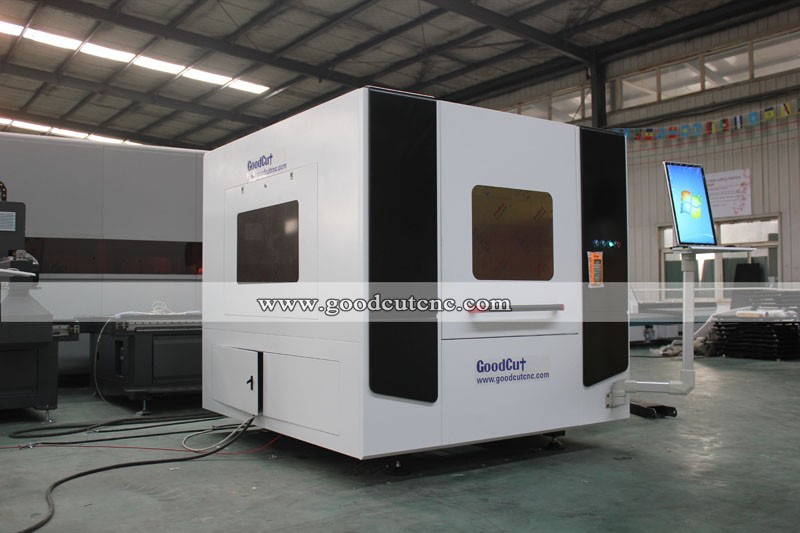

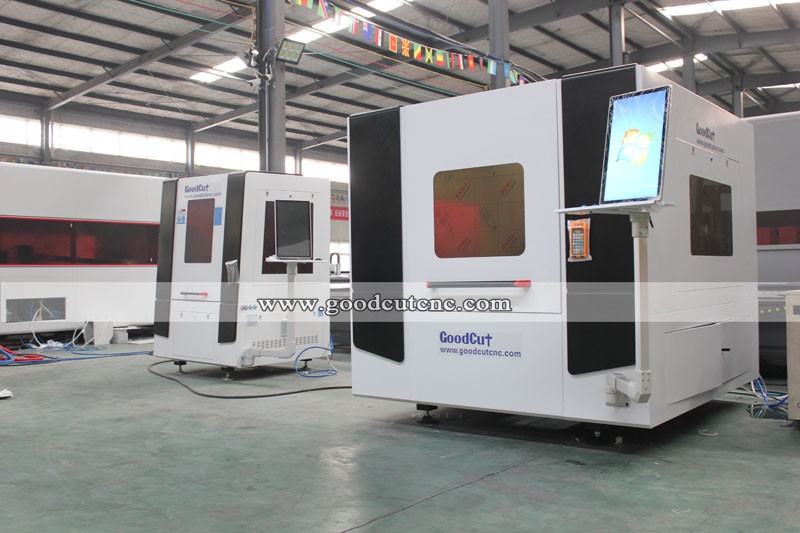

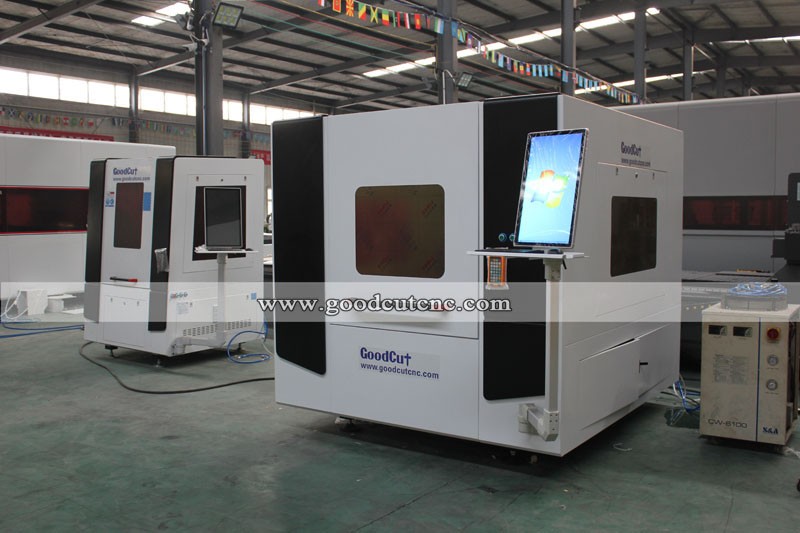

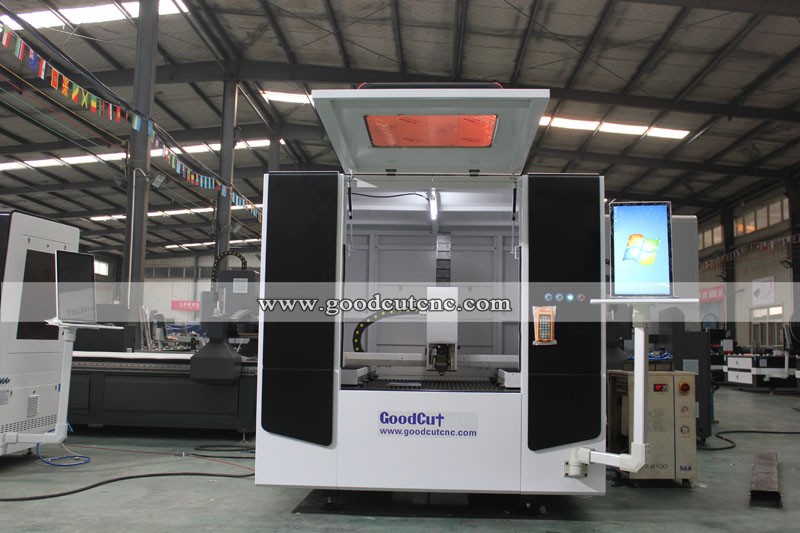

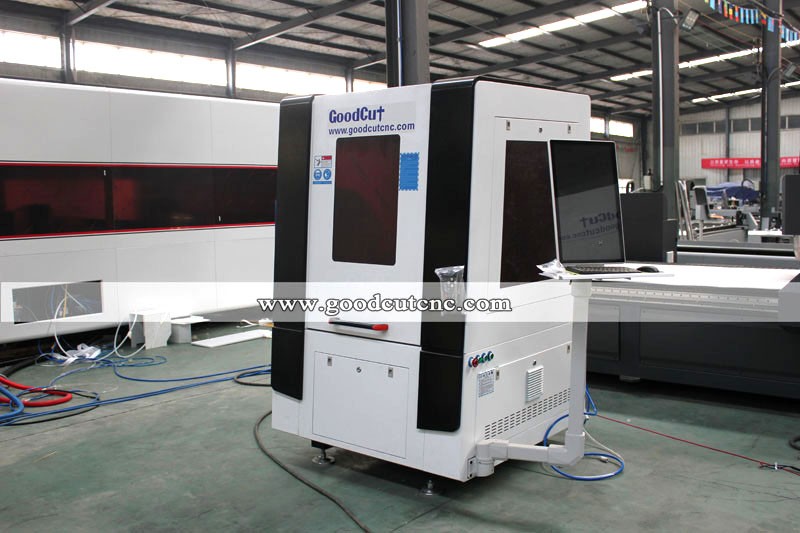

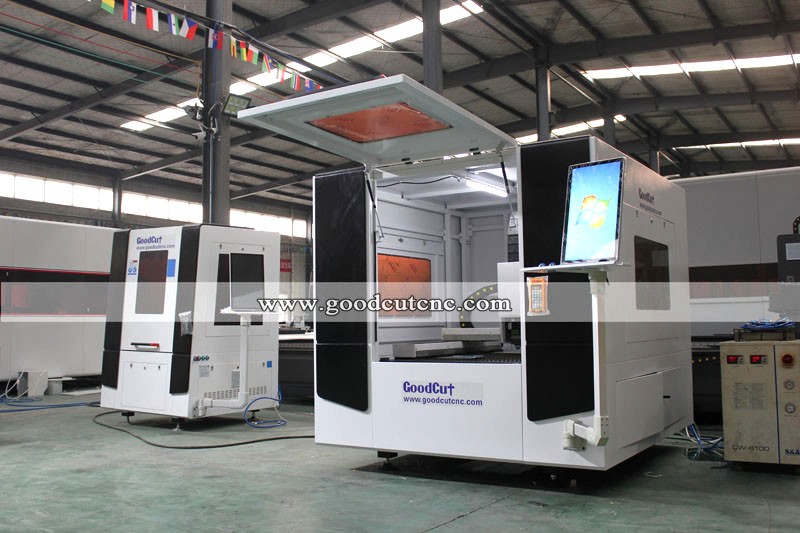

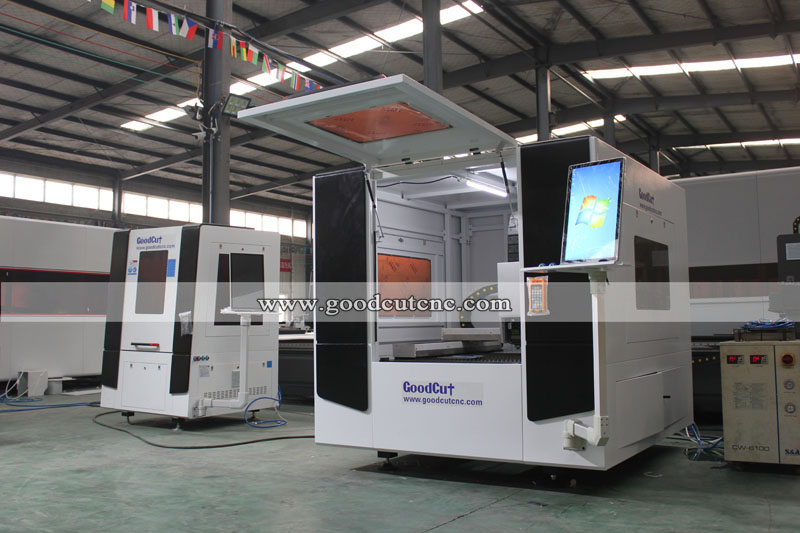

with whole protective cover
Product description: 300*300mm 400*400mm 600*900mm 1300*900mm working size with full protect cover.
Raycus/IPG/ MAX laser source.
Raytools/WSX laser head.
Cypcut sontrol system.
Janpan Yaskawa/Fuji servo motor.

EMAIL

GC3030FC GC4040FC GC6090FC GC1390FC Small Size Fiber Laser Cutting Machine for Metal

Main Feature:

1.Fiber Laser Source: Adopt world famous fiber laser source: German IPG /dometic Raycus, the cutting speed can up to 15-20M/min.

2.Laser Cutting Head: Raytools laser head/WSX laser head with autofocus function, can keep same distance according to metal plate and cutting head during cutting.

3.Working Platform: There is a drawer under the working platform. After metal sheet cutting, the small pieces will fall down into the lower drawer for easy collecting.

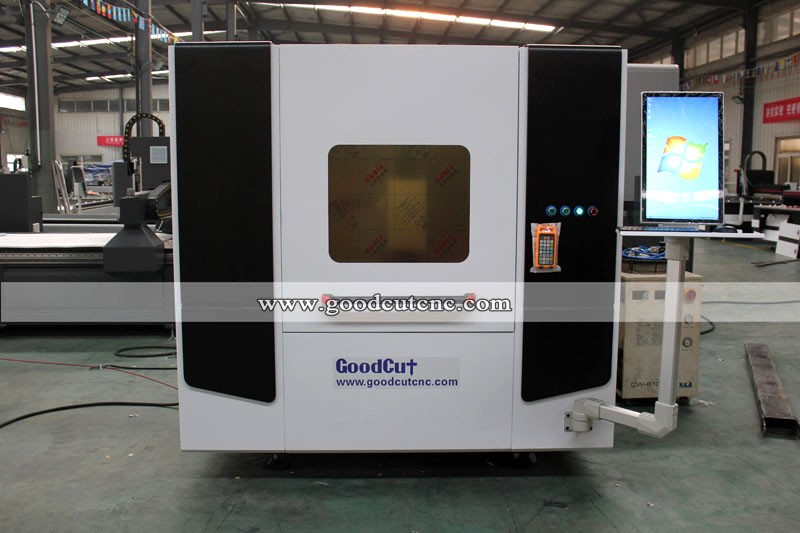

4.Cutting Observation Window: The green glass cover window can filter the laser beam, no eye injury and no odor. Environmentally friendly and beautiful.

5. PC Control System: Humanized separate PC control system, PC screen can be rotated 180 degree.

6. Japan Yaskawa Servo Motor & Driving System: Extreme precise positioning;Make moving positioning mechanism operate smoothly;Reliably and free of maintenance

7. Transmission: Y aixs is double grinding precision ball screw and Taiwan Hiwin guide rail; X aixs is  grinding precision ball screw and Taiwan Hiwin guide rail, can ensure the cutting precision and fast speed.

8. Control System: Adopt Cypcut control system, have powerful edit function, can meet a wide range of cutting needs.



Advantage:

1> Excellent path quality: Smaller laser dot and high work efficiency, high quality.

2> High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.

3> Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

4> High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.

5> Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

6> Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;

7> Easy operations: fiber line transmission, no adjustment of optical path.

8> Safety:fiber laser machine with whole protective cover, more safe.

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and  many kinds of metal materials cutting and so on.

Machine components

Parameters

Working Area

300*300mm 400*600mm 600*900mm 1300*900mm

Laser Power

MAX/ Raycus 1000W/1500W/2000W/3000W etc (option IPG)

Controller

Cypcut controller

Laser Head

Raytools / WSX laser head

Motor and Driver

Japan Fuji / Yaskawa motor and driver

cutter laser Thickness

≤6mm

Maximum Running Speed

80m/min

Position Accuracy

±0.05mm/m

Position Speed

20m/min

Control System

Cypcut

Position Type

red dot

Power Consumption

≤12KW

Working Voltage

380V/50Hz

Auxiliary Gas

oxygen,nitrogen,air
