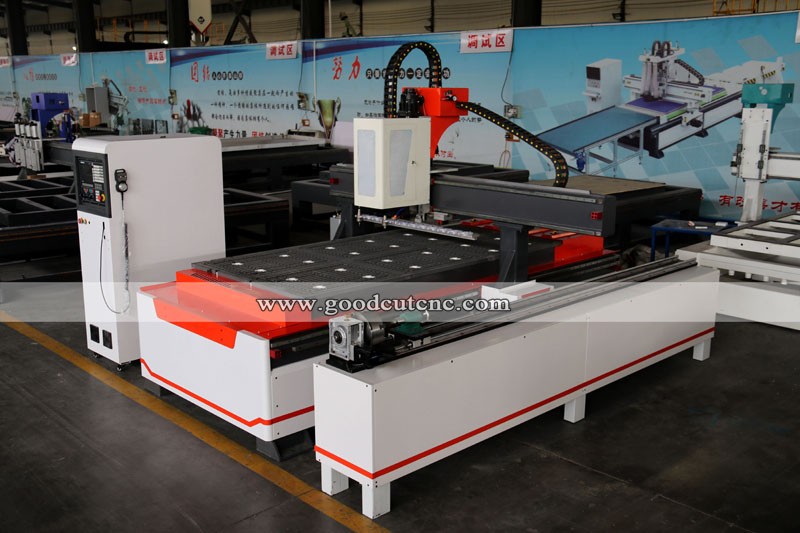

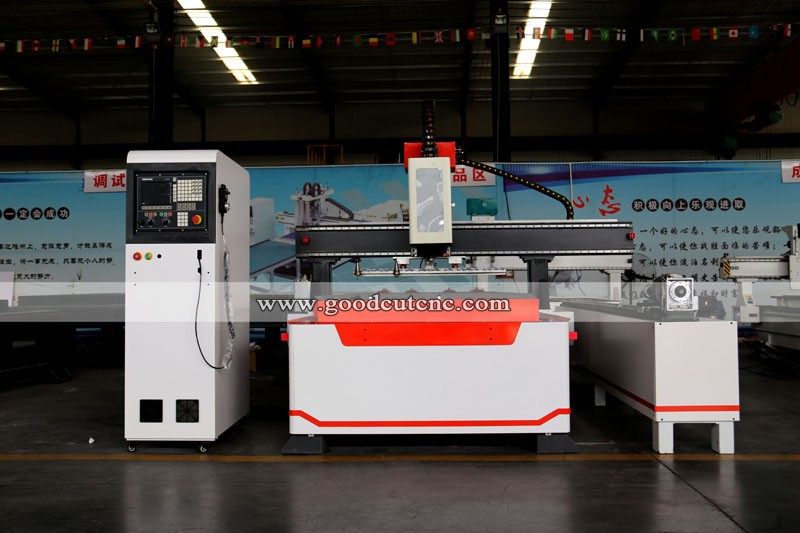

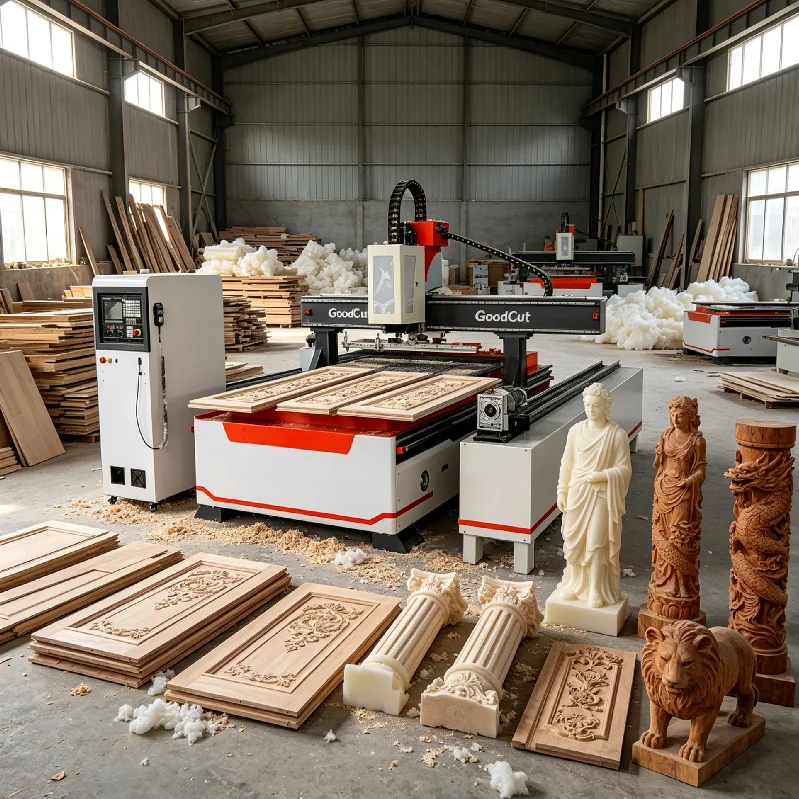

GC-1325ATC-R Chinese Manufacturer1530 ATC Cnc Router Machine with Side Rotary for Wood Cabinet Door Furniture Legs Engraving

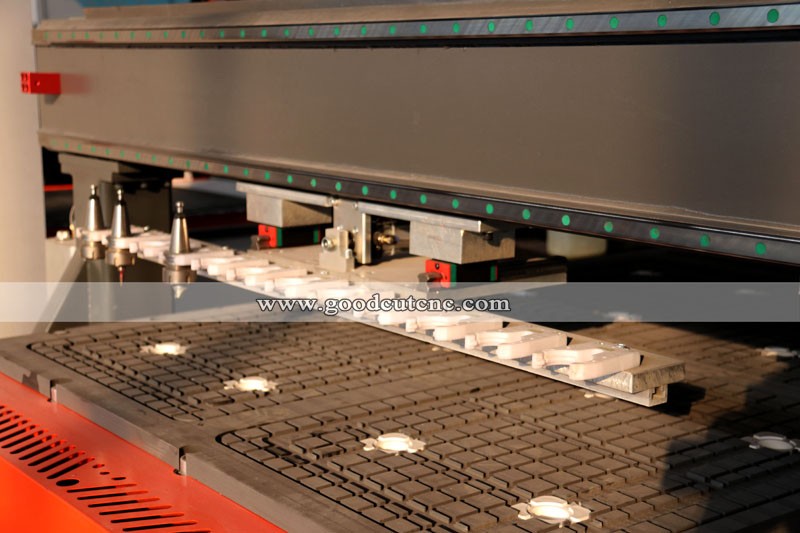

12pcs linear tool magazine
Linear Automatic too changer
9kw ATC spindle

EMAIL

      <

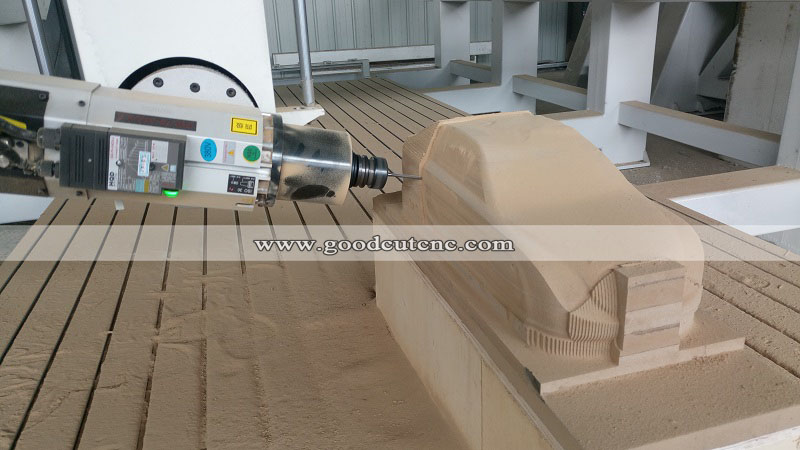

Automatic 3D Wood Carving CNC Router Woodworking Machine for Wooden Sculpture







Parameter :



1

Model Name

GC-1325ATC-R CNC Router

2

X Y Z working area

1300*2500*250mm

3

Whole structure

Heavy duty frame

4

Table surface

T-slot & Vacuum with vacuum pump

5

Movement parts

X,Y axis by gear, Z axis by Taiwan TBI Ball screw

6

Spindle

Changsheng 9.0KW air cooling spindle

7

Spindle speed

18000 RPM

8

Drive Motor

Taiwan Delta 750w servo motor and drivers

9

Max. Rapid Travel Rate

30000 mm/min

10

Max. Working speed

10000mm/min

11

Control System

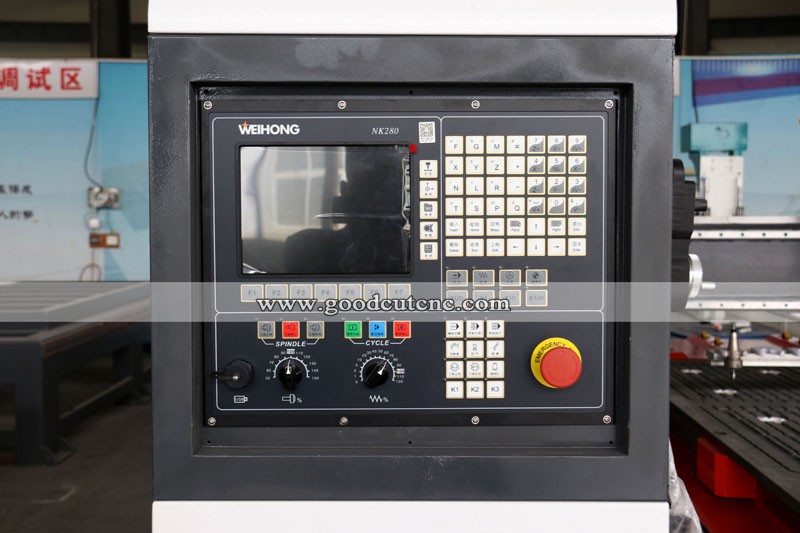

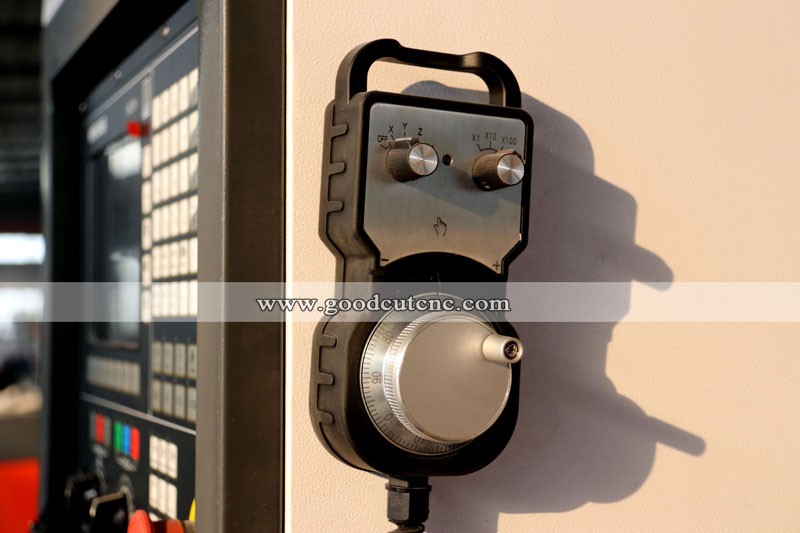

Weihong NK280 with handwheel

12

Software

Type3, Artcam, Ucancam

13

Machine precision

0.01mm

14

Repositioning precision

0.03mm

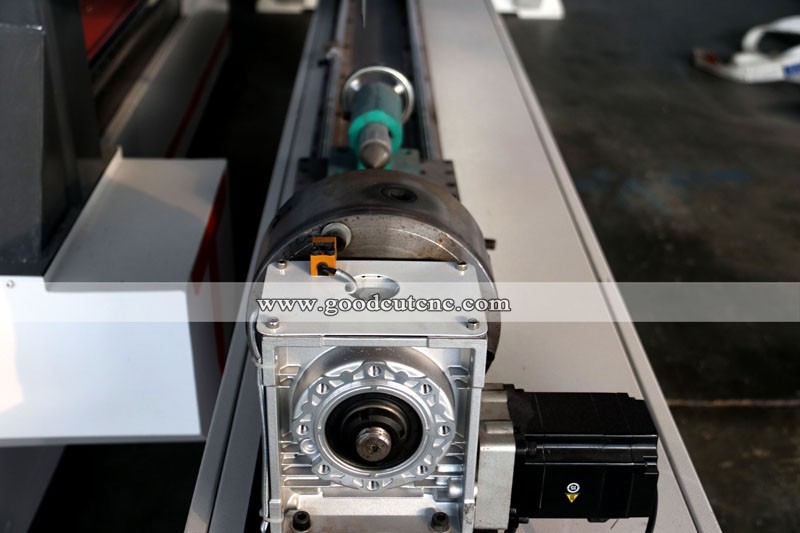

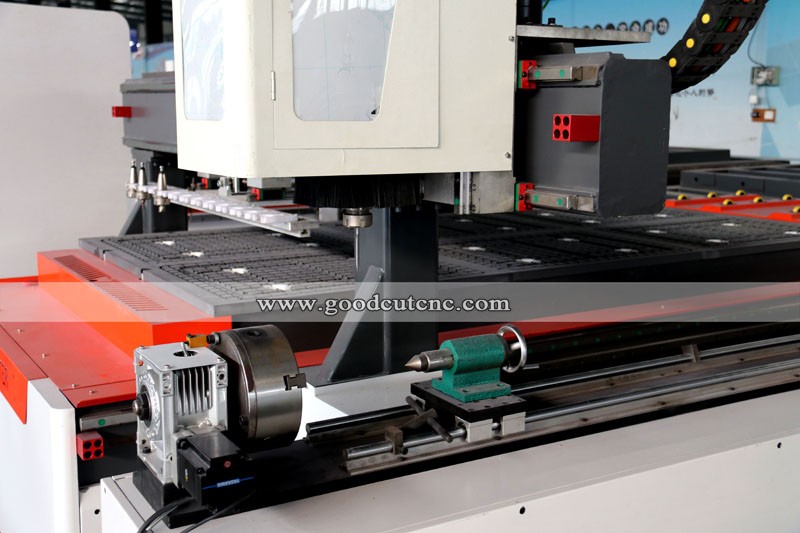

15Rotary device220mm rotary device(diameter can be customised)





Features :



9.0kw HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry.

HSD or HQD 9KW(12 HP ) high frequency automatic tool changer spindle with 8-12 tool linear magazine



Except the spindle, we use high quality components on this machine like Japanese Yaskawa servo motors and servo drivers, Taiwan Hiwin linear rails and TBI ball screw, Taiwan Syntec 6MD control system and so on.

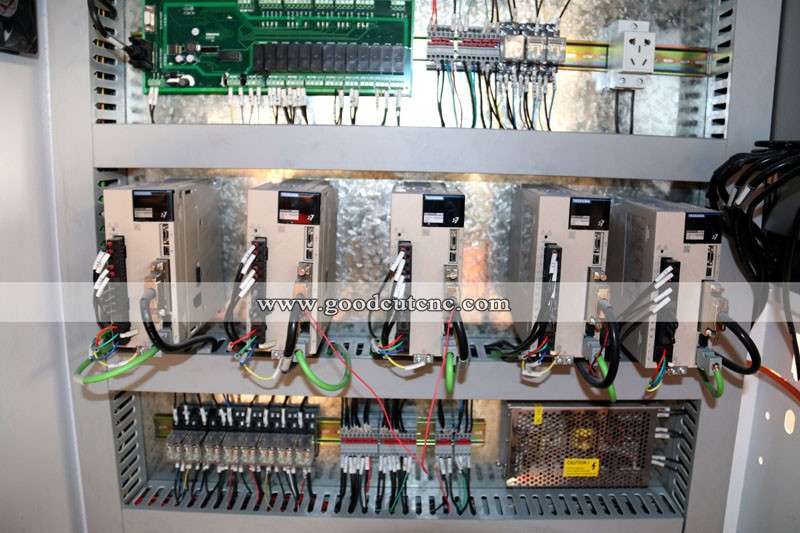

Maintenance free brushless Japan Yaskawa AC servo motors and drives



We also have some optional parts for you to choose: Chinese or Germany Becker vacuum pump, dust collector, mist cooling system, rotary system and so on. Some main parts on the machine can be changed according to your requirements.



Heavy bed body, the bed is treated by the furnace, not easy to deform.



With oil injection system, the drive part of the machine can be effectively lubricated.


Automatic tool calibration pad

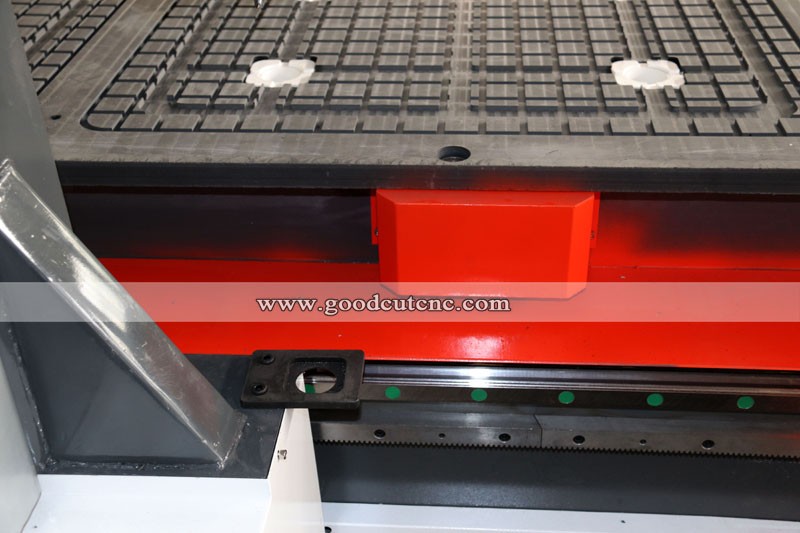

6-zone vacuum table


Pneumatic material placement stops


Syntec industrial AC servo controller






 parts

Application:

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
