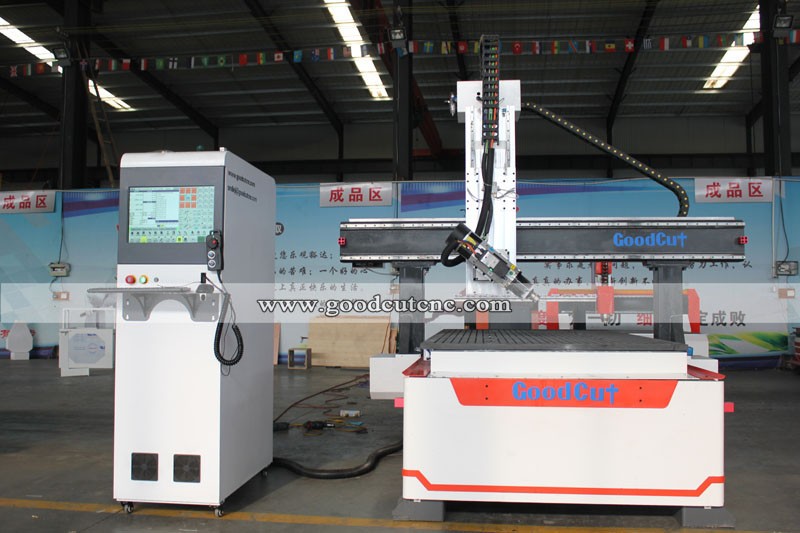

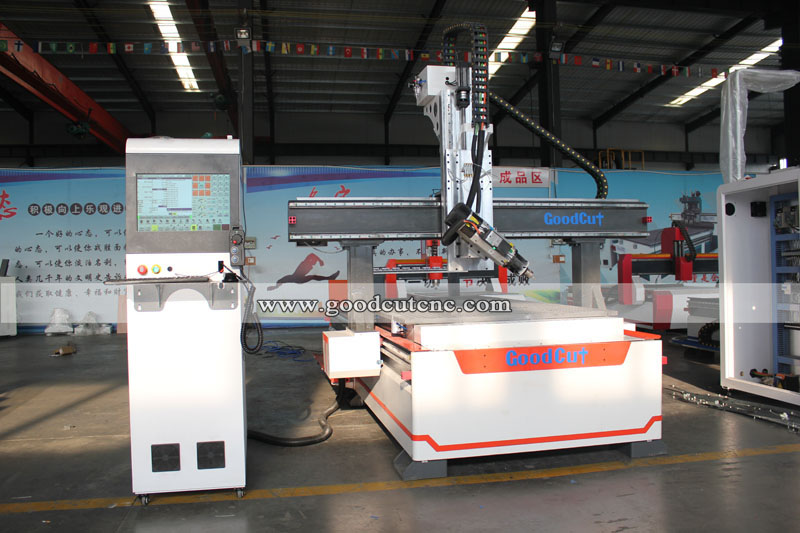

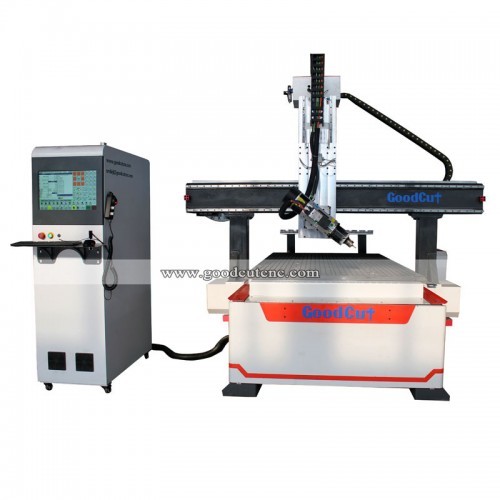

GC1325ATC Automatic Tool Changer CNC Router

12pcs linear tool magazine
Linear Automatic too changer
9kw ATC spindle

EMAIL

      <

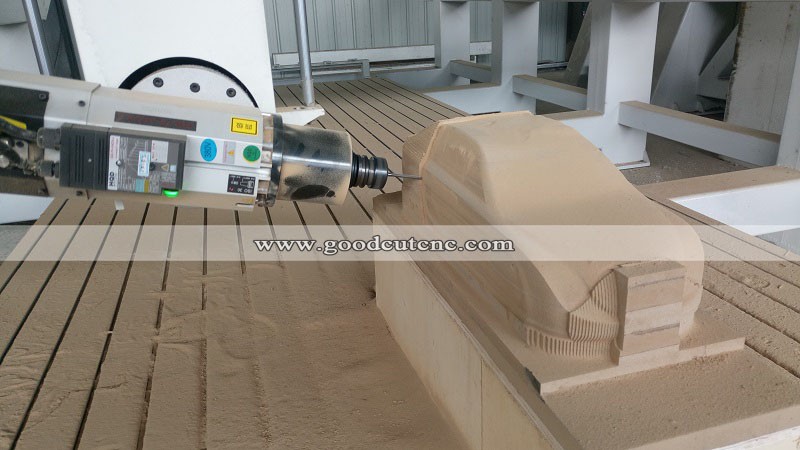

Automatic 3D Wood Carving CNC Router Woodworking Machine for Wooden Sculpture







Parameter :



Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

Structure

Industrial class square tube strong structure, heavy duty 8-10mm

Working voltage

220v, 3phase, 60HZ (or customized)

Table Surface

Vacuum and T-slot working table, 6 zones;

Spindle

Rotary spindle, 9kw Italy HSD ATC air cooling spindle, Swing -90°to +90°

Spindle speed

0-24000rpm

X, Y Structure

Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail;Dust cover for Y axis

Z Structure

Sweden ABBA #30 Linear Square Rail and TBI Ball Screw

Motor and driver

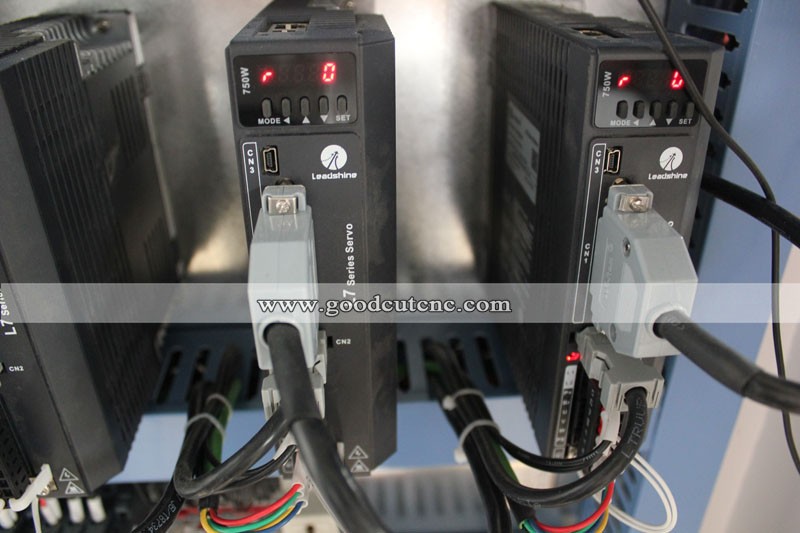

850wJapan YASKAWA servo motors and 1kw drivers

Inverter

11kw Taiwan DELTA inverter

Dust Collector

Dust collector with 2 pockets

Control System

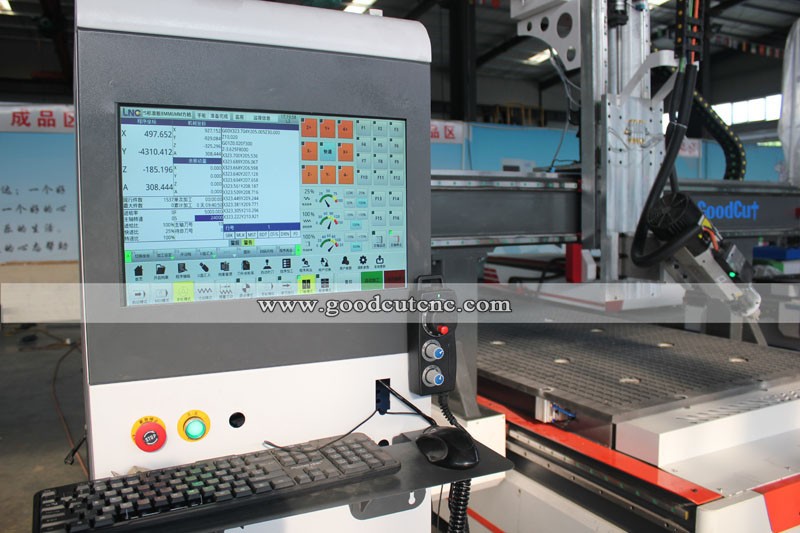

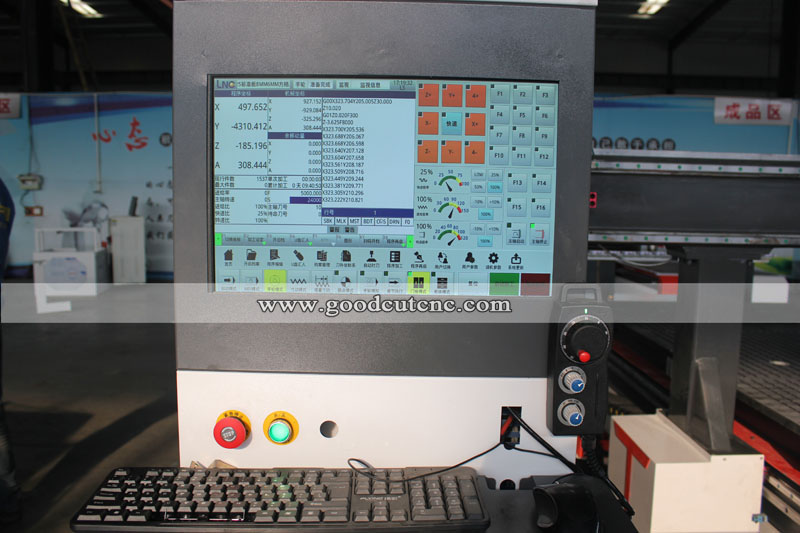

Taiwan SYNTEC 21MA 4 axis control System with handle

Vacuum pump

5.5kw Whirlpool vacuum pump

Software Compatibility

Artcam Software

Tool sensor

Automatic tool sensor calibration






Features :

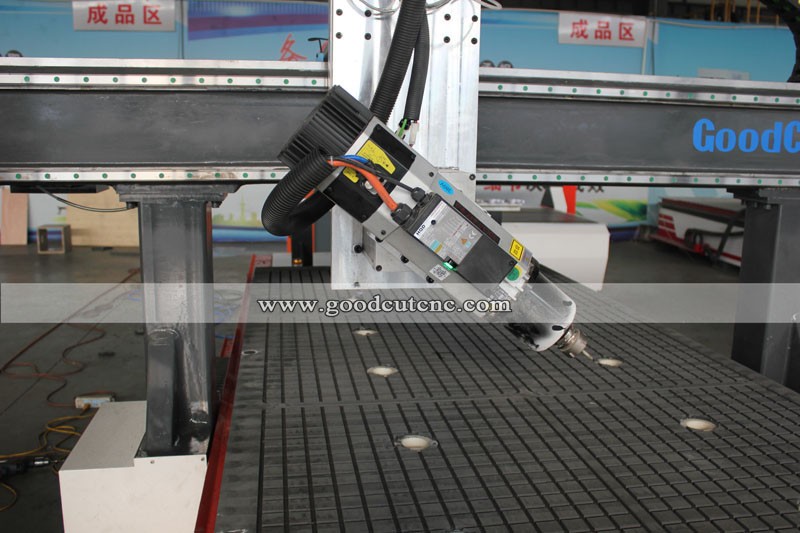

9.0kw HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry.

HSD or HQD 9KW(12 HP ) high frequency automatic tool changer spindle with 8-12 tool linear magazine



Except the spindle, we use high quality components on this machine like Japanese Yaskawa servo motors and servo drivers, Taiwan Hiwin linear rails and TBI ball screw, Taiwan Syntec 6MD control system and so on.

Maintenance free brushless Japan Yaskawa AC servo motors and drives



We also have some optional parts for you to choose: Chinese or Germany Becker vacuum pump, dust collector, mist cooling system, rotary system and so on. Some main parts on the machine can be changed according to your requirements.



Heavy bed body, the bed is treated by the furnace, not easy to deform.



With oil injection system, the drive part of the machine can be effectively lubricated.

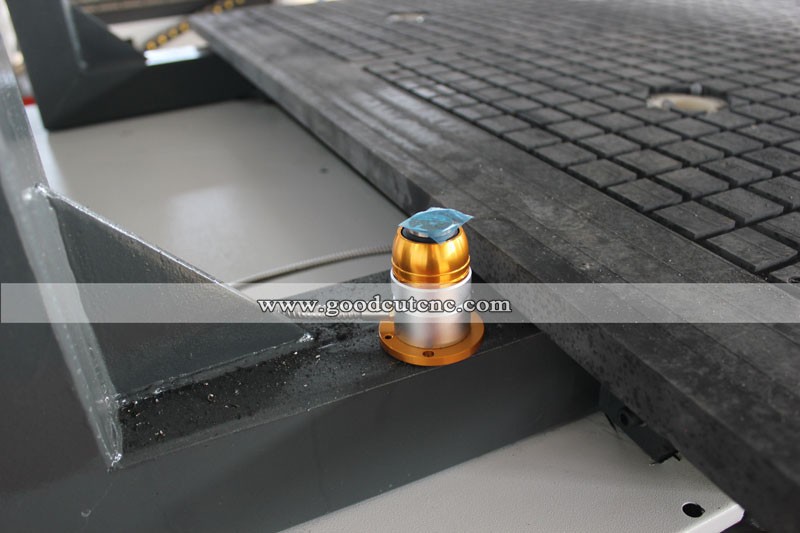

Automatic tool calibration pad


6-zone vacuum table


Pneumatic material placement stops

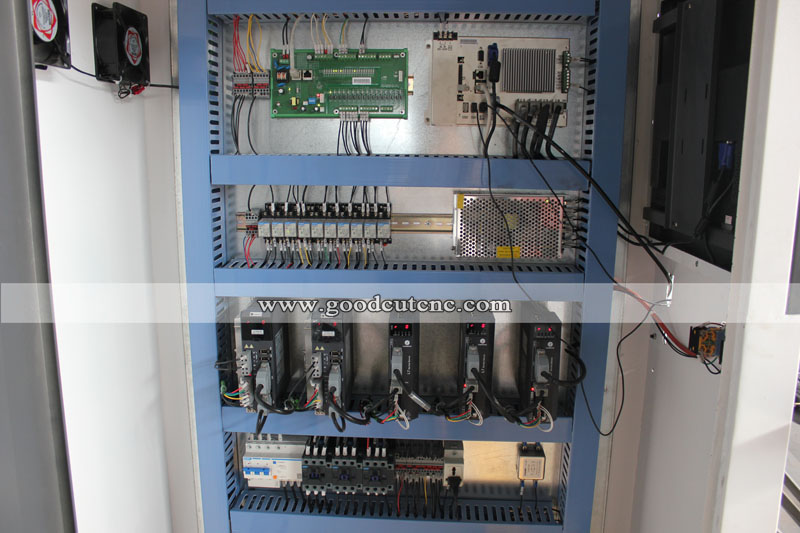

Syntec industrial AC servo controller










 This is safe protecting system.

If there is person enter the working machine, machine will alarm.
