GC-8P Automatic Beveling Torch 8 Axis Metal CNC Plasma Tube Cutting Machine For Square And Circular Pipe

63A/100A/120A/200A LGK Huayuan plasma source;
Beijing Starfire control system;
Flame cutting for option

EMAIL

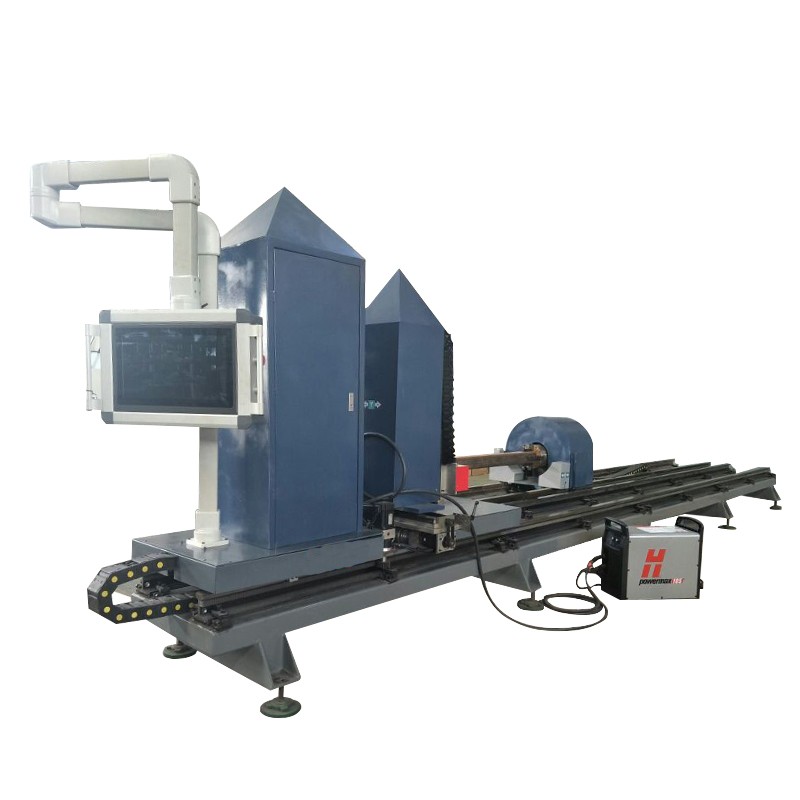

GC-8P Automatic beveling torch 8 axis metal cnc plasma tube cutting machine for Square and circular pipe


8 axis plasma (1).jpg

1.Cut shape :Round pipe , Square pipe , Rectangular pipe , H beam ,I beam , U channel , Angle channel ect

2.Cutting method :plasma /flame /plasma and flame ,it depend on the cutting thickness

3.Range :Round pipe 50-800mm

               Square pipe/ rectangular pipe /H beam / I beam /U channel /Angle  40-400mm

               Length :6m/9m/12m , it can be customized

4.Function :cutting and beveling

5.Cutting welding can be up to AWS .

8 axis plasma (2).jpg

Plasma Application of Automatic beveling torch 8 axis metal cnc plasma tube cutting machine for Square and circular pipe

1, The Frame series 8 axis CNC pipe profile cutting machine is in the form of eight axis linkage, which has high precision and excellent molding, and can greatly improve the cutting efficiency.

2, The configuration of AUTOCAD CNC system, cutting through the application of 3D space, can realize multiple, tapered, rectangular, oval tube and other special shaped pipe cutting process requirements, humanized design, simple operation, check by computer can visually understand the cutting process and precision.

3, Application: especially suitable for steel structure, shipbuilding, marine engineering, elevator industry, building curtain wall, bridge tower and construction machinery and other industries.

8 axis plasma (1).png

Model

8 axis pipe square tube CNC cutting machine

Square tube /Rectangular tube

Width 50-400mm ,Effective cutting 12m

Round pipe

Diameter 50-600mm ,Effective cutting 12m

Cutting method

Plasma+flame

Plasma power

Hypertherm 125A Plasma power

Plasma cutting thickness

1-23mm

Plasma bevel thickness

6-17mm

Flame cutting thickness

6-60mm

Flame bevel thickness

6-40mm

A axis Bevel angle

+-60 degree

B axis Bevel angle

+-55 degree

Control system

Kasry control system

Computer

Taiwan Advantech Industrial Computer

Driving motor

Japanese Panasonic Servo motor with reducer

Software

KASRY Pipe Nest software

Load

8t

Weight and size

Size

(Length *width*height) 17500*2200*2100mm

Weight

7t

Shipping

40ft container

Working condition

Working pressure of compressed gas

Above 0.7mpa

Require gas flow of plasma

4500L/H

Working environment

Ventilation ,no concussion

The acceptable temperature around

-20℃ -50℃

Voltage

Machine :220/380V ,50/60HZ

Power wattage

5KW

Types of gas

Plasma :Air ,
Flame :Oxygen+Acetylene /propane

Features:

 Plasma cutting machine has been widely used for outer frame processing of electro-mechanical products advertising signs ,decoration , garden iron art , vehicle manufacturing ,ship building , electric appliances metal plate material cutting and other industries.
Application materials : stainless steel , mild steel , brass , copper , aluminum alloy , metal sheet , spring steel , gold ,sliver etc.
Application industry : Sheet metal , Kitchenware , components , decorations industry.

8 axis .jpg

8 axis.jpg
