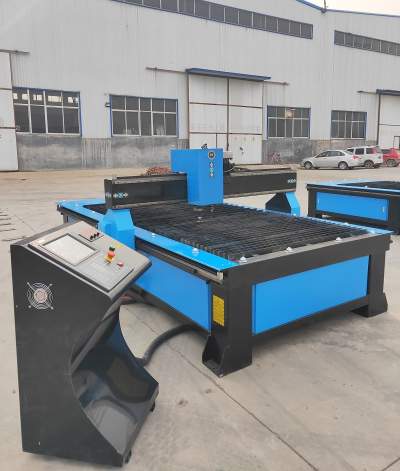

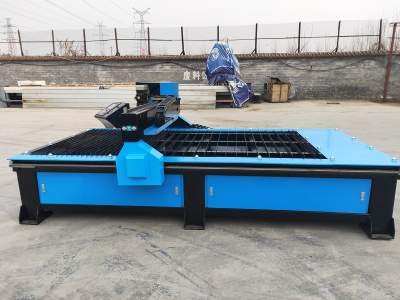

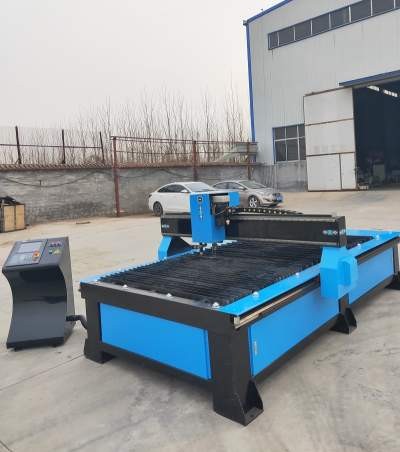

GC1530PD Plasma Cutter For Steel Metal Plate With Drilling Hole

1500*3000 mm working size
63A/100A/120A/200A LGK Huayuan plasma source;
Beijing Starfire control system;
Flame cutting for option

EMAIL

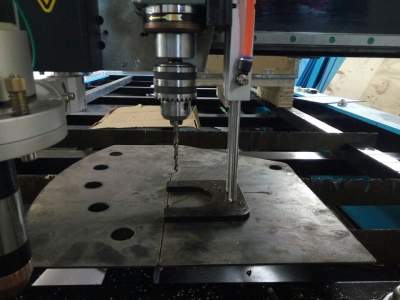

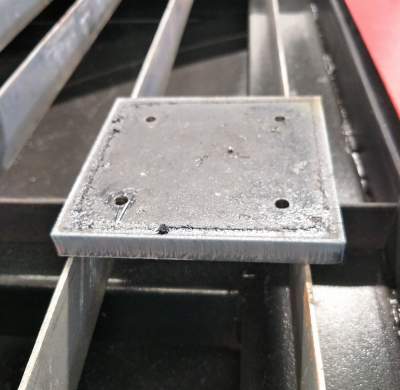

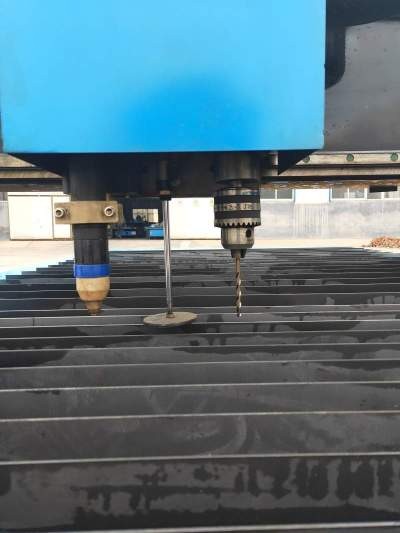

GC1530PD plasma cutter for steel metal plate with drilling hole


drilling (4).jpg

Fast cutting speed,high precision and low cost.

With firm and reasonable structure,the machine is easy to operate and durable for use.
The cutting incision is thin and tidily and can avoid the second processing.
High configurated CNC system,auto arc-striking and stable performance.
Together with other advertising equipments,they form an advertisement producing line which completely solve the problem of traditional manual mode.
Working with computer and support G code and files of Uncannest software (specilized in cutting metal material) ( Fastcam software for nesting ).
It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional).
Startfire control system and Start THC device.

drilling (6).jpg

PRODUCT PROFILE

                    Model

                    GC1530P

                    Cutting size

                    1500*3000 mm (working size can be customised)

                    Cutting metod

                    Plasma

                    Cutting speed

                    0-24000 mm/min

                     Max travel speed

                    0-50m/min

                    Cutting thickness

                    According to the power supply( 4-200mm)

                     Gas pressure

                    0.4-0.8Mpa for normal plasma power

                    Drive system

                    Dual drive

                   Motor

                     Stepper  Motor and driver /Servo (Optional)

                    X, Y axis

                    High Quality Rack & Pinion and Taiwan linear rail

                    Auto ignition

                          AR235

                    Voltage

                    220V/380V

                    Power

                    63A/100A/120A/160A/200A

                    Control System

                    START/STARFIRE

drilling (1).jpg

drilling (2).jpg

Features:

Application:

Advertising industry, arts and handicrafts cutting,  kinds of metallic materials, such as Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.

Applicatable industries:

Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.

Metal Cutting Materials:

All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed.  Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal
