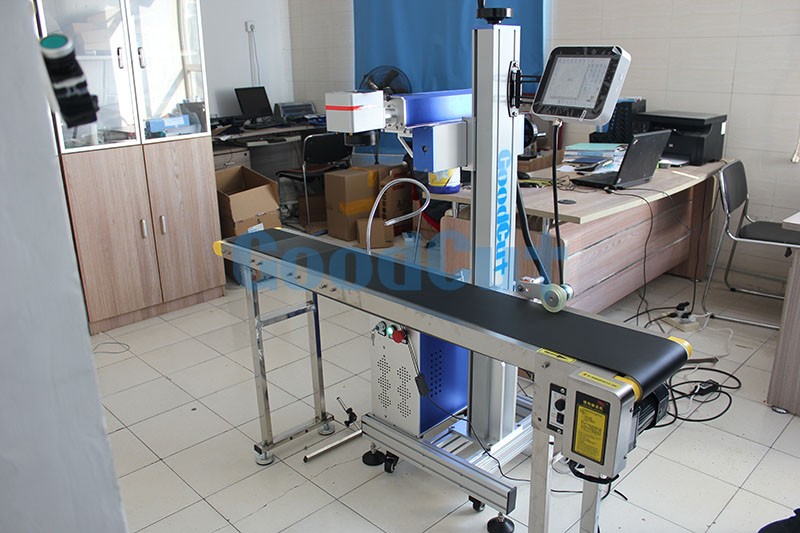

Fly Fiber Laser Marking Machine with Conveyor Belt

Mahing size: 110mm*110mm
Laser power: 30W/ 50W
Laser sources: Raycus, Germany IPG
Process material: metal and part of nonmetal
Product description: metal marking machine Raycus/ IPG 30w/ 50w marking machine

EMAIL

GC1010 Raycus Fiber Laser Marking Machine for for Metal and Plastic Products


Belt transmission and Fly marking for production line plastic metal

 tell us your requirement, we offer customized Fiber laser marking machine conveyor belt for high-efficiency mass production

Easy to operation and mark for metal , stainless steel for series number , production date

Main features of fiber laser marking machine:

1. Fiber laser(German IPG brand or China fiber laser optional)

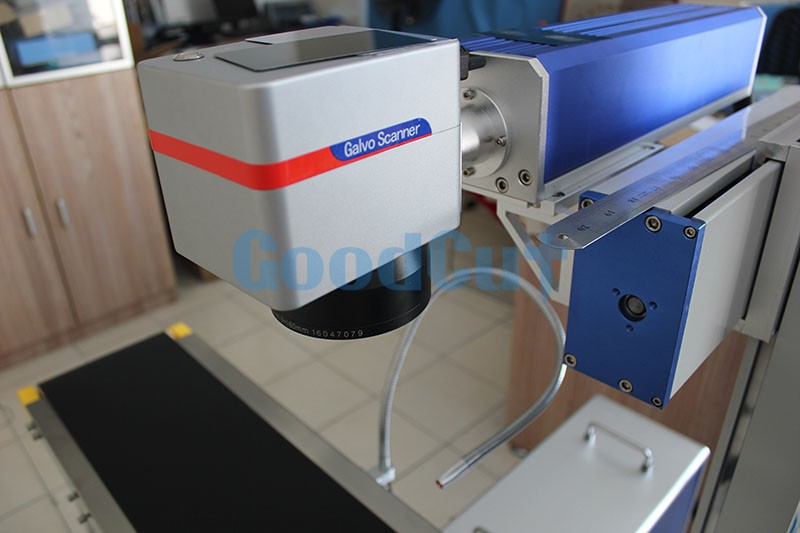

2. High speed galvo scanner(import or china brand optional)

3. No maintenance laser source: service time 100,000 hours.

4. Higher precision,faster speed

5. Small size,low power consumption

6. Red light preview:show the marking position before laser

7. Notebook with Powerful software

8. User friendly interface, easy operation

Model

GC-FD20

GC-FD30

GC-FD50

GC-FD100

Laser power

20W

30W

50W

100W

Wave length of laser

1064nm

Marking scope

110*110mm 150*150mm 175*175mm 200*200mm 300*300mm  Optional

Laser repetition frequency

20kHz~100kHz

Laser sources

Fiber module

Marking Line width

0.01-0.1mm

Laser Head

Scanning head

Repeated accuracy

0.0025mm

Process Material

All kinds of metal and part of Non-metal Materials

Marking Depth

0.01-0.2mm(adjustable depending on materials)

Marking Speed

≤7ooomm/s

Power supply

220V/50Hz/500W

Cooling ways

Force-air Cooling

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Package size

0.58*0.93*0.85 m

Gross Weight

80KGS


GoodCut is known for the high quality of the marks we produce, and these samples from GoodCut Fiber Lasers showcase some of the common applications that highlight its capabilities. Fiber lasers can be used for a wide variety of applications, from industrial traceability to branding, on materials such as steel, copper, aluminum, plastic, ceramic, and brass.

Mobile phone keypads, non-opaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc

marking (2).jpg

marking (1).jpg
