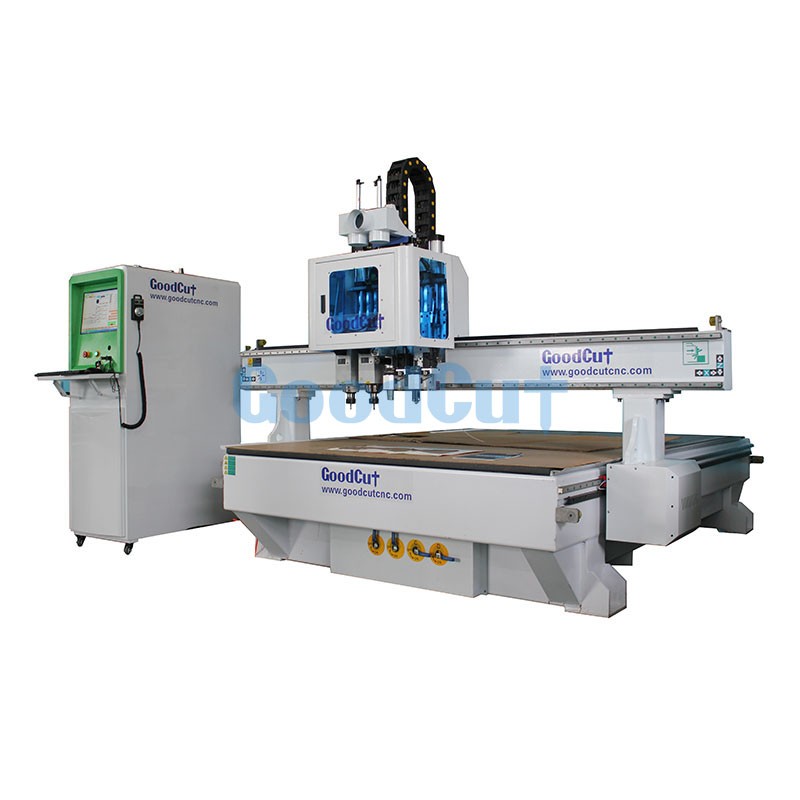

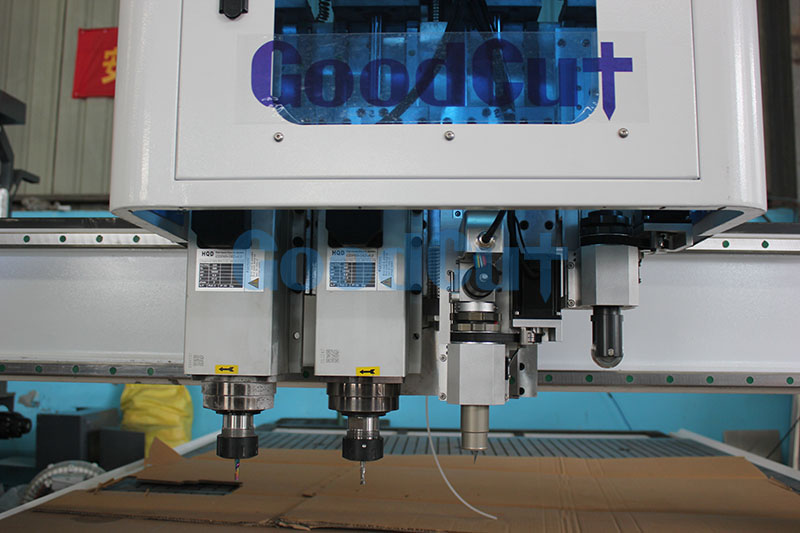

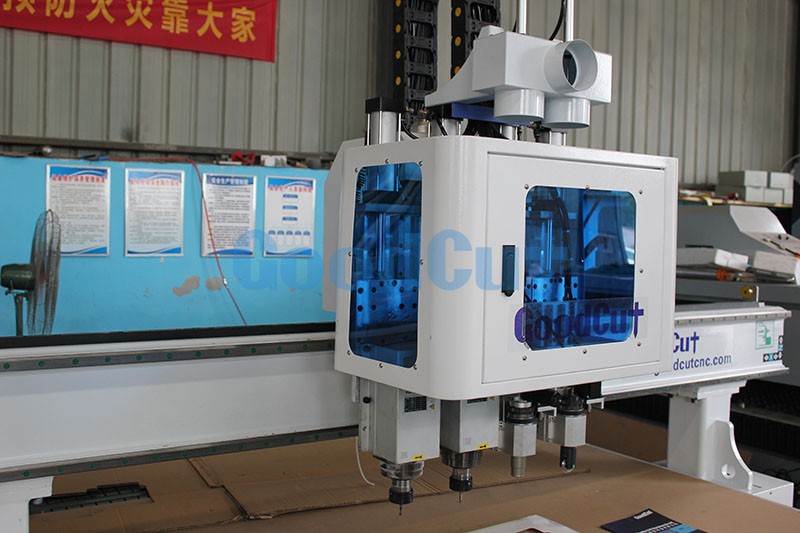

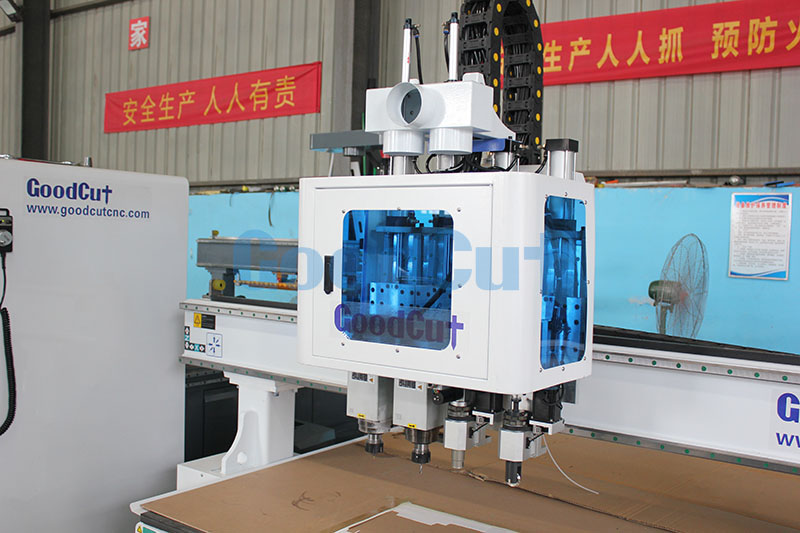

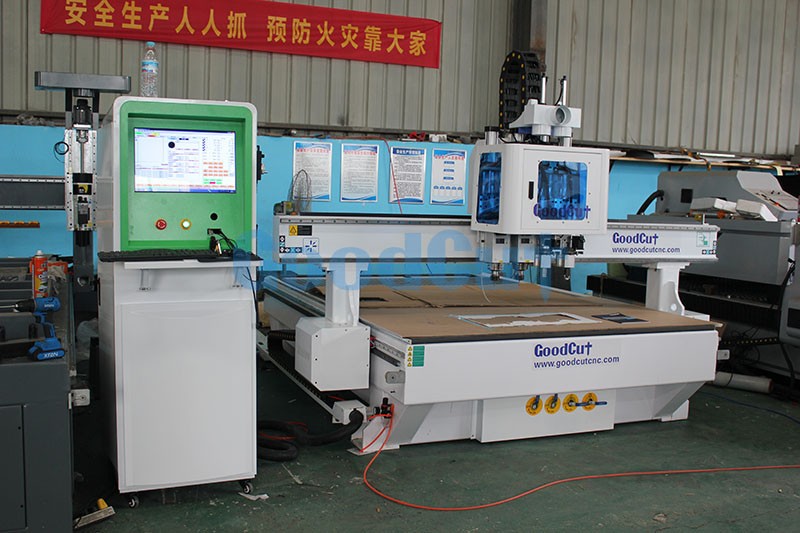

GC1625 Oscillating Knife Cutting Machine with cnc router

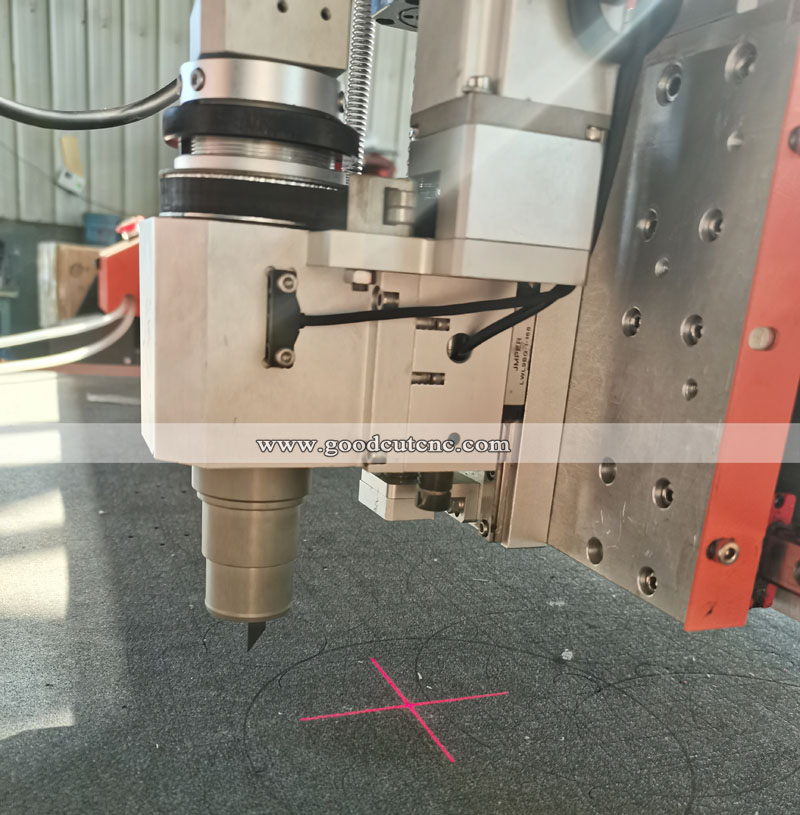

Oscillating Knife

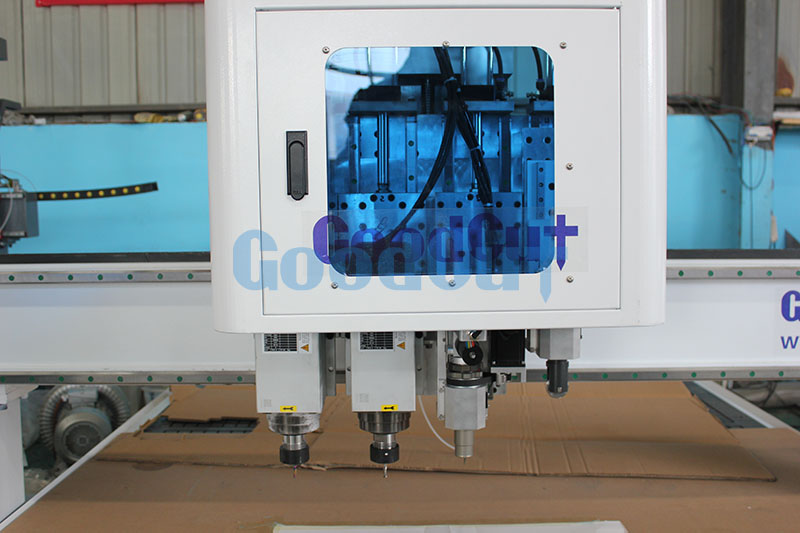

Multiple cutting knives
High speed
Good price
Product description: Oscillating Knife with multi cutting knives
with cnc router

EMAIL

GC1625 Oscillating Knife Cutting Machine with cnc router

Working area

1600mm*2500mm

Pinch roller

Pinch roller for carton

Movement speed

1200mm/s

Cutting speed

Max. 800mm/s (set according to different material)

Computer interface

USB

Capacity

4GB

Fixed mode

High power vacuum absorption and intellectual partition

Vacuum pump

7.5kw

Safety device

Using infrared sensors, responsive, safe and reliable.

Tool configuration

Standard vibration multiple cutting knives

Drive system

Rack and pinion transmission, AC servo motor, PMI linear guide

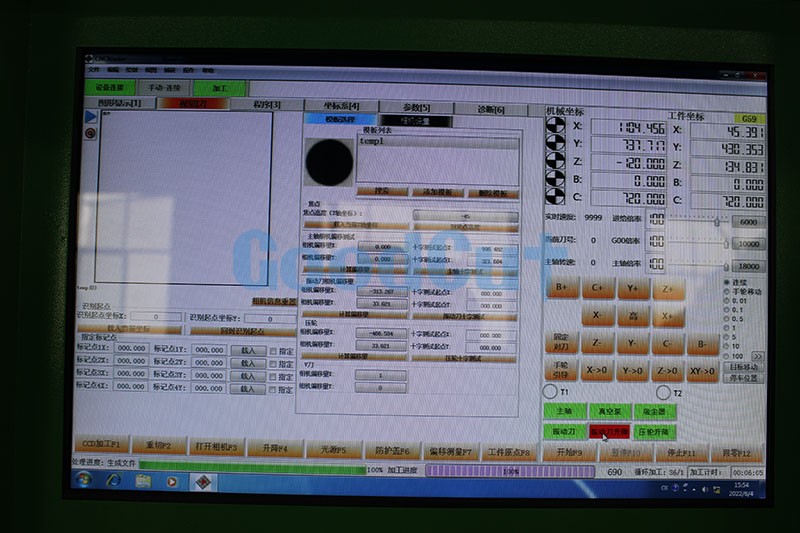

Control system

Shenzhen Trocen, digit RISC core cpu + large scale programmable logic array

Operate mode

operation platform + data output control software (operation platform can be divided into connected and separated parts)

Display mode

Chinese and English liquid touch screen

Data transmission method

Ethernet

Cutting materials

Leather, corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey board, paperboard, car sticker, adhesive Sticker, etc

Working voltage

380V, 50/60HZ, 3 phase

Rated power

12kw

Environment temperature

0-45 centigrade

Max travel speed

800-1200mm/s

Max. working speed

500-800mm/s(according to different cutting materials)

Traveling positioning accuracy

≤0.02mm

Repositioning accuracy

≤0.01mm

Instruction system

HP-GL compatible format

Certificate

CE



Feature:

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

2. The high precision CNC oscillating knife cutter can induce draft separately and easily cut small pieces.

3. The anti-collision and the built in autosensing device ensure the security of CNC oscillating knife cutter.

4. High efficiency can be realized without making a high-cost knife model.

5. The high precision CNC oscillating knife cutter is designed for production with small quantities and can save on costs while maintaining speed and accuracy.

6. The machine cuts by knife, no burning, no pollution gases generated.




Application:

1)Sofa, seat, car seat cover, car floor mat, car carpet, luggage, handbag and other industries.
2)It is applicable to shoe industry, clothing industry, composite material industry, luggage industry, automobile industry
3)Advertising and printing industry, electronic industry, decoration industry, furniture industry, etc.
