FreeScan UE11 Blue Laser Handheld 3D Scanner for Reverse Engineering

Scan Accuracy: Up to 0.02mm
Scan Speed: 1,020,000 points/s
Light Source: 22 lines +1 line blue laser
Volumetric Accuracy with DigiMetric: 0.02 mm + 0.025 mm/m
Weight:670g

EMAIL

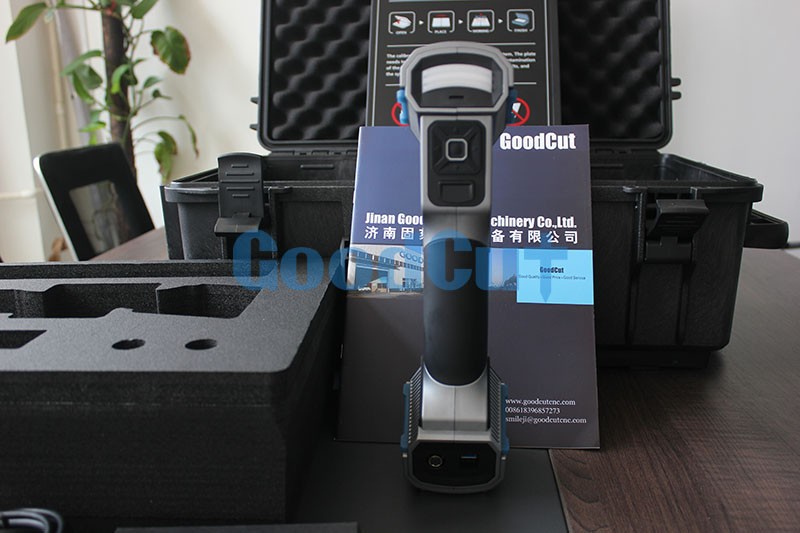

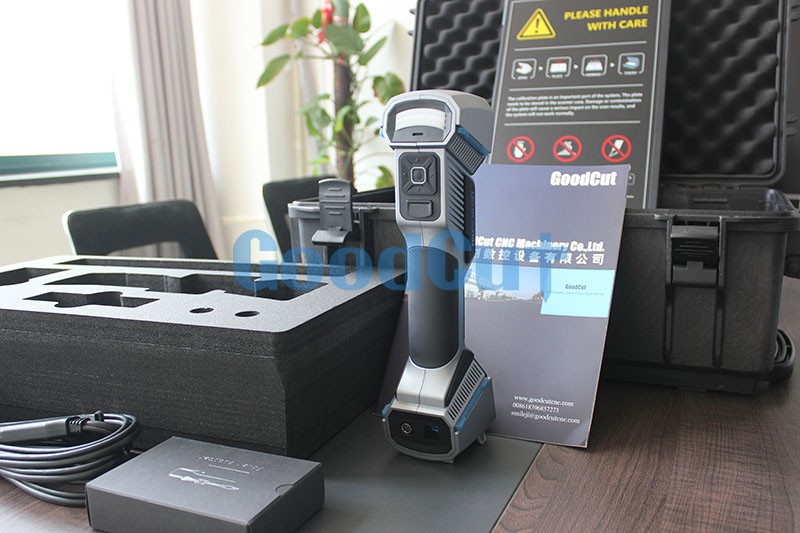

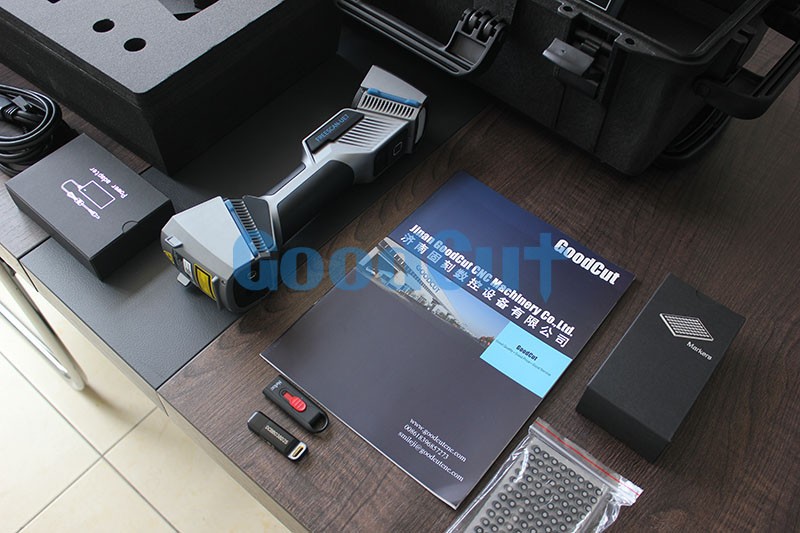

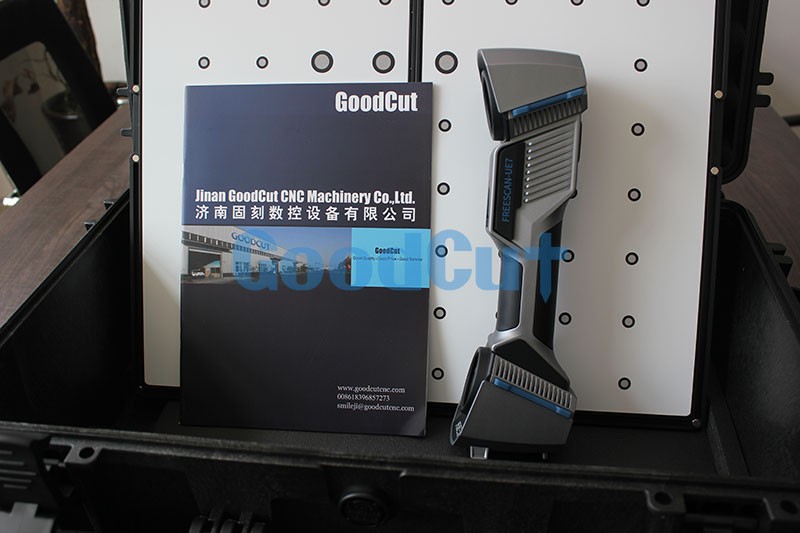

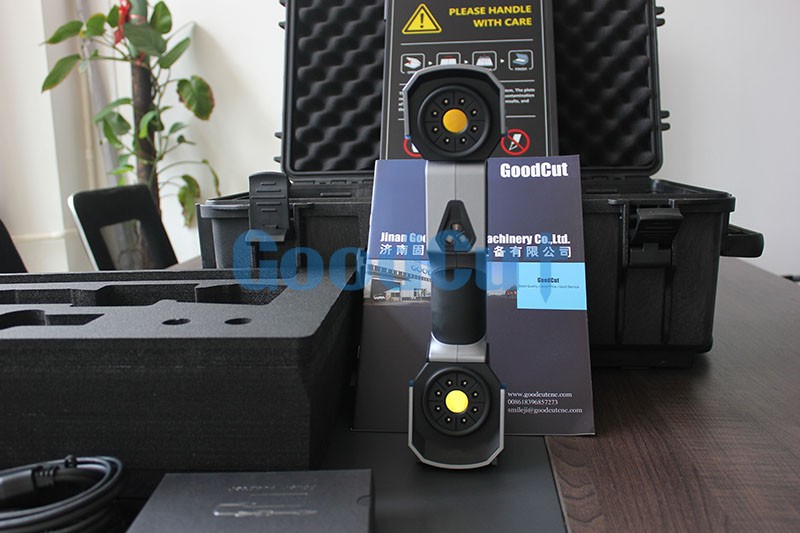

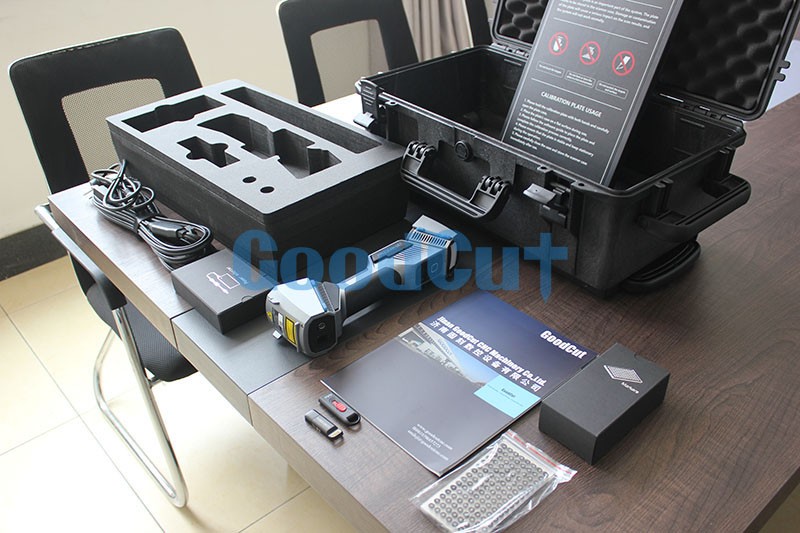

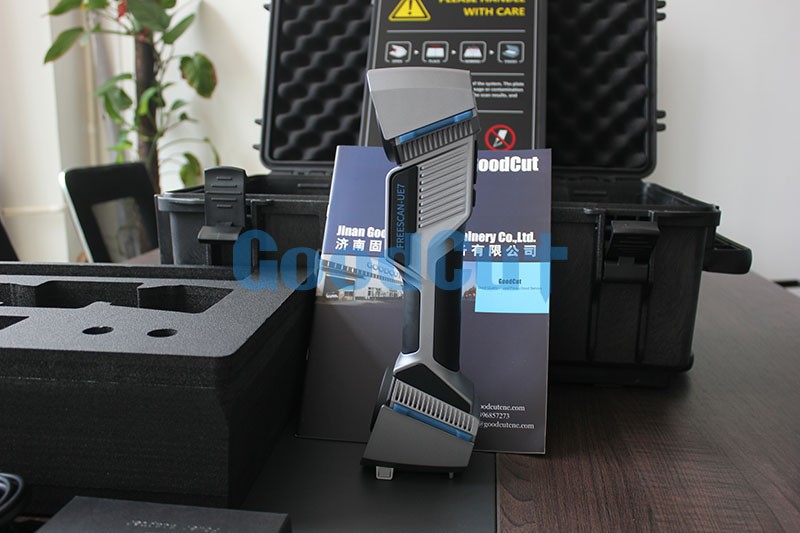

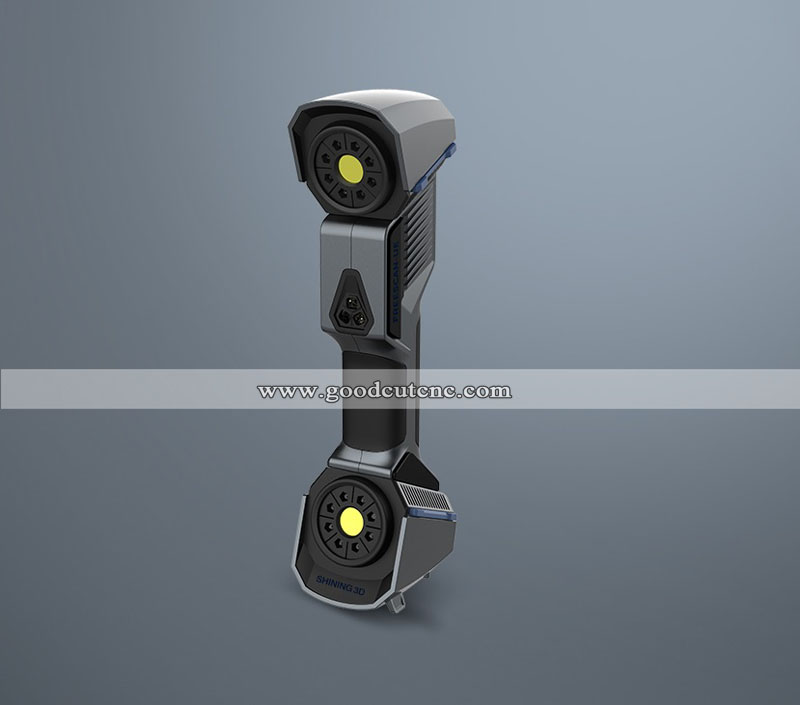

FreeScan UE11 Blue Laser Handheld 3D Scanner for reverse engineering

Factory directly supply  FreeScan UE 11 Blue Laser Handheld 3D Scanner for reverse engineering



Easy operation FreeScan UE Blue Laser Handheld 3D Scanner :

As the blue laser handheld 3D scanner of the FreeScan series, FreeScan UE inherits the iconic features of "high accuracy" and "high precision". At the same time ergonomic and lightweight equipment design, make it easier to hold and operate, providing metrology-grade, high-accuracy inspection solutions for the automotive, transportation, aerospace industry, moulding inspection, energy generation, machinery manufacturing and etc.

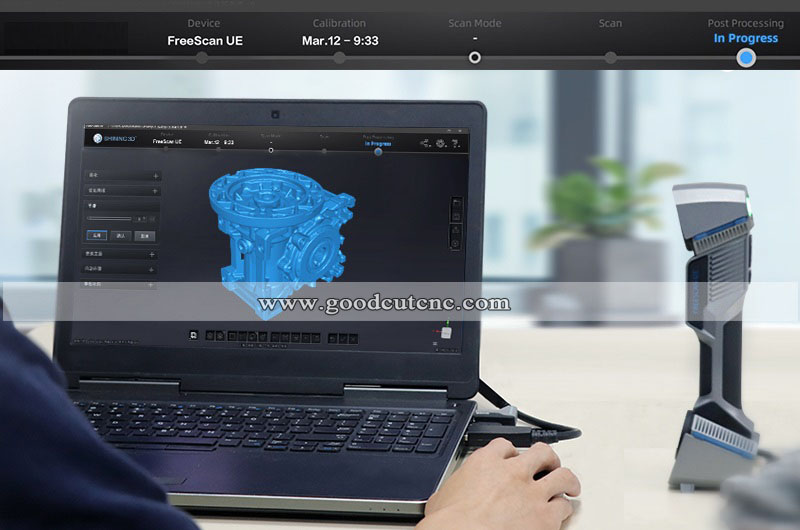

Factory directly supply  FreeScan UE 11 Blue Laser Handheld 3D Scanner for reverse engineering

Factory directly supply  FreeScan UE 11 Blue Laser Handheld 3D Scanner for reverse engineering

Parameter of Easy operation FreeScan UE Blue Laser Handheld 3D Scanner :

Product Model

FreeScan UE11

Scan Mode

Multiple Lines Scan, Single Line Scan

Scan Accuracy

Up to 0.02mm

Volumetric Accuracy

0.02 mm+0.04 mm/m

Volumetric Accuracy with
DigiMetric*

0.02 mm + 0.025 mm/m

Scan Speed

1,020,000 points/s

Working Distance

500mm

Scan Depth
(Depth of Field)

300mm-700mm

Max. Scan Range

510mm x 520mm

Point Distance

0.05mm-3mm

Light Source

22 lines +1 line blue laser

Laser Class

Class 2M (eye safe)

Connection Standard

USB 3.0

Dimensions

298mm x 90mm x 74.5mm

Weight

670g

Powering

DC: 12V, 5.0A

Operating Temperature Range

0 °C-40 °C

Operating Humidity Range

10%-90%

Certifications

CE, FCC, ROHS, WEEE

Inspection Module

Compatible with multiple inspection software

solutions such as EINSENSE Q, Geomagic Control
X/Control X Essentials, Polyworks, Catia etc.

Output Formats

OBJ ; STL ; ASC ; PLY ; P3 ; 3MF

Data Compatibility Software

3D System (Geomagic Solutions), InnovMetric Software

(PolyWorks), Dassault Systemes

(CATIA V5 & SolidWorks),

PTC (Pro/ENGINEER),

Siemens (NX & Solid Edge), Autodesk

 (Inventor, Alias, 3ds Max, Maya, Softimage) etc.

Recommended Computer Configuration

OS: Win10, 64 bit; Graphics Card: NVIDIA GTX/RTX

seriescards, higher or equal to

GTX 1080; GPU Memory: ≥4G; Processor: I7-8700;

 Memory: ≥32GB

Features of Easy operation FreeScan UE Blue Laser Handheld 3D Scanner :

Metrology-class high accuracy

Accuracy up to 0.02mm, Volumetric accuracy 0.02mm+0.04mm/m.

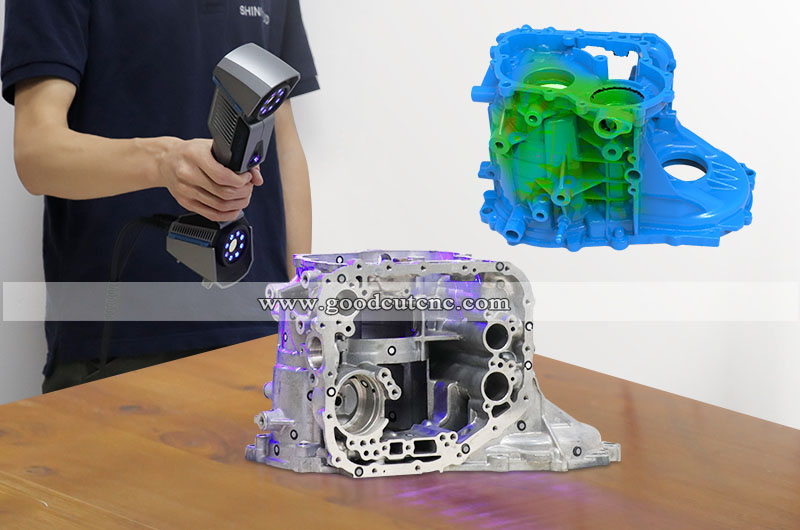

Factory directly supply  FreeScan UE 11 Blue Laser Handheld 3D Scanner for reverse engineering

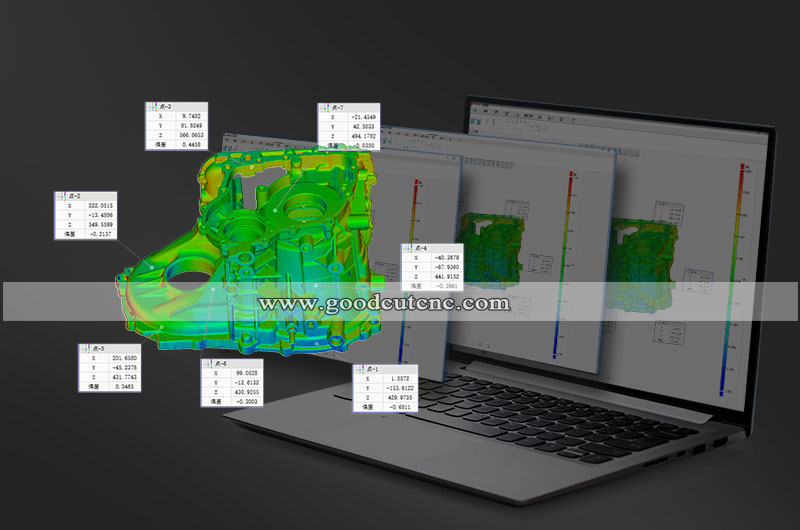

Stability of repetitive measurement

When measuring the same workpiece repeatedly, FreeScan UE delivers consistent results, proving stability and reliability.

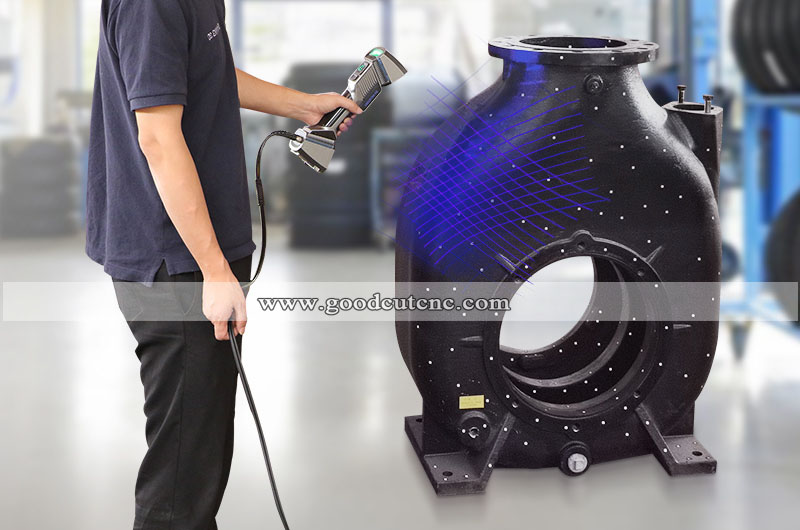

Factory directly supply  FreeScan UE 11 Blue Laser Handheld 3D Scanner for reverse engineering

Portable and lightweighted

The device weights only 750g, facilitating handheld scanning more easily and avoiding fatigue due to long working time.

Factory directly supply  FreeScan UE 11 Blue Laser Handheld 3D Scanner for reverse engineering

Wide range of material adaptations

Supporting the scan of black and reflective surfaces to accommodate a wider range of scanning applications.

Factory directly supply  FreeScan UE 11 Blue Laser Handheld 3D Scanner for reverse engineering
