GoodCut FreeScan Trio 3D Laser scanner With 0.02mm Accuracy

GoodCut FreeScan Trio 3D Laser scanner With 0.02mm Accuracy

Scan Accuracy Up to 0.02mm
Scan Speed Up to 3,010,000 points/s
Laser scanning
Scan depth: 360mm

GoodCut FreeScan Trio 3D Laser scanner With 0.02mm Accuracy

World's First Marker-Free Handheld Laser 3D Scanner

Accuracy of 0.02 mm with markers

Speed up to 3,010,000 points/s

Three 5 megapixel cameras

4 scanning modes and built-in photogrammetry

Intelligent Self-Positioning Technology

No Markers Scan Mode

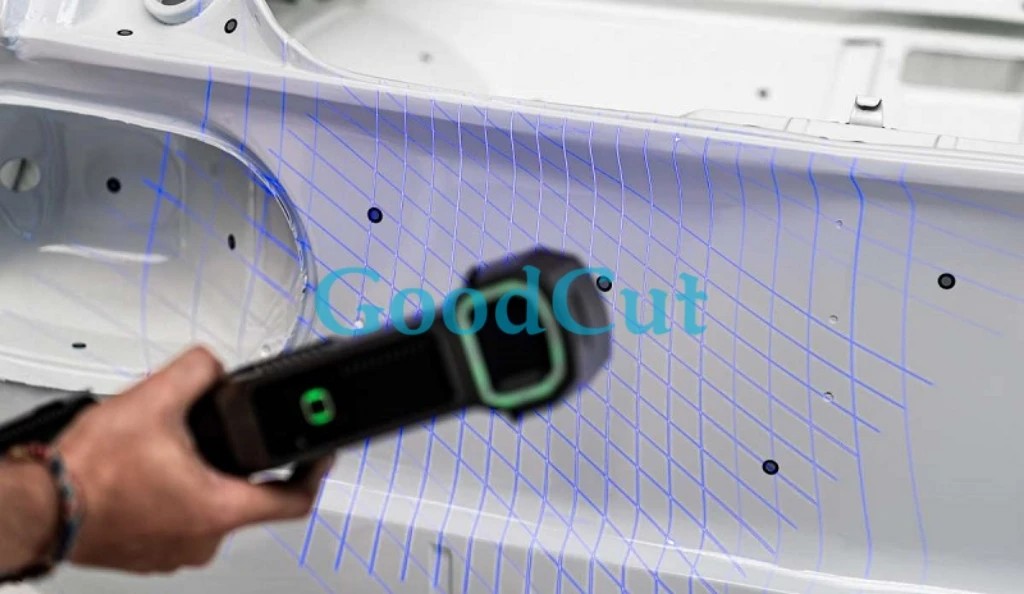

FreeScan Trio introduces advanced intelligent self-positioning technology to streamline the scanning process. With 98 laser lines, it eliminates the need for markers, and achieves a fast scan speed of up to 3,010,000 points per second.

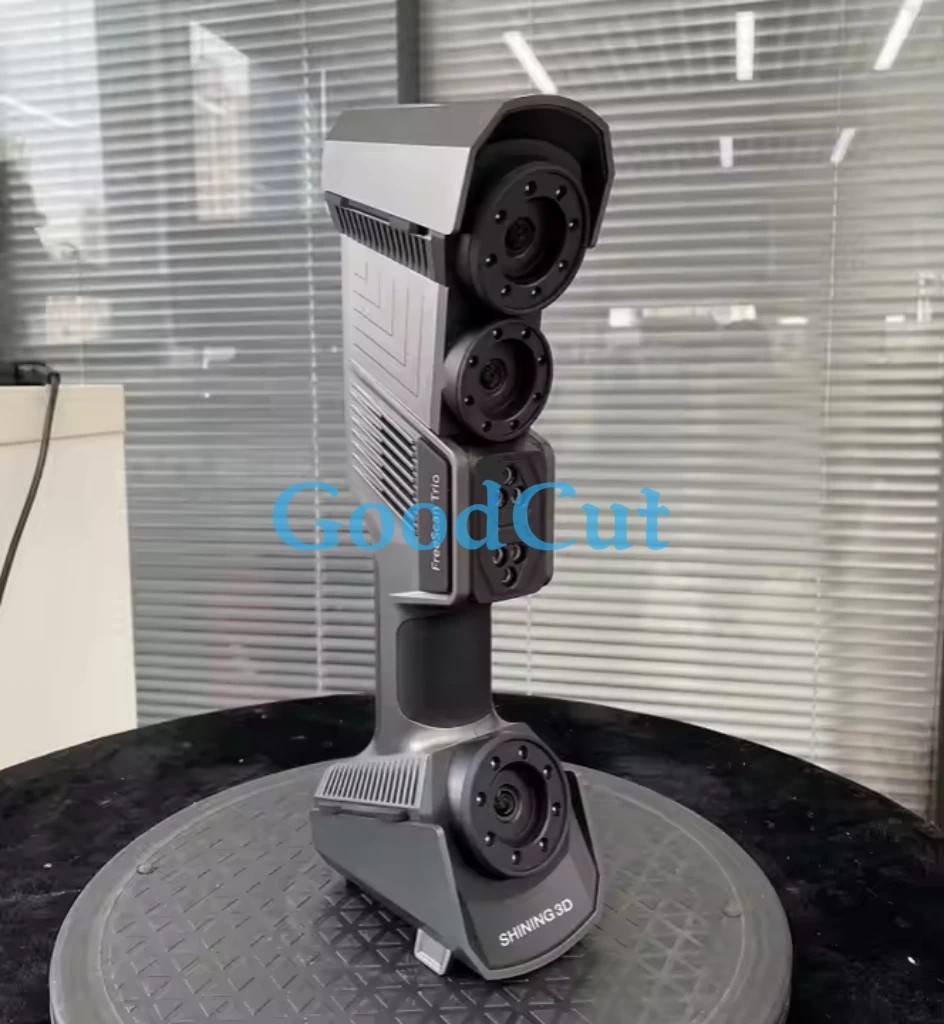

3 Industrial 5MP Cameras

With three industrial cameras, each wielding 5MP, FreeScan Trio brings out the most elaborate details and high-quality 3D data.

Perfect High Details Capture

FreeScan Trio delivers exceptional high-details capture, ensuring intricate data acquisition with or without markers.

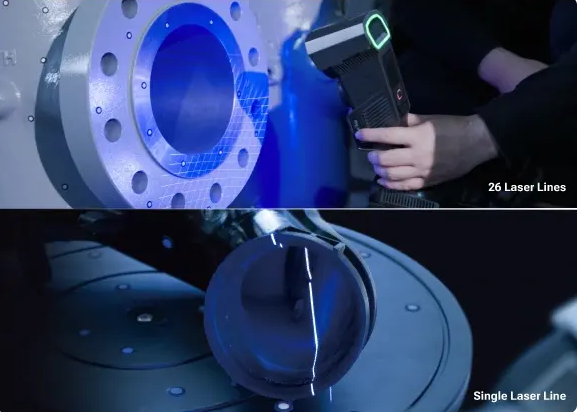

Deep Hole Mode

Both 26 and single laser lines of FreeScan Trio are capable of scanning holes, deep pockets and fin walls, thanks to its optimized camera angles and advanced scanning modes.
