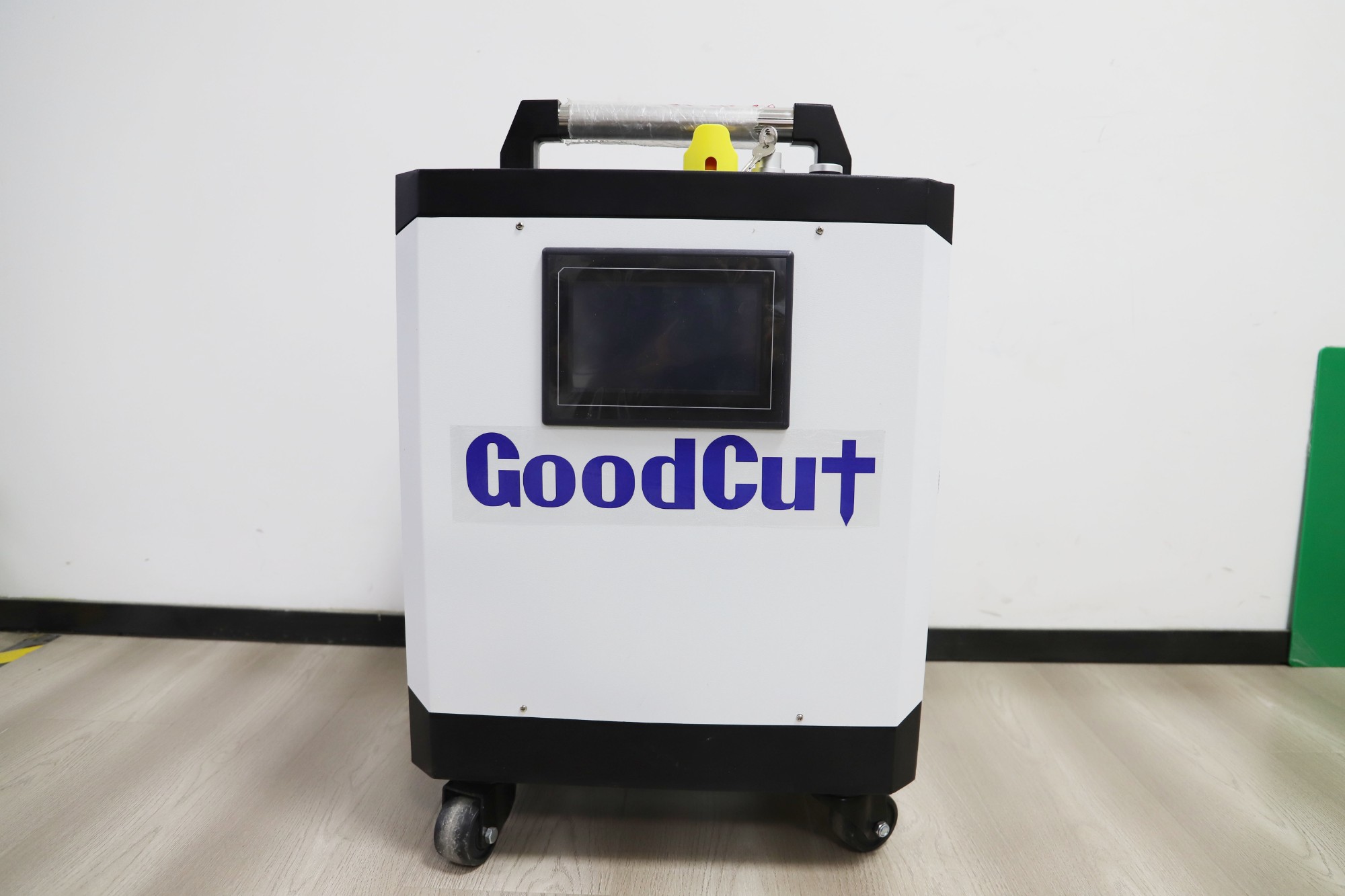

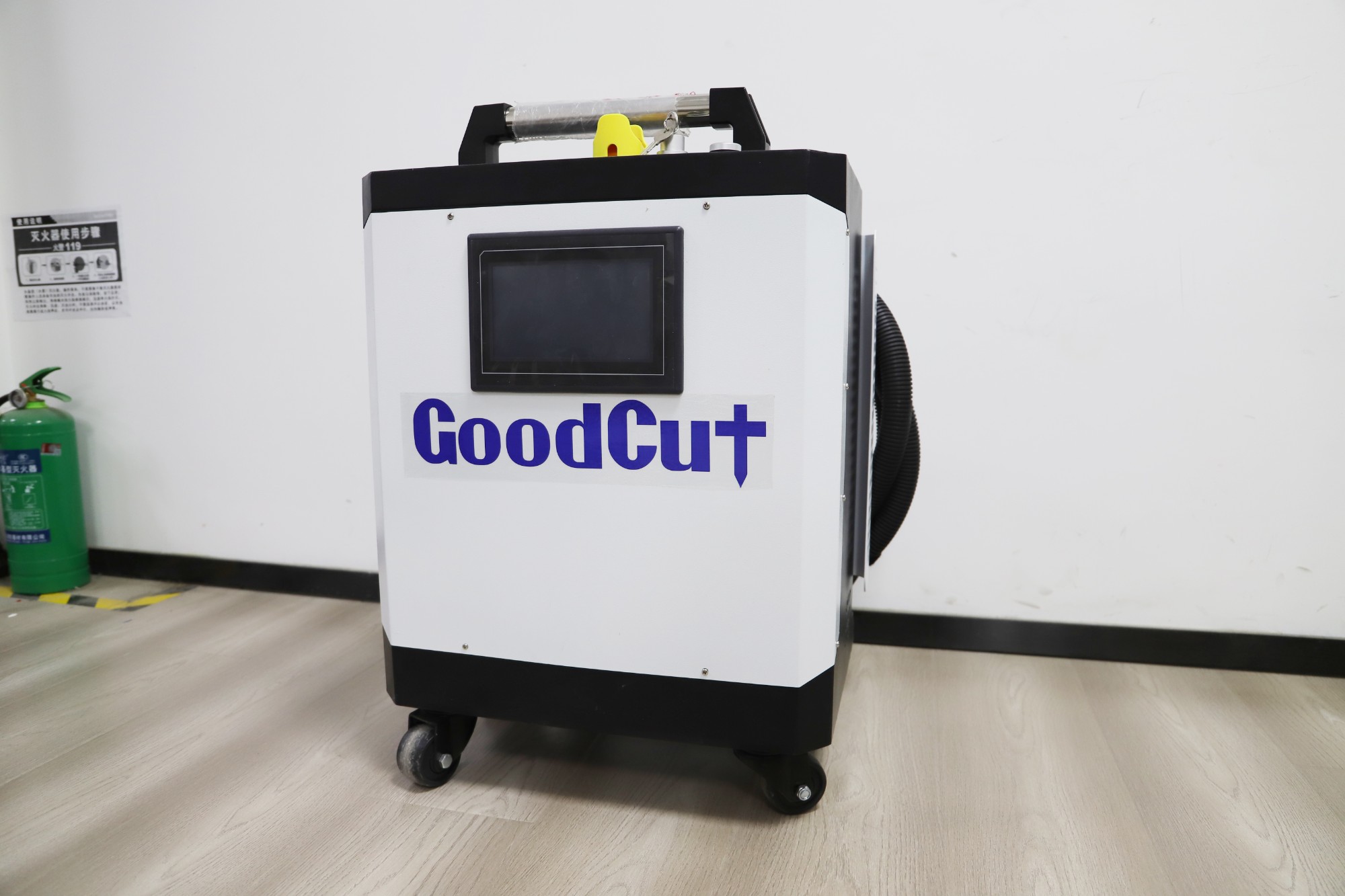

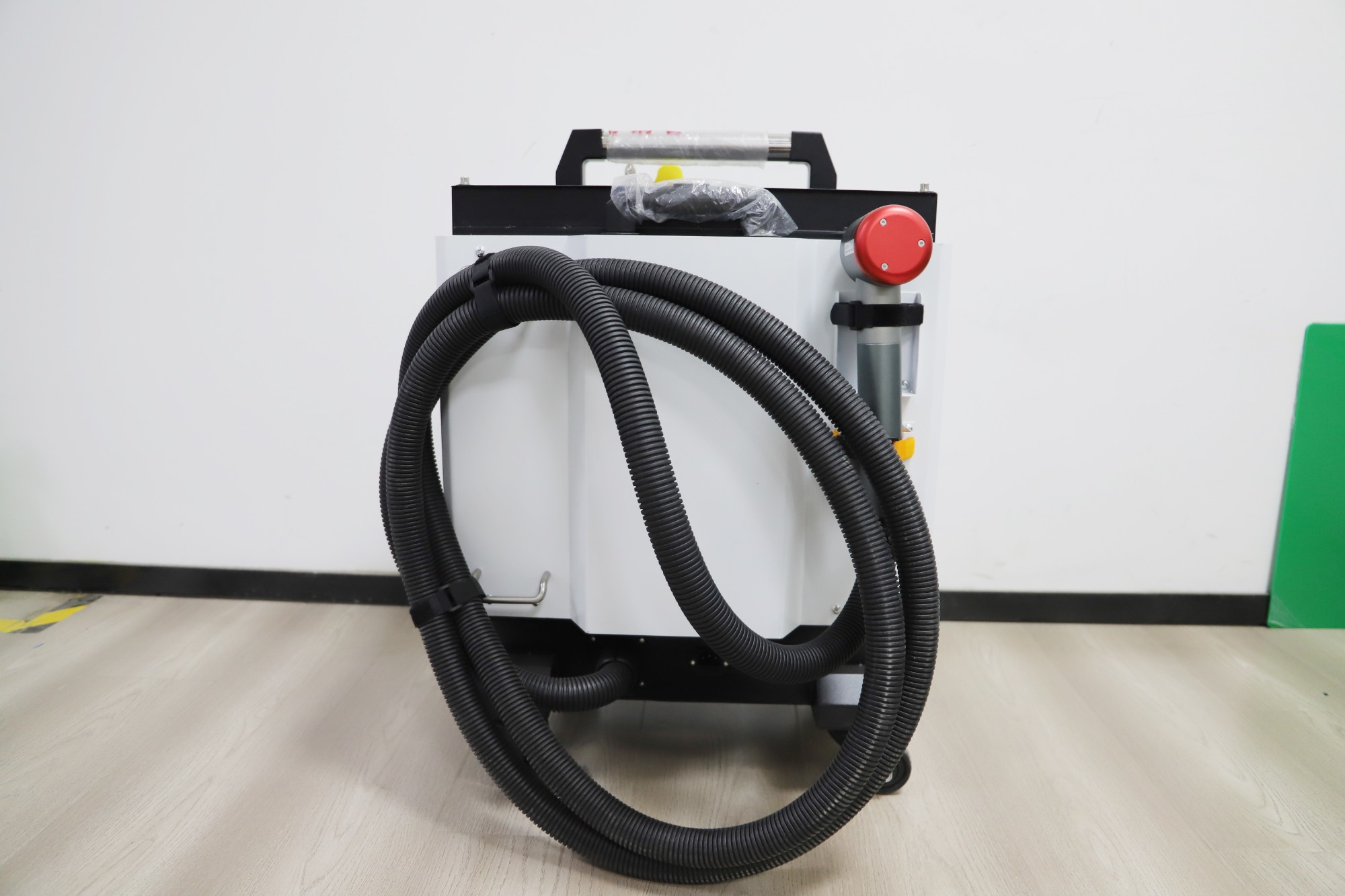

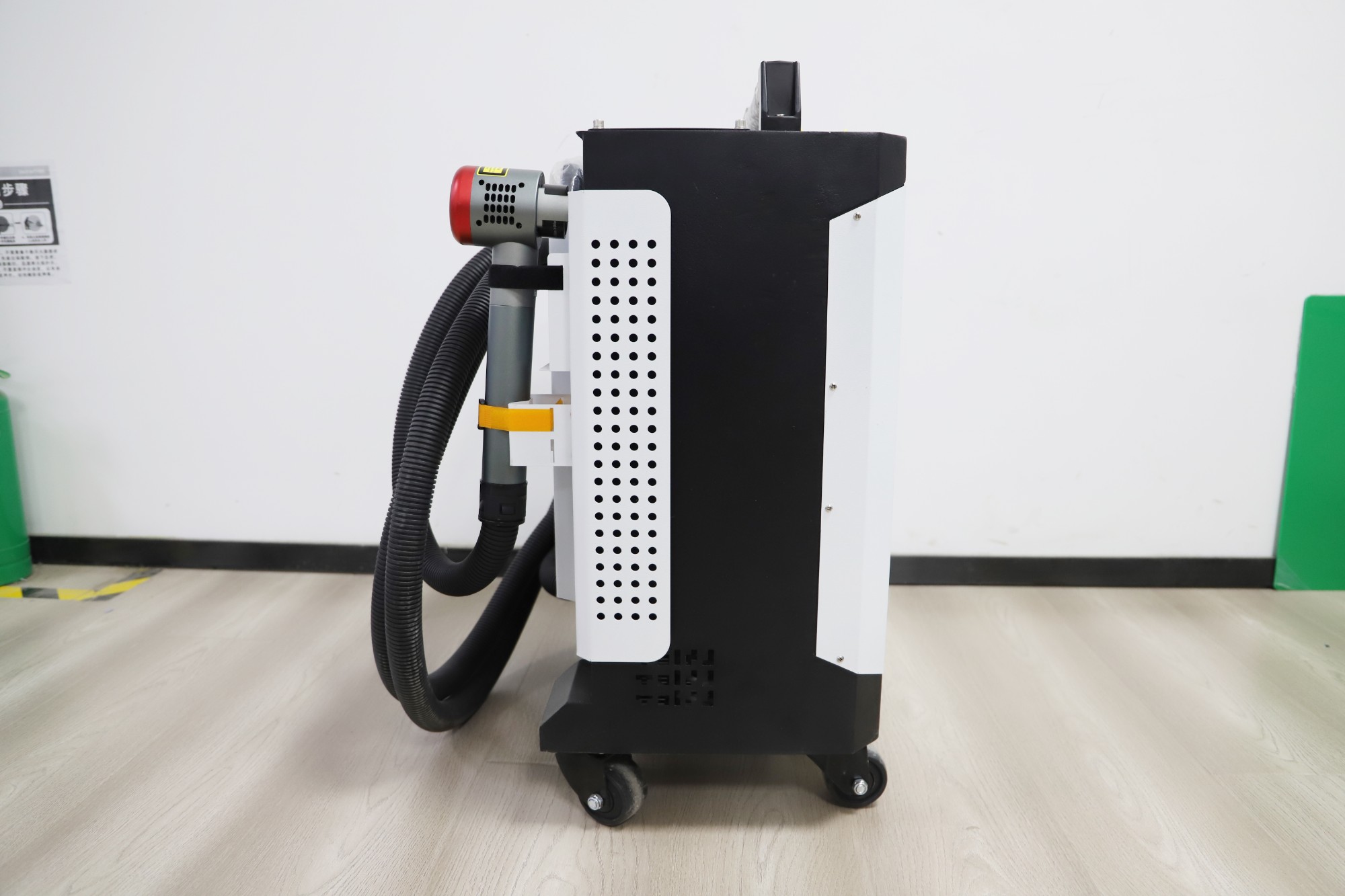

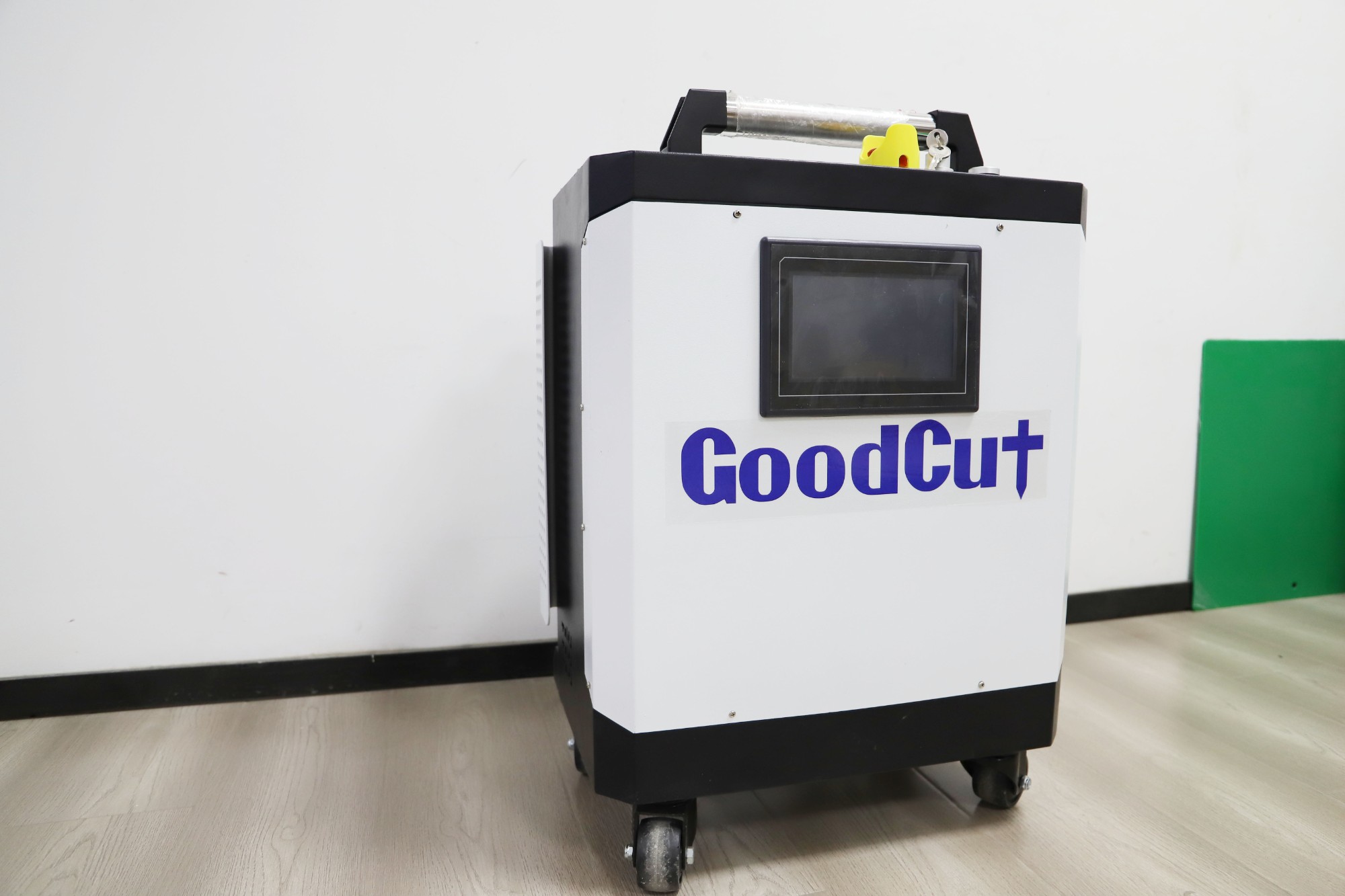

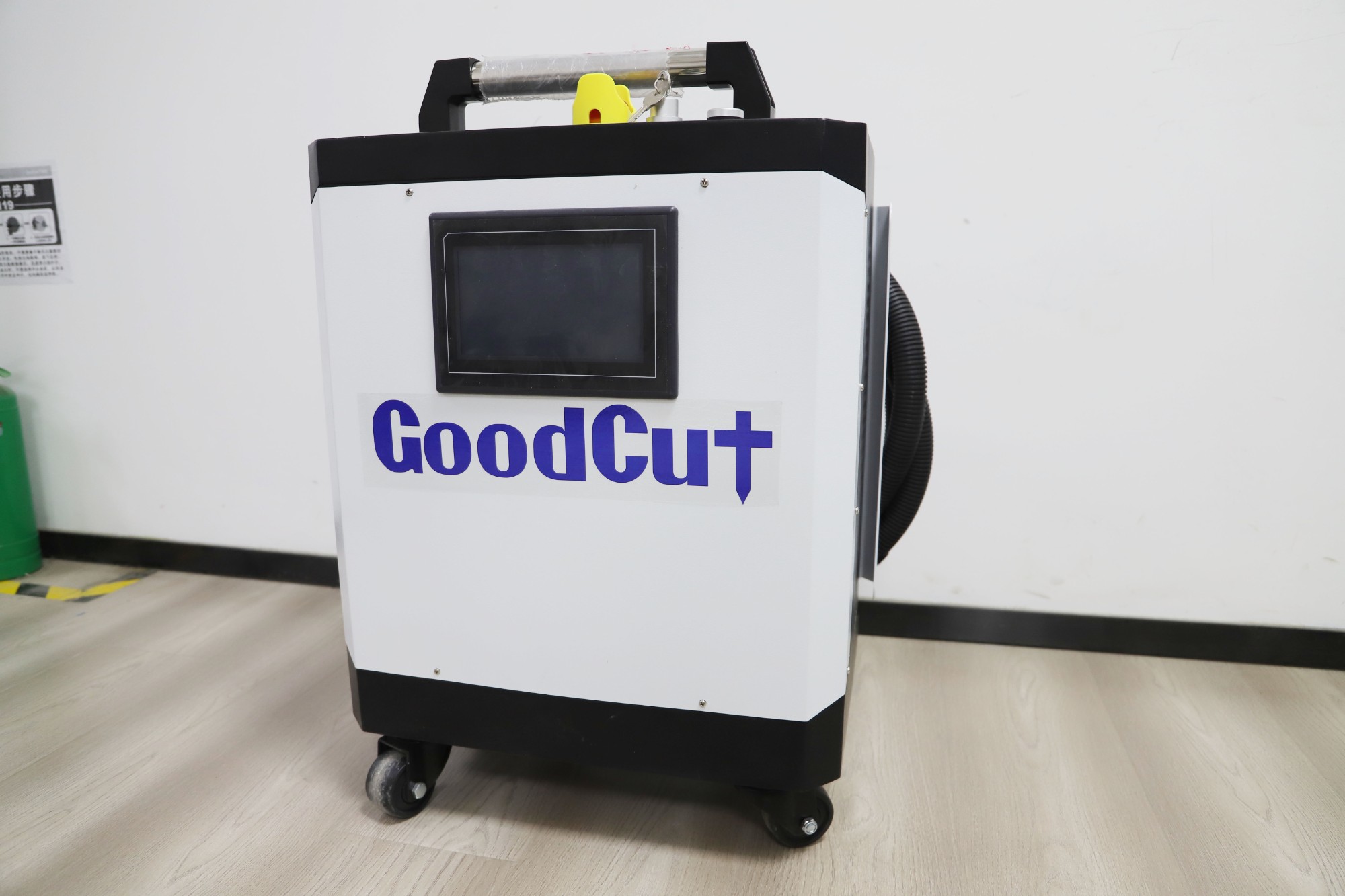

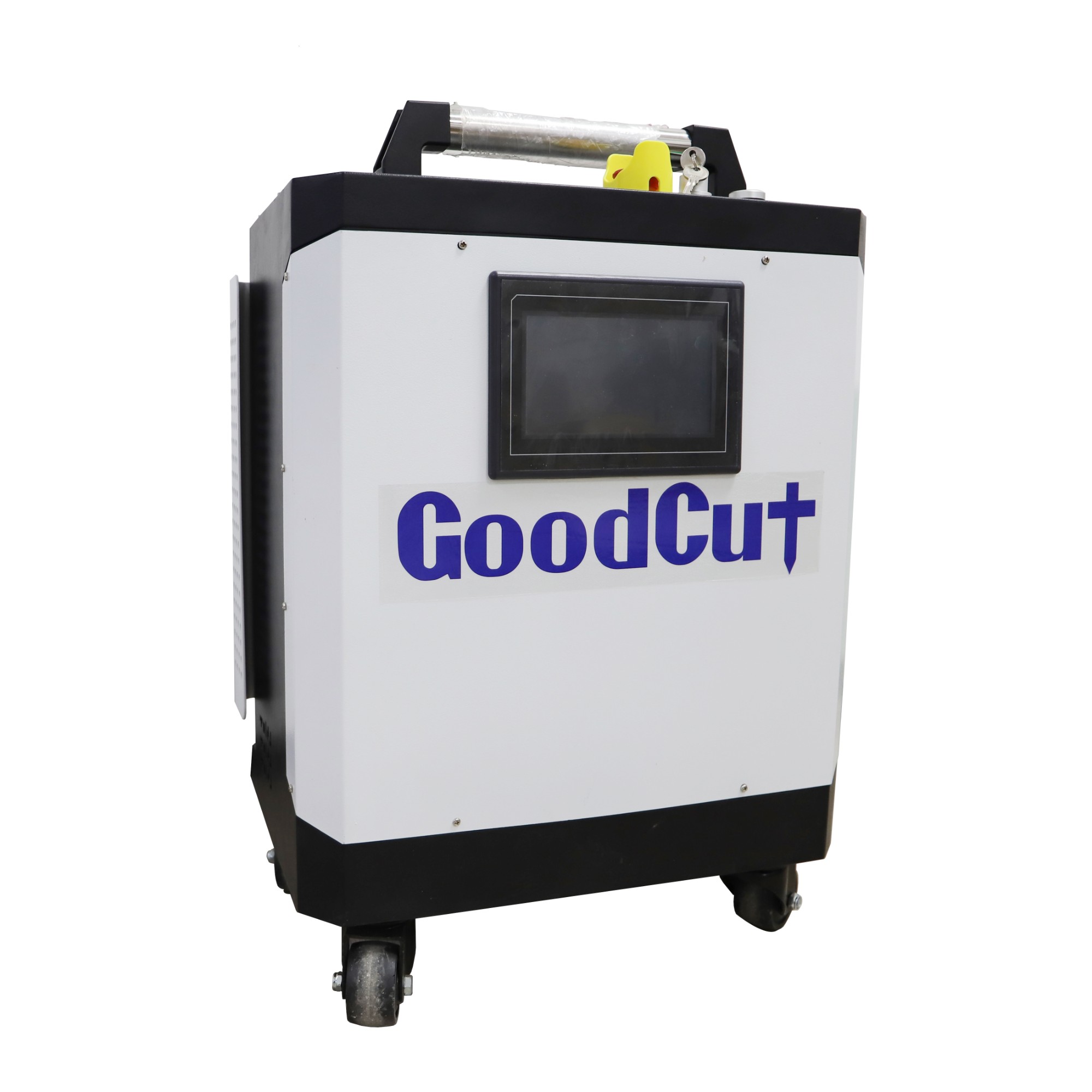

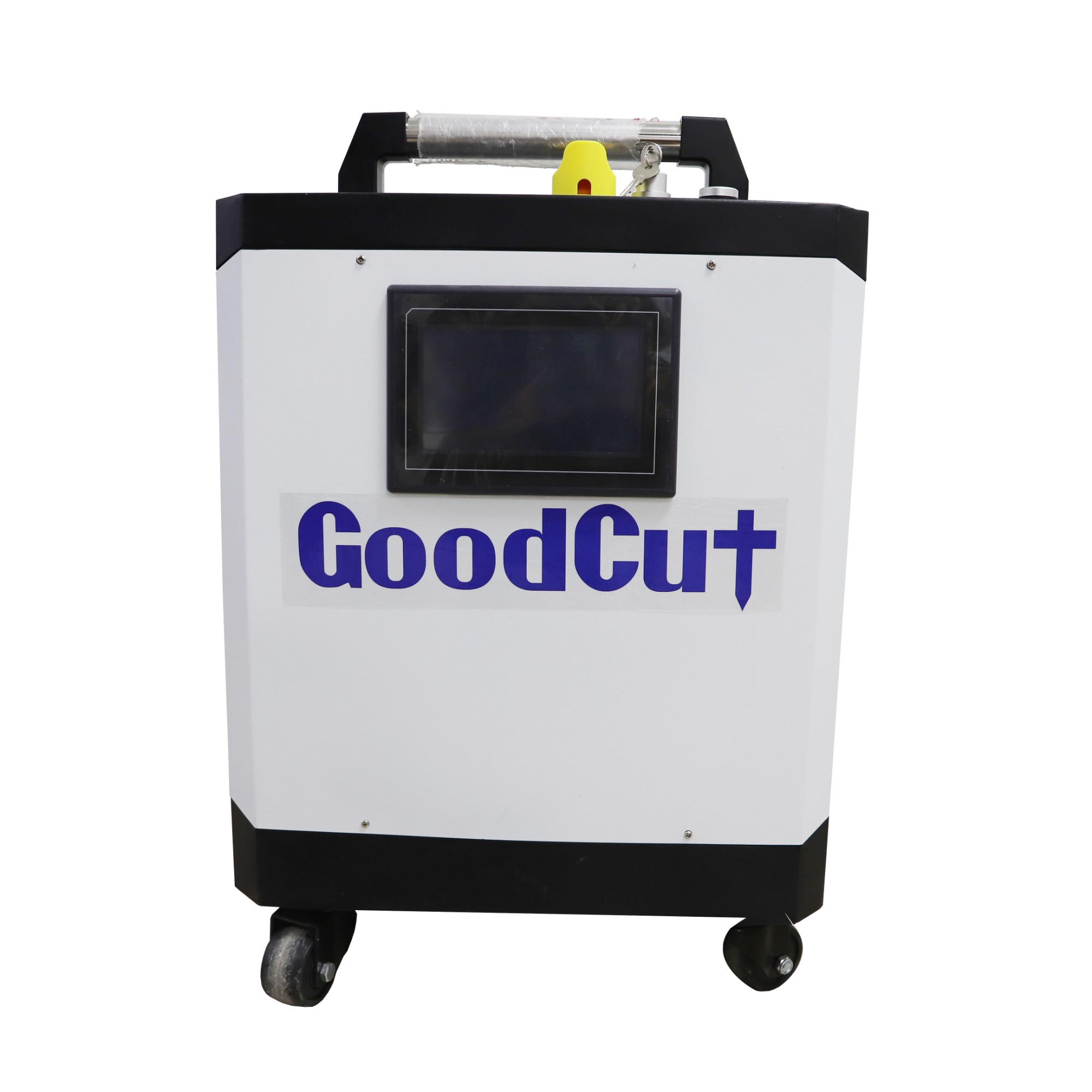

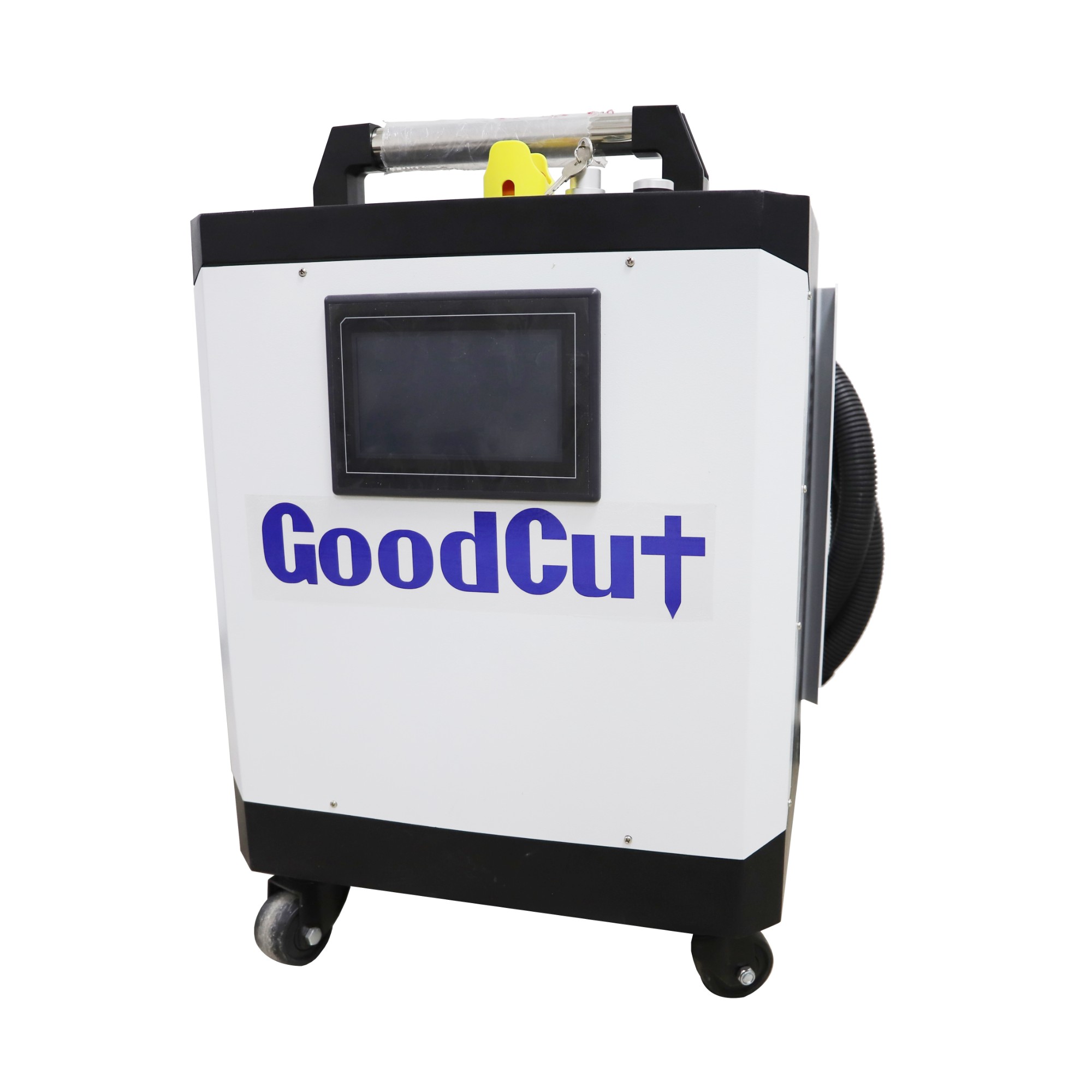

GC-CP500 Protable Pulse Laser Cleaning Machine

500W JPT Laser Source

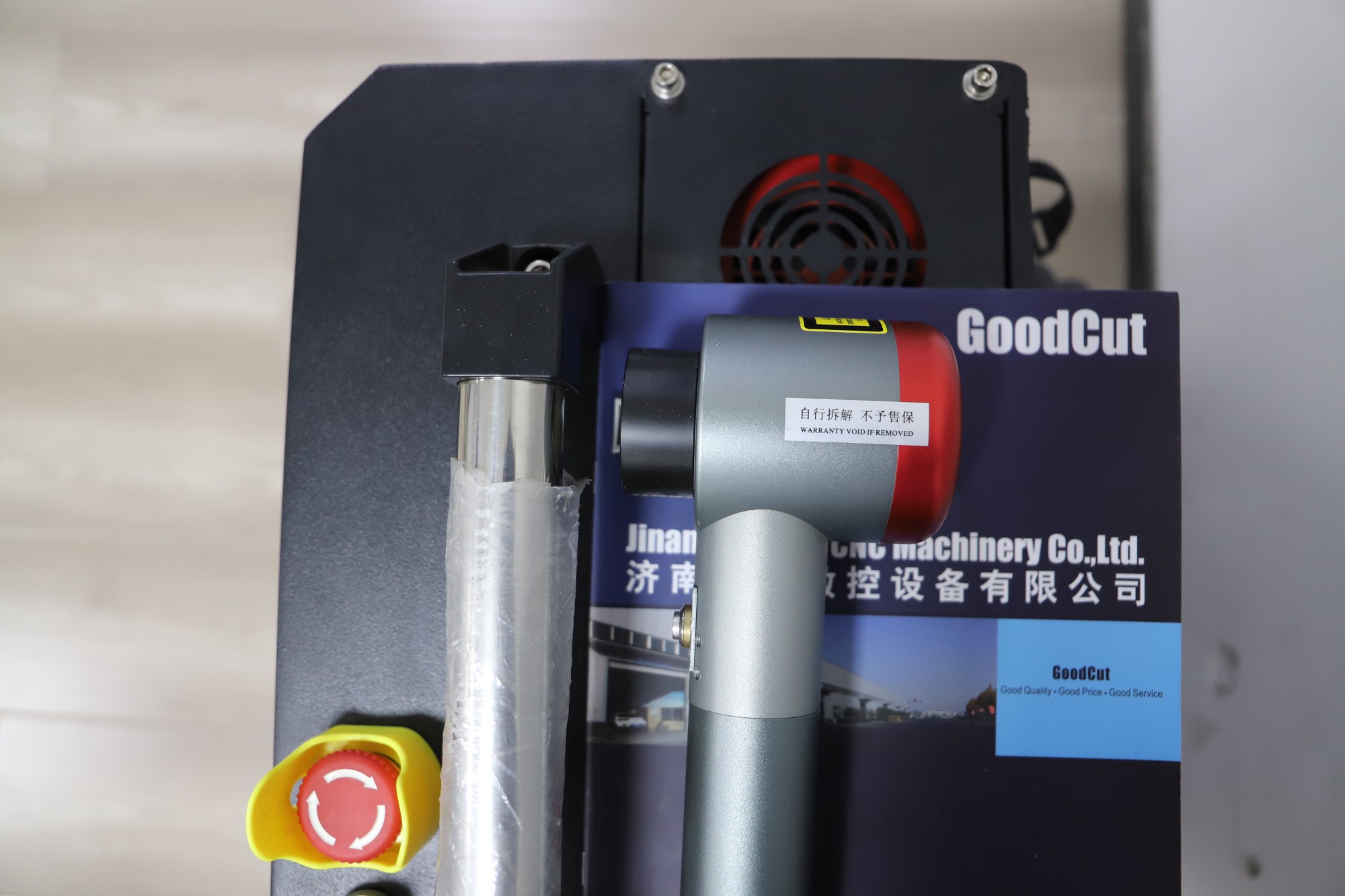

Guo Yuan Cleaning Head
Delivery Cable Length 3mter/5meter
Air cooling System

EMAIL



GC-CP500 Protable Pulse Laser Cleaning Machine


Specifications

Model

GC-CP100 Pulse Laser Cleaning Machine

GC-CP200 Pulse Laser Cleaning Machine

GC-CP300 Pulse Laser Cleaning Machine

Laser power

100w

200w

300w

Power adjustment range (%)

10~100

10~100

10~100

Maximum pulse energy

1.6mj

1.8mj

1.8mj

Pulse width

150-190ns

10-500ns

20-500ns

Laser source

JPT

JPT

JPT

Cleaning head

GuoYuan

GuoYuan

GuoYuan

System

GuoYuan

GuoYuan

GuoYuan

Clean head weight

0.75kg

0.9kg

1.25kg

Scan width

0mm-100mm adjustable

0mm-100mm adjustable

0mm-145mm adjustable

Scan line diameter

160mm

160mm

160mm

Delivery cable length

Factory 3 meters

Factory 5 meters

Factory 5 meters

Laser wave length

1070nm

1070nm

1070nm

Total power

500W

1000W

1200W

Package size

640*410*590mm

560*640*980mm

570*650*1030mm

Weight

28kg

85kg

85kg

Cooling system

Air cooling

Language

Chinese, traditional Chinese, English, Russian, Japanese,

Spanish, German, Korean, French, etc.

Cleaning mode

Line mode, rectangular first mode, rectangular two mode,prototype mode,

sine mode, dual spiral mode, free mode and ring

Ambient temperature range

10-40 Degrees

Ambient humidity

≤70%

Voltage

Single phase 220V ±10%, 50/60HZ AC


pulse laser cleaning machine (11).jpg

Features:

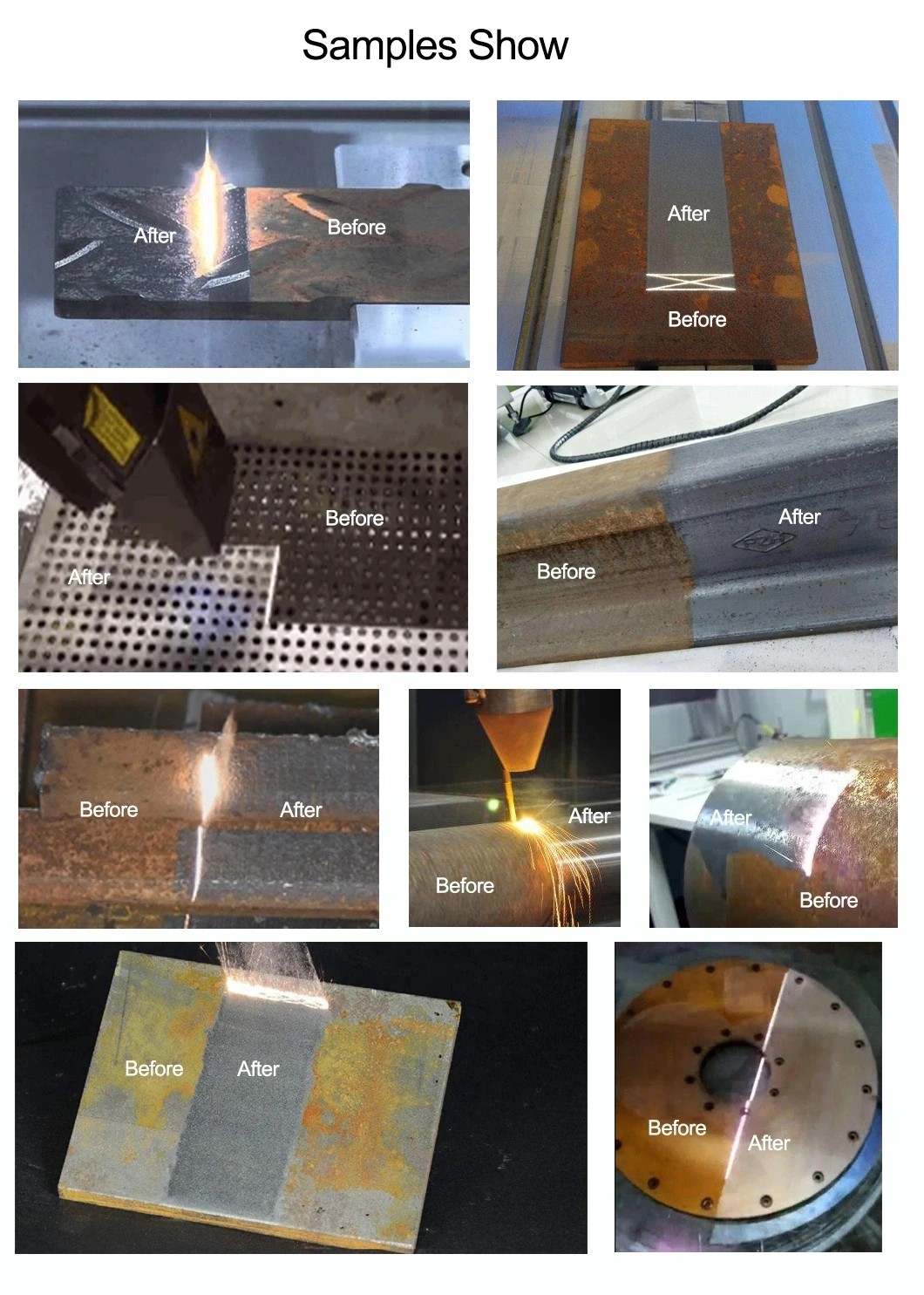

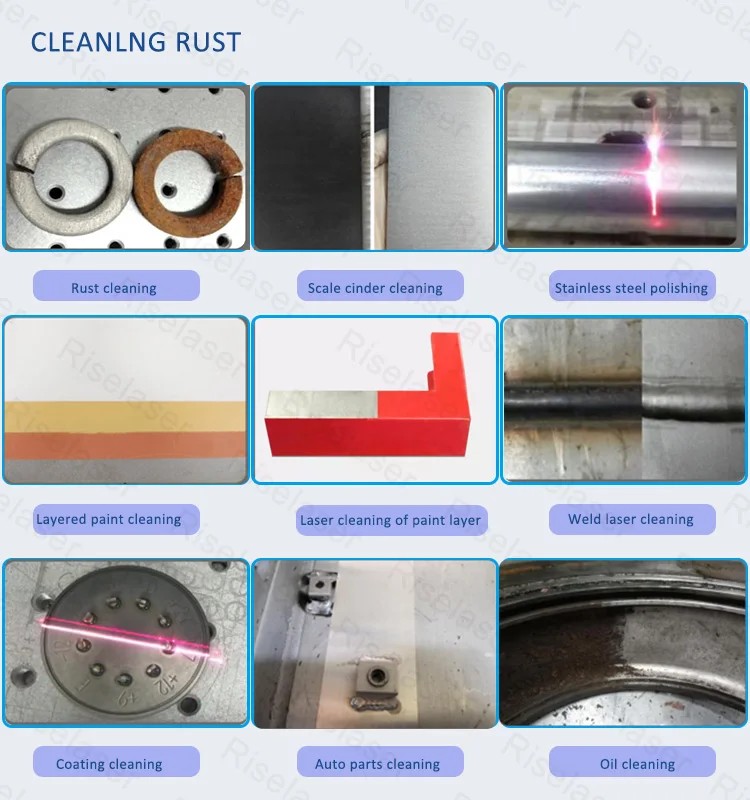

Cleaning precision small parts, especially new energy batteries, weld oxide film, anode oxide layer, rust rust, metal plating, and hardware/glue on the hardware of metal plating.

Thinner paint (≤50um), optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning.

✦Thinner paint( ≤100um),Oil pipeline rust optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning.

pulse laser cleaning machine (1).jpg

pulse laser cleaning machine (5).jpg

pulse laser cleaning machine (13).jpg
