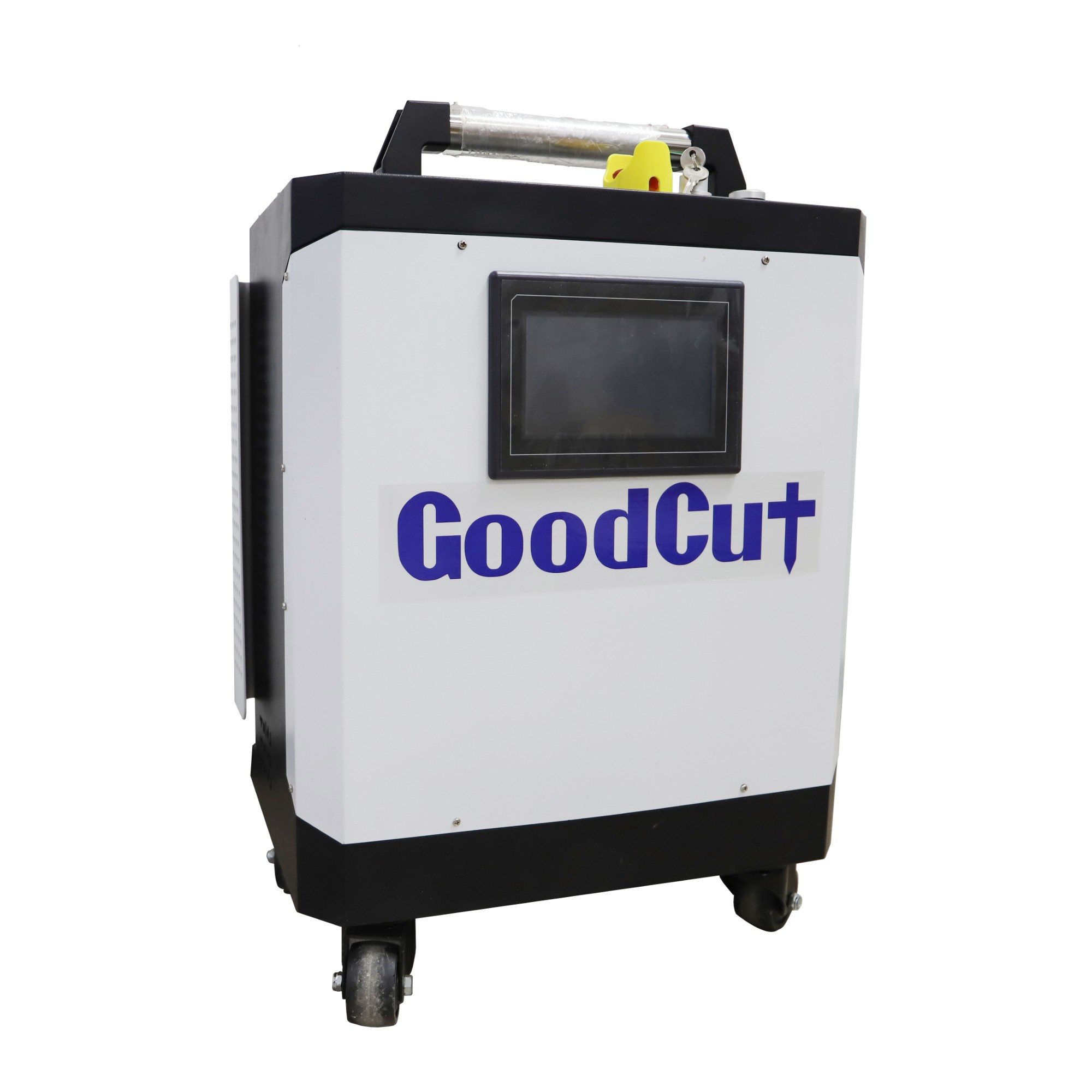

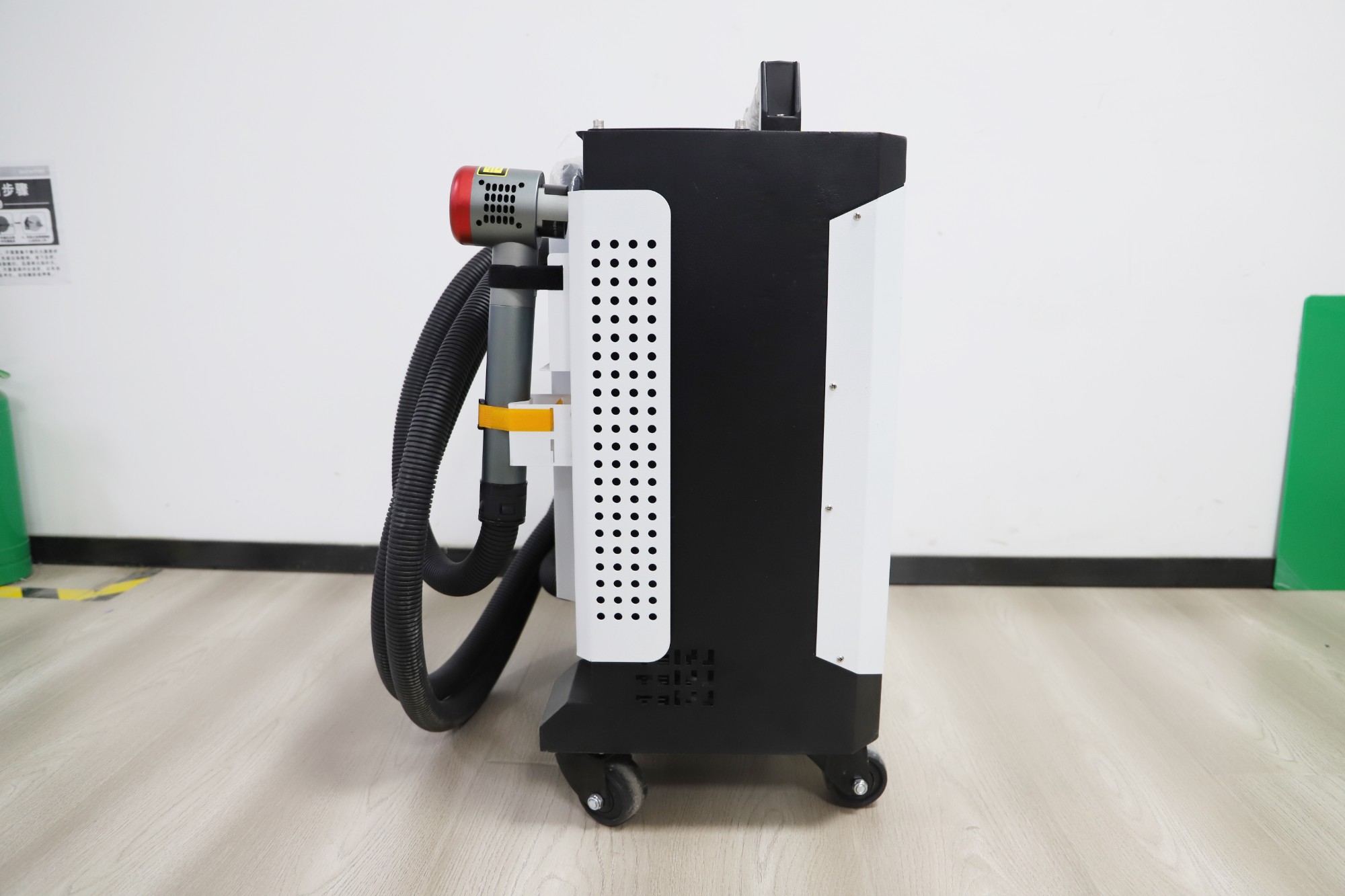

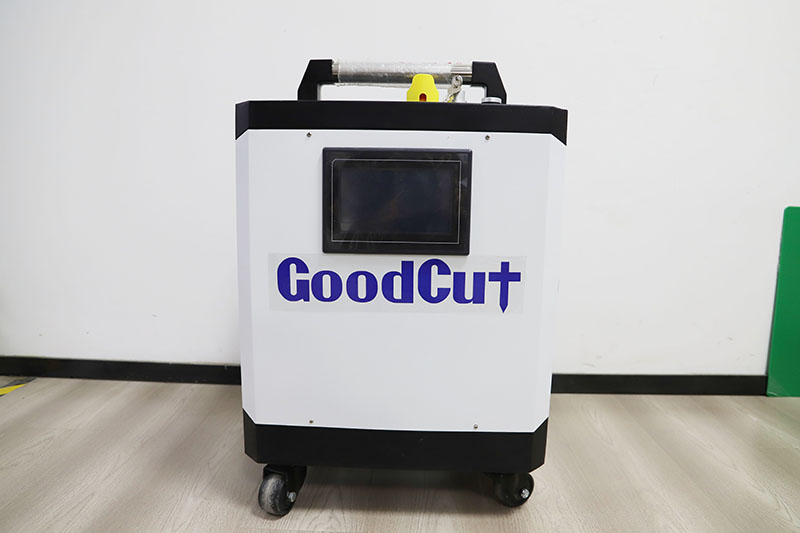

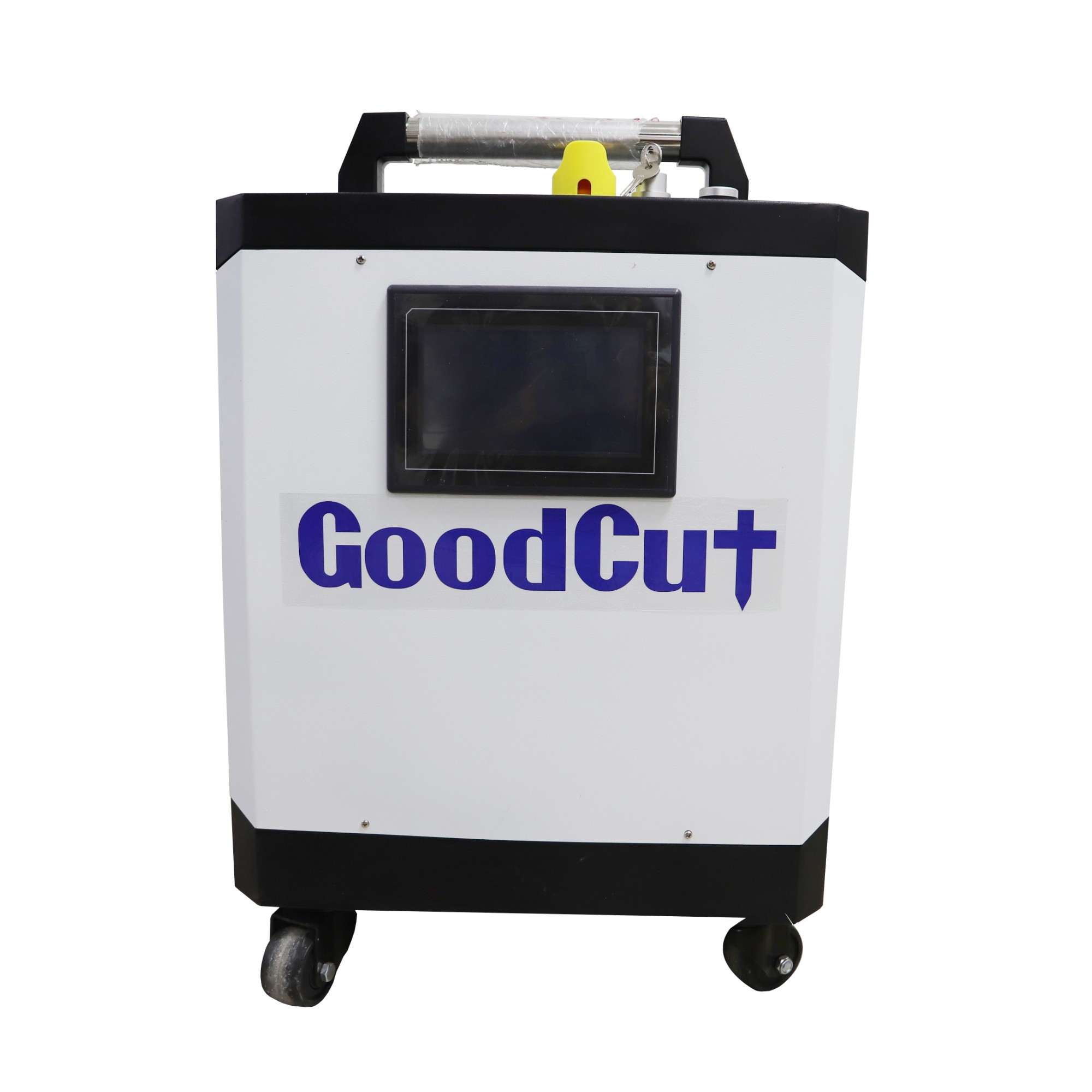

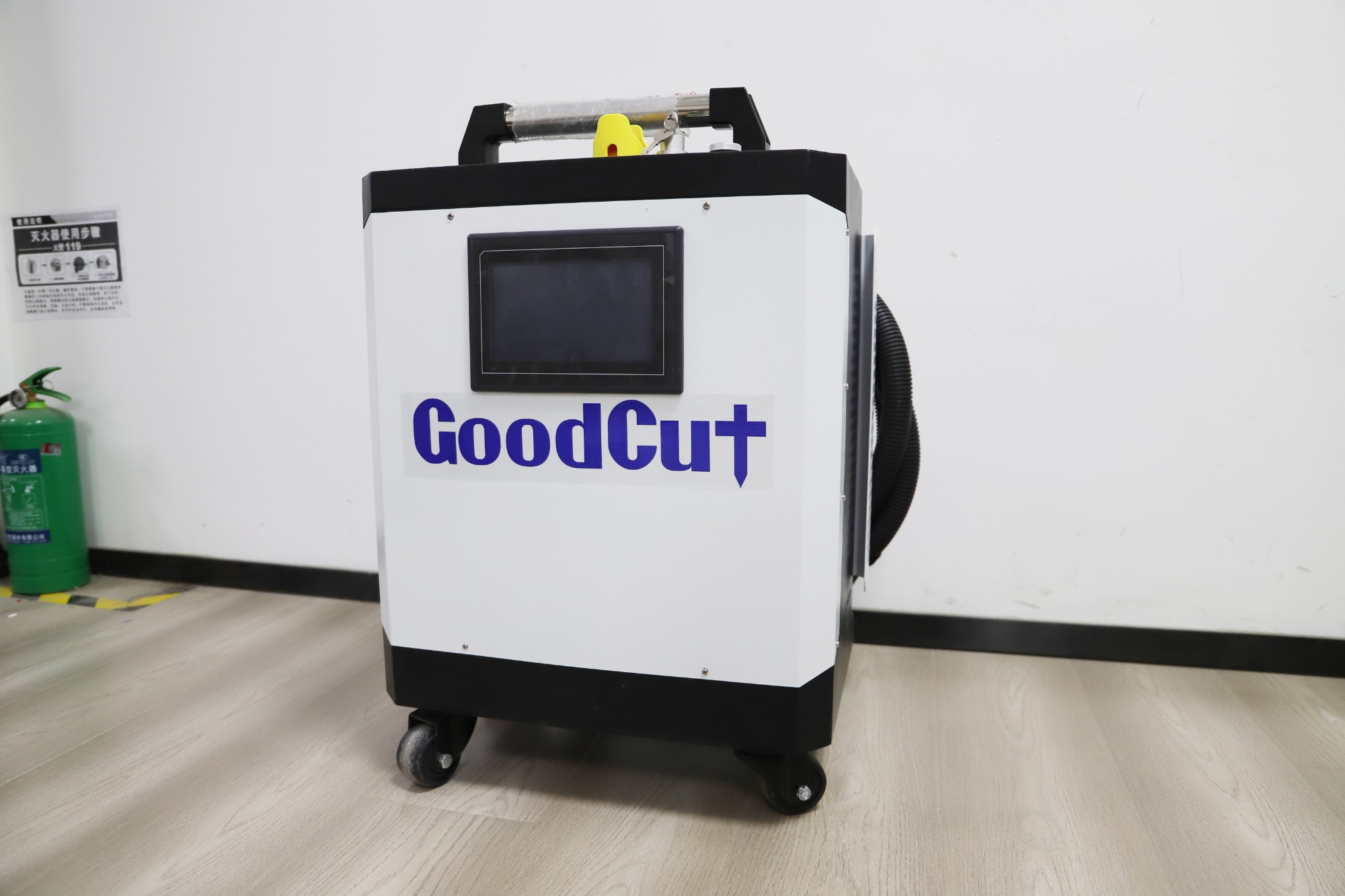

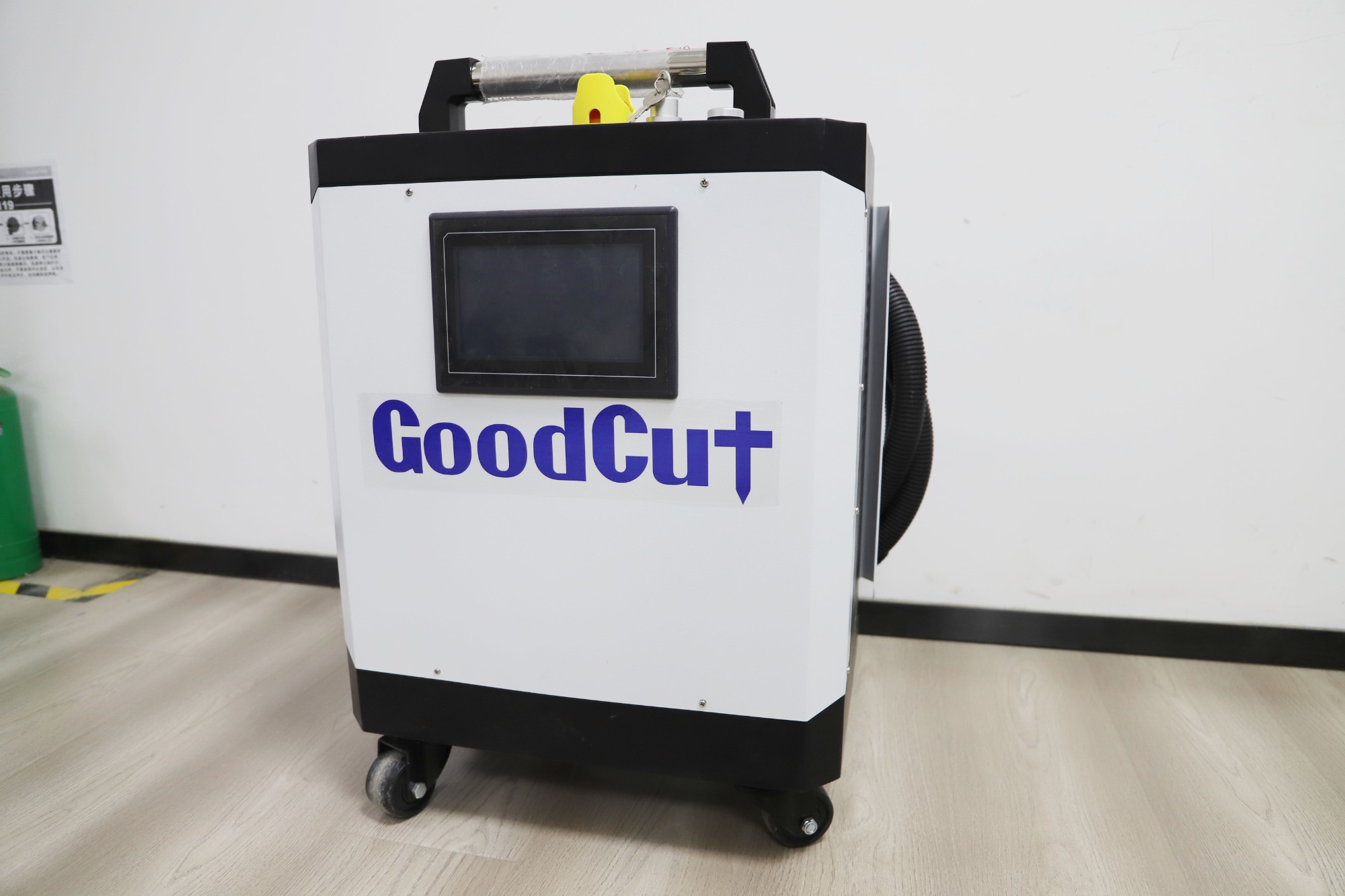

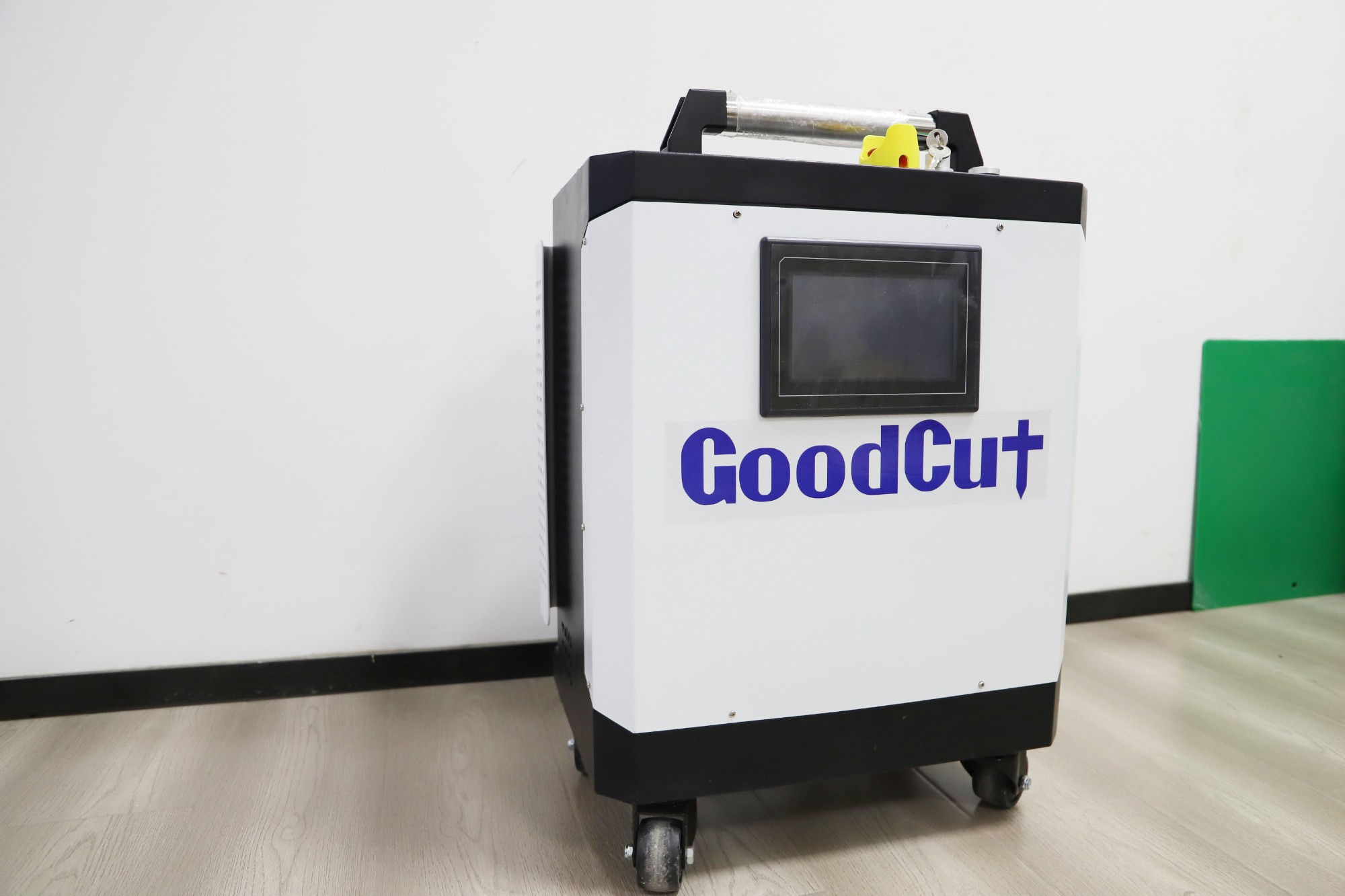

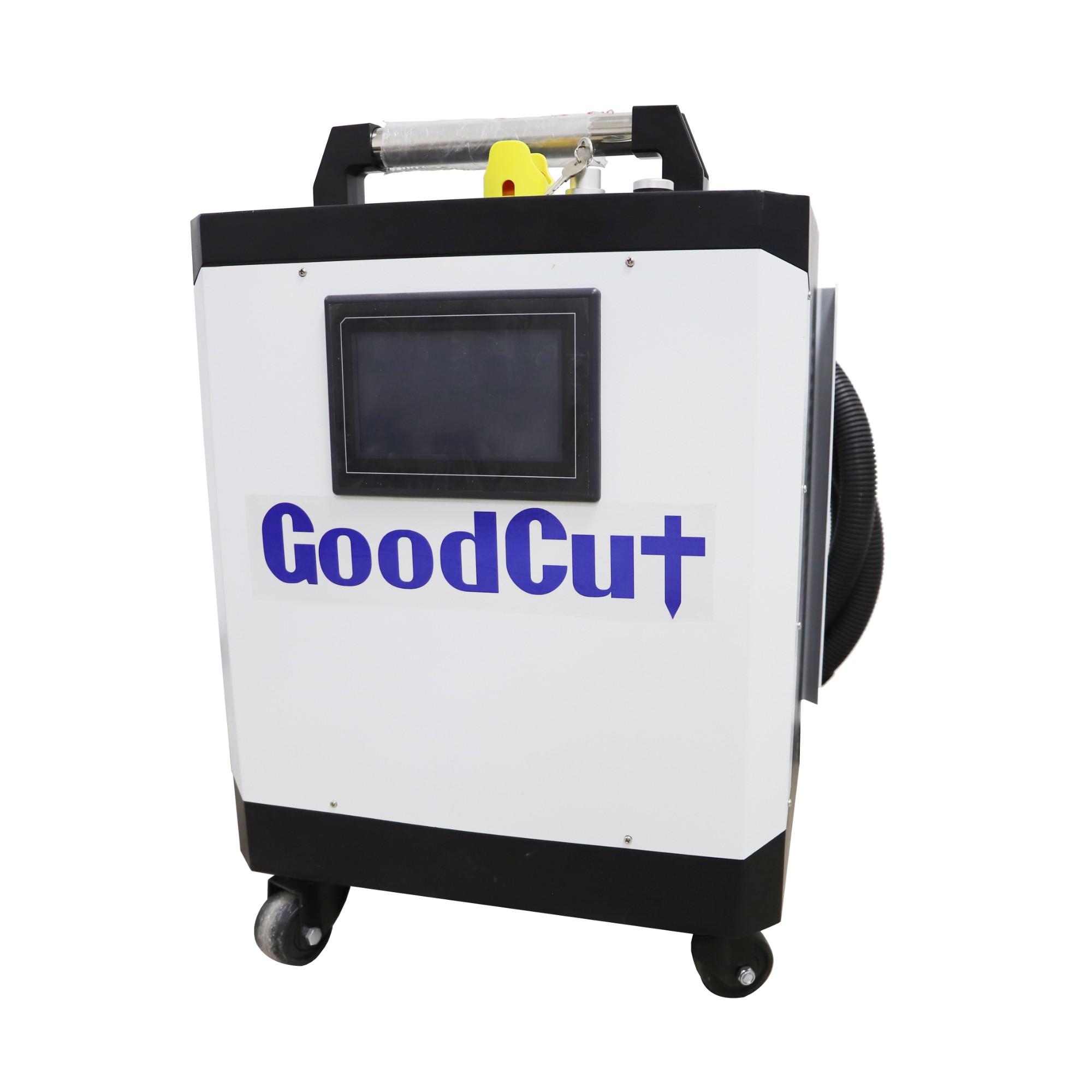

GC-CP100 GC-CP200 GC-CP300 Pulse Laser Cleaning Machine For Rust Removal

GC-CP100 GC-CP200 GC-CP300 Pulse Laser Cleaning Machine For Rust Removal

100W/200W/300W JPT Laser Source

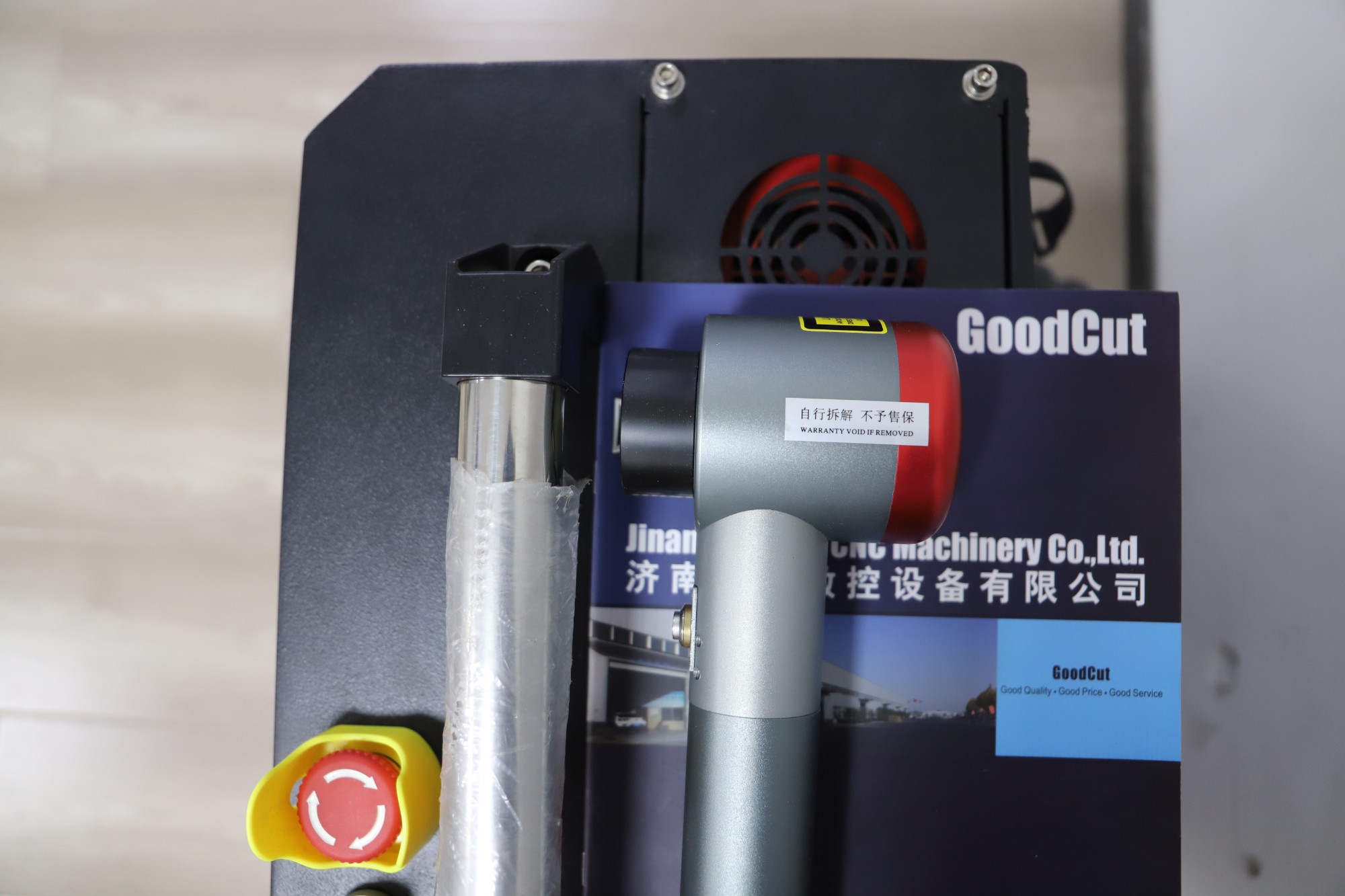

Guo Yuan Cleaning Head

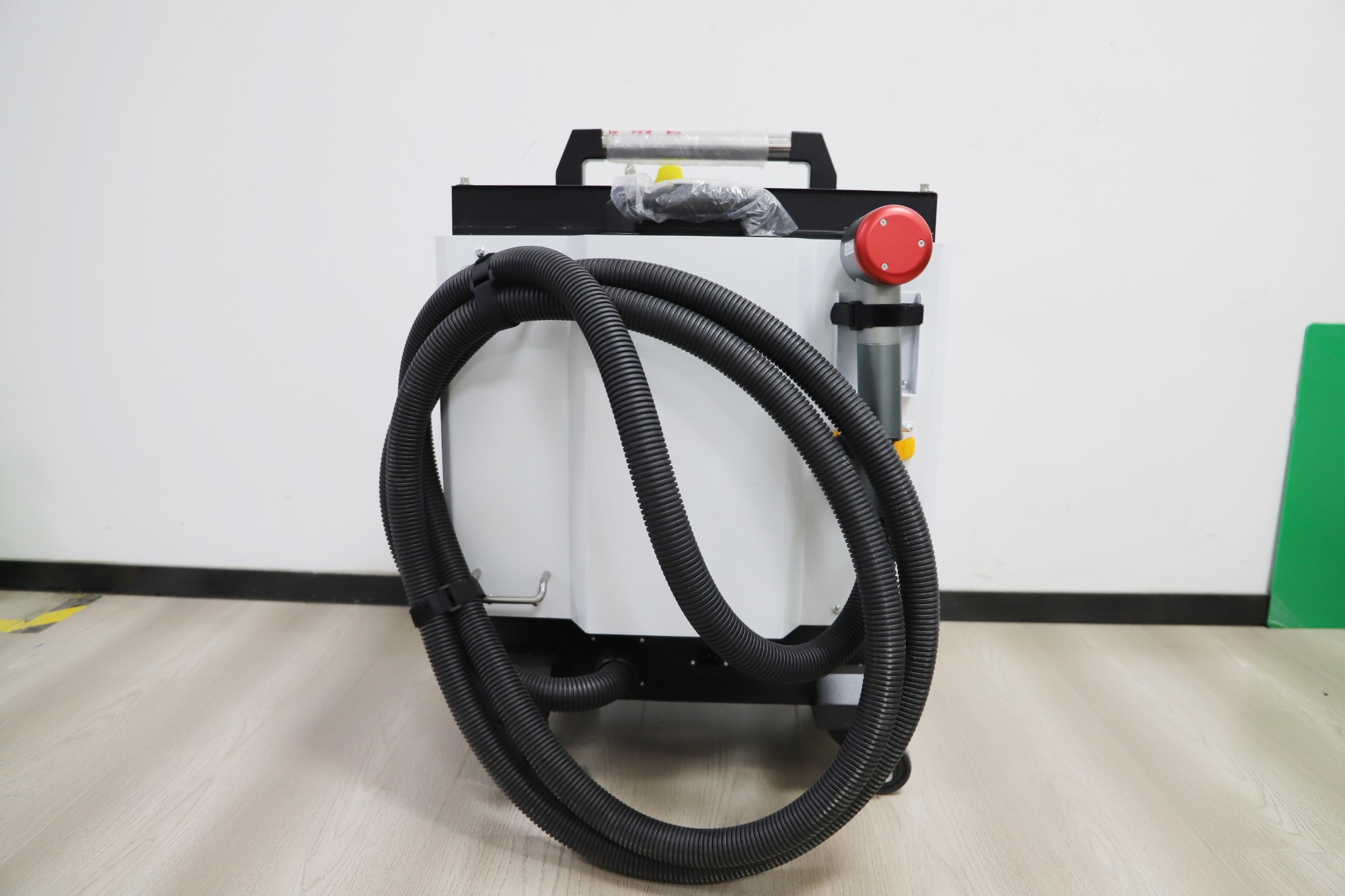

Delivery Cable Length 3mter/5meter
Air cooling System

GC-CP100 GC-CP200 GC-CP300 Pulse Laser Cleaning Machine For Rust Removal

Specifications
Model	GC-CP100 Pulse Laser Cleaning Machine	GC-CP200 Pulse Laser Cleaning Machine	GC-CP300 Pulse Laser Cleaning Machine
Laser power	100w	200w	300w
Power adjustment range (%)	10~100	10~100	10~100
Maximum pulse energy	1.6mj	1.8mj	1.8mj
Pulse width	150-190ns	10-500ns	20-500ns
Laser source	JPT	JPT	JPT
Cleaning head	GuoYuan	GuoYuan	GuoYuan
System	GuoYuan	GuoYuan	GuoYuan
Clean head weight	＜0.75kg	＜0.9kg	＜1.25kg
Scan width	0mm-100mm adjustable	0mm-100mm adjustable	0mm-145mm adjustable
Scan line diameter	160mm	160mm	160mm
Delivery cable length	Factory 3 meters	Factory 5 meters	Factory 5 meters
Laser wave length	1070nm	1070nm	1070nm
Total power	＜500W	＜1000W	＜1200W
Package size	640410590mm	560640980mm	5706501030mm
Weight	28kg	85kg	85kg
Cooling system	Air cooling
Language	Chinese, traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc.
Cleaning mode	Line mode, rectangular first mode, rectangular two mode,prototype mode, sine mode, dual spiral mode, free mode and ring
Ambient temperature range	10-40 Degrees
Ambient humidity	≤70%
Voltage	Single phase 220V ±10%, 50/60HZ AC

Features:

✦Cleaning precision small parts, especially new energy batteries, weld oxide film, anode oxide layer, rust rust, metal plating, and hardware/glue on the hardware of metal plating.

✦Thinner paint (≤50um), optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning.

✦Thinner paint( ≤100um),Oil pipeline rust optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning.
