GC-WCC 4 in 1 New Model Laser welding cutting cleaning machine

Max laser source
Au3tech/ChaoQiang control system
1500w/2000w/3000w

EMAIL

PRODUCT PROFILE

                    Model

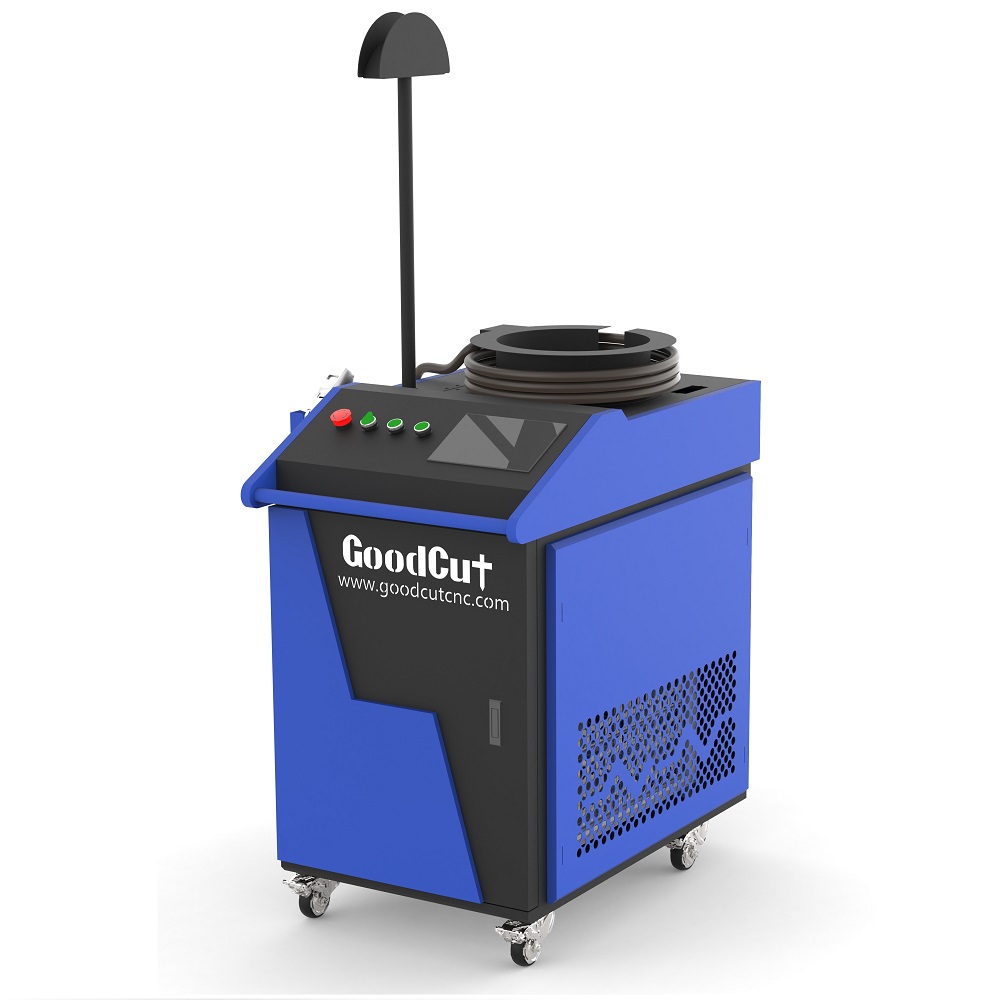

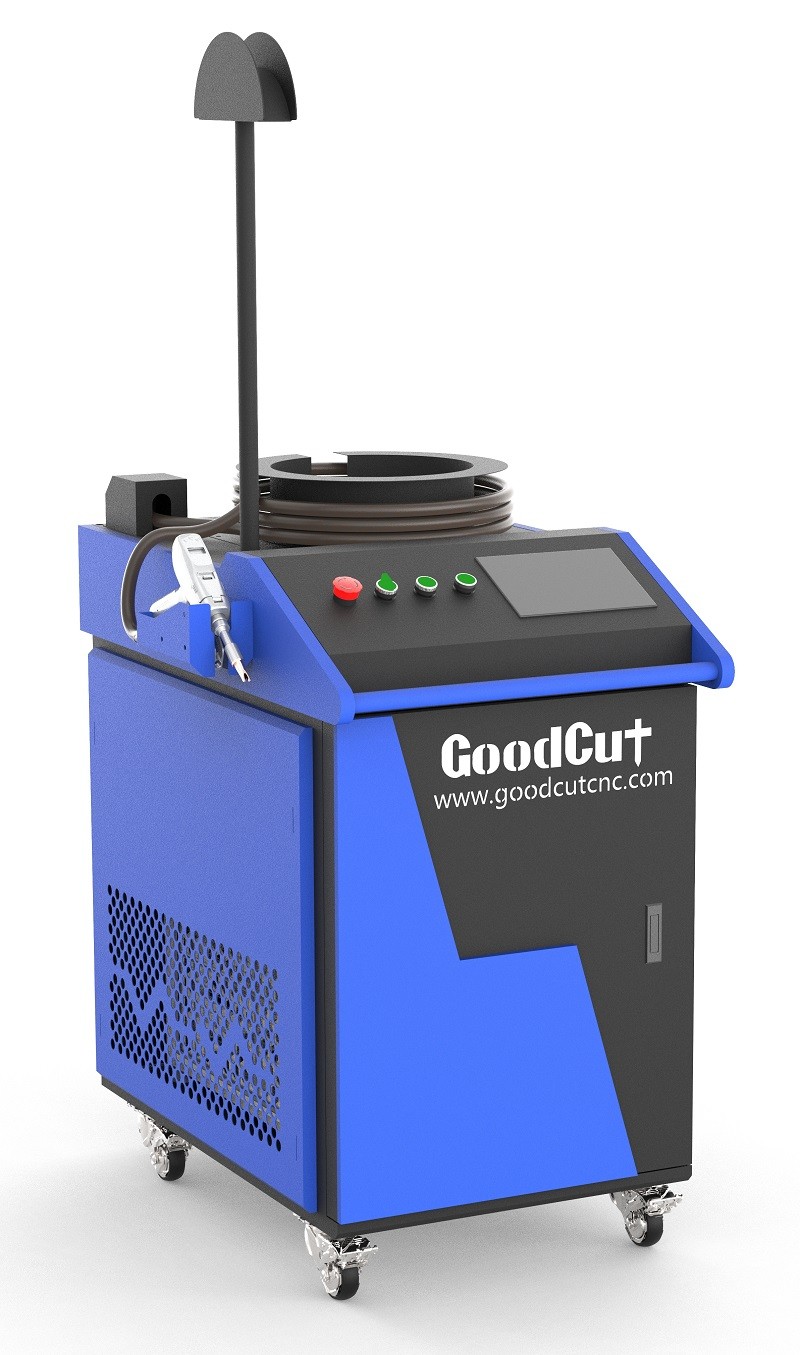

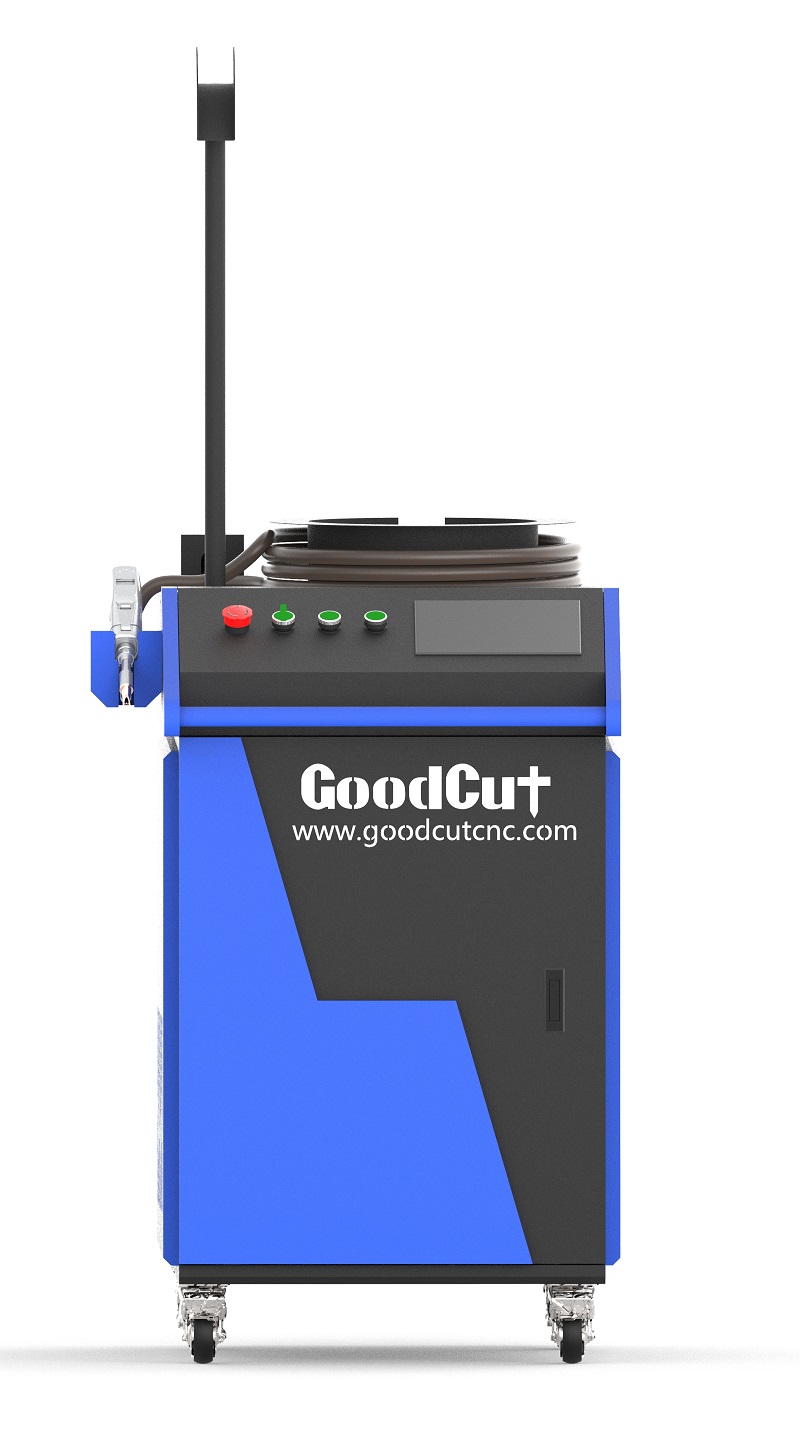

                    GC-WCC 4 IN 1 LASER WELDING MACHINE

                    Fiber Laser source

                    1000W / 1500W / 2000W / 3000W

                    Brand of laser source

                    Raycus/MAX

                    Controller system

                    Au3tech/ChaoQiang

                    Welding / Cutting / Cleaning head

                 Au3tech/ChaoQiang

                    Wire feeder

                    Including

                    Laser wavelength

                    1064nm

                    Weling min molten pool

                    0.1mm

                    Viewing system

                     Red light positioning

                    Cooling

                     Water cooling

                    Operating Temperature

                     0-45℃

                    Operating humidity

                     5%-95%

                     Net Weight

                     200KG

                     Warranty                     Two year
                     Voltage                     AC220V±10%/50Hz/60A
                     AC220V±10%/50Hz/60A                     1200*700*950mm

Features:

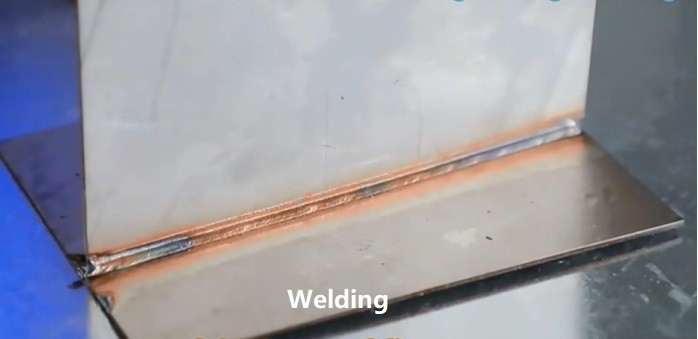

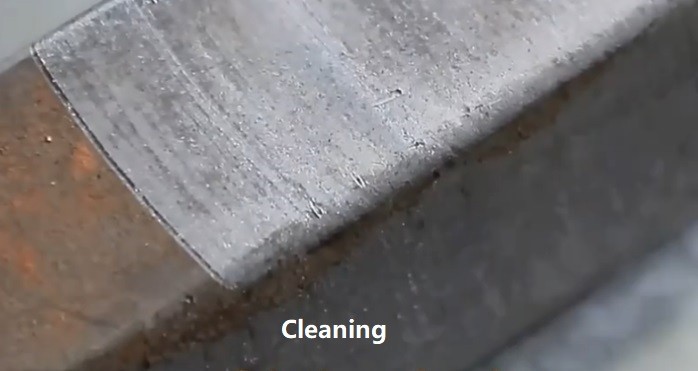

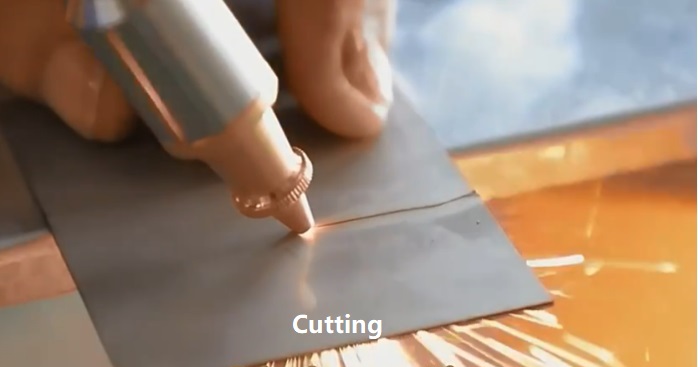

1.4 Functions: welding, cleaning, cutting, and cleaning welds the cleaning effect is good and very stable.
2.Riselaser double wobble head has multiple welding modes:point, line, circle, triangle, ellipse,
   semi-circle,eight-character.
 3.Welding head with touch screen to adjust parameters.
3.2KW can weld 6mm thick stainless steel and carbon steel without adding welding wire.
4.Support customization:make your own logo/design the appearance of the machine.
5.The whole machine is guaranteed for one year, and online technical support after-sales.

Q: How to install and run the machine?

A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.


Q: How can I do if the machine goes wrong?

A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.


Q: I don’t know which one is suitable for me?

A: 1) just tell us below information 1) Max work size:choose most suitable model. 2) Materials and Cutting thickness:Power of laser generator. 3) Business industries:We sell a lot and give advice on this business line.


Q: What's your MOQ?

A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.
