Handheld Fiber Laser Marking Machine for Engraving metal

Mahing size: 110mm*110mm
Laser power: 20W/ 30W/ 50W
Laser sources: Raycus, Germany IPG
Process material: metal and part of nonmetal
Product description: metal marking machine Raycus/ IPG 20w/ 30w/ 50w marking machine

EMAIL

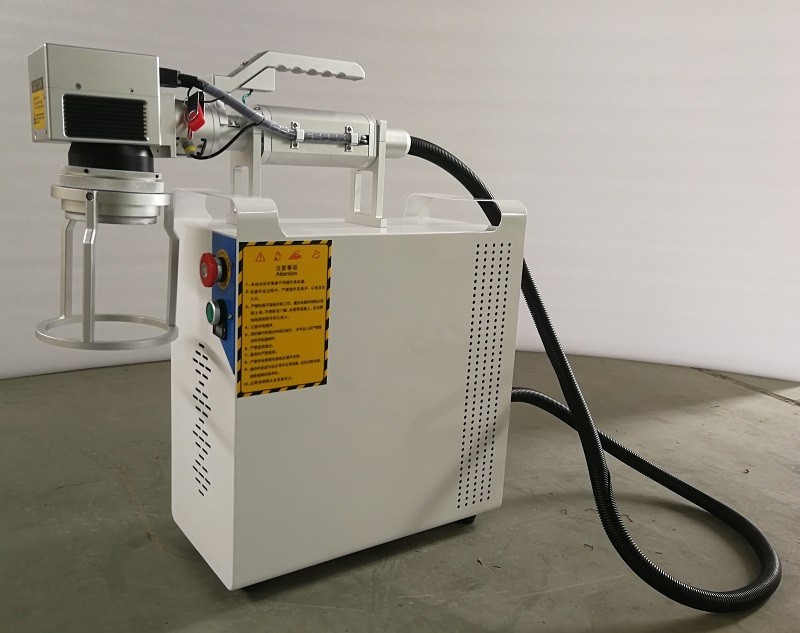

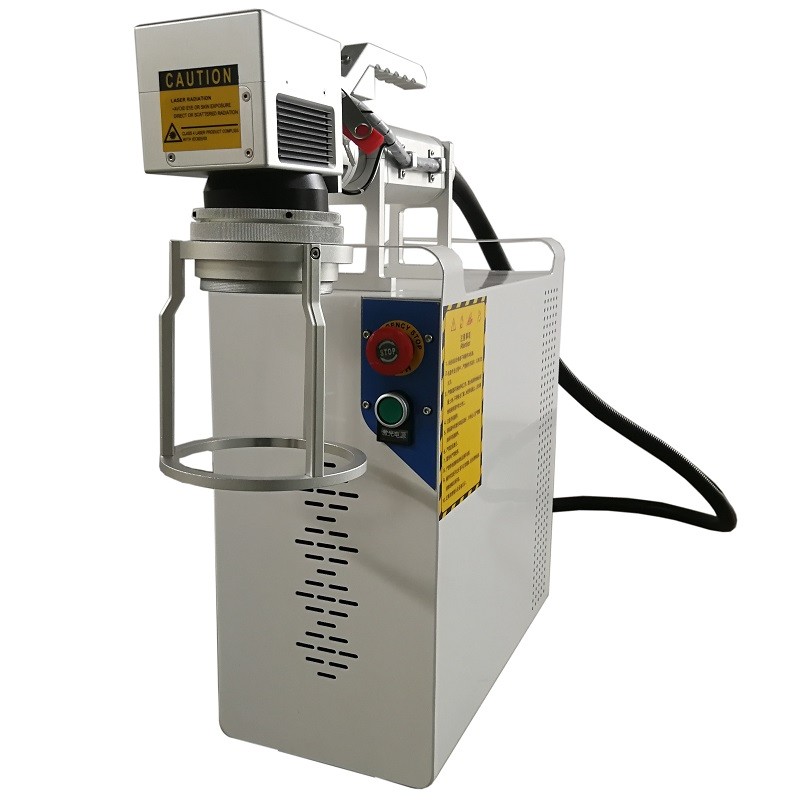

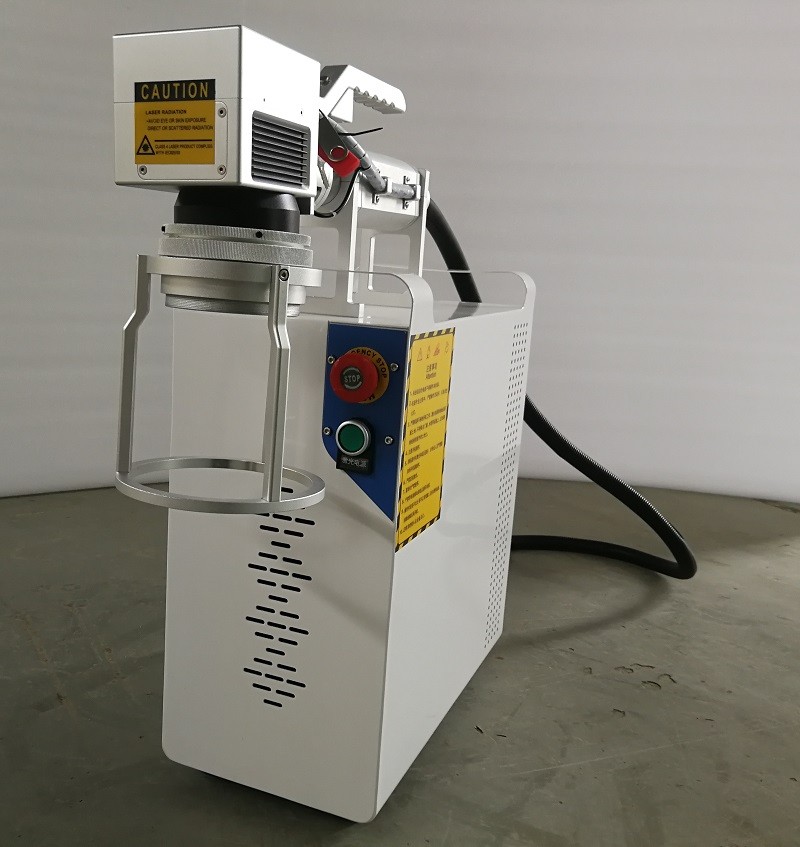

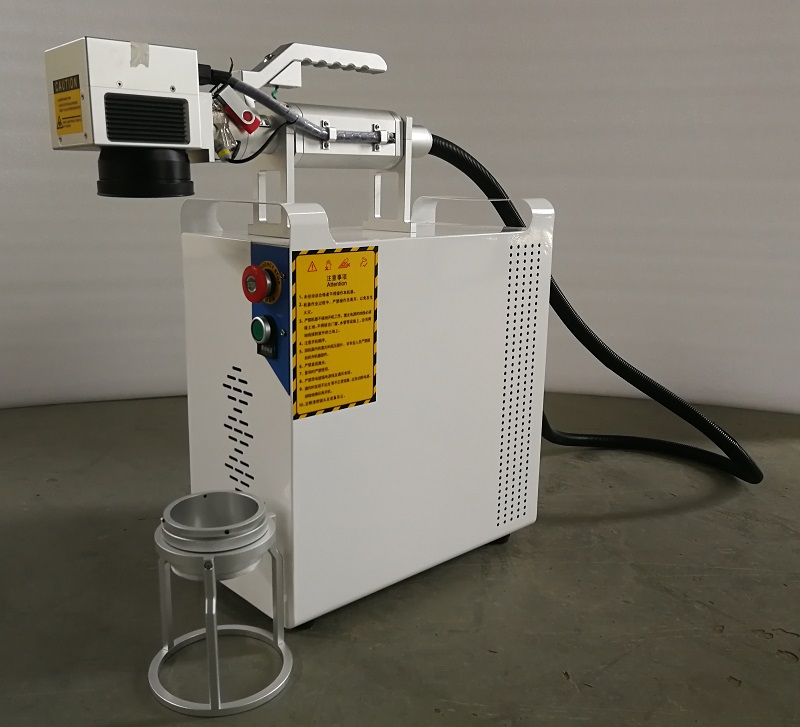

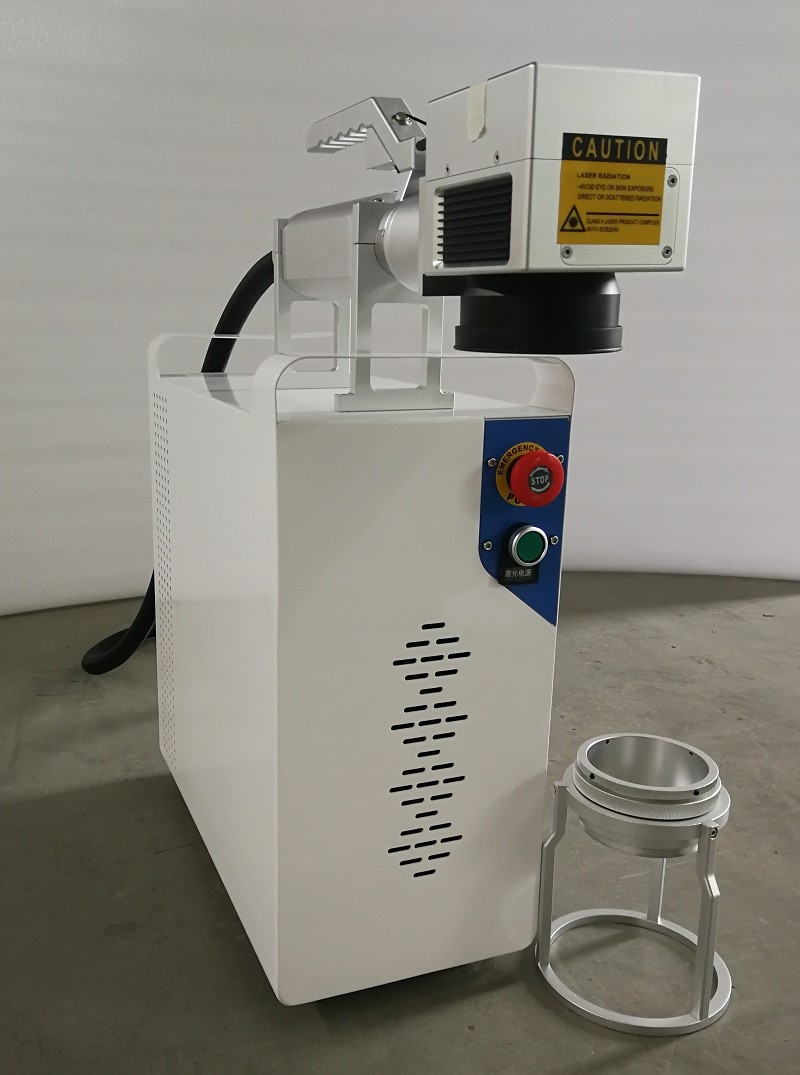

Handheld Fiber Laser Marking Machine for engraving metal


The fiber Laser Marking Machines From GoodCut allow manufacturers to mark or engrave barcodes,serial numbers,2D Data Matix and graphics on the widest variety of materials including metals,plastics and ceramics and leave permanent marking.They provide an industrial solution for Product identification and traceability and are often chosen by customers because of the product's capabilities and quality,as well as the quality of mark it produces.

handheld marking (12).jpg

Main features of the fiber laser marking machine:

1. High speed with galvanometer;
2. Small volume, light weight;
3. Low power, consumption power is less than 700w;
4. Completely air cooling, low energy;
5. No influence of the severe environment and temperature change. If no power, battery and car cigarette lighter can be used for working;
6. Greatly reduce the depreciation cost, satisfying customers' stable large quality produce.

handheld marking (18).jpg

Parameter of 30 watt fiber laser marking machine:


Model

GC-FS10

GC-FS20

GC-FS30

GC-FS50

Wave length of laser

1064nm

Laser repetition frequency

20kHz~100kHz

Laser power

10W

20W

30W

50W

Marking scope

70*70mm /110*110mm /150*150mm/175*175mm/200*200mm/250*250mm/300*300mm

Laser sources

Fiber module

Laser Head

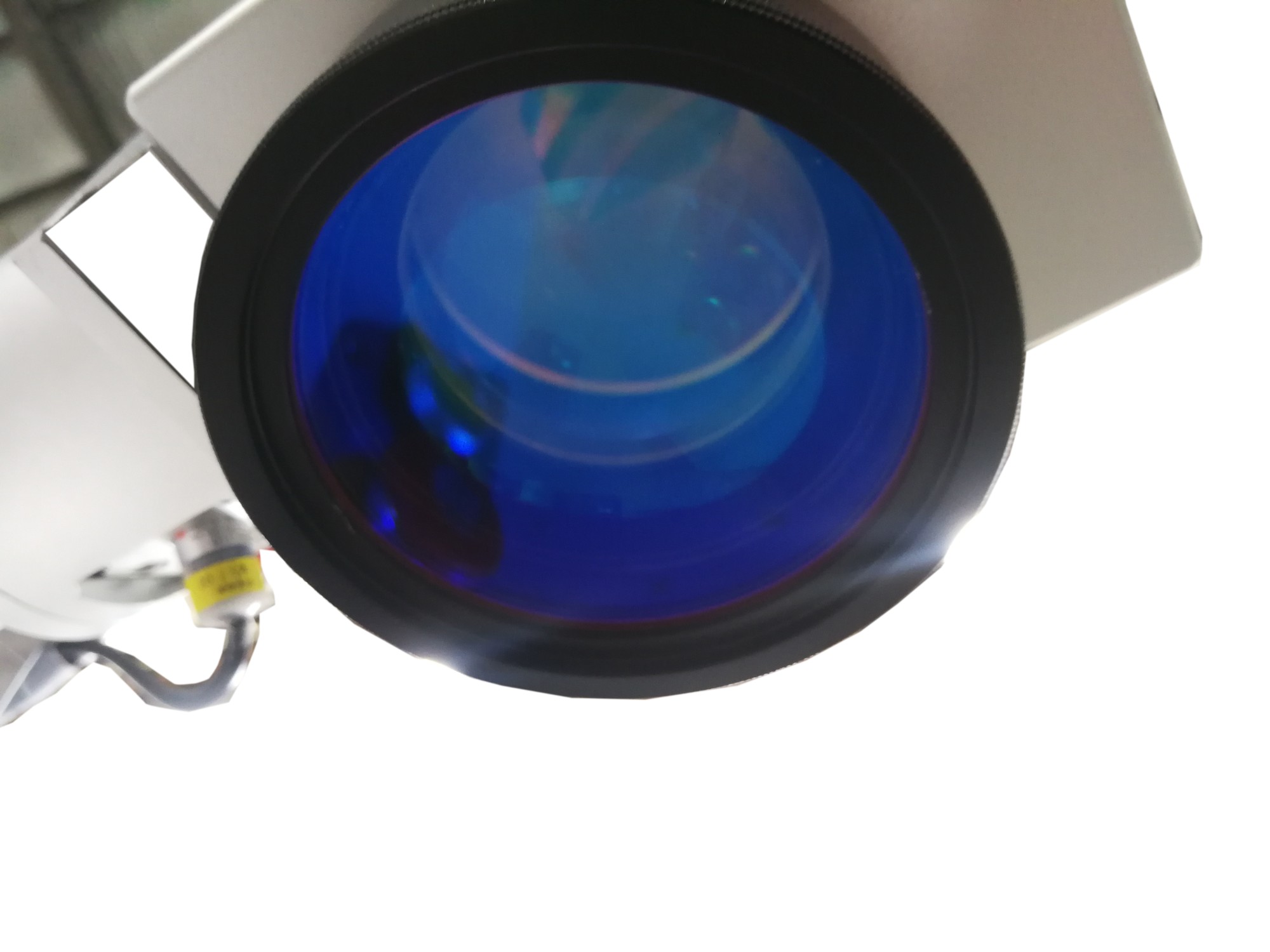

Scanning head

The minimum focus facula diameter

20μm

Minimal character

0.01mm

Marking speed

≤7000mm/s

Repeated accuracy

0.0025mm

Cooling ways

Force-air Cooling

Power supply

220V/ 50Hz/2kVA

Process Material

All kinds of metal and part of Non-metal Materials

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Package

Standard Crate for export



photobank (2).jpg

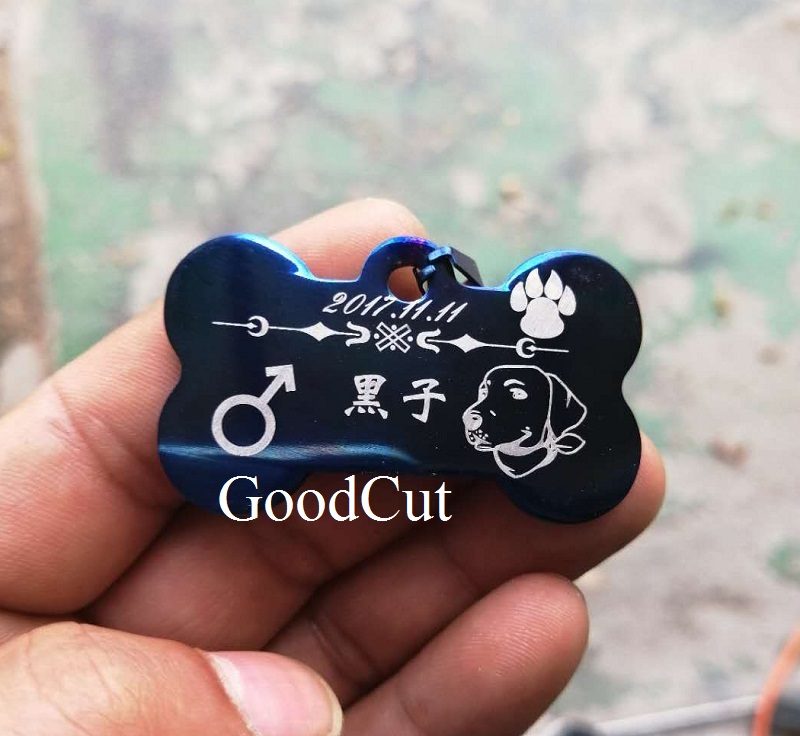

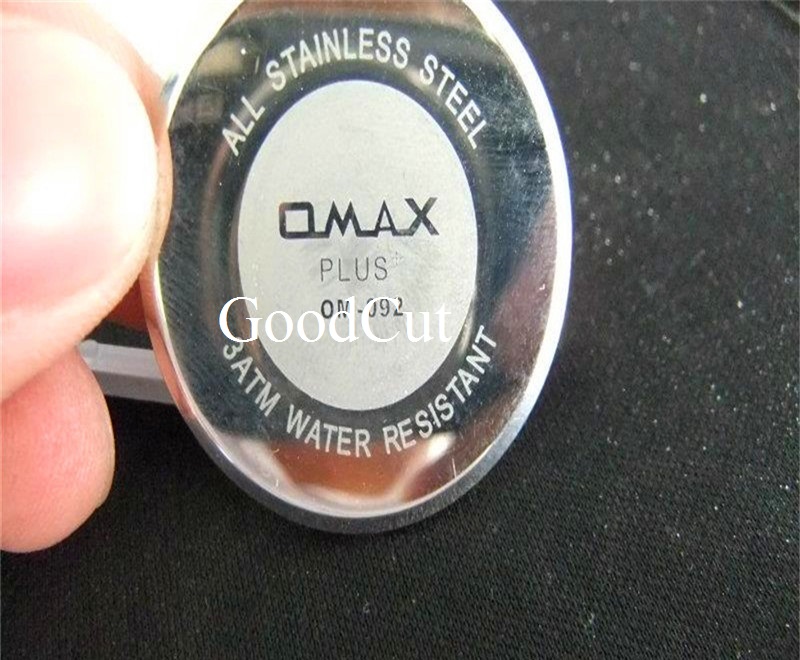

GoodCut is known for the high quality of the marks we produce, and these samples from GoodCut Fiber Lasers showcase some of the common applications that highlight its capabilities. Fiber lasers can be used for a wide variety of applications, from industrial traceability to branding, on materials such as steel, copper, aluminum, plastic, ceramic, and brass.

Mobile phone keypads, non-opaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc.
