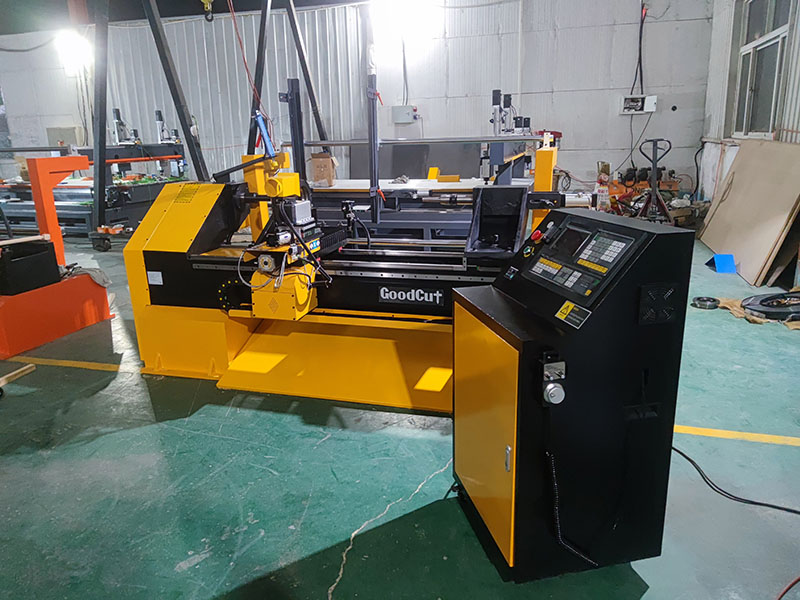

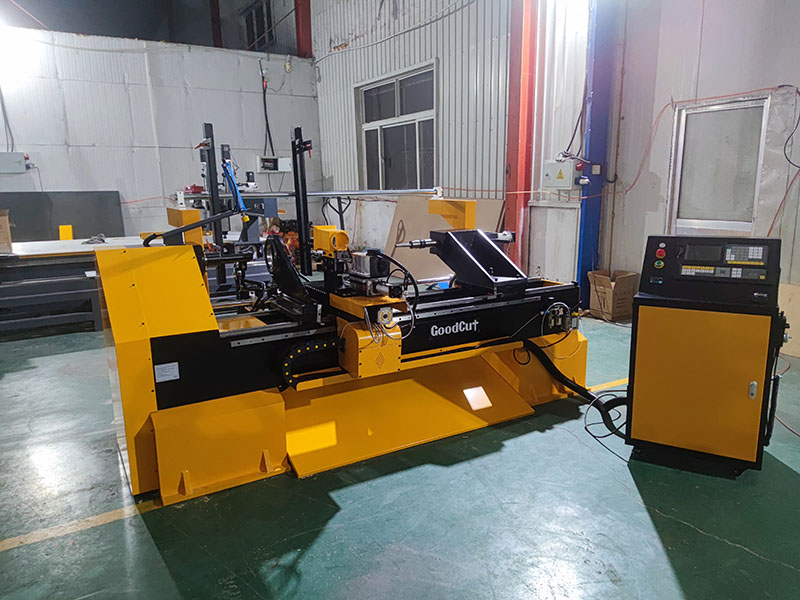

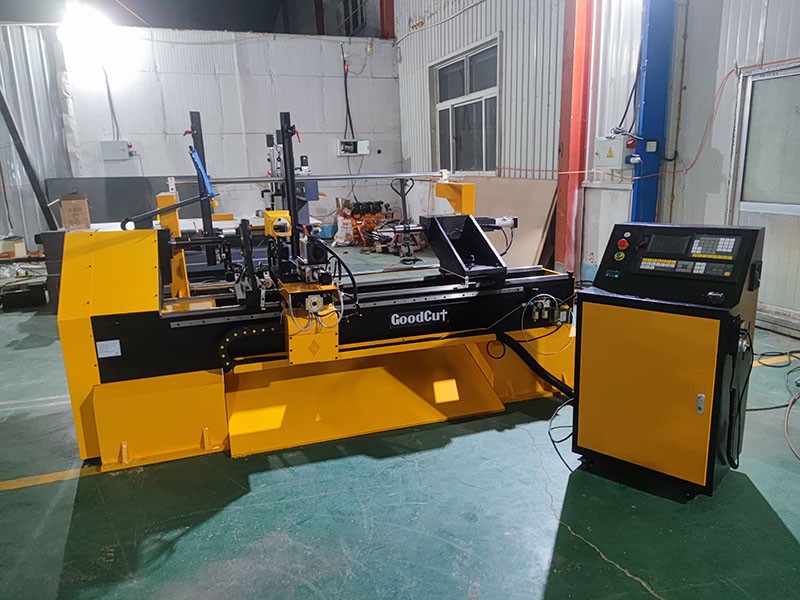

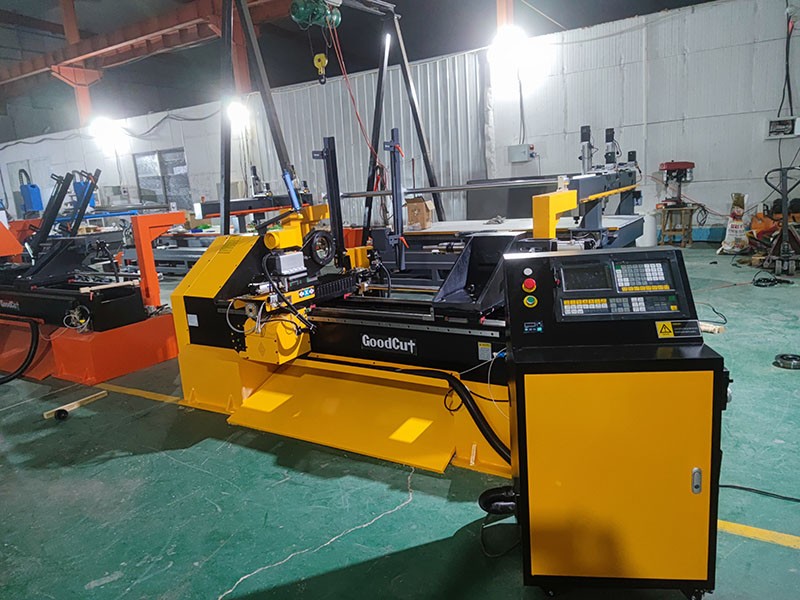

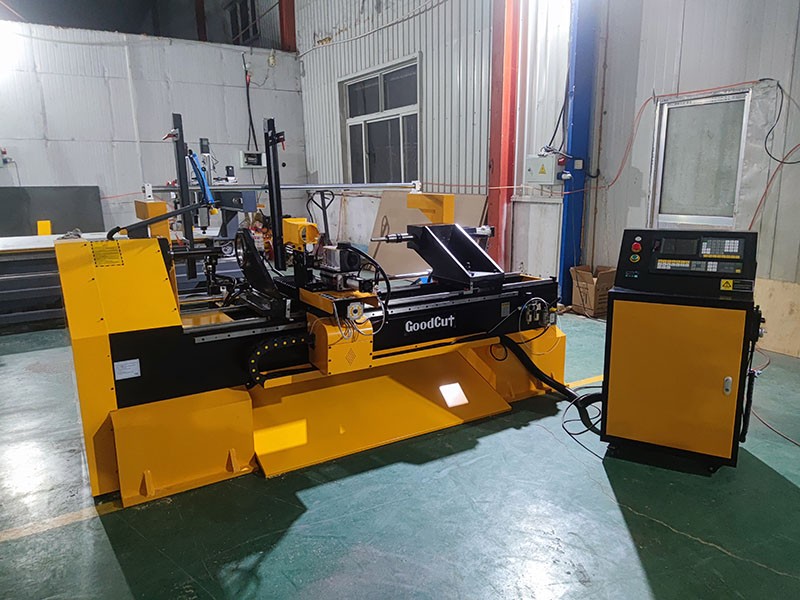

GC1530WL-AF Customizable Auto feeding Wood lathe

GC1530WL-AF Customizable Auto feeding Wood lathe

Max working diameter： 300mm
Max working length: 1500mm

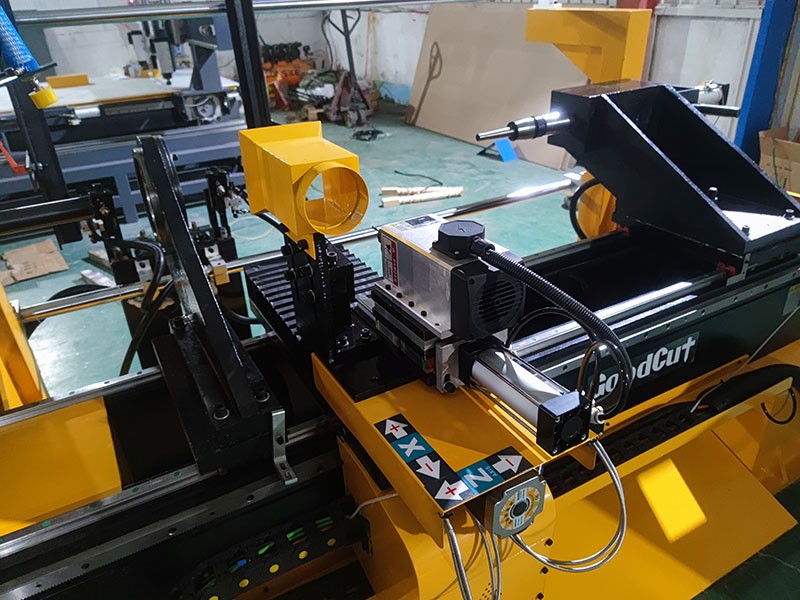

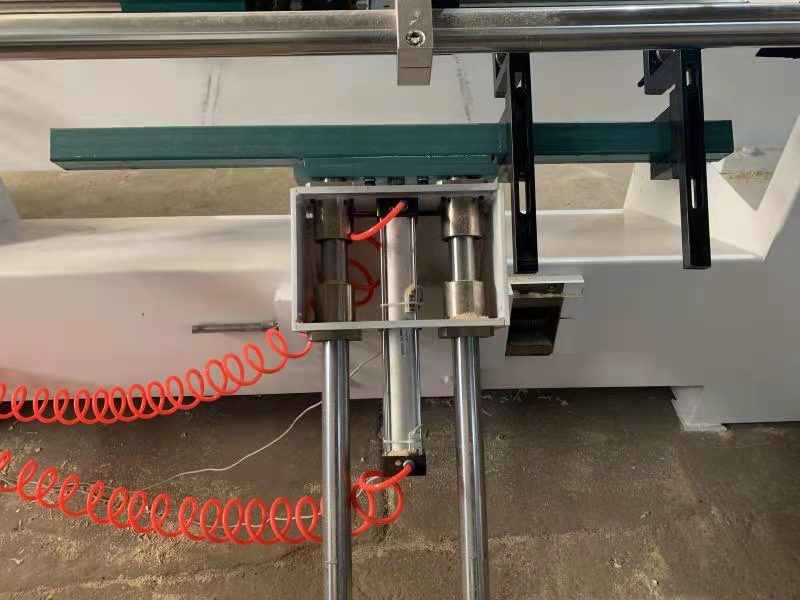

Automatic feeding part: including
Feeding size:
Feeding diameter 30mm-100mm
Feeding length 200-1200mm
Knife: High speed lathe knife

Item	Specification
Max processing length	1500mm(can custom 2000/2500/3000mm)
Max turning diameter	300mm
Air pressure	0.6-0.8Mpa
Power supply	AC 380V 3 phase 50HZ/60HZ(can custom 220V)
Max feed rate	200cm/min
Min setting unit	0.01cm
Transimission type	ballscrew for X,Z axis,gear for Y axis
Guider	Taiwan Hiwin orbit
Main shaft rotating speed	0-3000r/min
Spindle power	3.5kw
Cutter material	Super hard alloy
Control System	professional cnc wood lathe with LCD
Motor	Stepper motor
Driver	Yako2811 driver
Inverter	Fuling inverter
Drawing Software	AutoCAD

Features:

Specification:

1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.

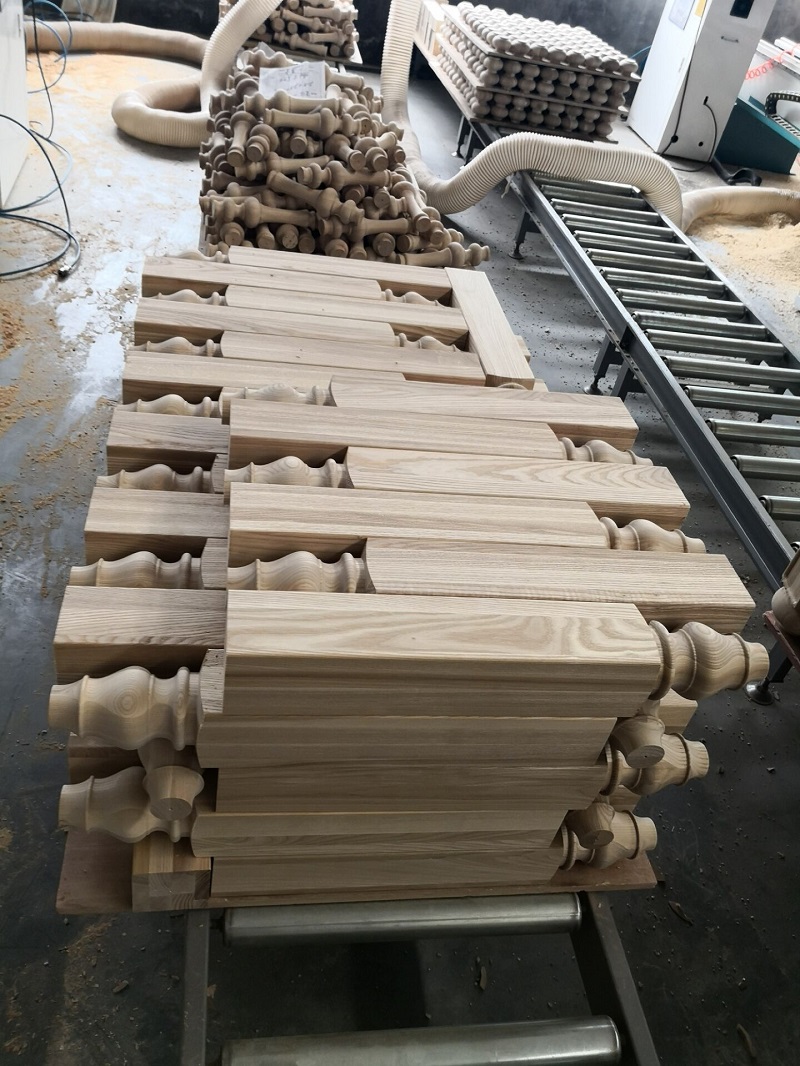

2. Specialused for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.

3.Adopting advanced handheld DSP system with USB port which is easy for operating even without a computer.

4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.

5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.

6. Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel

7. One time tool setting to finish the whole work piece.

8.Turning,broaching and engraving can be done with one machine by high speed.
