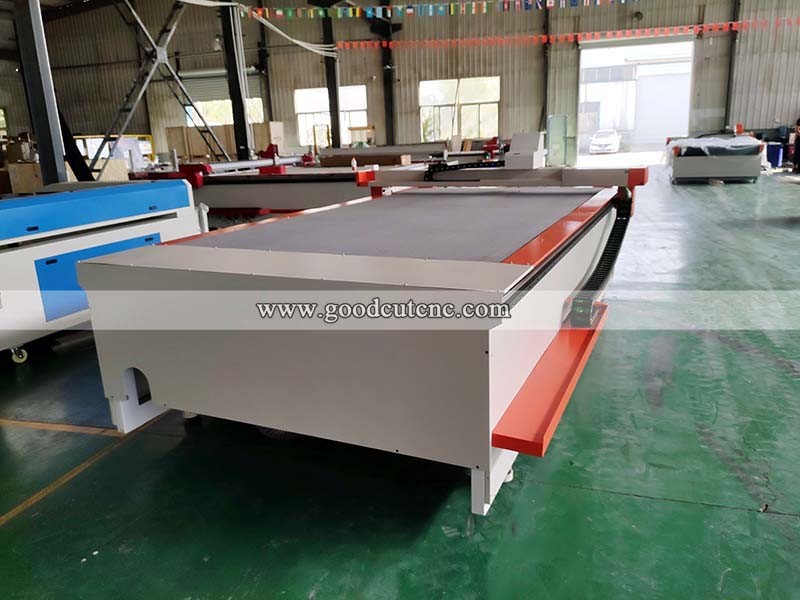

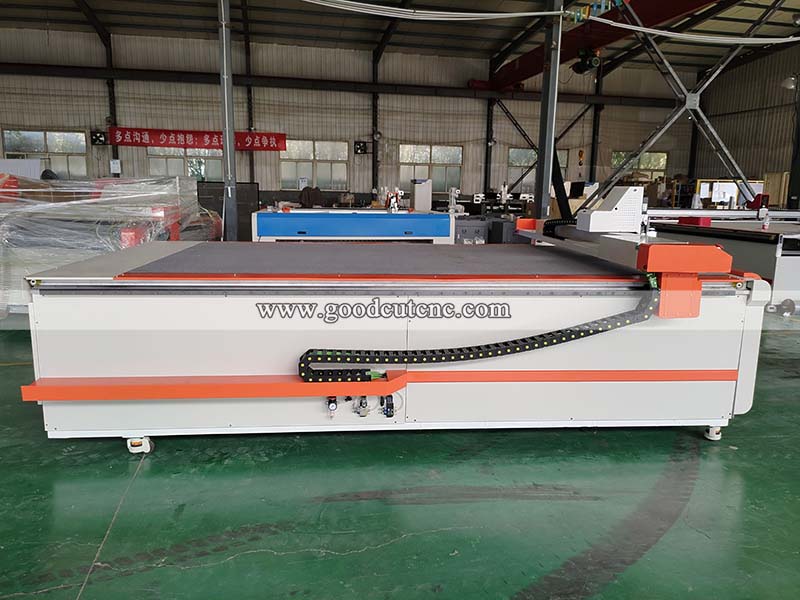

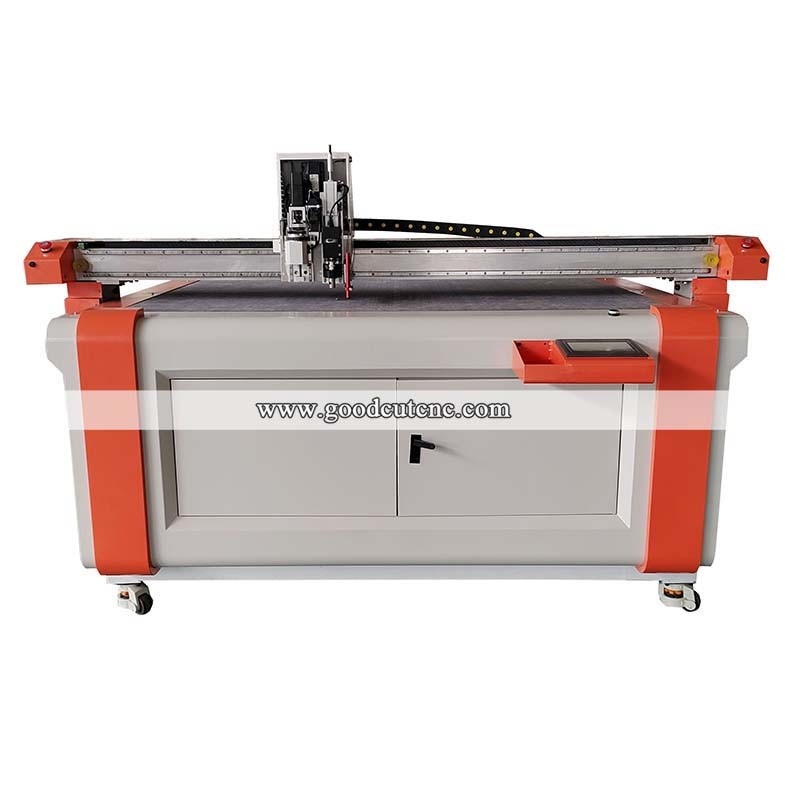

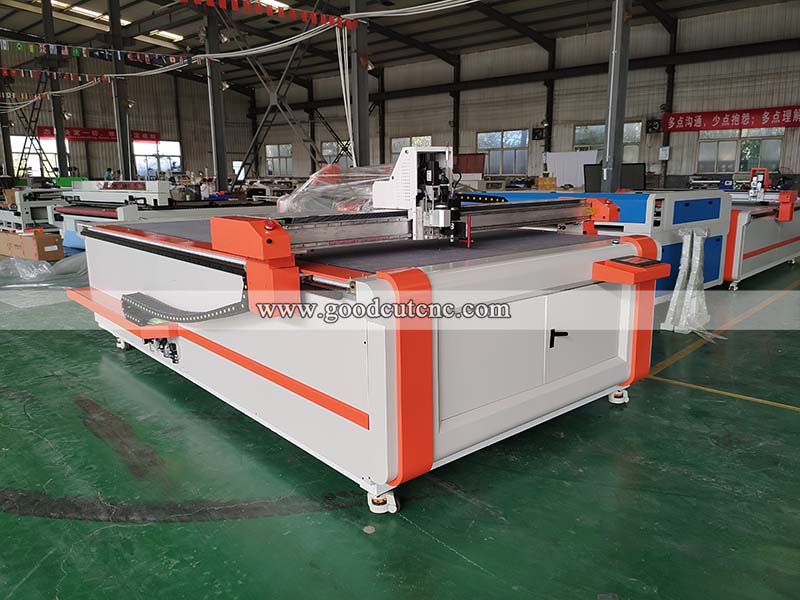

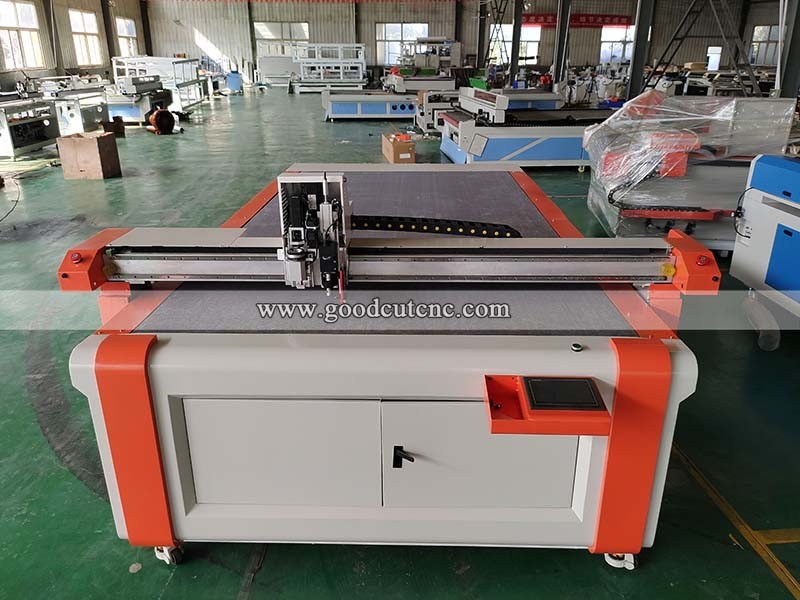

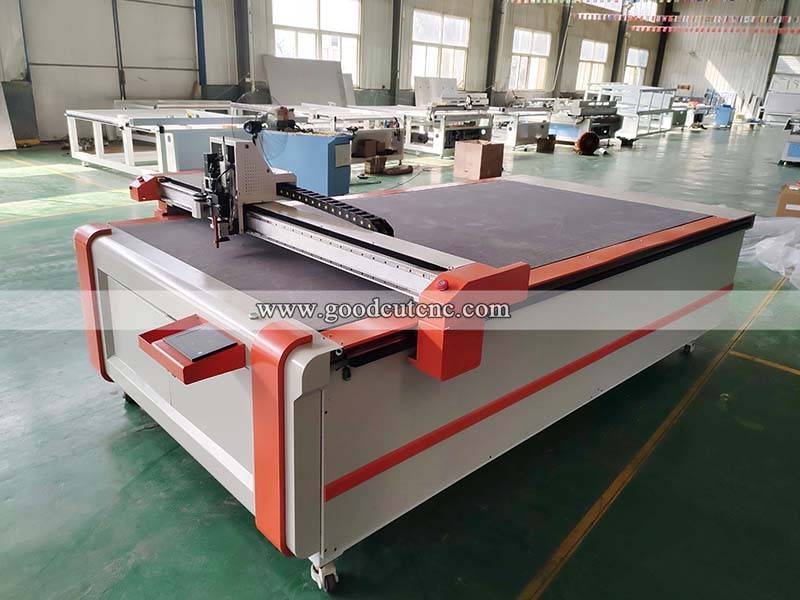

GC1625 Oscillating Knife Cutting Machine For Foam Leather Cutting

GC1625 Oscillating Knife Cutting Machine For Foam Leather Cutting

Oscillating Knife
Multiple cutting knives
High speed
Good price
Product description: Oscillating Knife with multi cutting knives

GC1625 oscillating knife cutting machine for Foam leather cutting

Oscillation knife (6).jpg

Working area	1600mm*2500mm
Pinch roller	Pinch roller for carton
Movement speed	1200mm/s
Cutting speed	Max. 800mm/s (set according to different material)
Computer interface	USB
Capacity	4GB
Fixed mode	High power vacuum absorption and intellectual partition
Vacuum pump	7.5kw
Safety device	Using infrared sensors, responsive, safe and reliable.

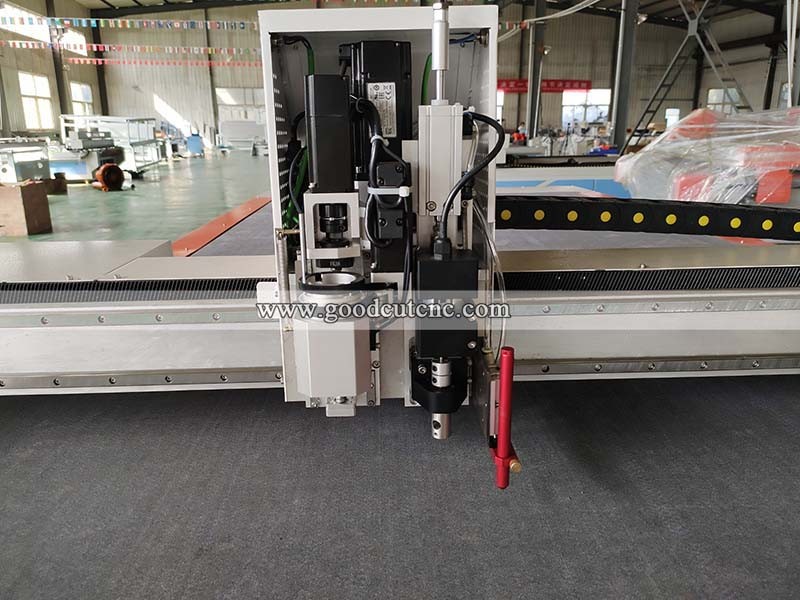

Tool configuration	Standard vibration multiple cutting knives
Drive system	Rack and pinion transmission, AC servo motor, PMI linear guide
Control system	Shenzhen Trocen, digit RISC core cpu + large scale programmable logic array
Operate mode	operation platform + data output control software (operation platform can be divided into connected and separated parts)
Display mode	Chinese and English liquid touch screen
Data transmission method	Ethernet
Cutting materials	Leather, corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey board, paperboard, car sticker, adhesive Sticker, etc
Working voltage	380V, 50/60HZ, 3 phase
Rated power	12kw
Environment temperature	0-45 centigrade
Max travel speed	800-1200mm/s
Max. working speed	500-800mm/s(according to different cutting materials)
Traveling positioning accuracy	≤0.02mm
Repositioning accuracy	≤0.01mm
Instruction system	HP-GL compatible format
Certificate	CE

Oscillation knife (24).jpg

Feature:

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

2. The high precision CNC oscillating knife cutter can induce draft separately and easily cut small pieces.

3. The anti-collision and the built in autosensing device ensure the security of CNC oscillating knife cutter.

4. High efficiency can be realized without making a high-cost knife model.

5. The high precision CNC oscillating knife cutter is designed for production with small quantities and can save on costs while maintaining speed and accuracy.

6. The machine cuts by knife, no burning, no pollution gases generated.

Oscillation knife (27).jpg

Oscillation knife (17).jpg

Application:

1）Sofa, seat, car seat cover, car floor mat, car carpet, luggage, handbag and other industries.
2）It is applicable to shoe industry, clothing industry, composite material industry, luggage industry, automobile industry
3）Advertising and printing industry, electronic industry, decoration industry, furniture industry, etc.
