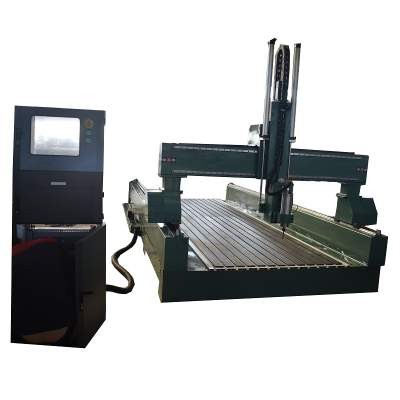

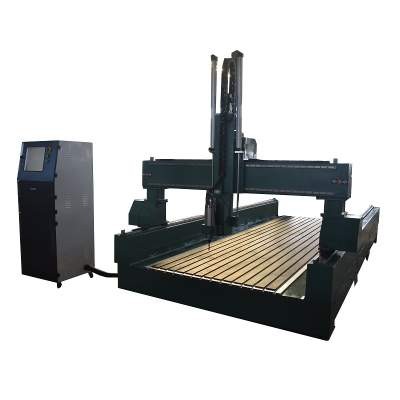

GC1325-4axis CNC Router with 180 degree swing head for Foam engraving

4 axis swing spindle

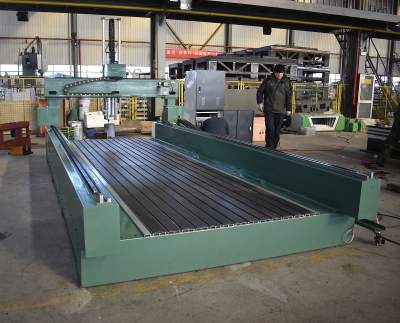

Sunk type structure
High Z axis
Servo motor and driver

EMAIL



1. Structure: thickened bed without deformation, small shaking when working, fine engraving effect

2. Drive: Weishi servo, strong power, smooth transmission, small heat, good closed-loop control, can be used for a long time without stopping.

3. Control system: DSP control system, strong anti-interference ability, stability, can control more parameters.

4. Transmission: screw transmission, high efficiency, high precision

5. Guide rail: Taiwan square straight line 30 increase guide rail, high precision, good stability

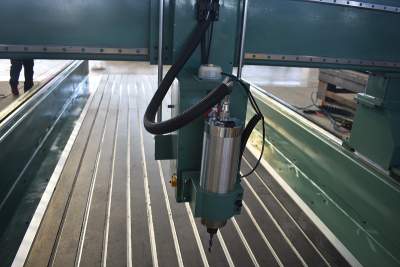

6. Main shaft: constant power frequency conversion cooling main shaft, low noise (seiko).

7. Oil filling: automatic oil filling system.

8. Transmission: High precision flange 80/ reducer, wear-resistant, strong strength, long-term use is not easy to wear

High speed, high precision and good stability.

Applicable scope: stone, jade, metal, wood, etc



PARAMETER

Number

Description

Parameter

1

X,Y,Z Working Area

1300x2500x500 mm*±100°

2

Effective working area

1300x2500x500 mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

4

X,Y,Z Repositioning Accuracy:

±0.01mm

5

Table Surface

T-slot Table

6

Frame

Big Steel Tube Structure

7

Y Structure

Helical rack gear , 4pcs HIWIN #35 Linear guide

8

X,Z Structure

HIWIN #45  Linear guide

9

Max. Power Consumption

(Without Spindle) 5Kw

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

HSD spindle 4.5kw or 6kw or 9kw

13

Spindle Speed

0-18000RPM

14

Drive Motors

Japan 1.5KW YASKAWA servo

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

SYNTEC Control System 21MA

18

Rotary device

Diameter300mm, length 2000mm

18

Computer Interface

USB

19

Flash Memory

512M

20

Collet

ER32 (20mm)

21

X,Y Resolution

<0.01mm

22

Software Compatibility

UG , Power mill

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

New type dust collection

1.5KW with two bags (equal the old type 4Kw )

APPLICATION

Wood, EPS (Any kind of Foam) and non-metallic materials.

1. Mold industries:    sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mould, wooden ship model,wooden model aviation and other wooden mould.

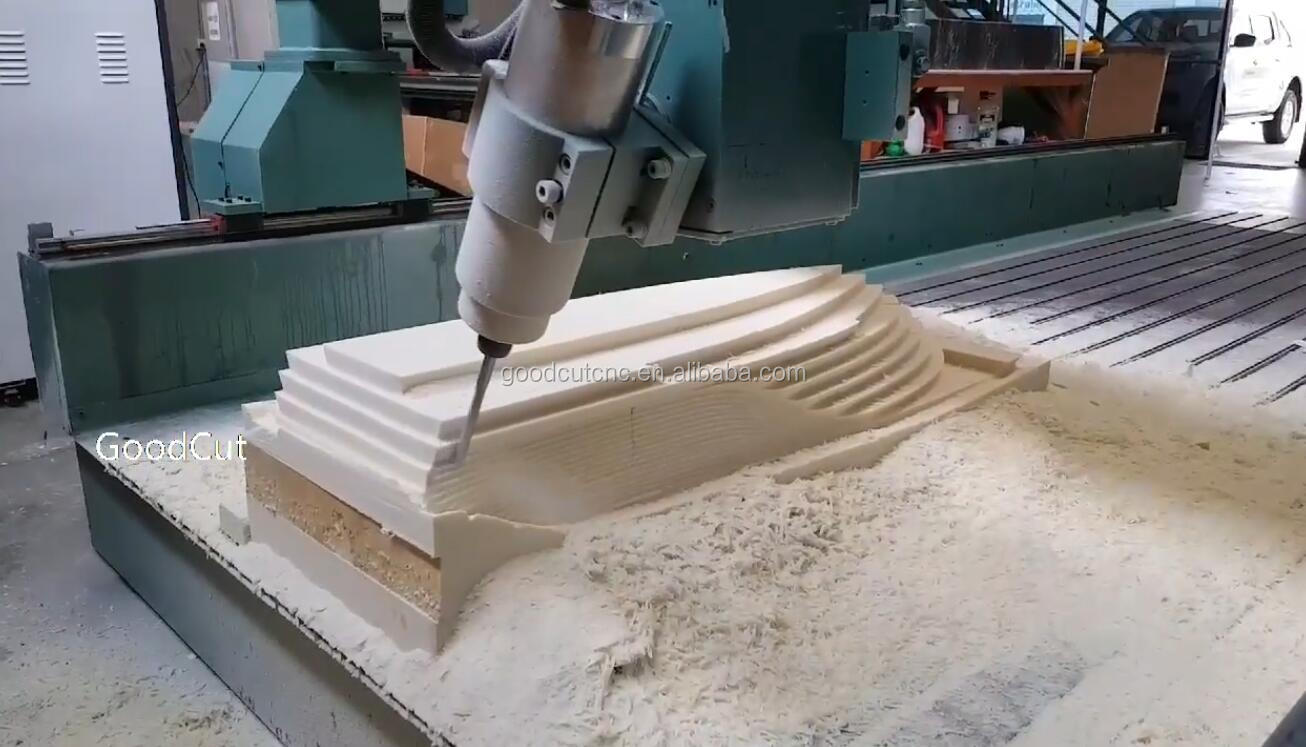

2.Foam industry: Can carve and cut on any kind of Foam (EPS) , do 2D and 3D dimension processing.

3. Three dimension: with 4 axises, Big diameter Rotary, can do any kind of 3D cylinder material and mould processing for advertisment industry , cloth and shoes industry


SAMPLE
