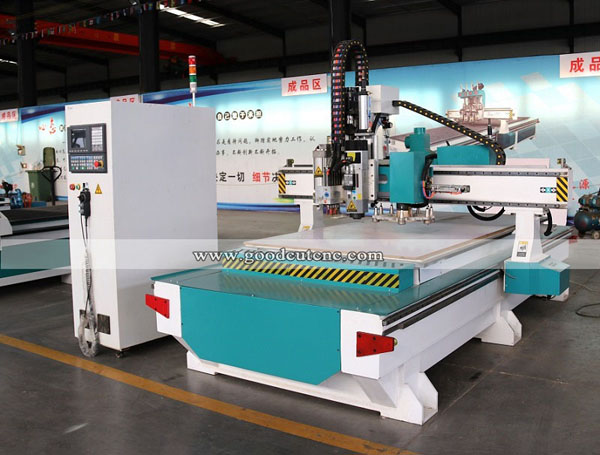

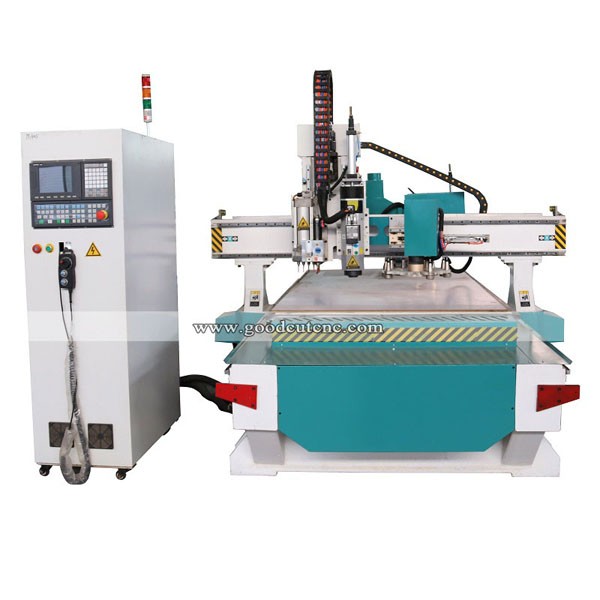

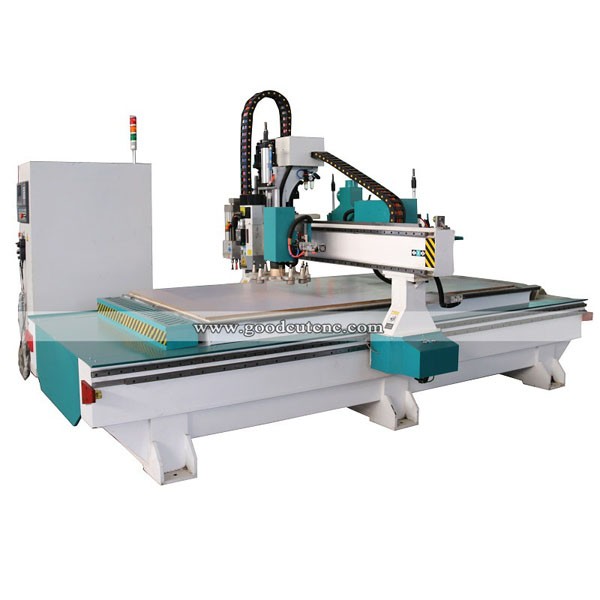

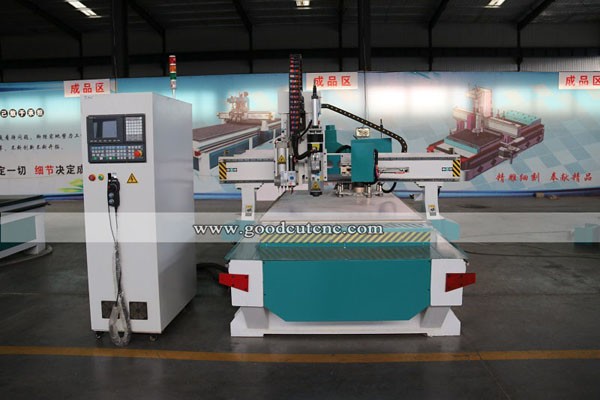

GC1325DA ATC CNC Router With Drilling Package

8pcs 12pcs disk tool magazine
Linear Automatic too changer
9kw ATC spindle
Drilling package

EMAIL

      <

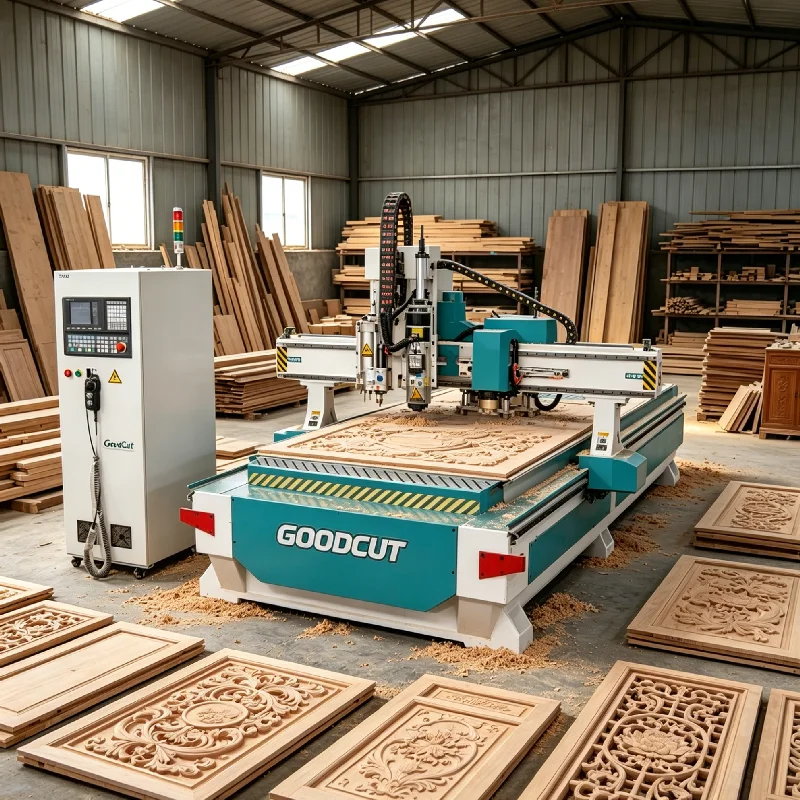

Automatic 3D Wood Carving CNC Router Woodworking Machine for Wooden Sculpture







Parameter :



Model

GC1325DA

X-Y-Z axis working area

1300x2550x300mm

Machine size

3350x2270x2320mm

Repositioning resolution

0.02mm

System resolution

0.0025mm

X-Y movement

rack and pinion,gear drive/Taiwan

Z movement

ball screw drive/Germany

Guide

linear 25 square/Taiwan

Max.speed

60,000mm/min

Max.cutting speed

30,000mm/min

Spindle power

9kw Italy HSD air cooling spindle

Spindle speed

18,000rpm

Inventer power

11kw  Delta

Tool magazine

8 pcs/ 12pcs tools,carousel type

Drive motor

servo/Japan

Working voltage

AC380V/50-60HZ,3-phase

Command code

G code

Computer interface

USB 2.0

Collet

ER32-3.175mm,6mm,12.7mm

Software

Artcam&Alphacam software/UK

Controls

SYNTEC system/Taiwan

Packing dimensions

3420x2280x2256mm,2500kgs

Standard enquipment included

1.Auto oil lubrication system



2.Dust hood



3.T-slot vacuum table



4.Tool shanks

5.Vacuum pump





Features :



1. Spindle Power: HSD 9KW air-cooling spindle, with 8pcs disc type tools magazine.
2. Drilling Head: Italy HSD 5+4 gang drill.

3. Driving System: X Y Z axis Japan Yaskawa servo motor drive, Z-axis with brake.

4. Control System: Taiwan Syntec controller, high precision and best stability.

5. Converter: Zoncn/ Fuling brand.
6. Cylinder: 10pcs Positioning Cylinders, pneumatic device for loading and unloading platform.

7. Transmission: Taiwan Hiwin square guide rails (Y 30mm, X/Z 25mm), Lifetime free-lubrication, high precision helical rack gear.
8. Beam: Reinforcing steel structure.

9. Cable: YANGLI special shielded cables for drag chain, anti-static, anti-interference, with good bending resistance.

10. Limit Switch: Japan Omron.

11. Electrical Components: French Schneider Brand.

12. Body Structure: Heavy-duty integral welding steel structure, with tempering aging treatment, which ensure the body durable and never deformation. With big cover outside.
13. Table: Overall steel truss structure, good stability, with no distortion; Vacuum table.
14. Vacuum Pump: 5.5KW.

15. Software: Be compatible with G-code NC file.
16. Optional: Loading and unloading platform, Scanning gun, Automatic coding machine, Dust collector.








 parts

Application:

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
