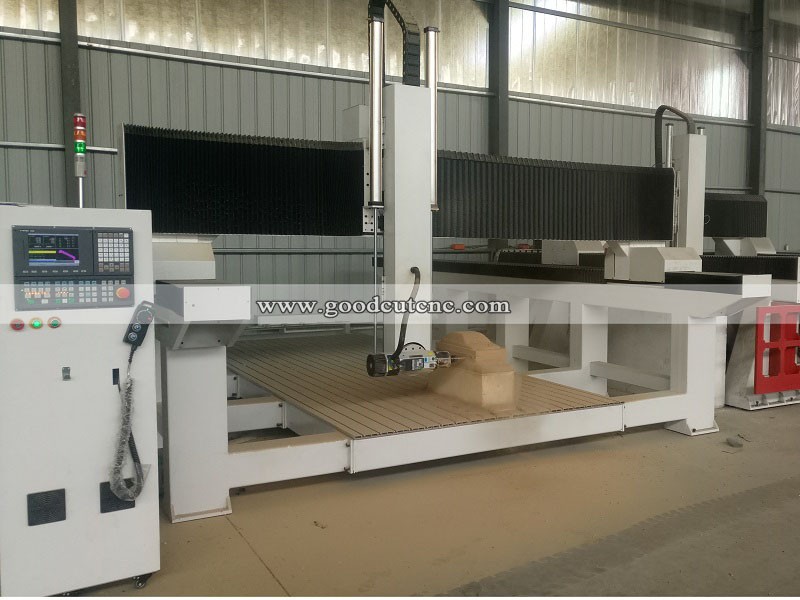

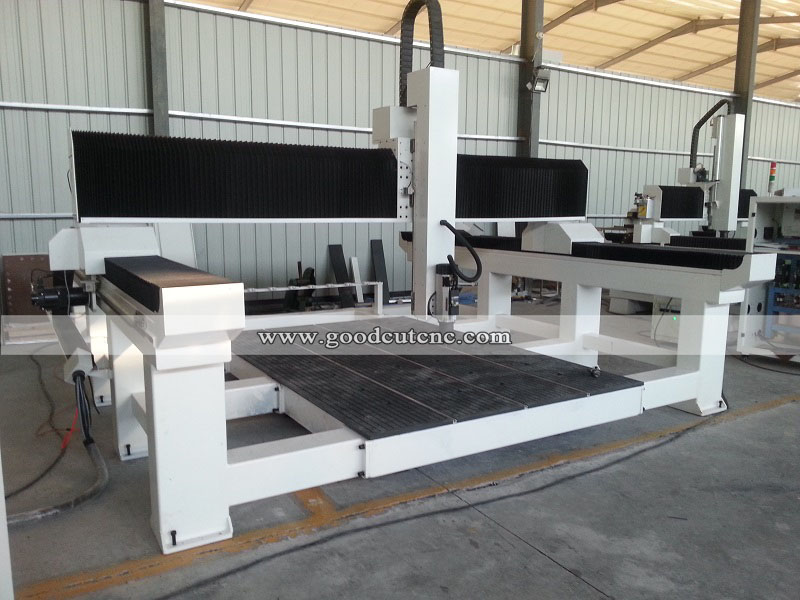

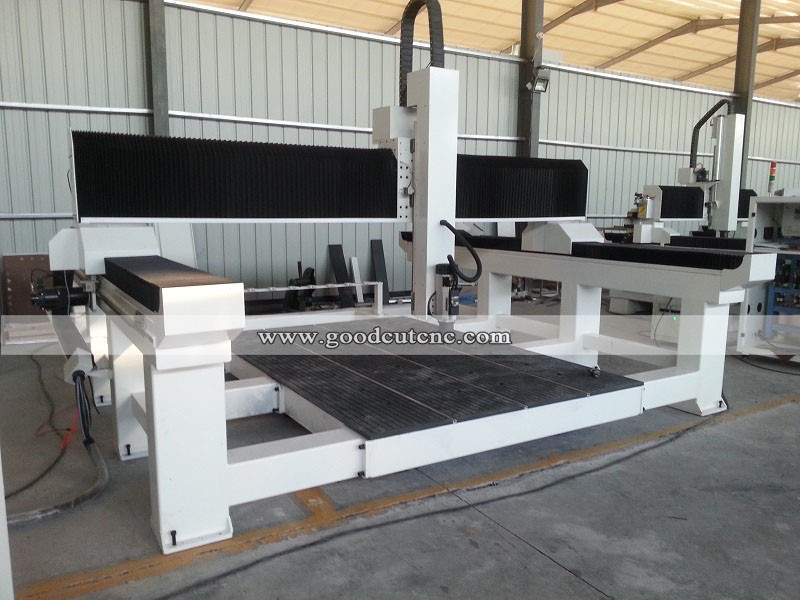

GC1325ATC-4 Axis CNC Router with 9KW Rotated ATC Spindle for Engraving 3D Wood Working

Linear atc device
180 degree spindle
High Z axis
Sunk table

EMAIL


FEATURES

The foam engraving machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship, aviation and train. And it is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds.

1. Designed with the press roller, it can keep the machine not moving.

2. With Japan YASKAWA servo system, it has the advantages of higher precision and big torque.

3. Manufactured with  HSD/HQD spindle, it has many features of high speed and high efficiency.

4. The Z axis and the whole working size can be heightened according to your special requirements.







PARAMETER

No.

Description

Parametrs

1

Working Area

1300*2500*500mm,2000*3000*600mm

3

X,Y,Z Traveling Positioning Accuracy:

±0.02/300mm

4

X,Y,Z Repositioning Accuracy:

±0.02 mm

5

Table Surface:

Moveable Milling Steel with T-slot Table

6

Frame:

heavy steel welding

7

X,Y,Z Structure:

Ball Screw and gear rack

8

Max. Power Consumption:

14.2kw

9

Max. Rapid Travel Rate:

25,000mm/min

10

Max. Working Speed:

15,000mm/min

11

Spindle Speed:

0-24000 RPM

12

Drive Motors:

Yaskawa Servo

13

Working Voltage:

AC380V, 50/60Hz, 3PH (Option:220V)

14

Command Language:

G Code

15

Operating System:

Syntec Control System or NC studio/Mach3/D

16

Computer Interface:

CF Card, Ethernet

17

Flash Memory:

512M (U Disk)

18

X,Y Resolution:

< 0.02mm

19

Software Compatibility:

UGS, Alpha Cam, Becam, Type3, Ucancam V9

20

Running Environment Temperature:

0°-45°

21

Relative Humidity:

30%-75%

22

Packing Size:

5700x4800x2000mm(in parts)





APPLICATION

Die and mold industries: The machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds,etc. Musical instrument industry: The machine can also engrave large 3D curved surface instruments and contour cutting.

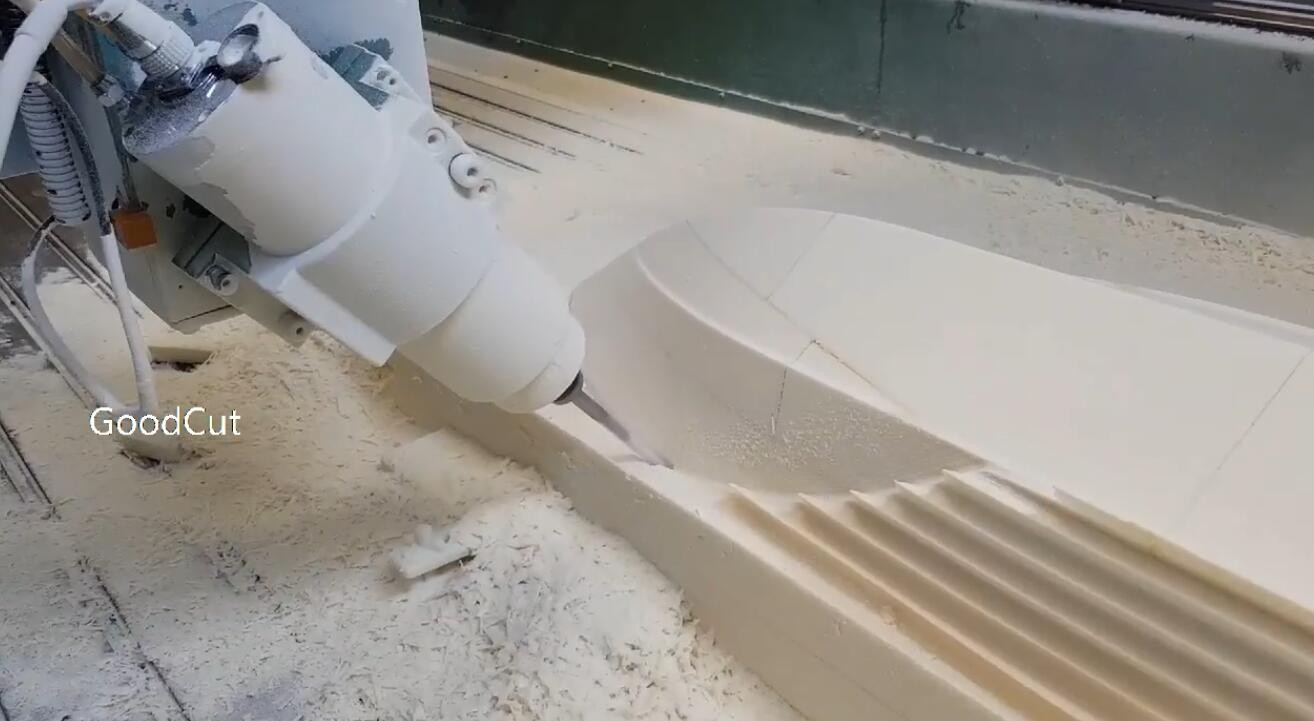

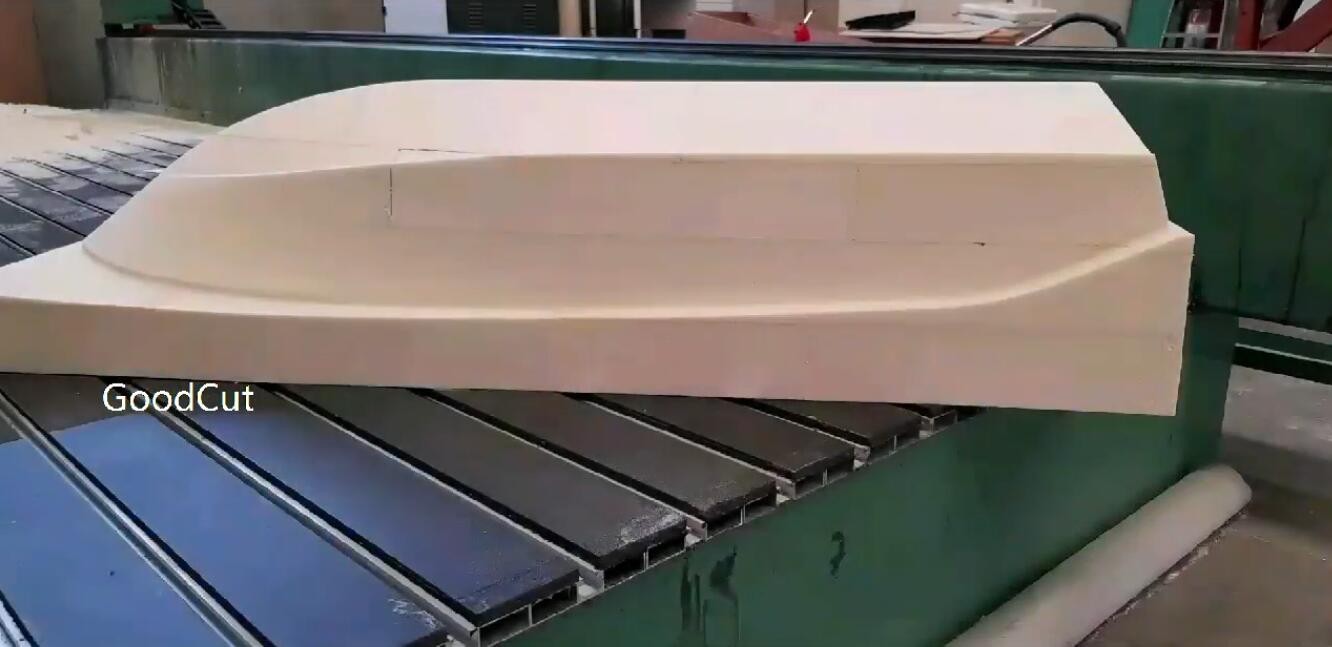

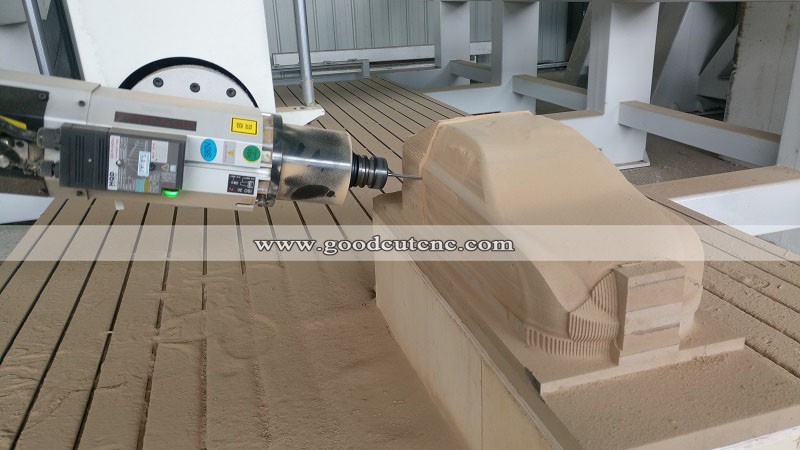

SAMPLE

COMPANY INFORMATION

The company's workshop


Packaging and transportation


Customer feedback and our service



Equipment display


Group photo with our customer


Our qualification certificate
