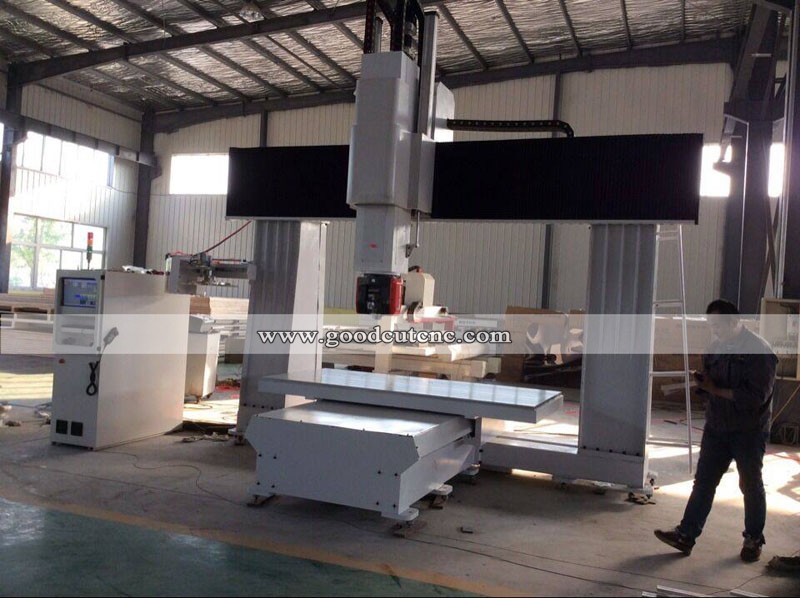

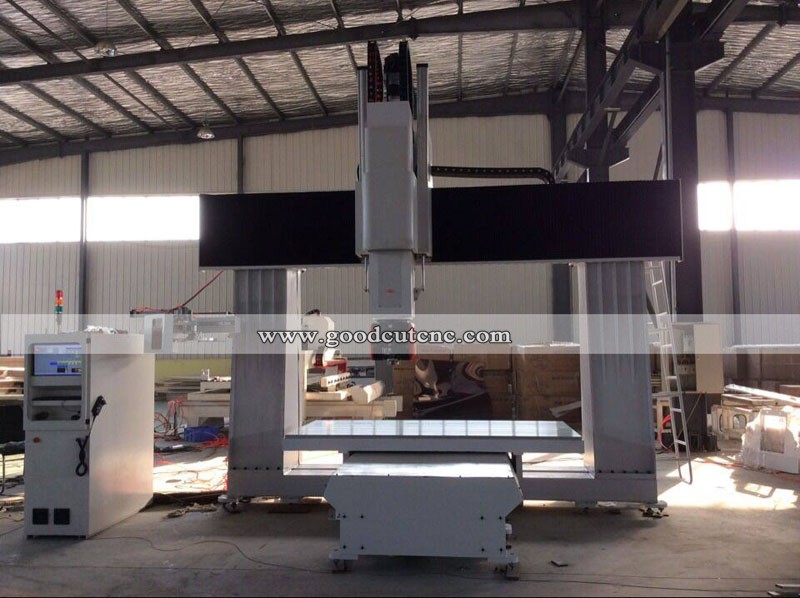

GC1325ATC-5 Axis CNC Router with 9KW Rotated ATC Spindle for Engraving 3D Wood Working - 副本

Linear atc device
180 degree spindle
High Z axis
Sunk table

EMAIL


FEATURES

What is 5 axis CNC machining?

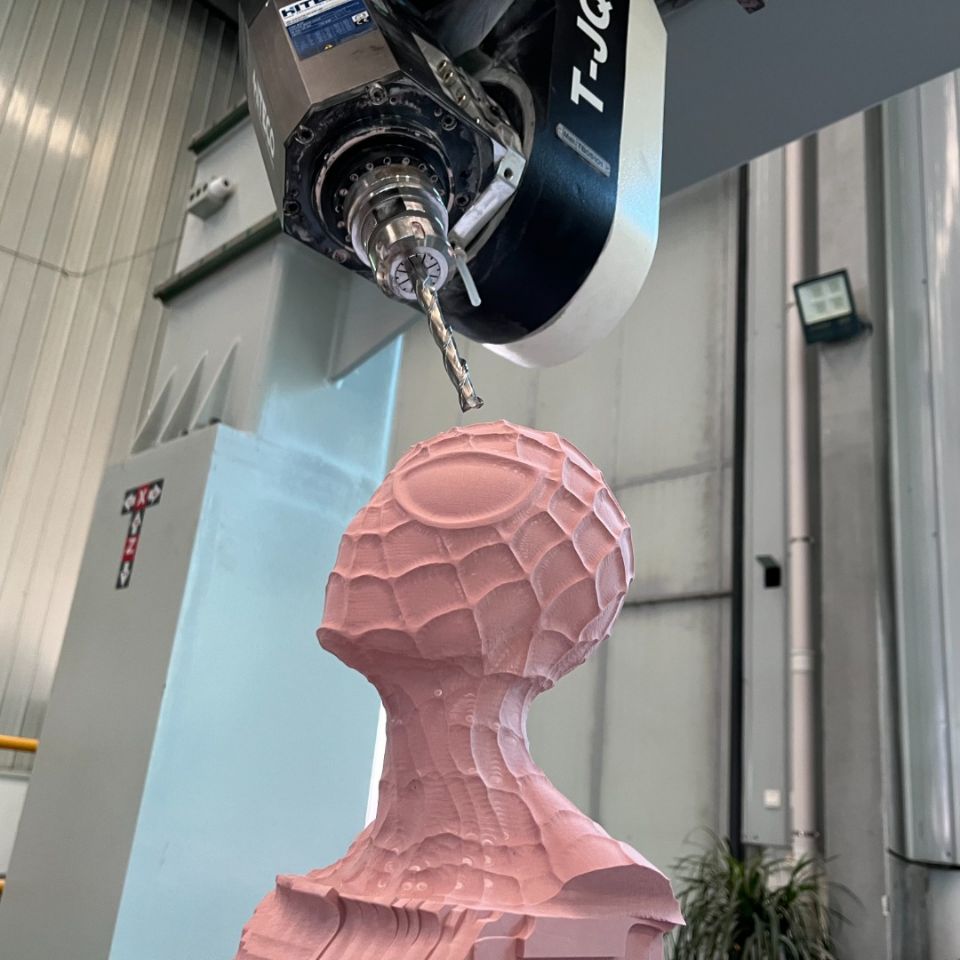

Five axis CNC machining refers to the CNC processing in which the tools can work in 5 different directions simultaneously. Compared with the basic 3 axis machining, the five-axis CNC machining is more flexible and variable. The 5 axes refer to X+Y+Z+A (rotates around X)+B (rotates around Y), X+Y+Z+A+C (rotates around Z), or X+Y+Z+B+C. Blue Elephant mainly provides the 5 axis CNC router machine and 5 axis machining center that works on X+Y+Z+A+C. A 5 axis router machine is an upgraded machine of regular 3 or 4 axis CNC routers. It is able to carve on a workpiece in five different faces simultaneously. Same as other CNCs, a 5 axis router operates on 3 primary axes of X, Y, Z. Besides, it can rotate its tools by two additional axes, A and C. This ensures the 5 axis router process more directions of the workpieces without adjusting them manually.


This upgraded 5 axis CNC machining center is added with a protective cover, carousel ATC magazine and T slot & vacuum table. Therefore, it is widely used in aerospace, automotive, mold manufacturing, artwork manufacturing, medical equipment and other fields, which can realize more complex and precise parts processing, and improve production efficiency and product quality.

1. The T slot & vacuum table with 2 zones has stronger adsorption capacity and is easier to fix the material. 2. The metal sheet cover on the Z axis is both beautiful and dustproof. 3. 12-tool carousel magazine can automatically change tools to realize more complex works. 4. The 12kw water cooling spindle can rotate 360° for fast 3d engraving. 5. All accessories are from international first-line brands, ensuring the processing accuracy and quality.



PARAMETER

NO.

Description

Parameter

1

Model

GC1325-5 Axis

2

Table Size

1300×2500*600mm

3

ATC

Linear / Disk auto tool changer, 12pcs Tool Magazine

4

Head

5 Axis Chinese DEMAS head

5

Spindle

HQD 12kw air cooling spindle

6

controller

Taiwan LNC controller / Taiwan Syntec controller

7

Motor

Leadshine servo motor 1500w / Japan Yaskawa servo motor

with Japan Shimpo reducer

8

x y z transmisson

Taiwan HIWIN 30mm rail and ball screw

YYC Rack

9

Inverter

Fuling inverter

10

Table

Aluminum table with T-slot

11

Bed

Heavy duty frame and bed

12

Oil system

Auto oil system

13

ensor

ensor


APPLICATION

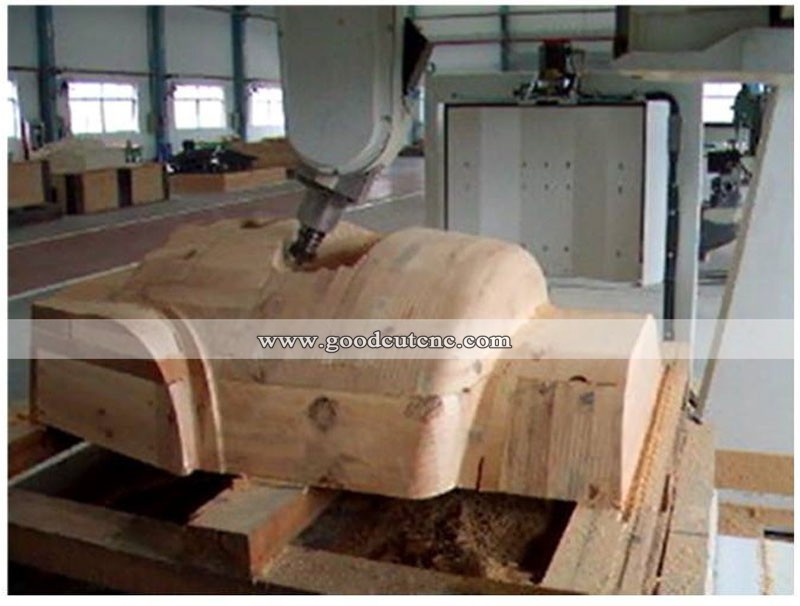

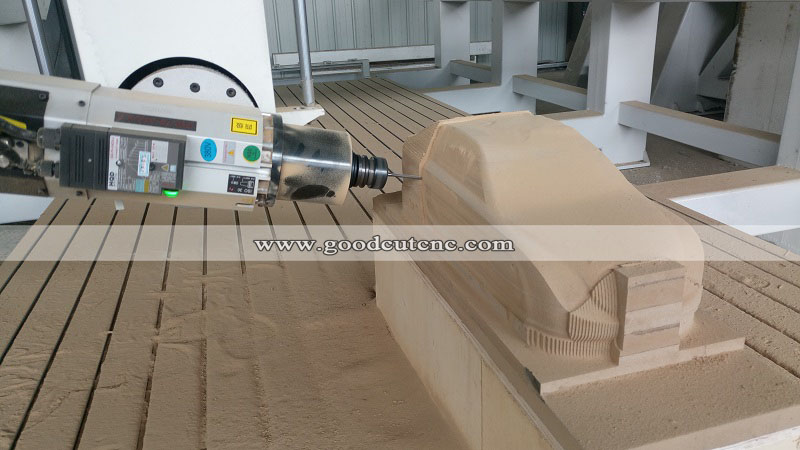

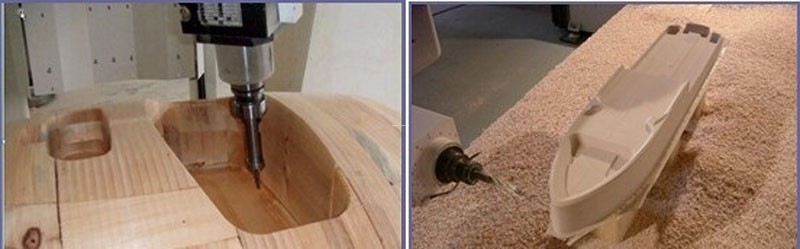

Die and mold industries: The machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds,etc. Musical instrument industry: The machine can also engrave large 3D curved surface instruments and contour cutting.
