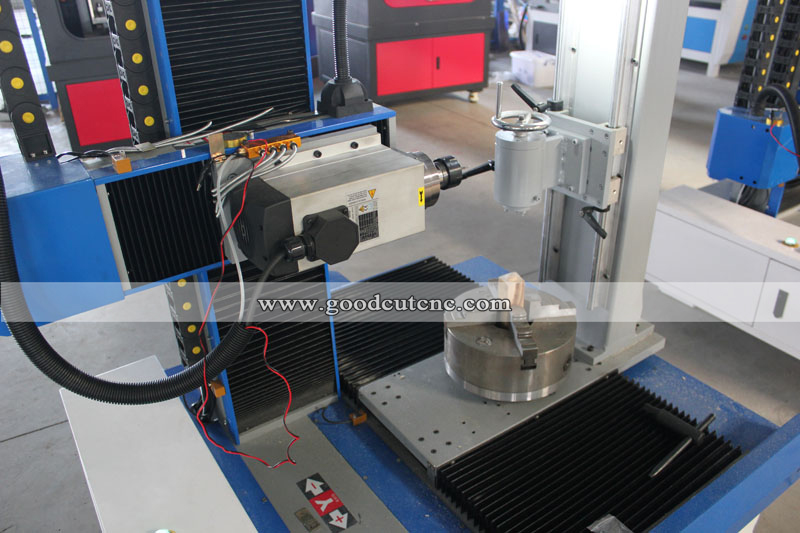

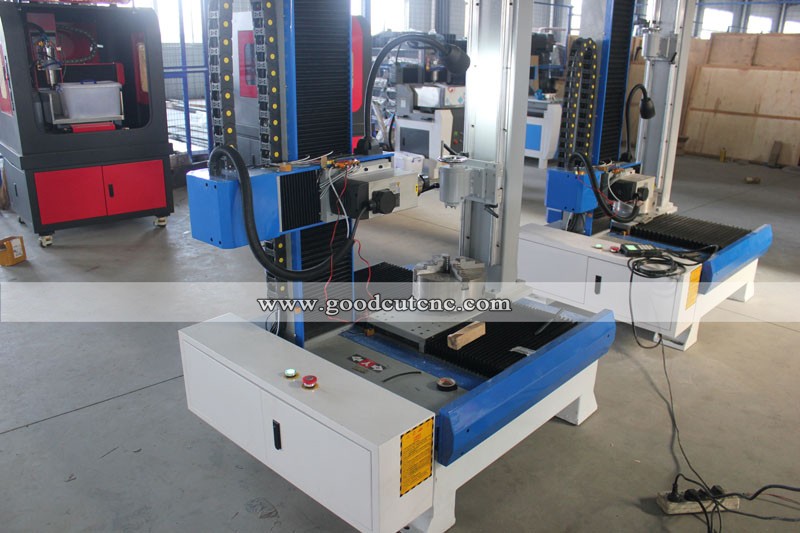

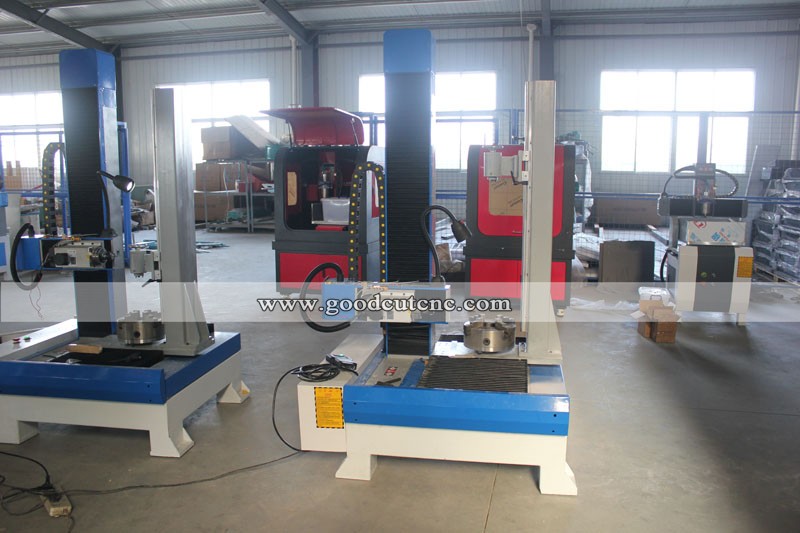

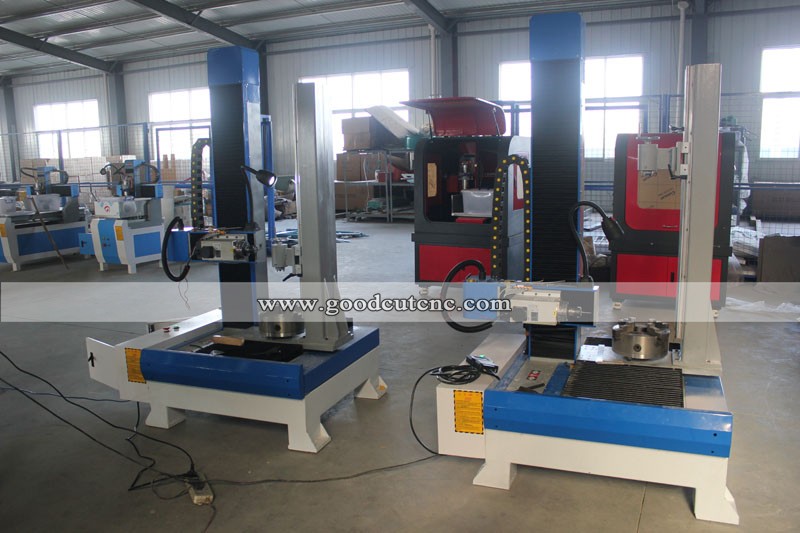

GC-1325-V Vertical Engraving cnc router

Vertical cnc router machine
5.5kw spindle
DSP controller
Servo motor and driver

EMAIL



1. Structure: thickened bed without deformation, small shaking when working, fine engraving effect

2. Drive: Weishi servo, strong power, smooth transmission, small heat, good closed-loop control, can be used for a long time without stopping.

3. Control system: DSP control system, strong anti-interference ability, stability, can control more parameters.

4. Transmission: screw transmission, high efficiency, high precision

5. Guide rail: Taiwan square straight line 30 increase guide rail, high precision, good stability

6. Main shaft: constant power frequency conversion cooling main shaft, low noise (seiko).

7. Oil filling: automatic oil filling system.

8. Transmission: High precision flange 80/ reducer, wear-resistant, strong strength, long-term use is not easy to wear

High speed, high precision and good stability.

Applicable scope: stone, jade, metal, wood, etc


PARAMETER

Item

Parameter

XYZ Axis positioning accuracy

0.02mm

XYZ Axis repeat positioning accuracy

0.01mm

XYZ working area

1000*1300*2500mm

XY、Z Transmission

Screw transmissionTaiwan HIWIN, Linear guide

Working area

1300*2500mm

Controller

DSP controller

Maximum feed height

1000mm

Spindle motor power

5500W /380V

Maximum spindle clamping tool

3.175/4/6/8/10/12.7 /14/16mm

Spindle cooling mode/spindle speed

0-24000rpm/min

Fast speed of space travel

20m/min

Driving system

Servo motor and driver

Operating voltage

380V

Machine frame

High quality reinforced bridge steel, New design


APPLICATION

Its major functions include embossing, lettering, hollowing out, cutting, seamless stitching, milling, grinding, etc. So it has wide applications in garden engineering, inscription, stone sculpture, craft, and artwork industries.

SAMPLE
