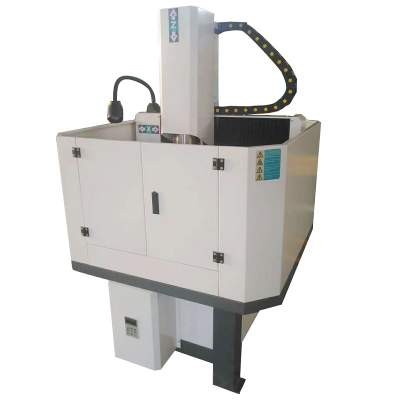

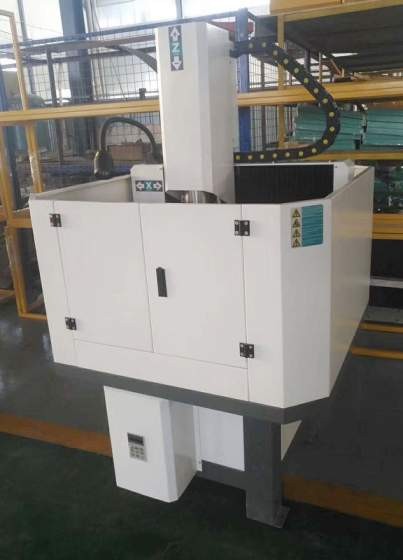

GC4040M CNC Router for Aluminum Mold Engraving

High pricision
With cover
Grinding screw
For copper aluminum mold

EMAIL



fEATURES

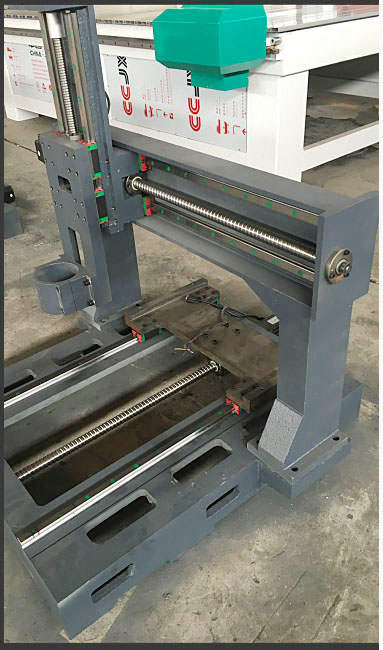

1) The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.

2) All axis with TBI ball screw transmission, ensuring the machine fast speed and higher precision.

3) Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.

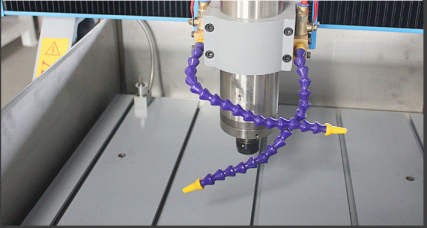

4) Adopt high speed water cooling motor with invariably power, big torque, strong cutting, high-frequency and long-life.

5) Professional factory with DSP A11 control system, can provider good after sales service and technology support.

6) Good software compatibility, with machine ,we provider Artcam, Aspire, Powermill etc.

7) Available for continuous work for a long time









PARAMETER

Description

Parameters

Model

GC1625S stone cnc router

Working Area

1300x2500x300mm

Spindle power

5.5 KW

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.03mm

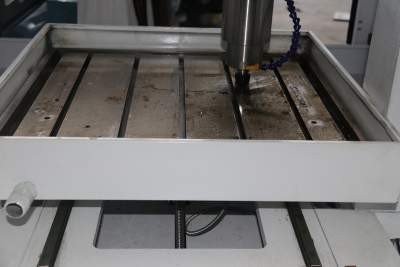

Table Surface

Water tank with sprayer pipe

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption (Without spindle)

5.5KW

Max. Rapid Travel Rate

15000mm/min

Max. Working Speed

12000mm/min

Cooling typeWater cooling connect with water pump

Spindle Speed

0-24000RPM

Drive Motors

Stepper motor

Working Voltage

AC380V/50/60Hz,3PH

Computer Interface

USB

Running Environment Temperature

0°C~45°C

Relative humidity

30%~75%

Delivery time

7-10 working day



APPLICATION

Good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, etc.

SAMPLE
