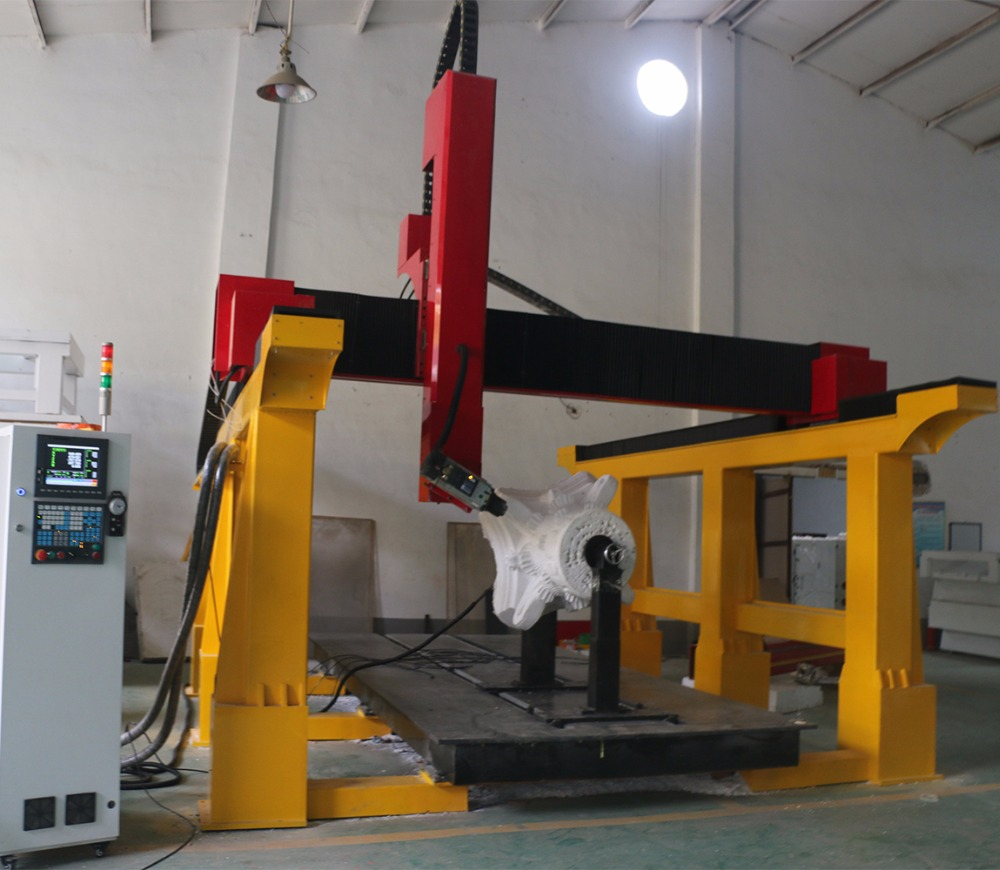

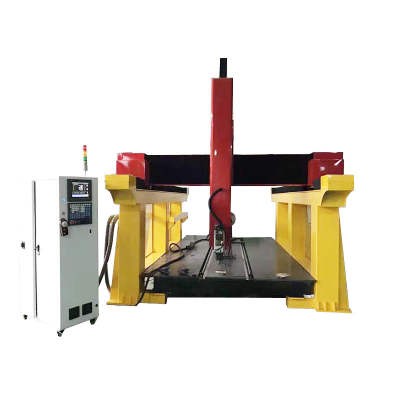

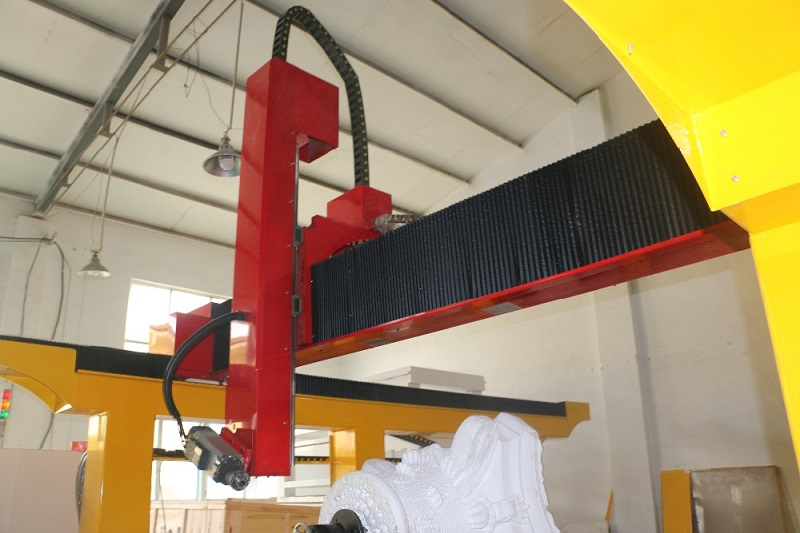

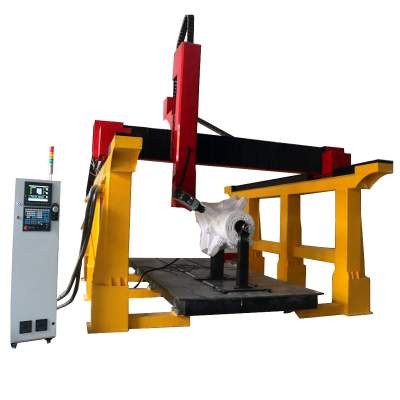

GC1325-4 4axis CNC Router with Swing head

HQD/HSD 9kw air cooled spindle;
Fuling Inverter;
Leadshine/Taiwan Delta/Janpan Yaskawa servo motor and driver
Mach3/Weihong/Taiwan Syntec etc

EMAIL






Features :

This is a 5 axis CNC router specially designed for engraving complex three-dimensional workpieces. This 5-axis CNC router has the characteristics of integrated casting, good rigidity, good stability, high processing accuracy, stable operation, convenient operation, and powerful functions.

* With SYNTEC control system, high machining accuracy and high performance.
* High Z-axis travel, so that very suitable for processing large-scale three-dimensional surface.
* Auto tool change, greatly improve the quality and efficiency.

 5 axis router (12)


 Parameter

DescriptionParameter
working area1300x2500mm/1500*3000mm/2000*3000mm
Table structureWeld Steel Movable Table
Z StructureTaiwan Guide rail: Z #30 Ball screw (3210)
X, Y StructureTaiwan Guide rail:#40 Ball screw (4040)
Control systemTaiwan Syntec 5 axis control system

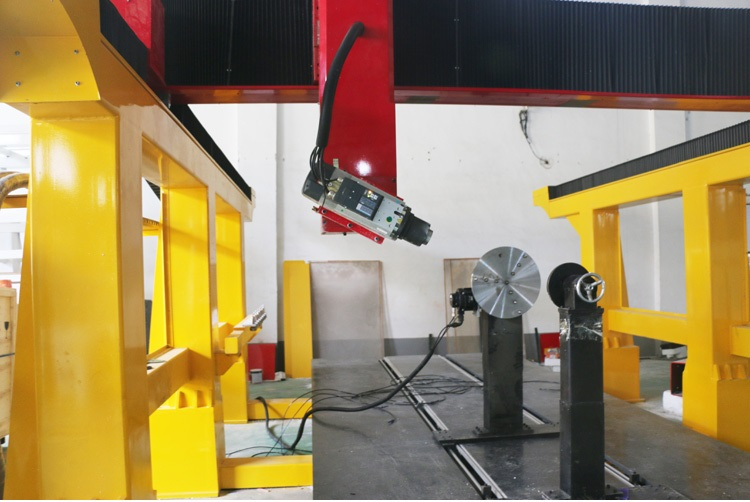

Spindle

10KW hiteco 5axis spindle

InverterFuling inverter
Motor and driverLeadshine / Taiwan Delta / Janpan Yaskawa servo motor and driver
ReducerJapan SHIMPO
SoftwareArtcam Type2 JDpaint Powermill
OptionSwing head,rotary device,automatic tool changer



Spindle

10KW hiteco 5axis spindle



5 axis router (27)



Taiwan's  Syntec systems

safe and reliable operation, read code speed and efficient, and have online simulation capabilities, online monitoring, to ensure the efficient and safe processing

5 axis router (29)



Japan Yakawa servo motor and driver:

With highly control precision and high speed, reliable and stable;



Taiwan Delta Inverter:

Guarantee the variety working speed and protect the spindle very well;

Japan SHIMPO

4 aixs (3)

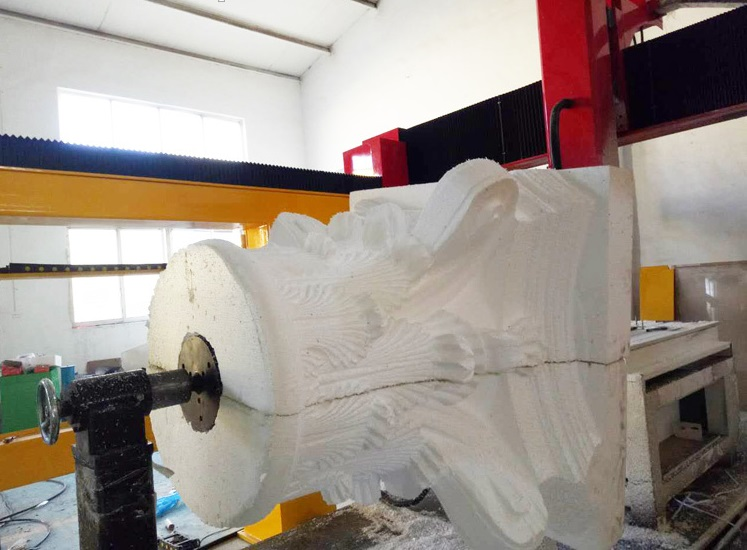

Application of High accuracy wooden carving woodworking 5 axis cnc wood router machine:

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

5 axis router (12)5 axis router (13)
