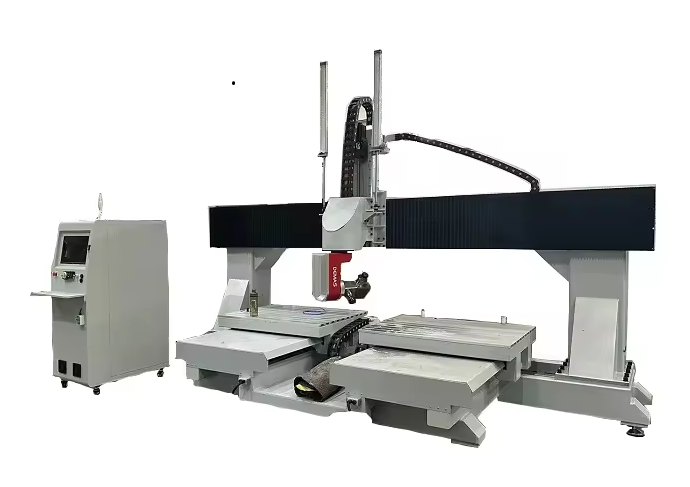

Duplex 5 Axis cnc router for engraving Chair back and armrests

Duplex 5 Axis cnc router for engraving Chair back and armrests

EMAIL



Duplex 5 Axis cnc router for engraving Chair back and armrests

FEATURES

Compared with other foam engraving Machine, this machine's working size is much larger. And The Z axis can be heightened according to your special requirements; and the whole working size also can be customized.

1. With heavy-duty gantry and structure, which can guarantee the machine to be strong, reliable and durable.

2. Equipped with air cooling spindle, it has the features of low noise and easy operation.

3. With imported high-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision.

4. Many configurations and service can be available according to your requirement.




PARAMETER

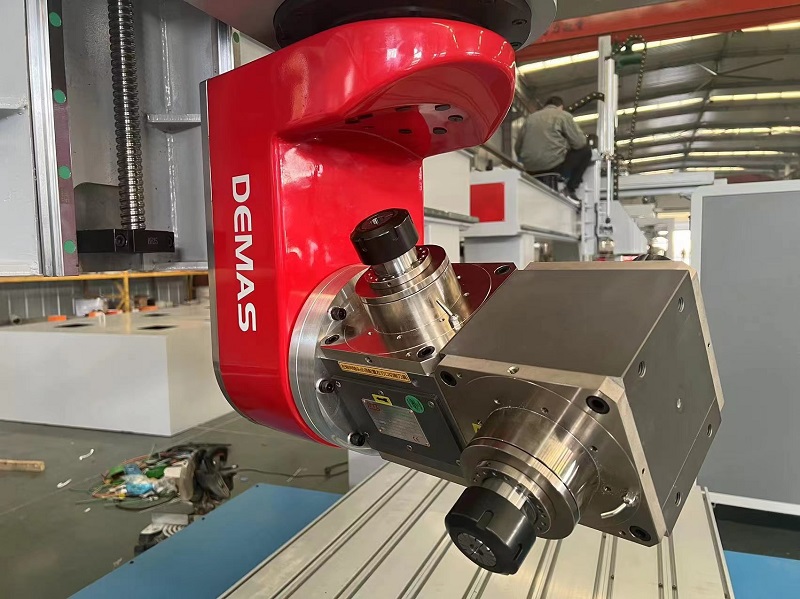

Duplex 5 Axis Head with Hiteco Water Cooling Spindle, HSK F63

Model

GC1325ATC - 5 AXIS cnc router

Working size

1300*2500*600mm

1500*3000*600mm

2000*3000*600mm

2000*3000*600mm

size can be customized

Structure

 Heavy duty gantry and structure,12mm thickness steel

Control system

Taiwan SYNTEC control system support 5 axis and ATC function

Spindle

6kw/7.5Kw/9Kw etc

Spindle speed

0-18000rpm

Table Surface

T Slot Table

Driving system

Taiwan SYNTEC servo driver 1.5KW

Guide rail

Helical rack gear for X, Y axis, Taiwan TBl ball screw for Z travel,

Double Taiwan HlWIN #35 Linear guide for Y axis one side,total 4pcs #35 linearguide for Y axis

X,Z axis Taiwan HlWIN #35 linear guide

Dust collectorDust hood for axis,dust collect hood and pipe for dust collector

Inverter

Chinese Best/Fuling/ Delta

Z axis transmission

Taiwan TBl ball screw with high precision

Collet

ER32/BT30/BT40

Rotary clamp

φ600X2500mm

Working Voltage

AC380 50HZ/60HZ 3 phase or AC220 50/60HZ single phase

Optional

Swing head with 180 degree

Rotary device



APPLICATION

The machine hes been widely used in these industry: Die and mold industries: The machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds,etc. Musical instrument industry: The machine can also engrave large 3D curved surface instruments and contour cutting.
