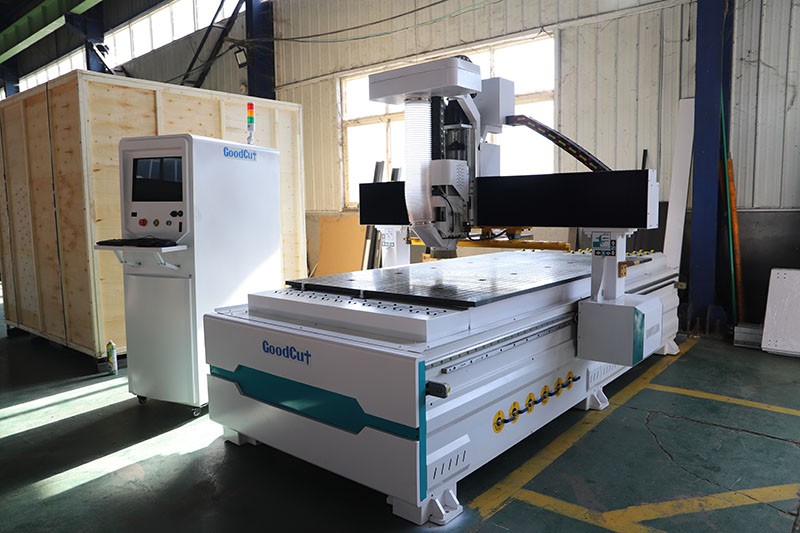

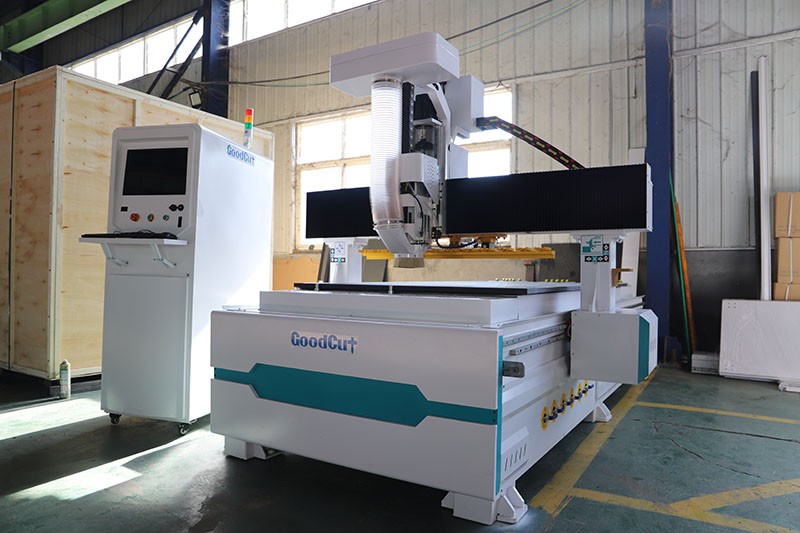

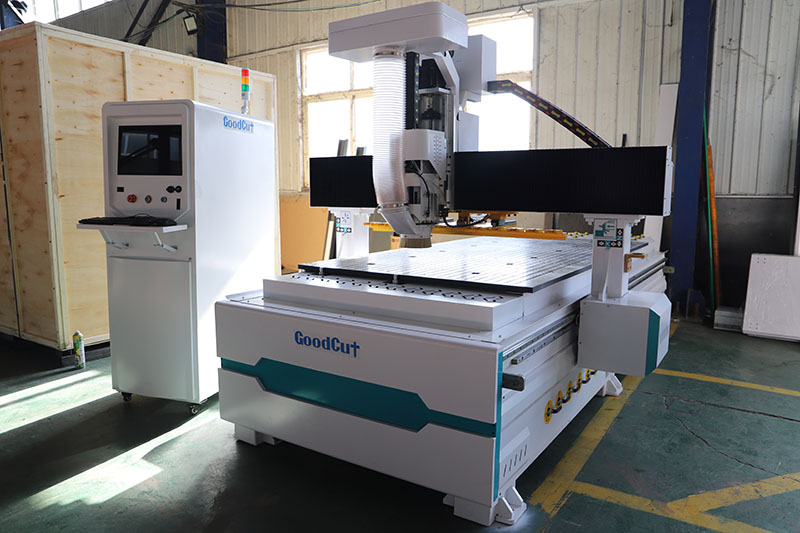

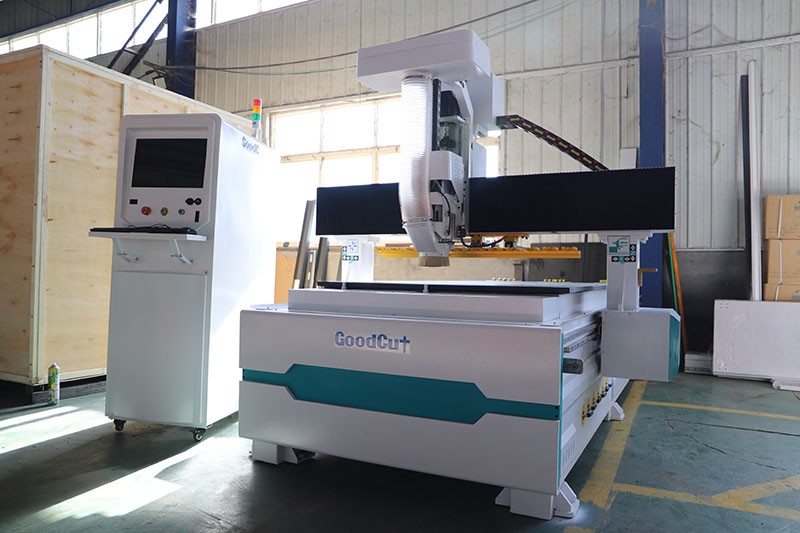

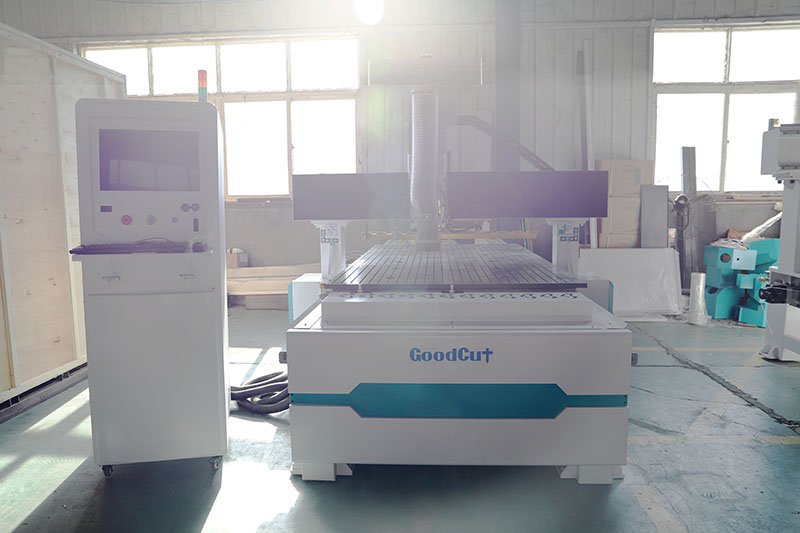

GC1325ATC New Design Automatic Tool Changer CNC Router Machine

GC1325ATC New Design Automatic Tool Changer CNC Router Machine

12pcs linear tool magazine
Linear Automatic too changer
9kw ATC spindle
Taiwan LNC controller
Leadshine 1500W servo motor and driver

GC1325ATC New Design Automatic Tool Changer CNC Router Machine

Parameter :

Description	Parameter
X,Y,Z Working Area	1300x2500x250mm
Structure	Industrial class square tube strong structure, heavy duty 8-10mm
Working voltage	220v, 1phase, 60HZ (or 380V 3PHASES)
Table Surface	Vacuum and T-slot working table, 6 zones;
Spindle	HQD 9kw ATC air cooling spindle
Spindle speed	0-24000rpm

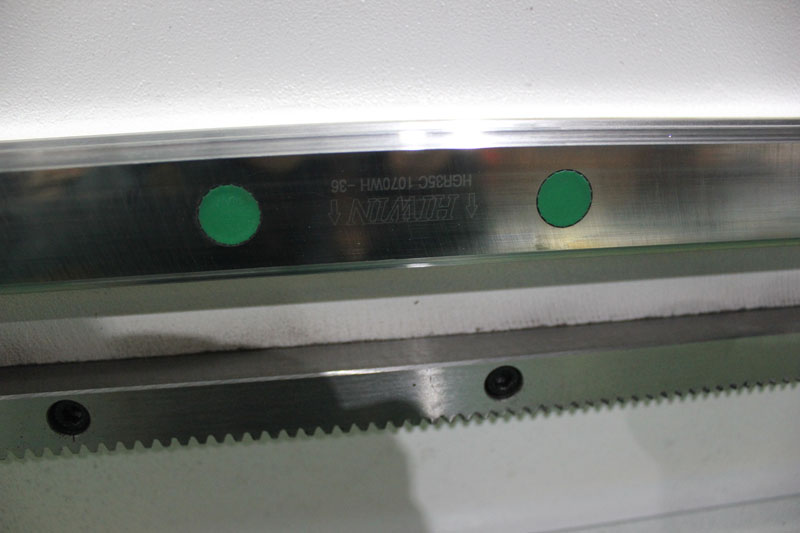

X, Y Structure	Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail;Dust cover for Y axis
Z Structure	Sweden ABBA #30 Linear Square Rail and TBI Ball Screw
Motor and driver	Leadshine 1500W servo motors and drivers
Inverter	11kw Taiwan Fuling inverter

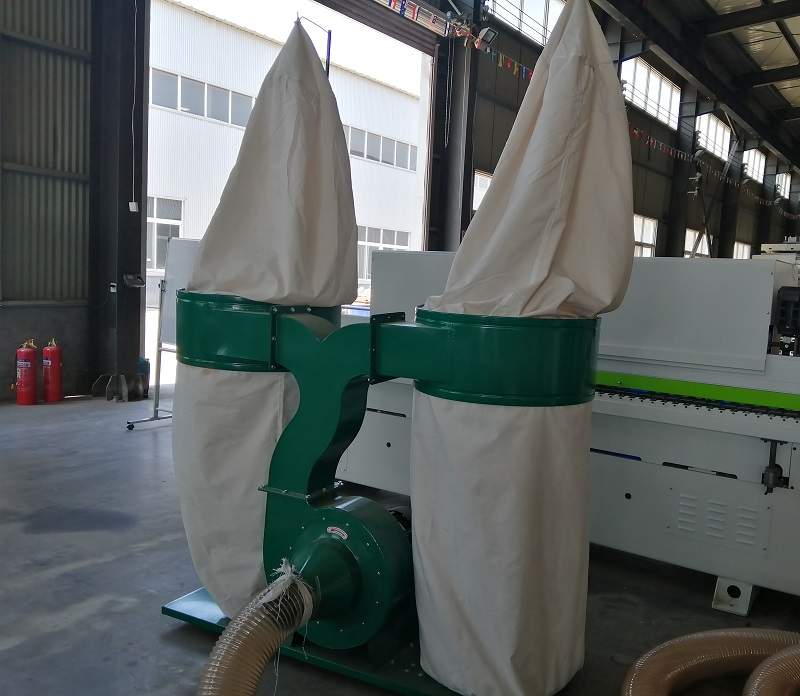

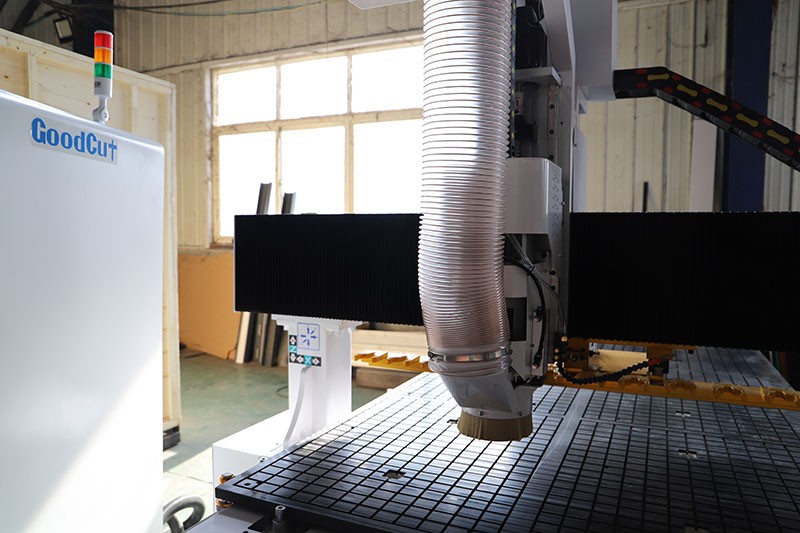

Dust Collector	Dust collector with 2 pockets

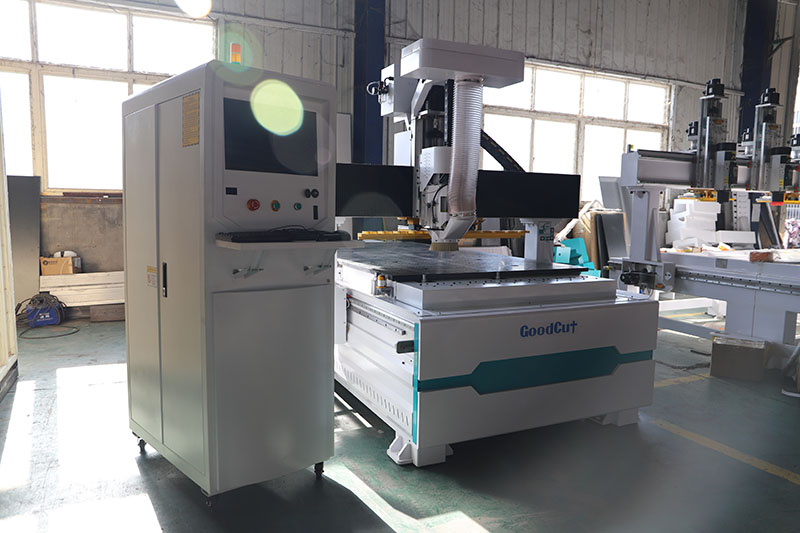

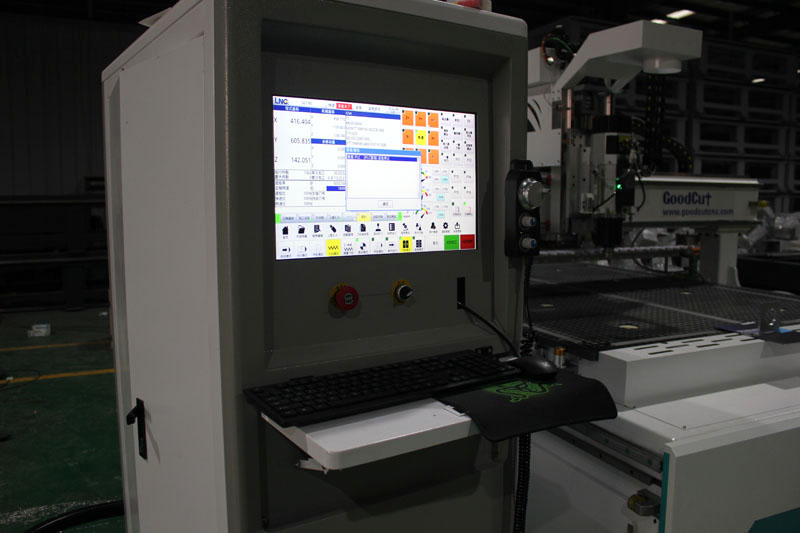

Control System	Taiwan LNC control System with handle
Vacuum pump	5.5kw vacuum pump
Software Compatibility	Artcam Software
Tool sensor	Automatic tool sensor calibration

Features :

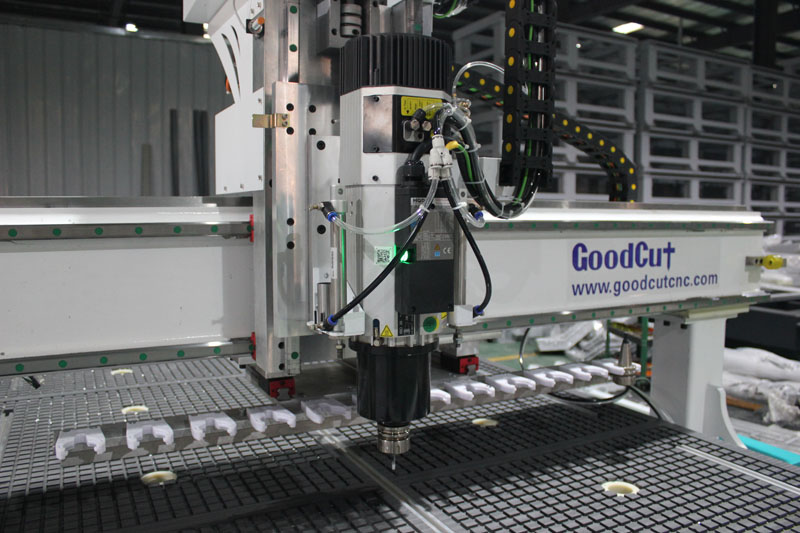

9.0kw HQD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry.

9KW(12 HP ) high frequency automatic tool changer spindle with 8-12 tool linear magazine

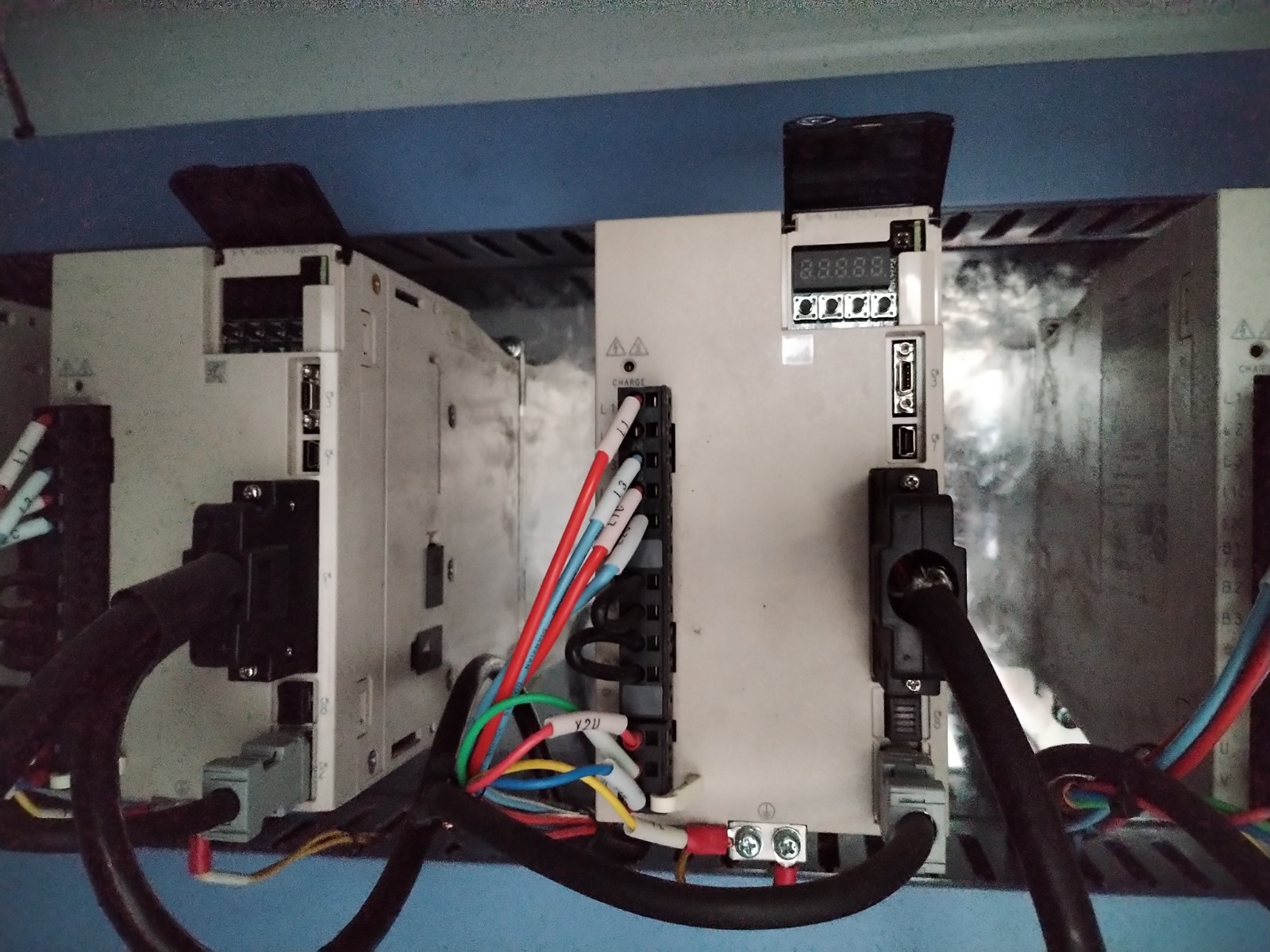

Except the spindle, we use high quality components on this machine like Leadshine 1500W servo motors and servo drivers, Taiwan Hiwin linear rails and TBI ball screw, Taiwan Syntec / Taiwan LNC control system

GC1325ATC (9).jpg

We also have some optional parts for you to choose: Chinese or Germany Becker vacuum pump, dust collector, mist cooling system, rotary system and so on. Some main parts on the machine can be changed according to your requirements.

Heavy bed body, the bed is treated by the furnace, not easy to deform.

With oil injection system, the drive part of the machine can be effectively lubricated.

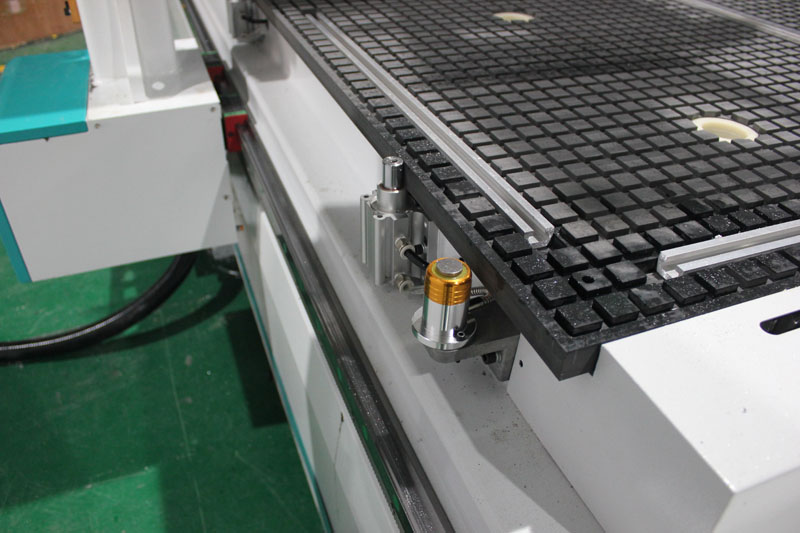

Automatic tool calibration pad

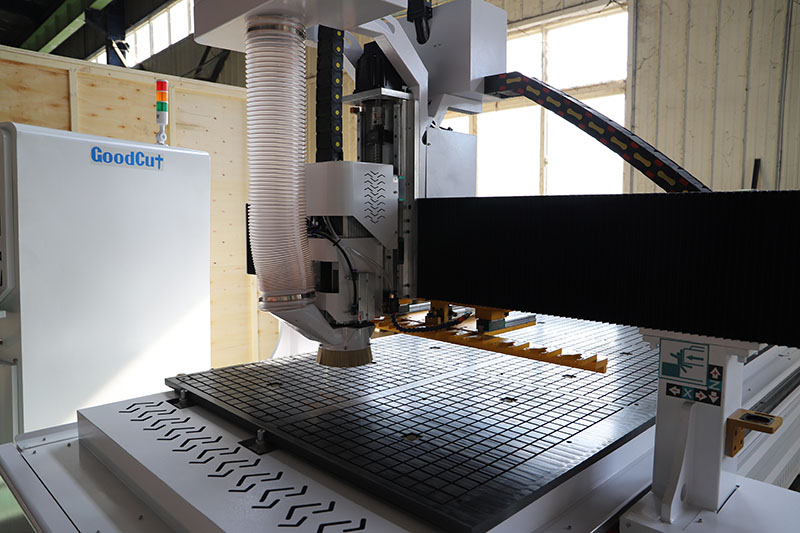

6-zone vacuum table

Pneumatic material placement stops

ATC router (21)

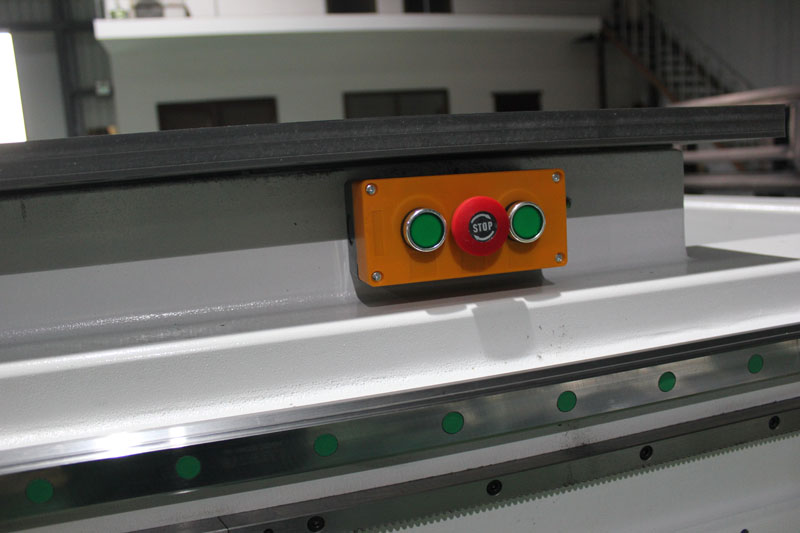

This is safe protecting system.

If there is person enter the working machine, machine will alarm.

parts

Application:

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

photobank (7).jpg
