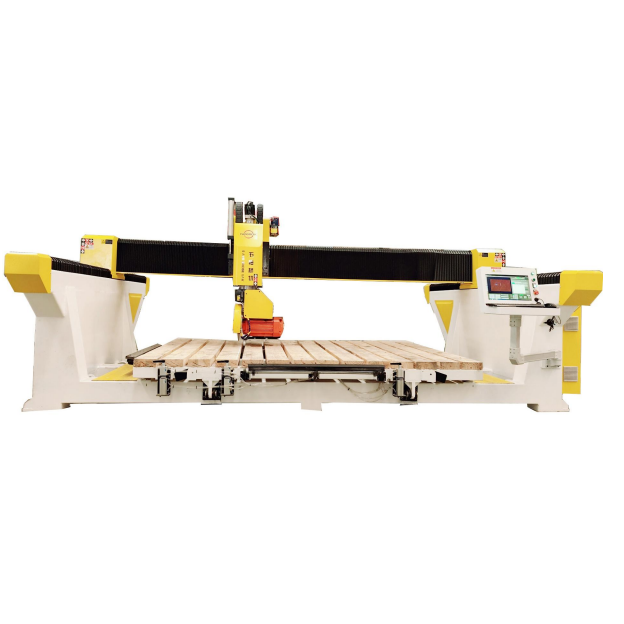

GC3220B CNC Bridge Saw Cutting Machine 5 Axis for Stone

GC3220B
CNC bridge saw cutting machine 5 axis
3200*2000mm working size
Blade motor power 15kw
Product description: 3200*2000mm working size Blade motor power 15kw Spindle power 5.5kw XYZ + 360degree rotating head + tilt 45degree

Duplex 5 Axis cnc router for engraving Chair back and armrests

FEATURES

This machine's working size is much larger. And The Z axis can be heightened according to your special requirements; and the whole working size also can be customized.

1. With heavy-duty gantry and structure, which can guarantee the machine to be strong, reliable and durable.

2. Equipped with air cooling spindle, it has the features of low noise and easy operation.

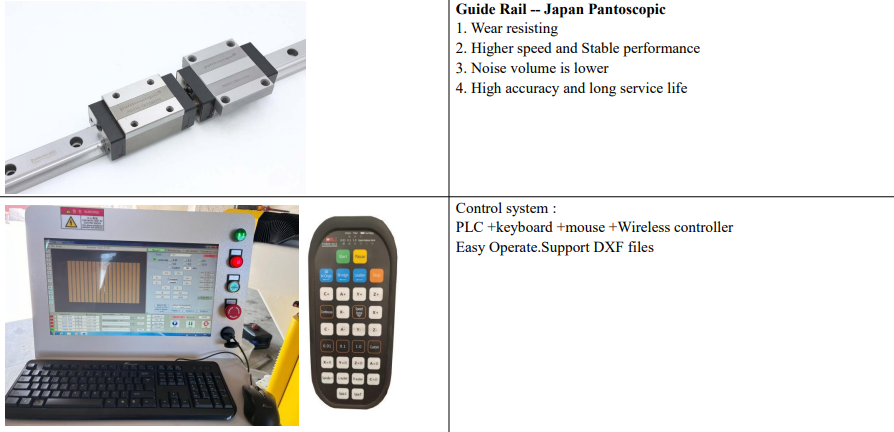

3. With imported high-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision.

4. Many configurations and service can be available according to your requirement.

5 axis (7).png

PARAMETER

Technical parameters

3200*2000mm working size

Blade motor power 15kw

Spindle power 5.5kw

XYZ + 360degree rotating head + tilt 45degree

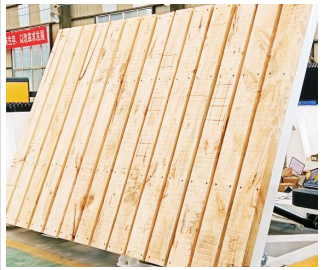

87degree hydraulic tilting table (for easy loading )

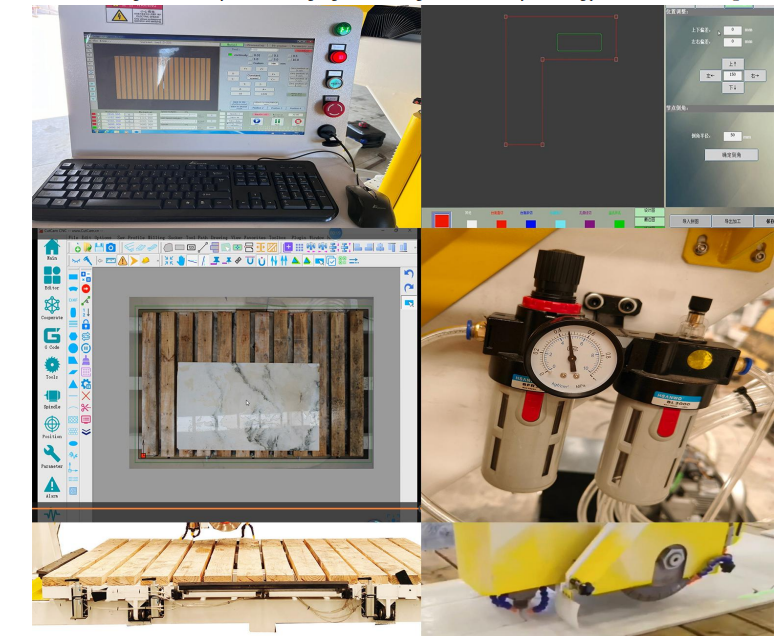

PLC + keyboard +mouse

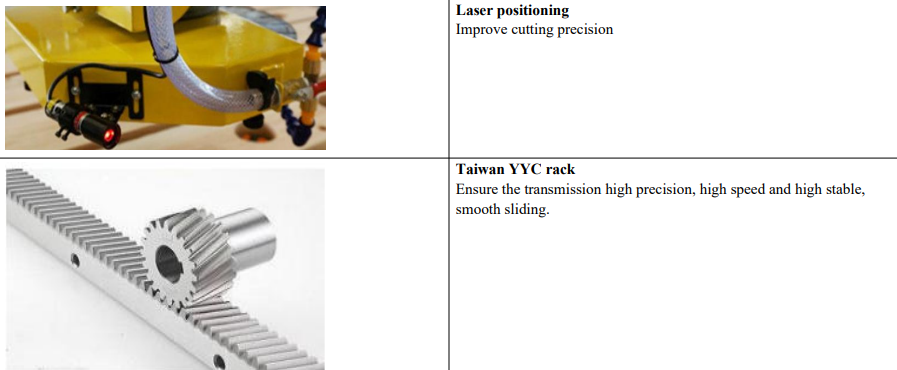

Infrared cutting reference - position laser light

Remote control

Support DXF files, also can draw directly on the system

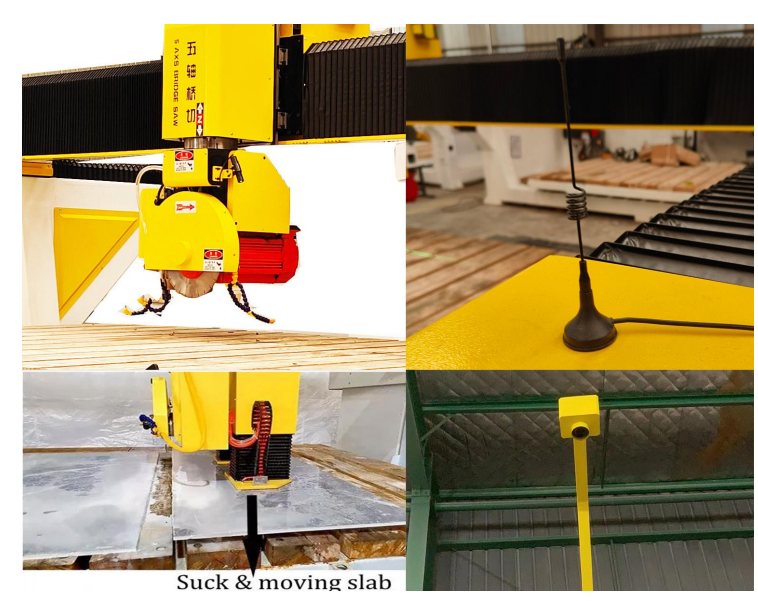

Automatic pneumatic press device included

Programming method 1 : manual programming

Programming method 2 : image input

Control method: CNC

Automatic pneumatic press device

Blade motor power 15kw

Working voltage 3phase 380v 50hz

Rpm 2980r/min

Blade size 350mm

X axis working stroke 3200mm

Y axis working stroke 2000mm

Z axis working stroke 260mm

A axis working stroke 360degree free rotation

5.5kw spindle ( edge polishing, milling , open sink,and so on) 24000rpm

Reversal table for easy loading

Control system PLC with keyboard and mouse

X/Y cutting speed 6000-8000mm/min

Z axis cutting speed 4000-5500mm/min

A cutting speed 0-8r/min

Cutting thickness 100mm

Processing precision 0.02mm

Red light positioning :including, infrared cutting reference

Working table size 3200*2000

Package size 5400*2200*2100mm

Weight 4500kg

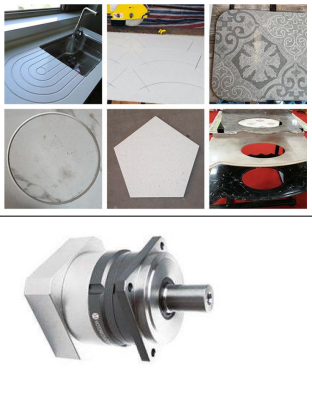

Function: cutting ( square , diamond, circle, oval , can cut 45 degrees profiling cut) , grinding , edging, polishing, beveling cutting , dig a round, drilling hole, open sink.

APPLICATION

1.Applicable materials :wood, acrylic,stone,granite, marble , double color board,plastic,

2.Applicable industry:the furniture industry,the crafts industry,the model industry,the decoration indfustry,the advertising industry,the stone industry etc.
