Einscan SE V2 Desktop 3D Scanner For Scan Small Product

Education: primary, middle and high school, K12 education, training on 3D design
Design & Art: high quality 3D design, 3D printing applications, reverse engineering, etc
Digital Industry: animation, CG, VR & AR
Archiving and Sharing: 3D digital archiving, data sharing

EMAIL

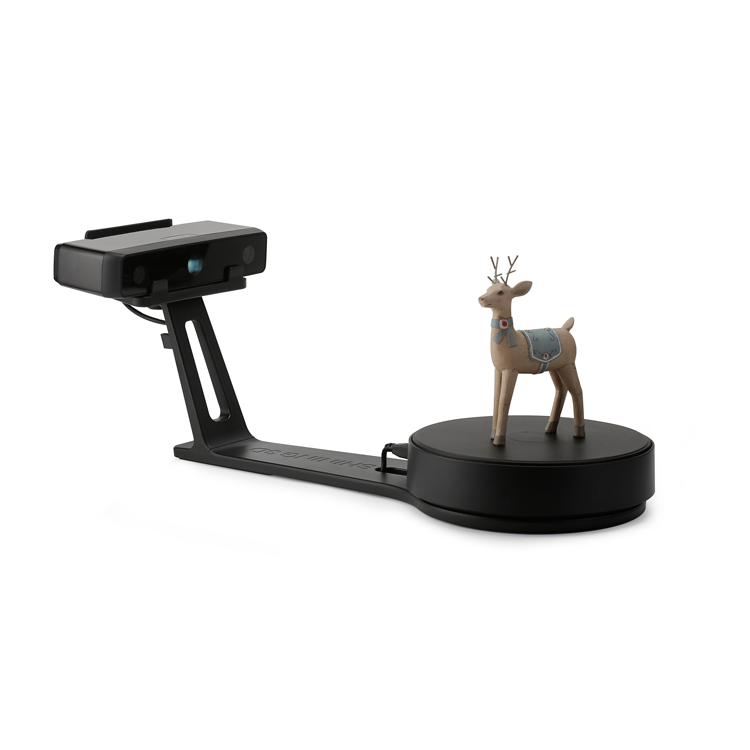

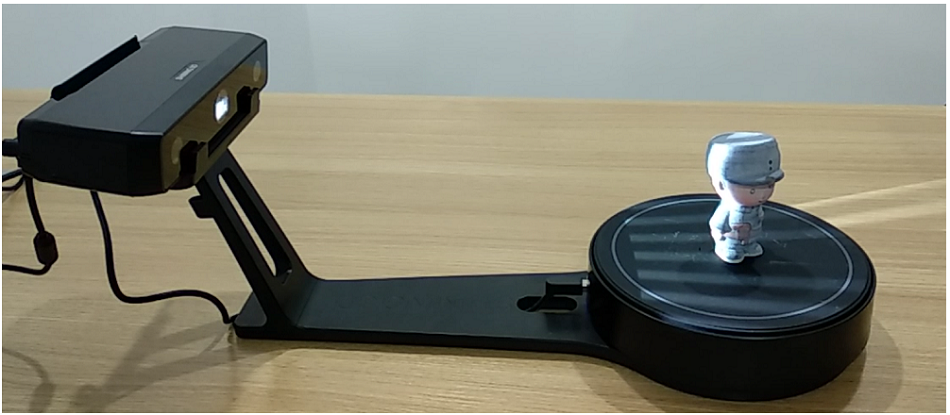

 Einscan SE V2 desktop 3D scanner for scan small product

SE (4).jpg

Product numberEinScan-SE V2
Scan modeTurntable
scan
measurement accuracy

Single frame scanning accuracy ≤0.1 mm

Measuring rangeTurntable scan: 200 * 200 * 200mm
fixed scan: 700 * 700 * 700mm
Scan speed

Turntable scan: <2min
fixed scan: <8s (single film)

Dot pitch0.17 mm ~ 0.2 mm
Stitching mode

Turntable scan: turntable automatic stitching / manual stitching /

fixed scan: feature stitching / manual stitching

Resolution1.3 million pixels
light source

White light

Minimum scanning object size

30 x 30 x 30 mm
equipment weight

Before packaging: 4.9 kg
After packaging: 2.5 kg

power supply50w
Input voltage

100V ~ 230V

Equipment size570 × 210 × 210mm
Data output format

OBJ, STL, ASC, PLY, 3MF

Shooting distance290 ~ 480 mm
Texture scan

stand by

TurntableStandard turntable
Calibration board

Standard calibration board

Turntable bearing5 kg
System Support

win7, win8, win10, 64-bit

Recommended computer requirementsGraphics card: Nvidia series; video memory> 1 G
CPU: dual-core I5 or higher;
memory> 8 G;
data interface: at least one USB 2.0 / 3.0 interface;

 SE (5).jpg

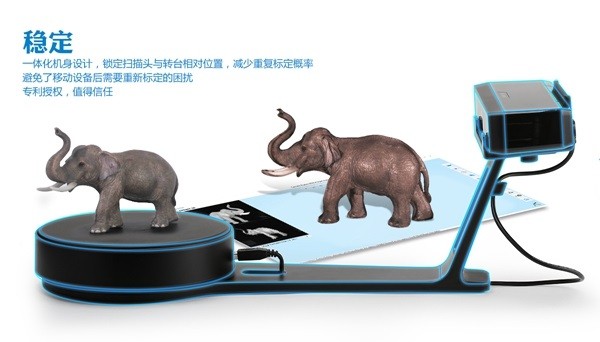

Fast: Efficient locking, simple operation

Simple mini integrated body, refreshing cable management, can realize plug and play; touch switch to achieve one-key on, effectively reduce the number of repeated calibration, improve scanning efficiency. Single frame scan time only 8S; EinScan-SE scans only 2 minutes per week in the fully automatic scan mode of the turntable

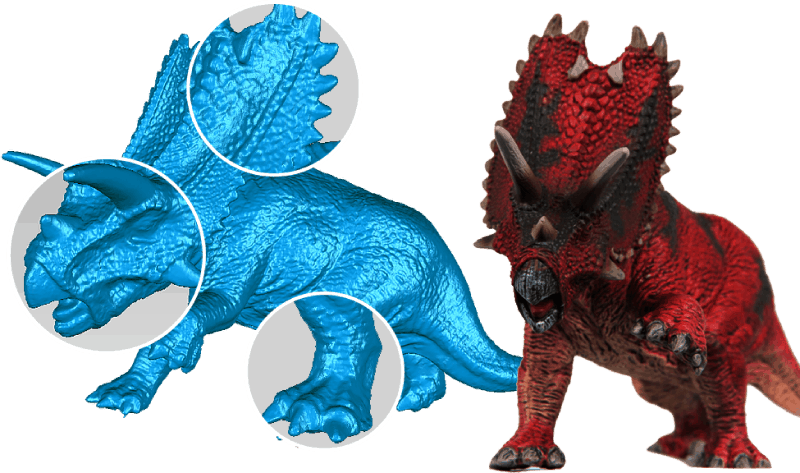

High-definition: each is high-quality data

The device adopts the grating structured light mode and performs 3D data scanning, which can truly restore the geometric information of the object surface.

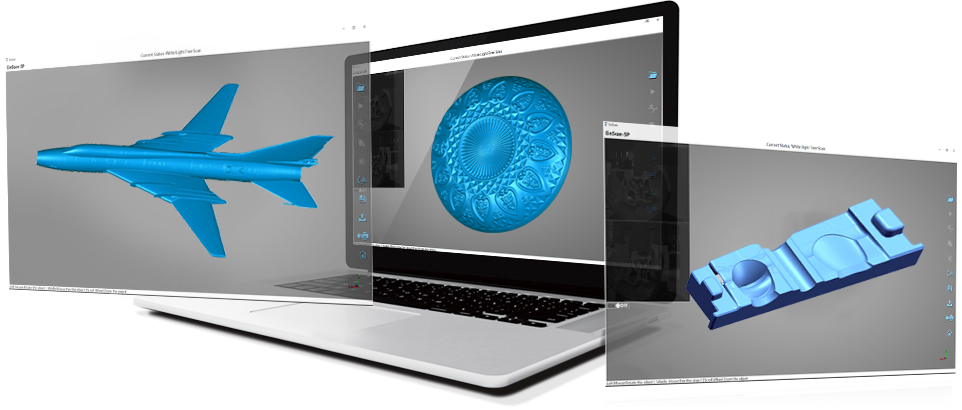

Open format: Seamless docking with 3D printers

The software can automatically generate a closed model and import it into a 3D printer for direct printing. API access service for third-party brand printers



Data sharing, one-click upload, fast cloud storage sharing

Support third-party data platform access services; in order to facilitate domestic and foreign customers to truly realize data sharing in the cloud, software integration with the Sketchfab data network disk and domestic 3D data platform (www.3dzao.cn) has been successfully created to directly create personal accounts and Scan data archiving and sharing

SE (3).png

se parameter (1).png


Company information

The company's workshop

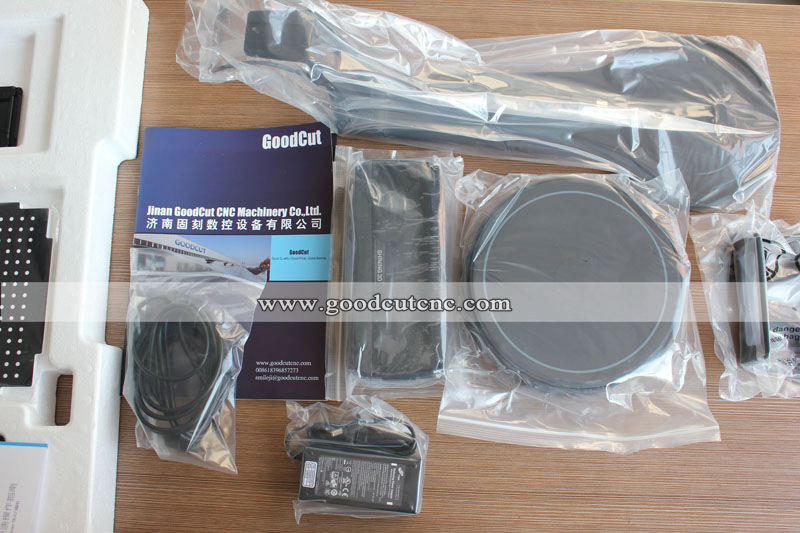

Packaging and transportation
