GC1220WL Wood Lathe With 200mm Diameter Rotary

Whole cast iron bed;
DSP Controller

EMAIL




Model No.

GC1220WL CNC wood turning lathe machine

Machine structure

Whole cast iron bed

Working length

Max 1200mm (100-1200mm)

Turning diameter

Max 200mm(10-200mm)

Quantity of axis

Single axis

Quantity of cutters

2 (1 for rough cutting,the other for finishing cutting).

Engraving spindle

2.2KW, 0-3000rpm/min

Max.feeding rate

500cm/min

Air pressure

0.6-0.8

Motor and driver

Leadshine stepper motor 450B, Yako 2608

Transmission

XYZ 25mm ball screw

Guide rails

Taiwan HIWIN linear square guide rails 20mm

Control system

DSP with handle and USB port

Voltage

220v 50hz

Gross weight

850-900kg



Features:


1) Whole cast aluminium structure,hard,durable,non-deforming



2) There axis adopt precision ball screw rod,steady operating,ensure high precision of the machine



3) The application of high performance subsection,ensure high speed and precision



Company information

The company's workshop


Packaging and transportation


Customer feedback and our service

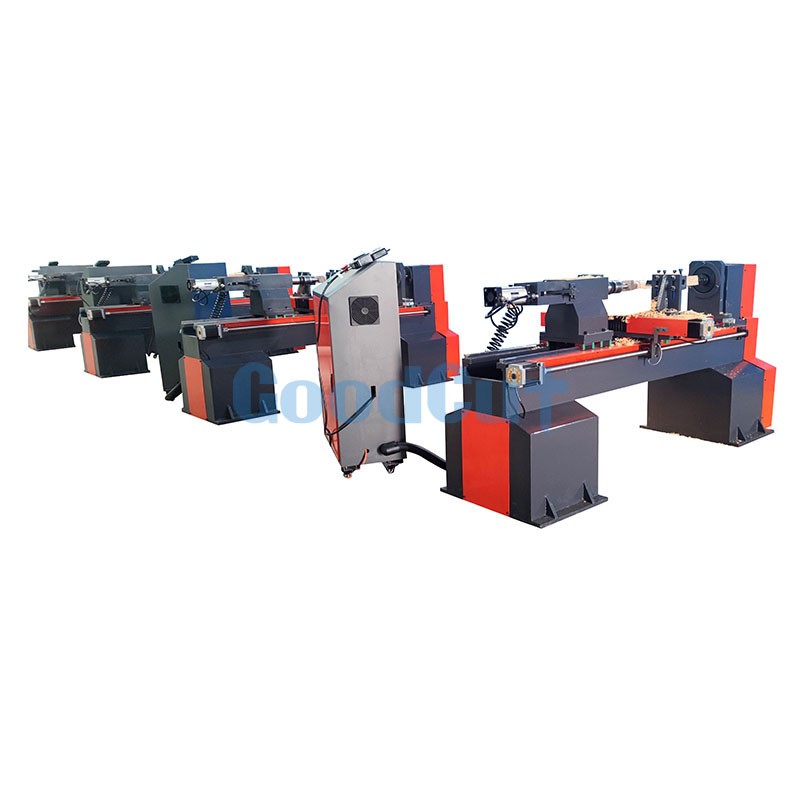

Equipment display
