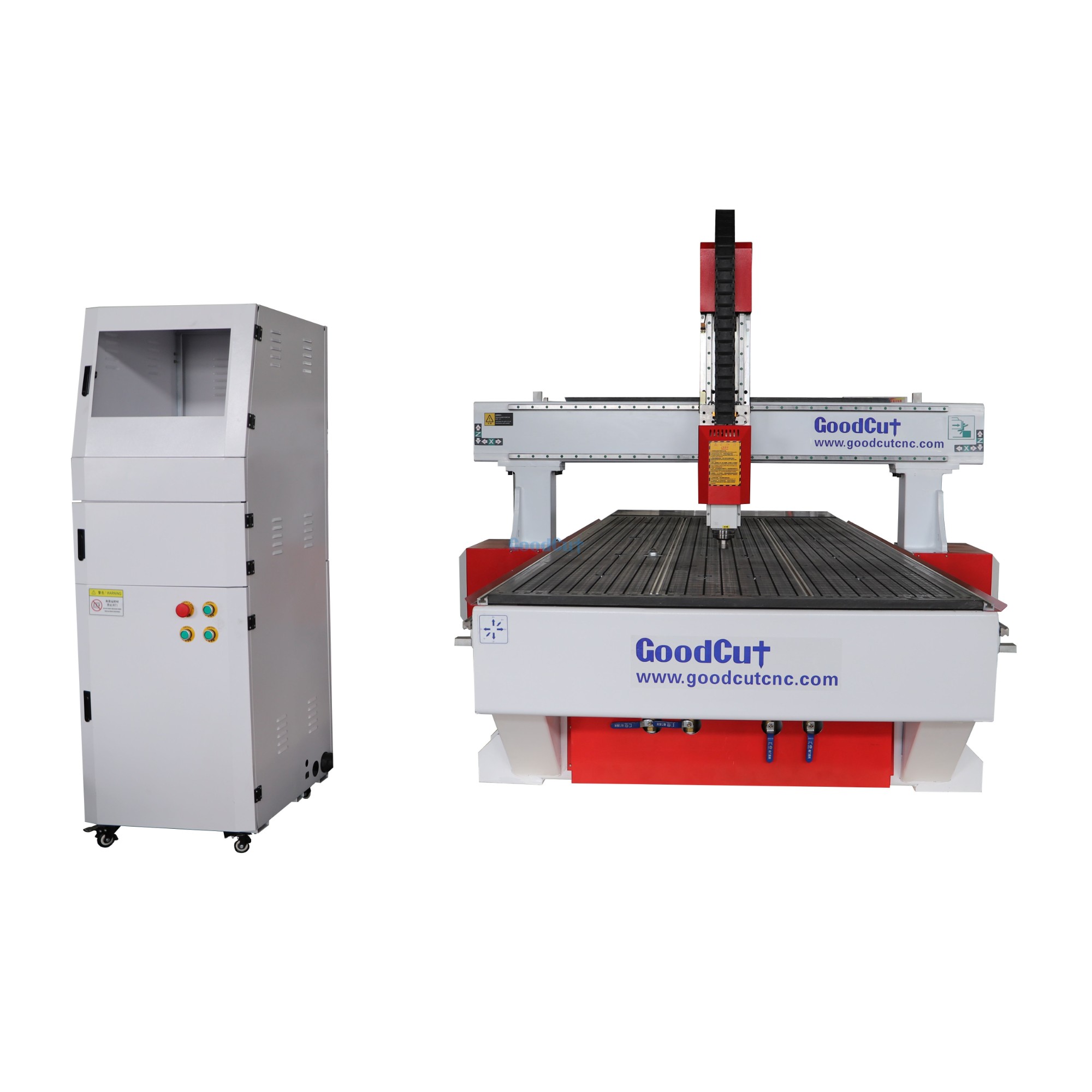

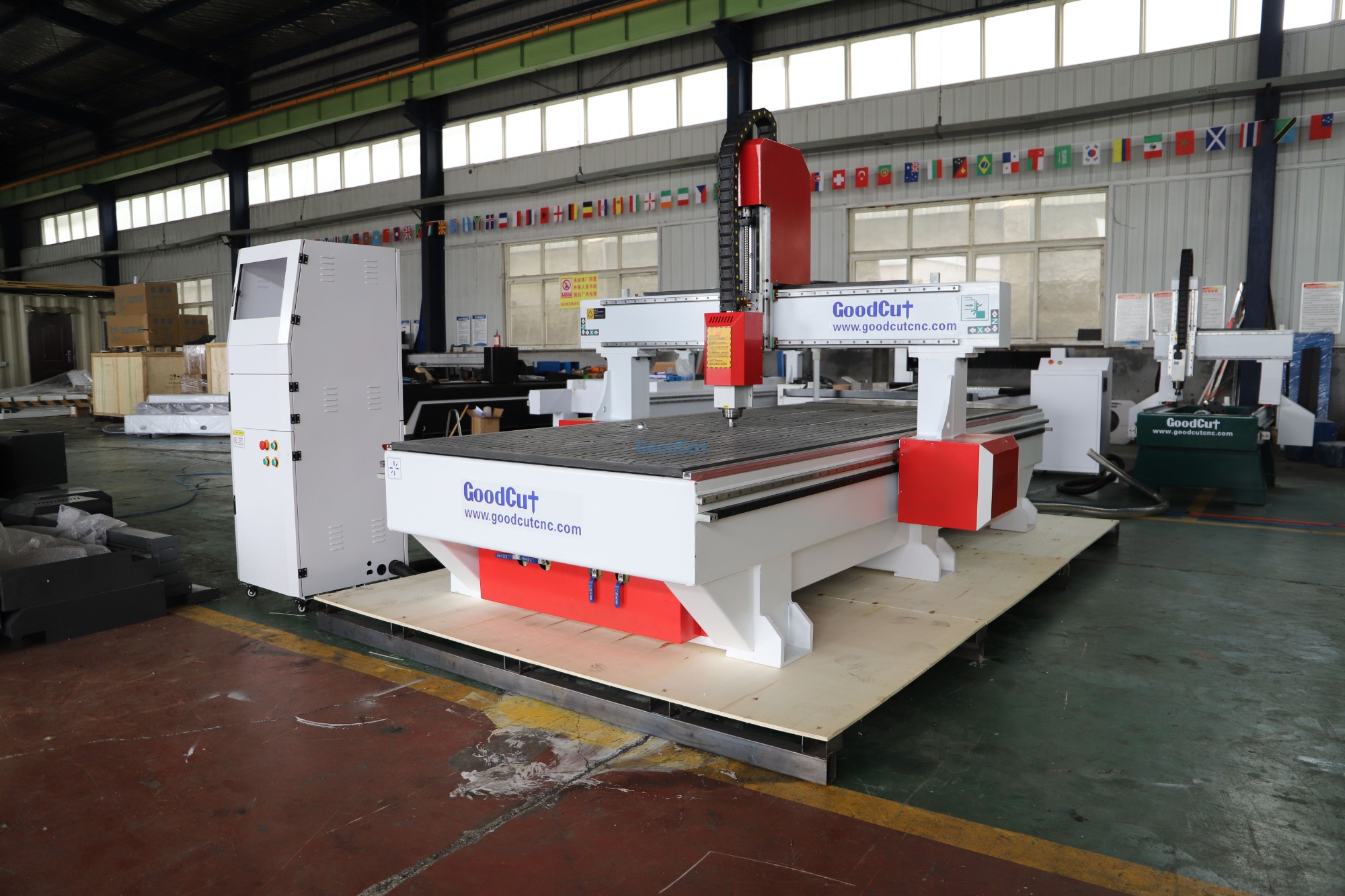

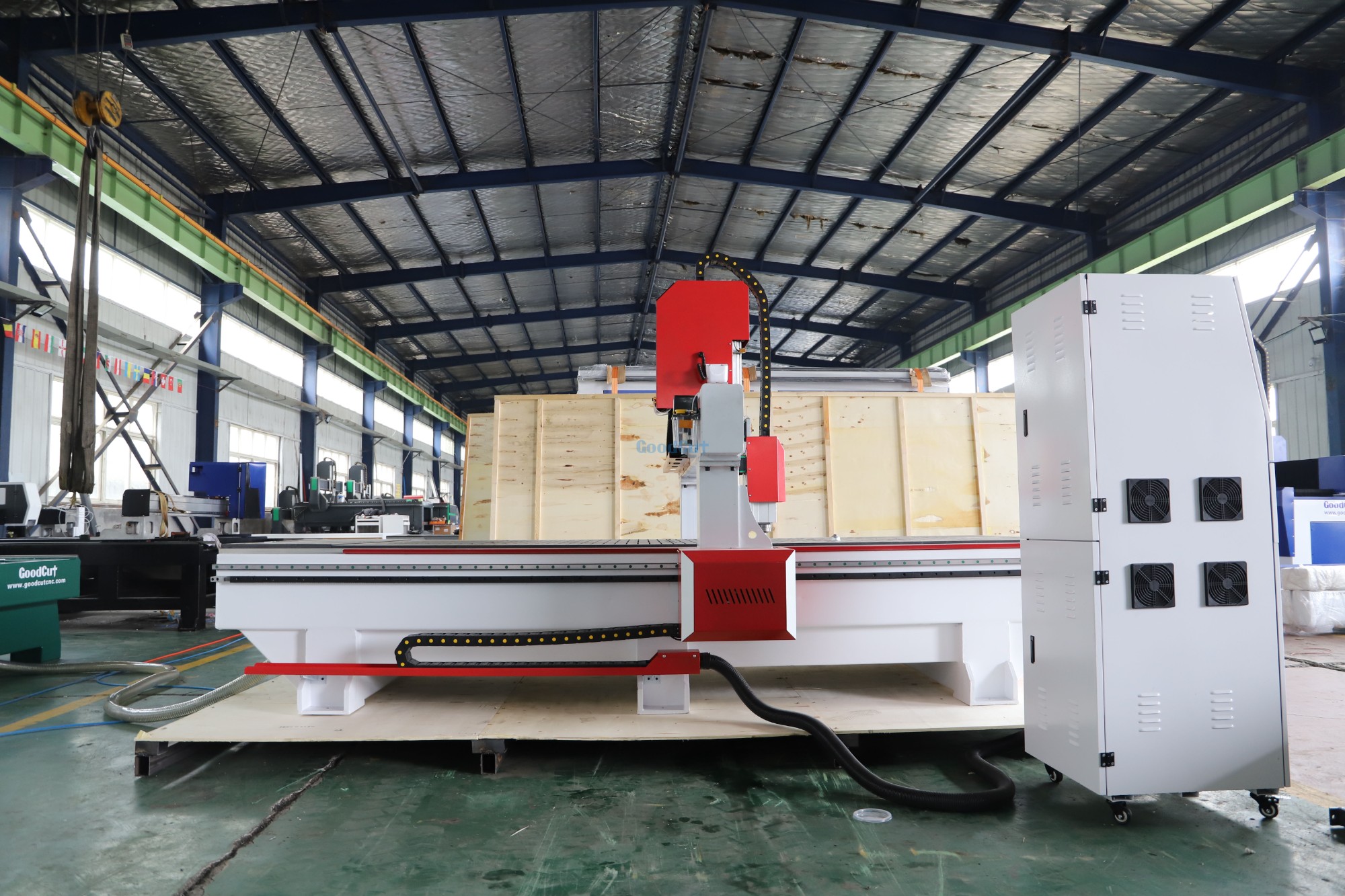

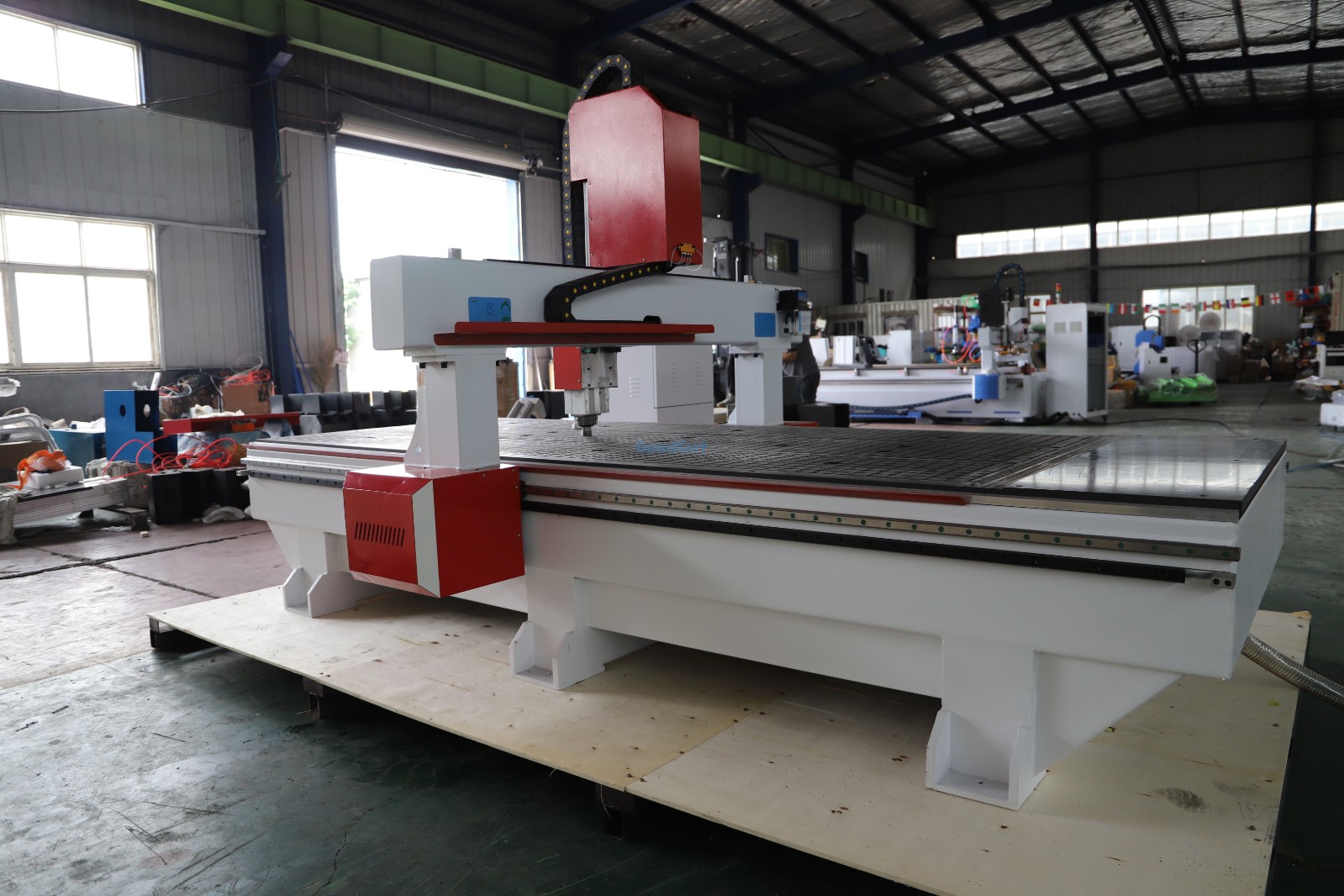

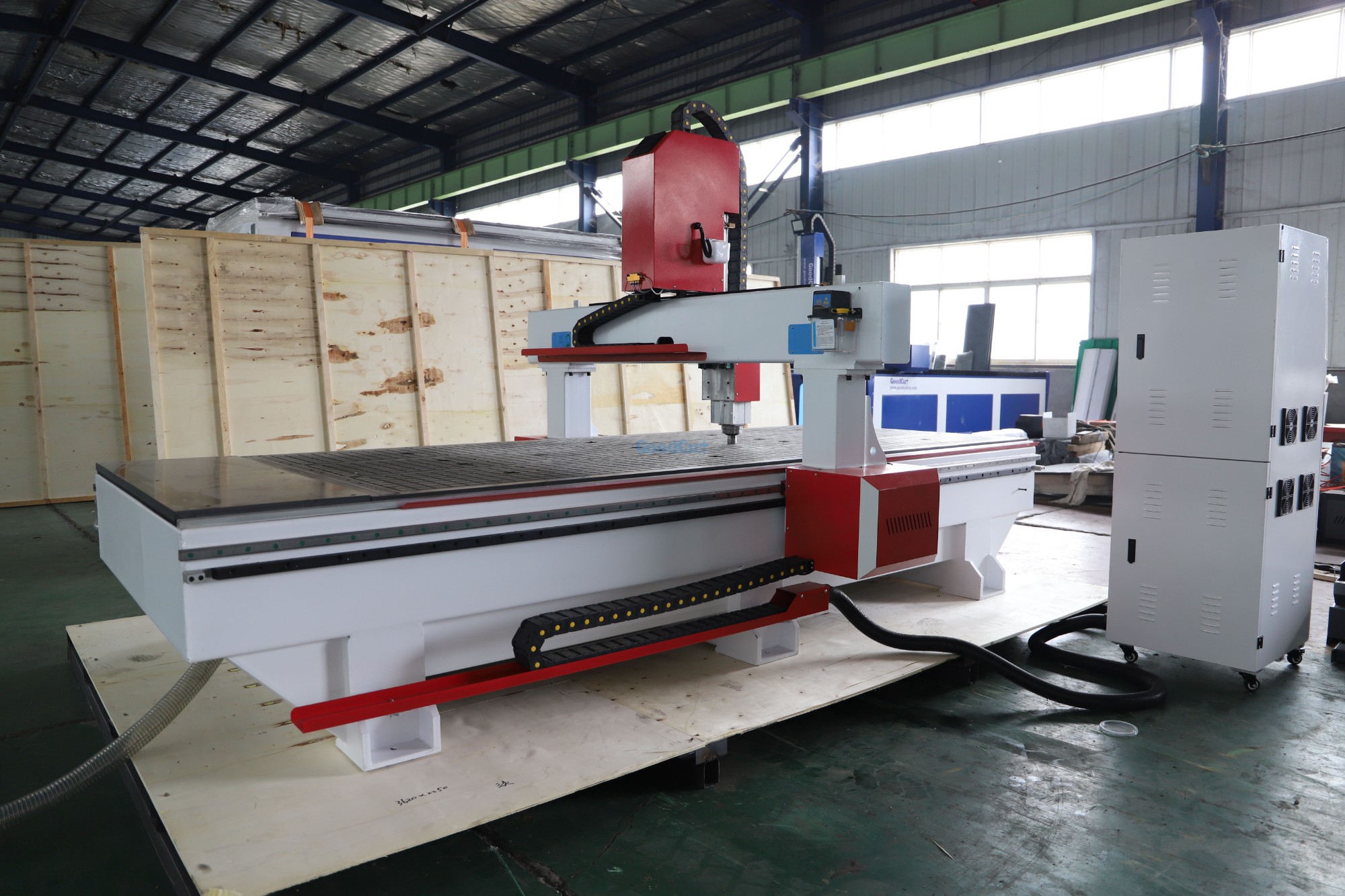

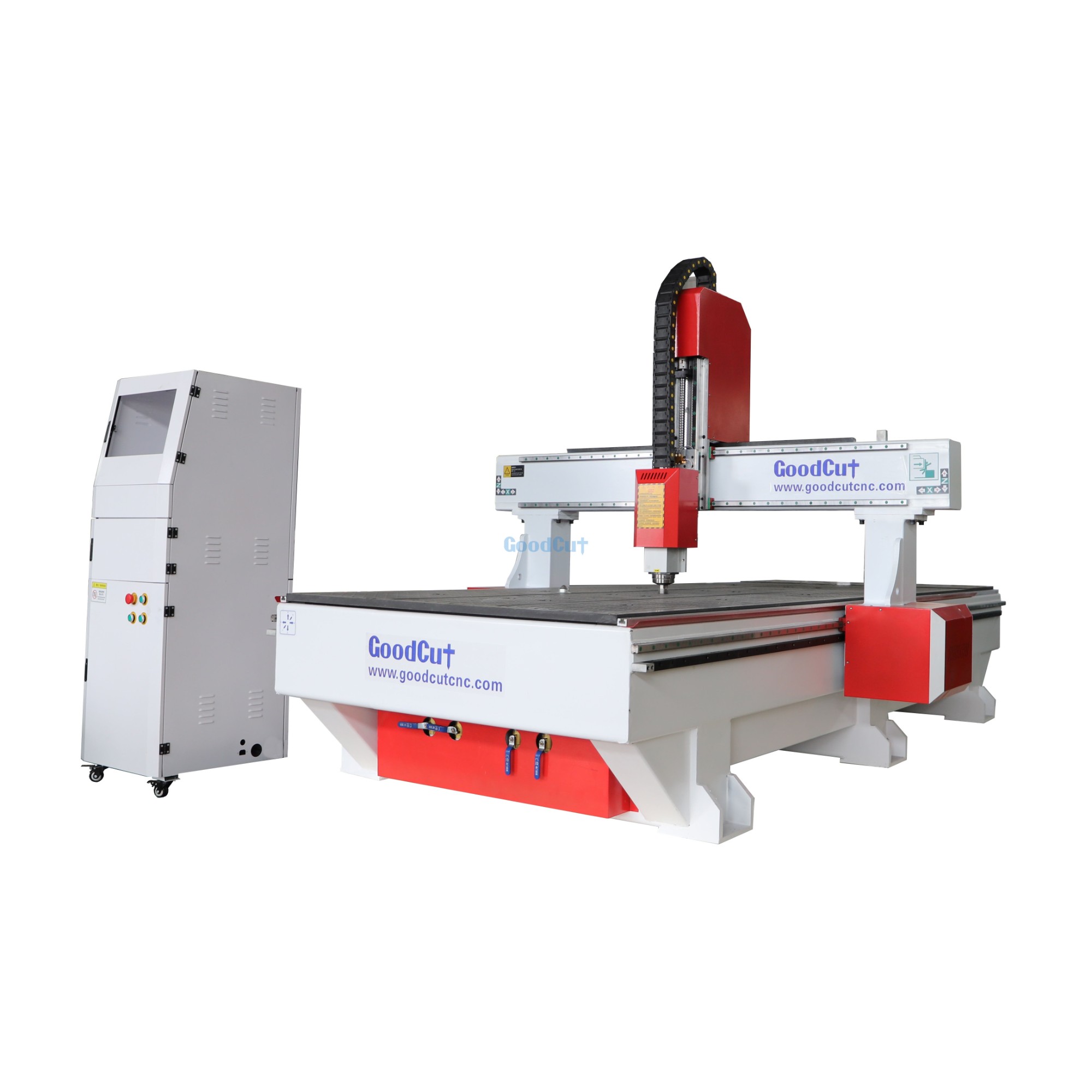

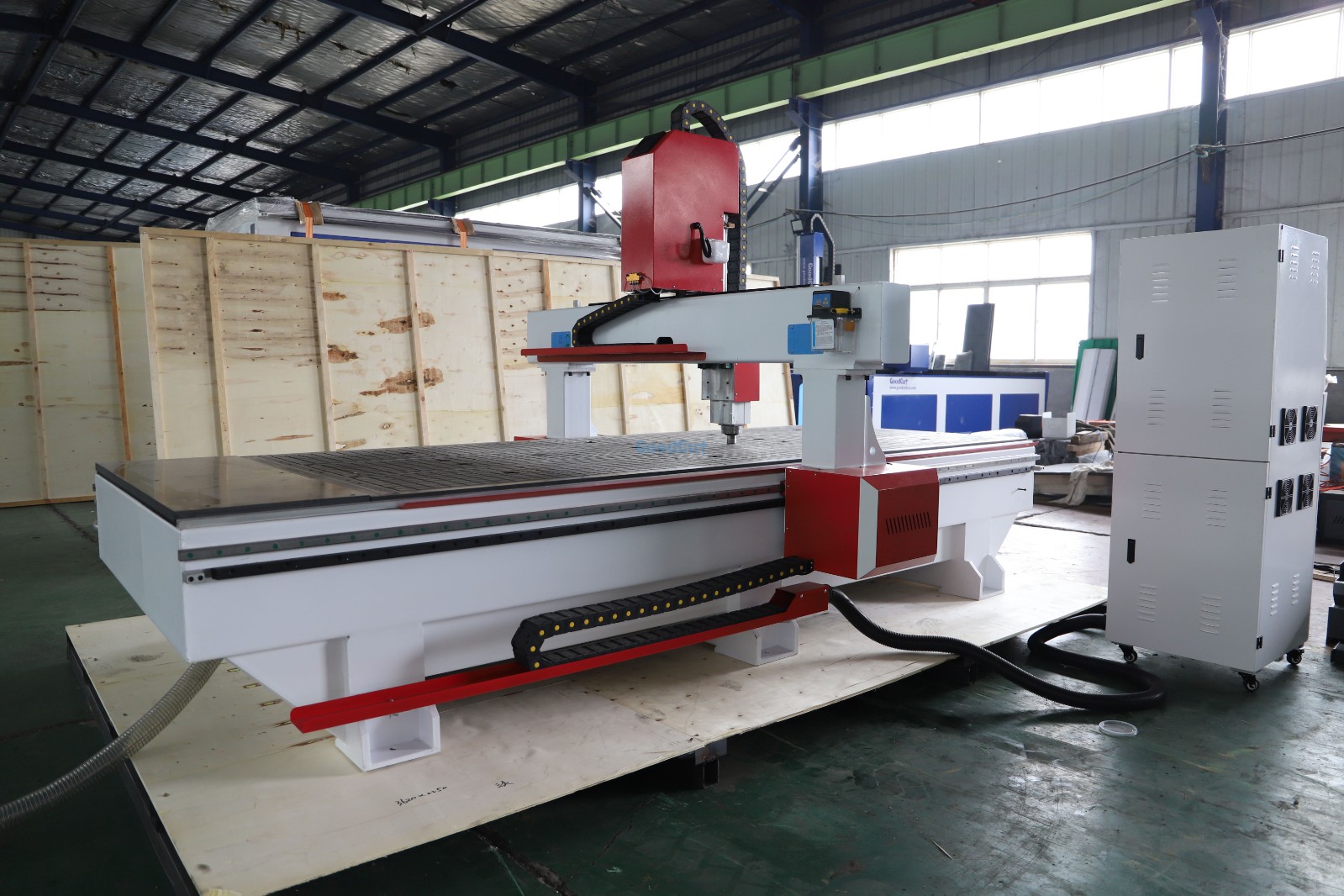

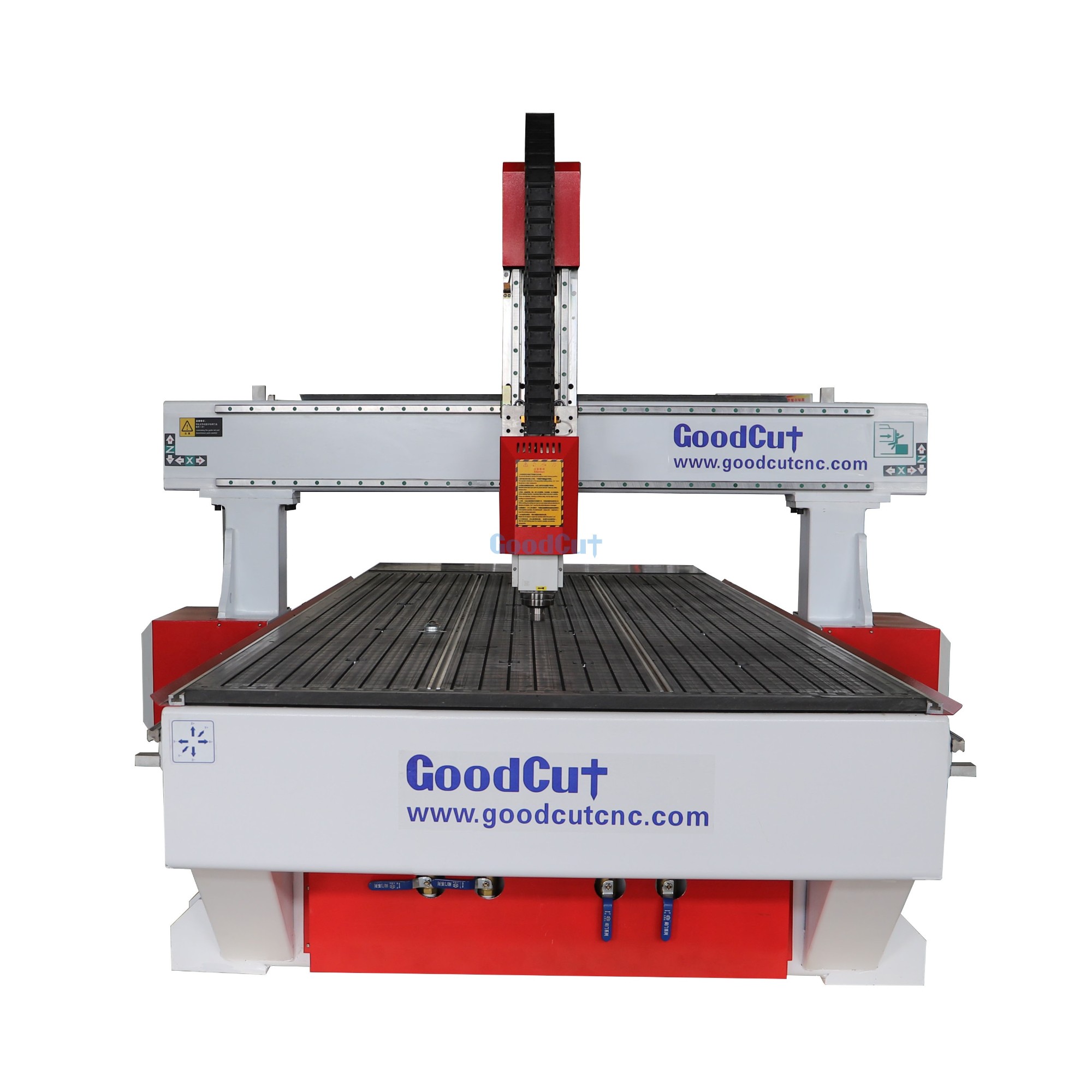

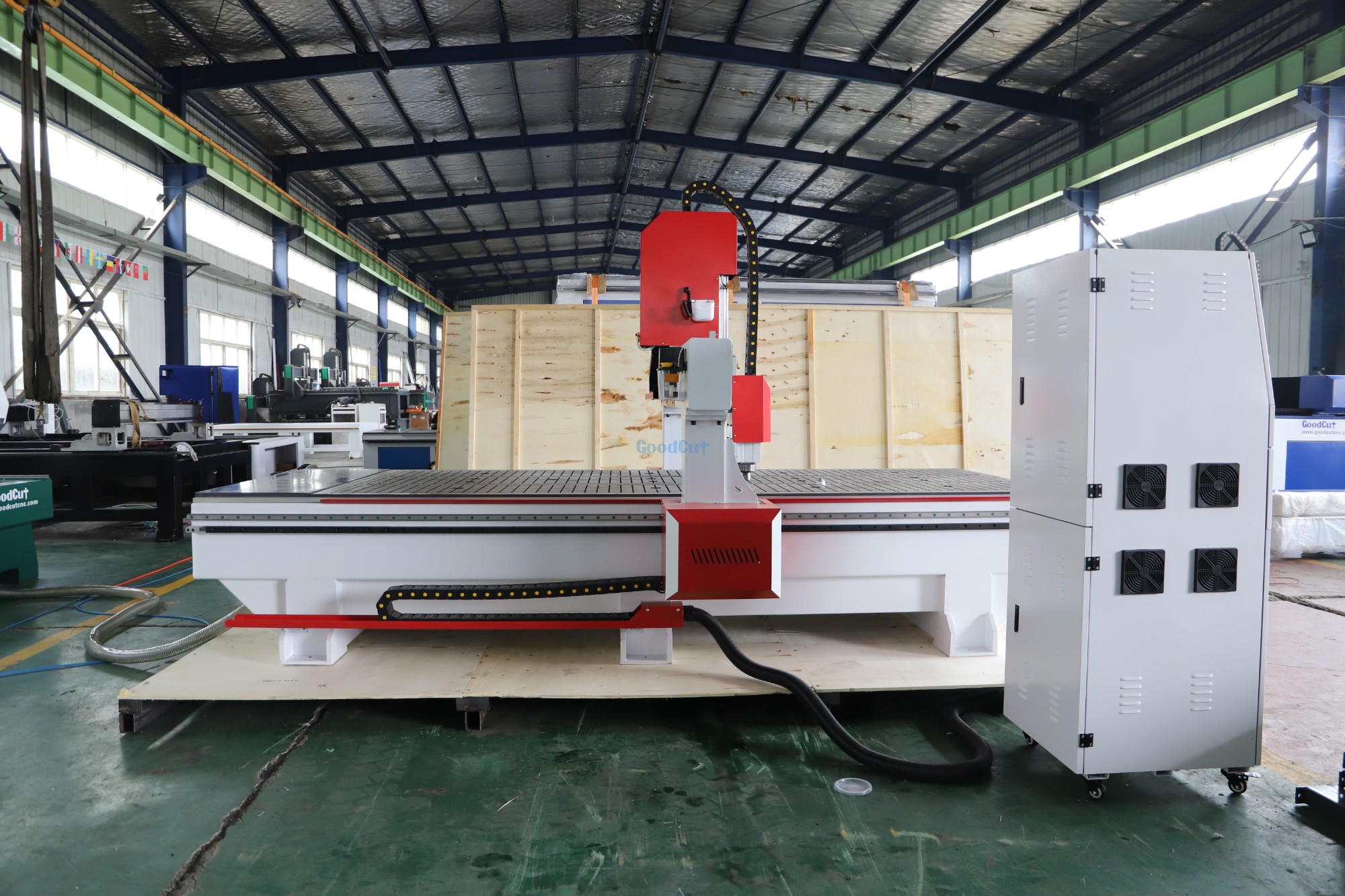

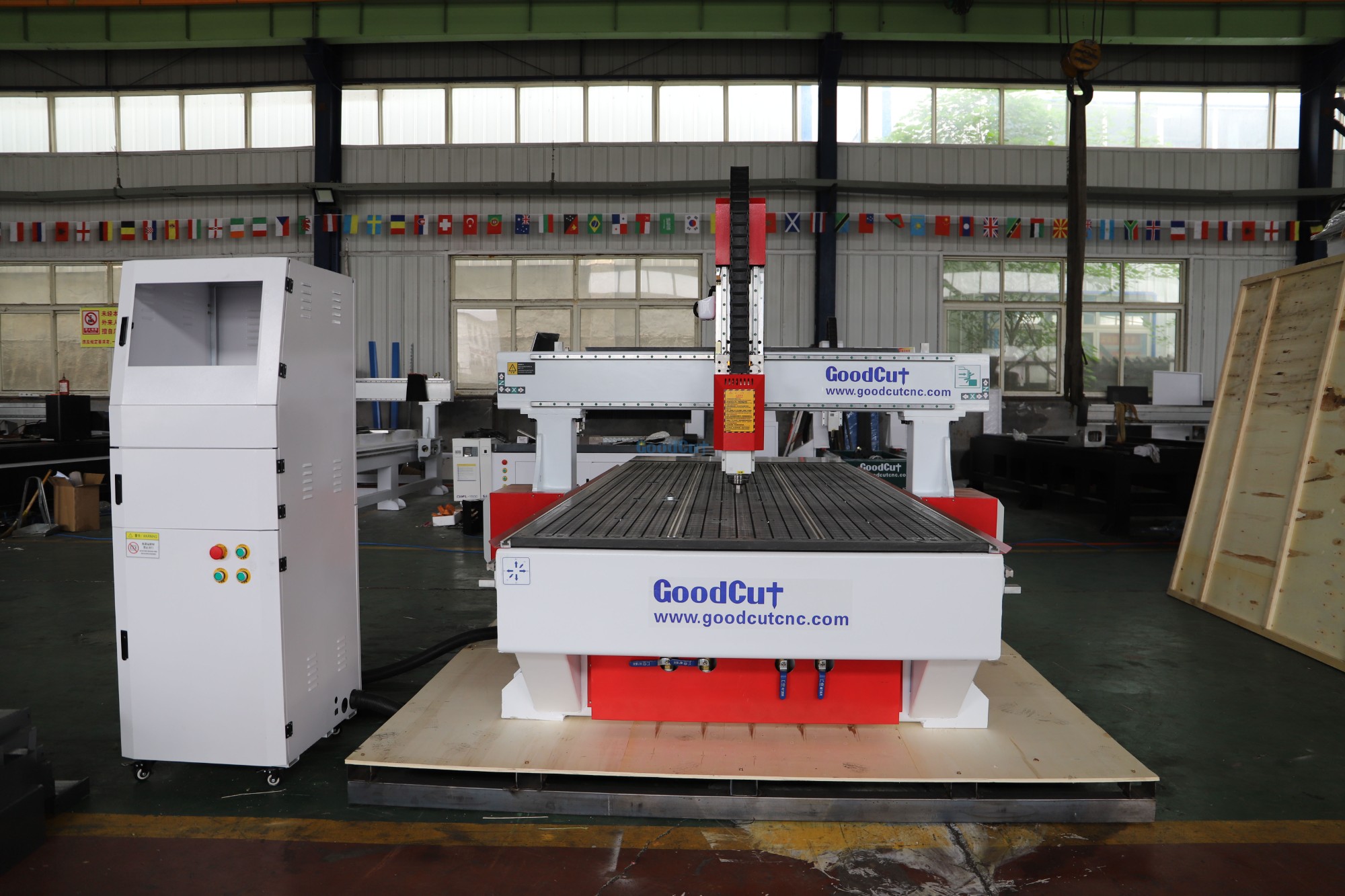

GC1325VH Heavy Duty Frame CNC Router With Vaccum Table

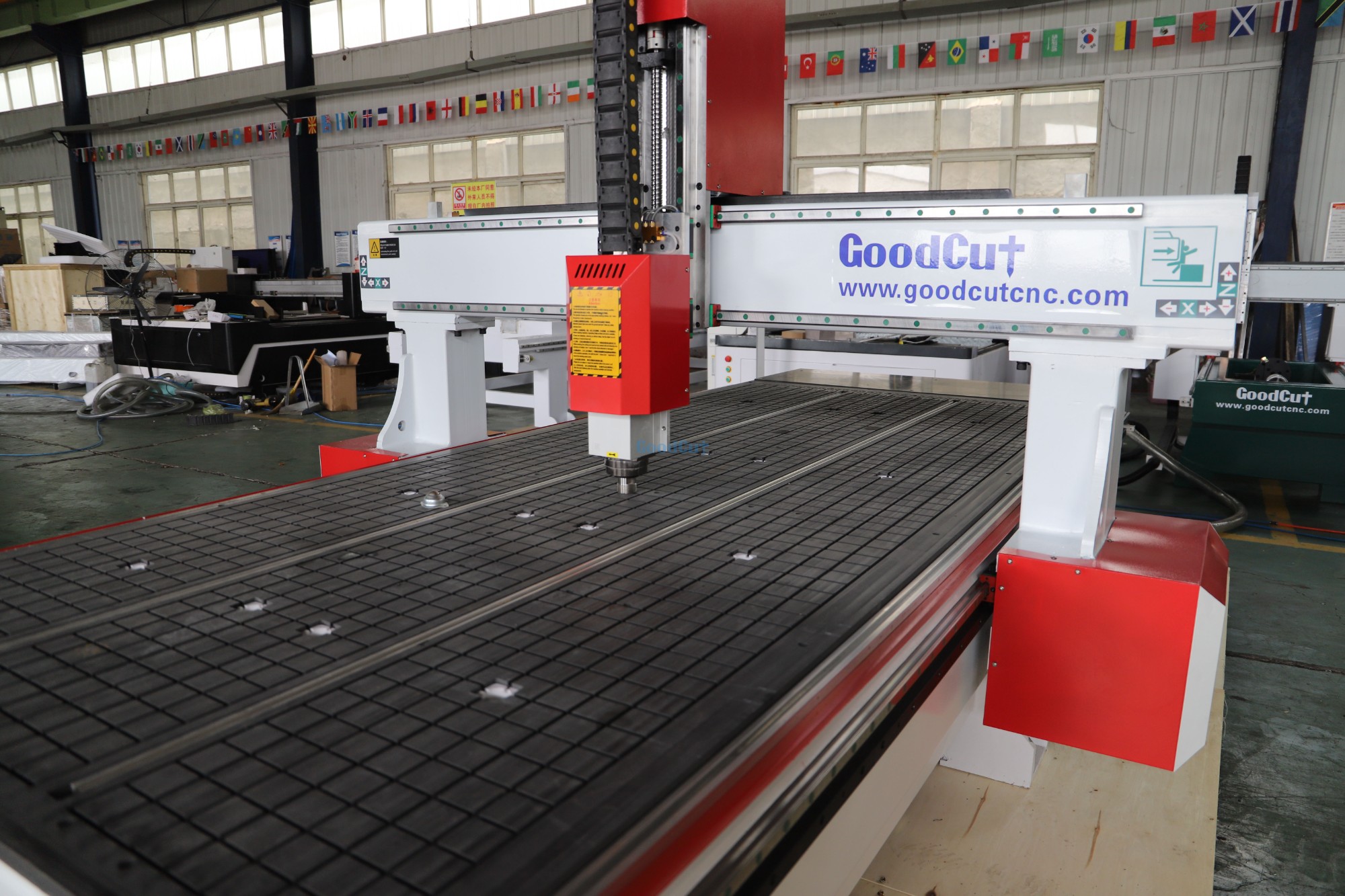

Adsorbed vacuum table;
Heavy duty frame;
DSP control system;
Woodworking;

EMAIL



fEATURES

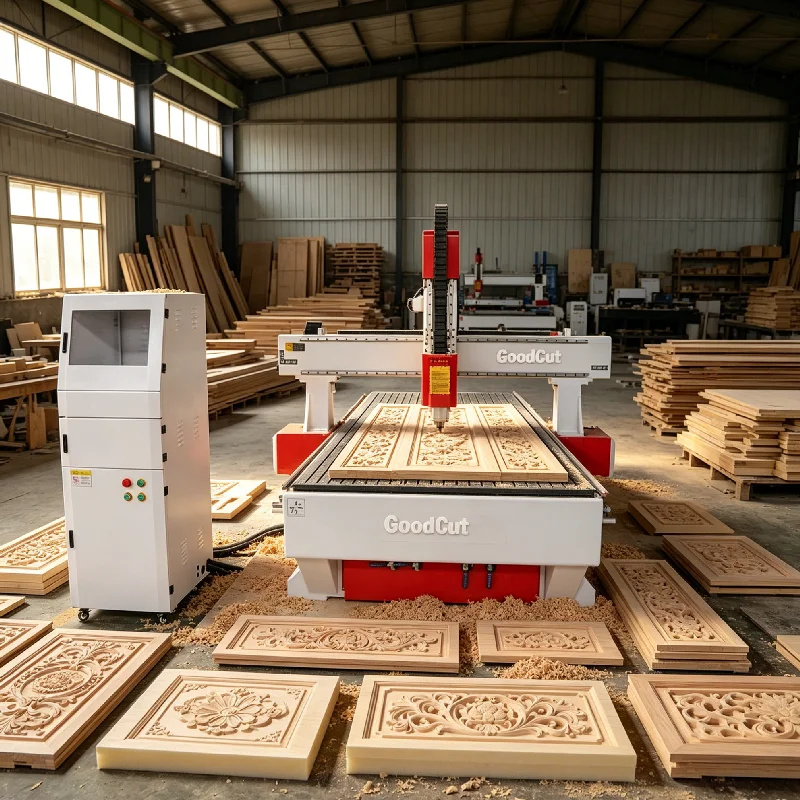

CNC Wood Door Making machine is a 3 axis cnc router machine for cabinet door making with T-slot vacuum table. Table size 5x10ft is big enough for common Polywood or MDF Engravng & Cutting; It fixes the workpieces more firmly, saves time and improves production efficiency. CNC Wood Door Making machine is Equipped with original HSD/HQD spindle, it ensures the CNC wood router have a high speed and quality

1. CNC Wood Door Making machine is equipped with HSD/HQD spindle, and it ensures the high speed and quality of this CNC wood router.

2. With a heavy-duty frame and gantry, it makes the machine run more stably.

3. Adopting servo system, it makes the machine has a longer service life.

4. Adopting DSP control system, and it is very easy to learn and operate.






PARAMETER

Description

Parameters

Model

GC1325VH cnc router

Working Area

1300x2500x200mm

Spindle power

5.5 KW

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.03mm

Table

Vacuum Table

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption (Without spindle)

5.5KW

Max. Rapid Travel Rate

15000mm/min

Max. Working Speed

12000mm/min

Cooling typeWater cooling connect with water pump

Spindle Speed

0-24000RPM

Drive Motors

Stepper motor/Servo motor

Working Voltage

AC380V/50/60Hz,3PH

Computer Interface

USB

Running Environment Temperature

0°C~45°C

Relative humidity

30%~75%

Delivery time

7-10 working day


Machine details:

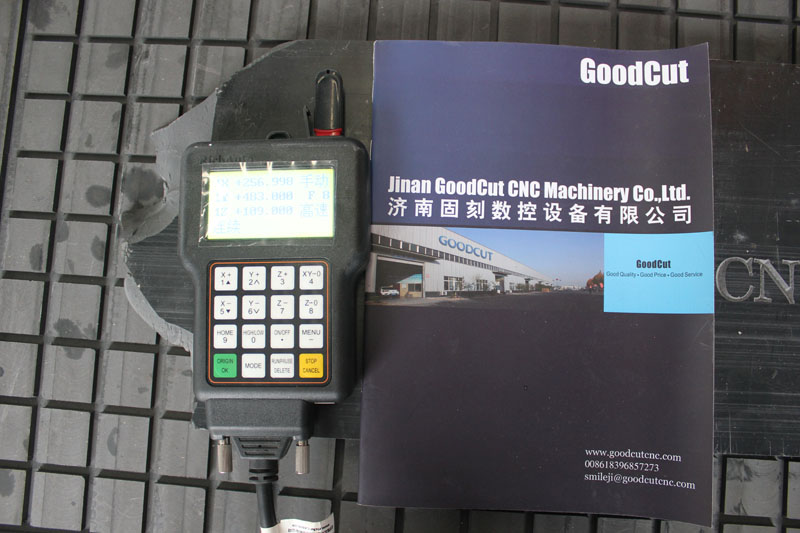

Controller: DSP, Mach 3, Weihong controller etc.


Guide Rails

HIWIN Guide Rail.

Fast running speed and strong bearing capacity.

Hiwin rails 30mm


APPLICATION

Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard

Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA

Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones Soft metal: aluminum, brass, copper, mild steel

Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite
