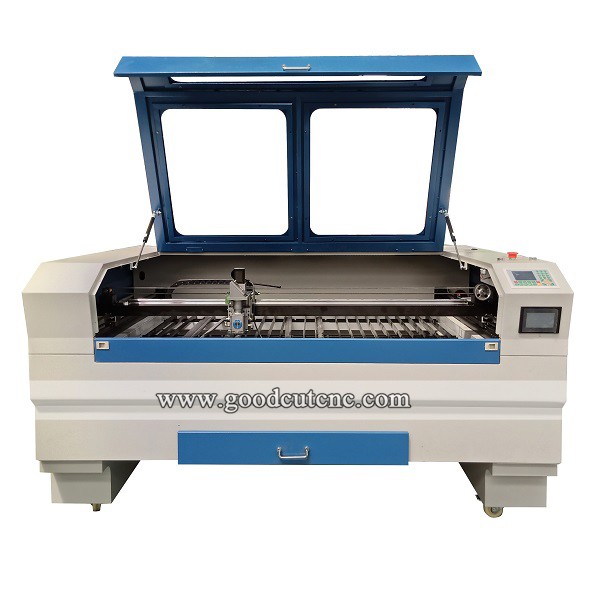

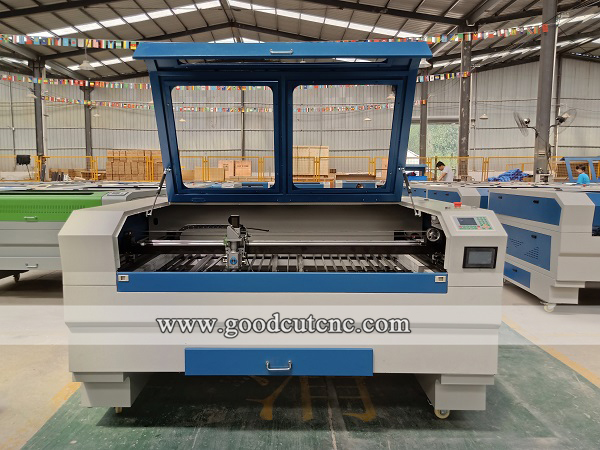

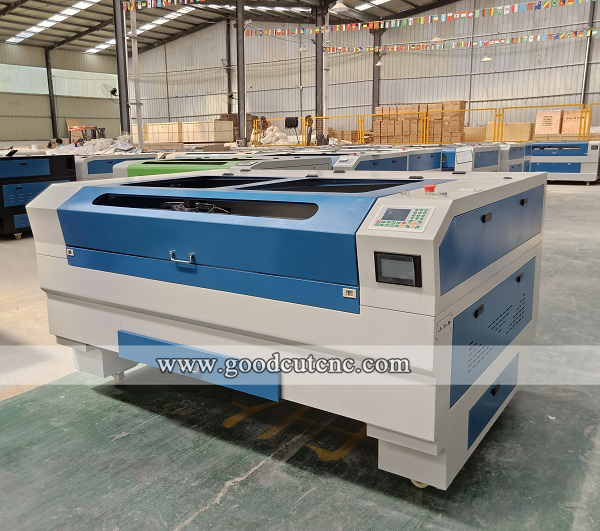

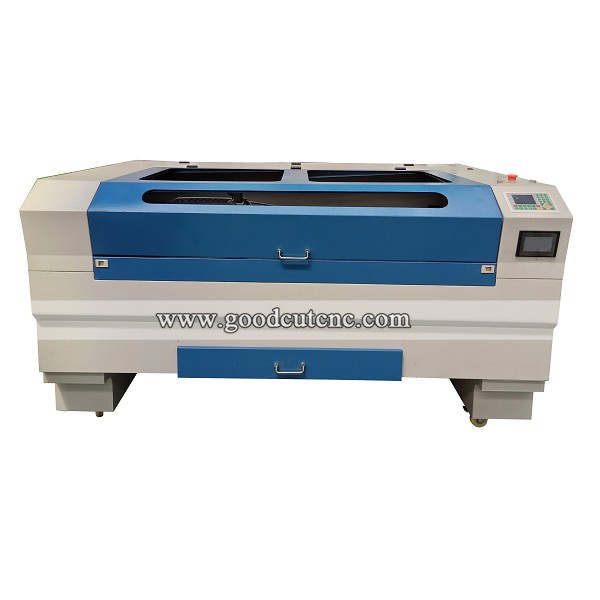

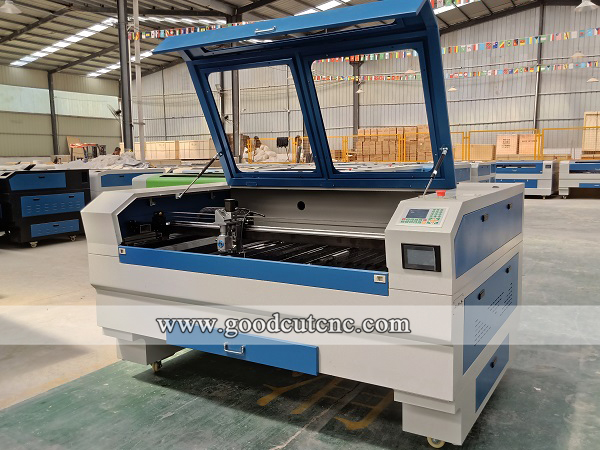

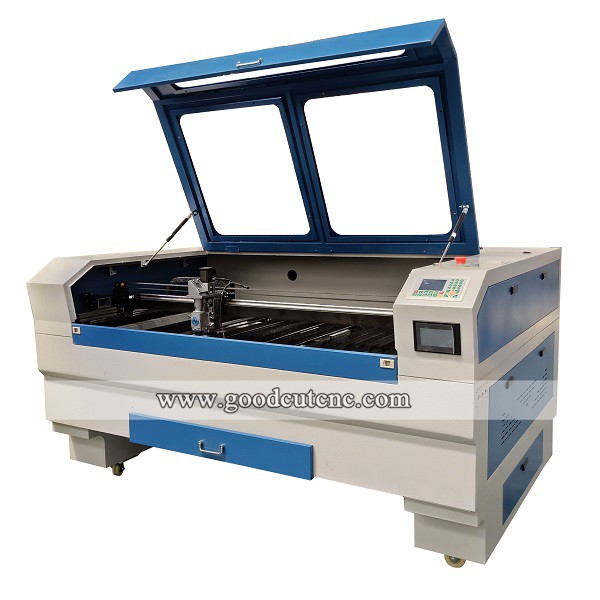

GC1390L CO2 Laser Cutter Machine For Metal and Nonmetal

1300*900 mm working size
130w/150w/300w Reci/EFRlaser tube;
Ruida controller;

EMAIL


Features:

Mix Cutting Co2 Laser Cutting Machine is a newly super technology, mainly used to cut both metal and non-metal machine. The cutting thickness can reach 1.5mm stainless steel, 2.5mm carbon steel, 28mm acrylic, 23mm wood, 25mm MDF.


It's a so wonderful choice for user that have demand to cut 1-2mm thin metal material and thick non-metal materials. One machine can fulfill all your demand, no need to buy 2 machines (one Co2 laser engraving machine and one 500w YAG metal laser cutting machine). Saving much cost.


PARAMETER


Technical Parameters

Model

GC1390L

Laser type

Co2 laser

Laser power

130 / 180 / 300 /  (optional)

Working area

1300x900mm (others could be customized)

Max cutting thickness

Depends on laser power and material.

Laser optical component

II-VI lens and mirror (USA)

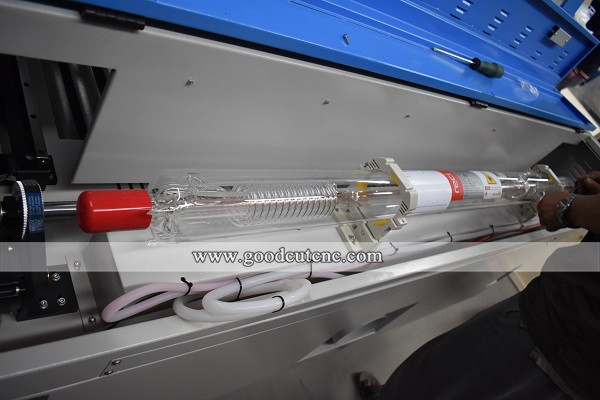

Laser tube

RECI or  EFR glass tube

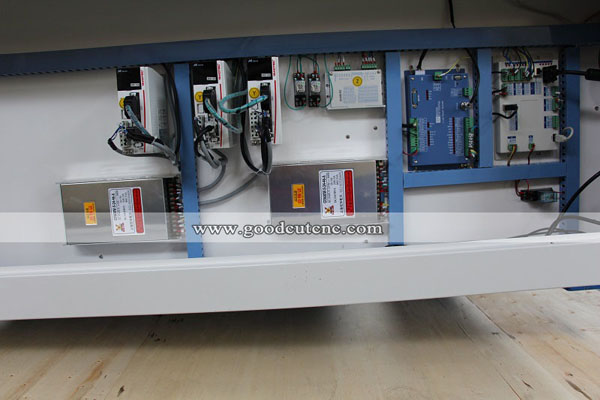

Drive

Leadshine stepper motor

Transmission

Hiwin Linear guide rail and belts transmission

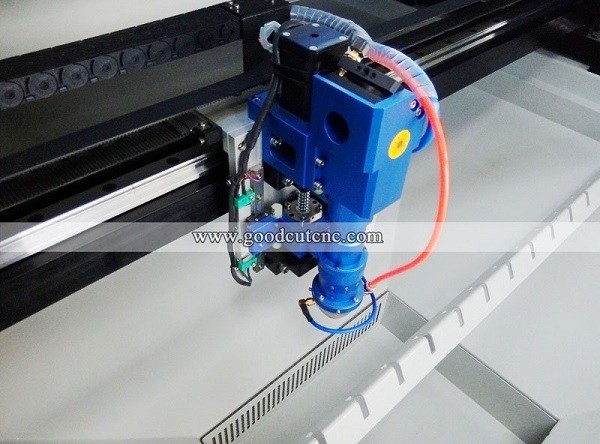

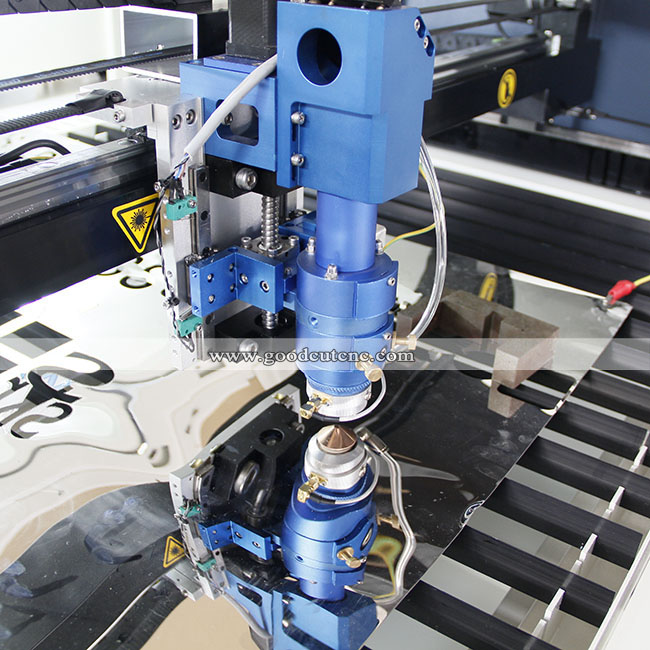

Auto focus

Yes (cutting metallic materials)

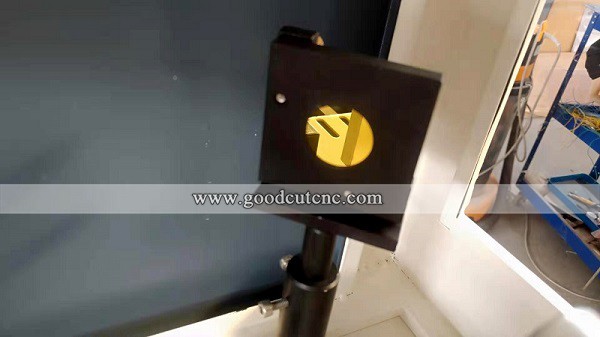

Fixed laser beam optical path

Yes (5 laser mirrors and 1 lens)

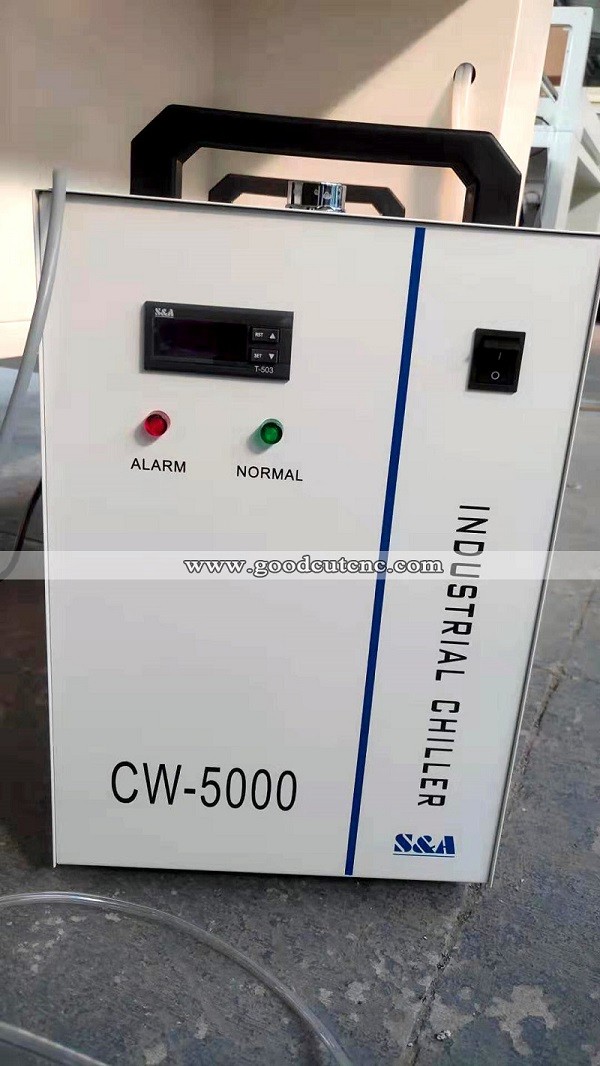

Cooling way for lens & mirror

Air cooling or water cooling (optional)

Camera orientating system

Optional (this function can work in with UV printing machine,
working video: https://youtu.be/zcZorfFwTPc)

Resolution ratio

0.025 mm

Min shaping character

Chinese 2mm / English Letter 1mm

Re-positioning accuracy

+/- 0.01mm

Graphic format supported

DXF DWD JPEG PCX AI TIFF PLT CDR BMP GIF

Gross power

<2500w, 220v, 50/60hz

Gross weight

900 KG

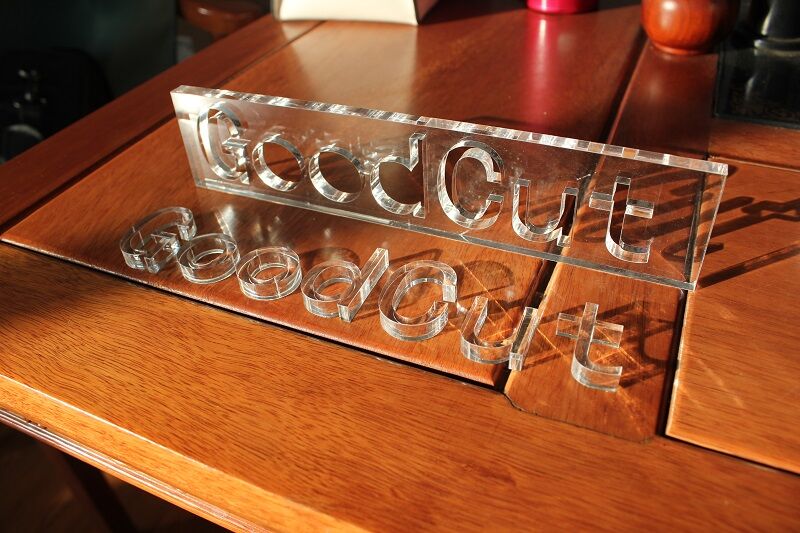

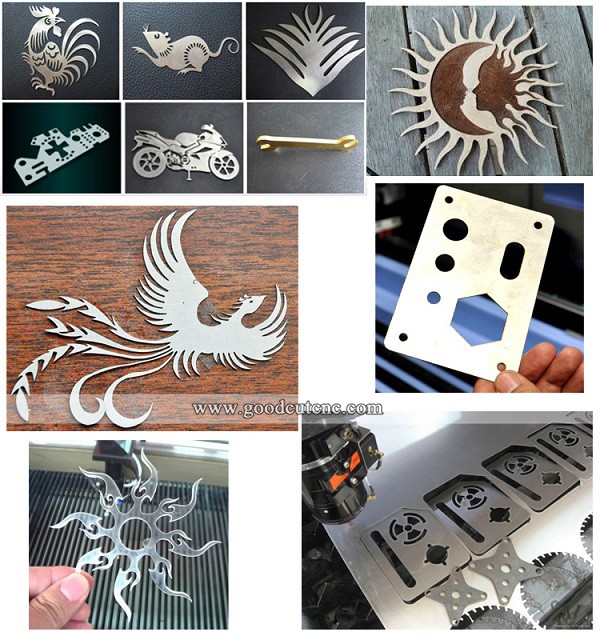

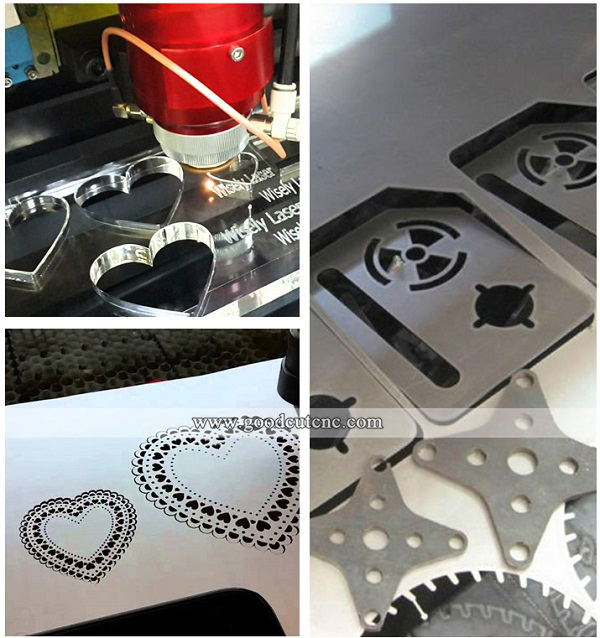

Sample
