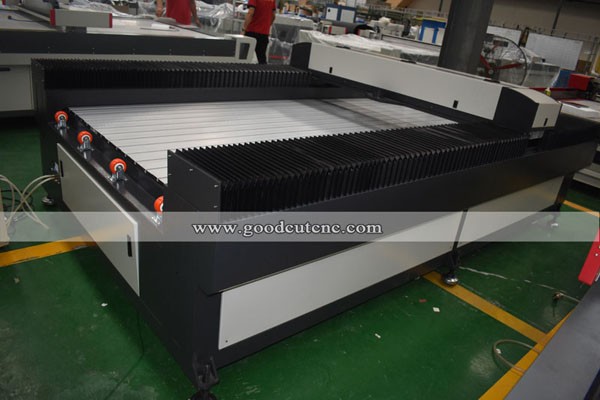

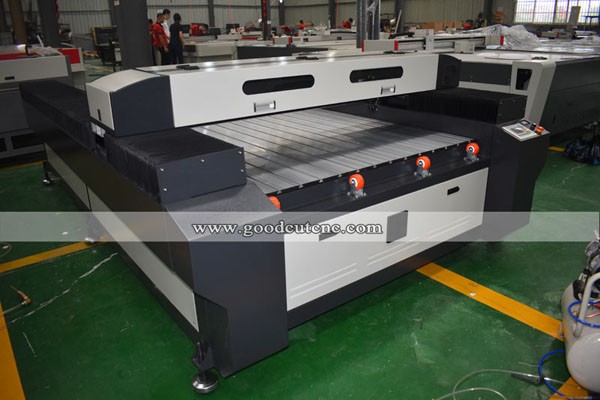

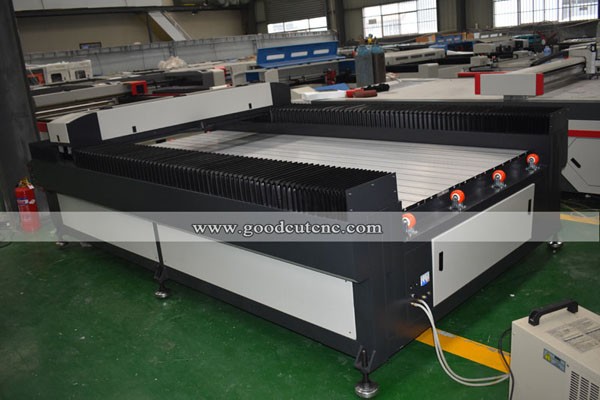

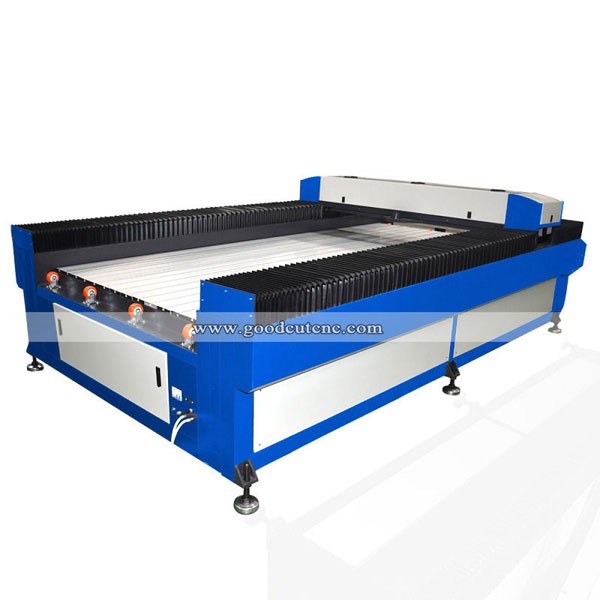

GC1325LS CO2 Laser Stone Engraver Machine

Model: GC1325LS
Working size:1300*2500mm
Laser tube power: 60W/80W/100W/130W/150W
Laser tube brand: Beijing Reci EFR

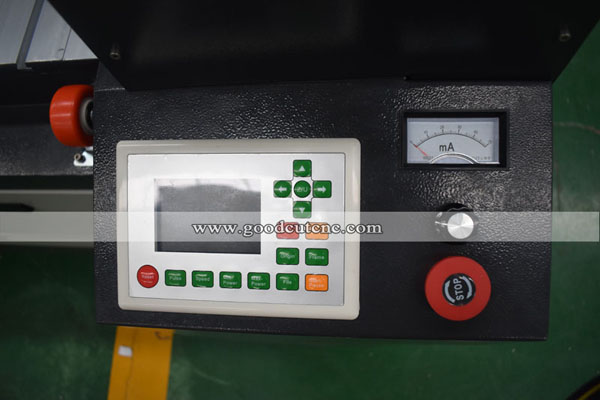

Control system: Ruida controller

EMAIL


Features:

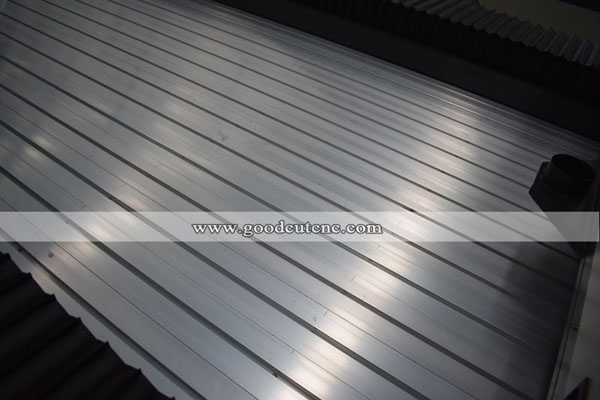

1) Co2 Laser Cutting Machine is closed circulation chain stainless steel working bench.

2) Video collecting card adopting high-quality draw code technology.

3) Software designing of the shortest route for cutting make a video recording and pickup positioning automatically.

4) The visual system of pickup position and make video recording working cooperate with computer software.

5) Co2 Laser Cutting Machine adopting high quality stepping motor.

6) Automatic and multi-axis transmitting system.

7) The high-resolution ratio of identifying camera which located the top, It is similar to the function of hawk's eye.

8) Automatic infrared rectify system.




PARAMETER


Technical Parameters

Model

GC1390L

Laser type

Co2 laser

Laser power

130 / 180 / 300 /  (optional)

Working area

1300x900mm (others could be customized)

Max cutting thickness

Depends on laser power and material.

Laser optical component

II-VI lens and mirror (USA)

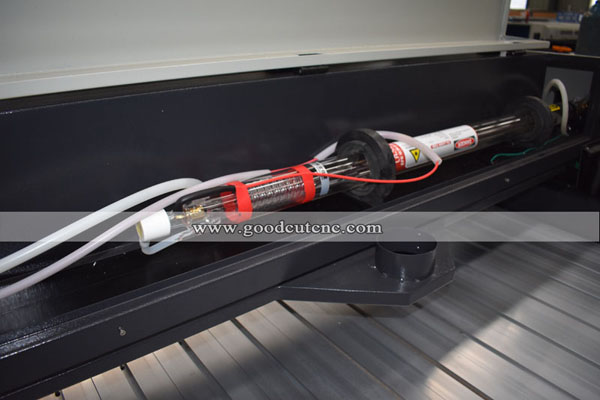

Laser tube

RECI or  EFR glass tube

Drive

Leadshine stepper motor

Transmission

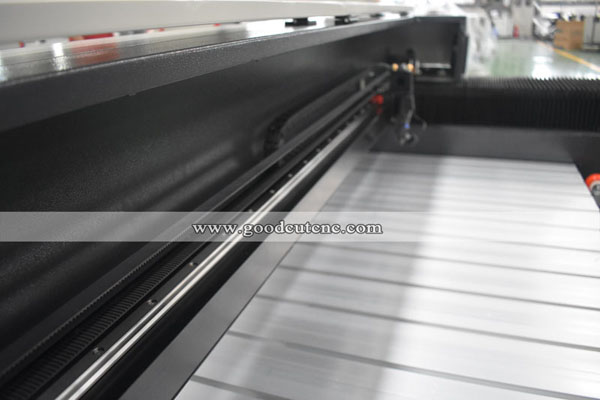

Hiwin Linear guide rail and belts transmission

Auto focus

Yes (cutting metallic materials)

Fixed laser beam optical path

Yes (5 laser mirrors and 1 lens)

Cooling way for lens & mirror

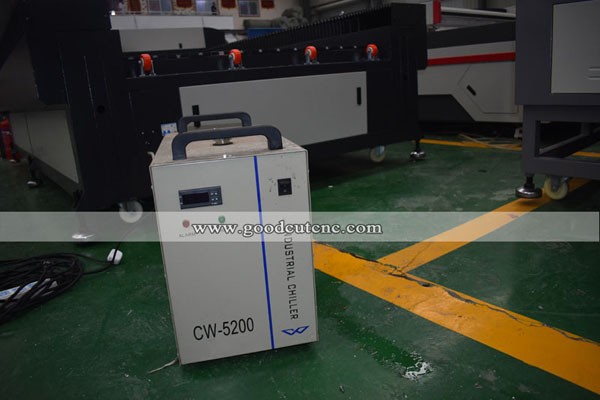

Air cooling or water cooling (optional)

Camera orientating system

Optional (this function can work in with UV printing machine,
working video: https://youtu.be/zcZorfFwTPc)

Resolution ratio

0.025 mm

Min shaping character

Chinese 2mm / English Letter 1mm

Re-positioning accuracy

+/- 0.01mm

Graphic format supported

DXF DWD JPEG PCX AI TIFF PLT CDR BMP GIF

Gross power

<2500w, 220v, 50/60hz

Gross weight

900 KG

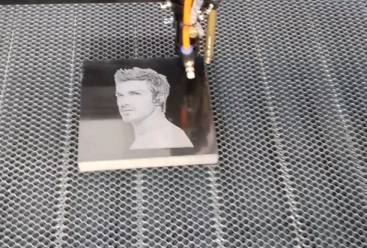

Sample
