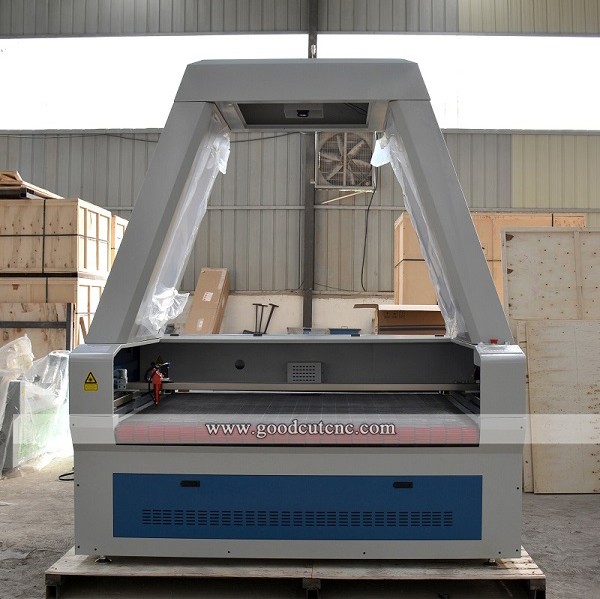

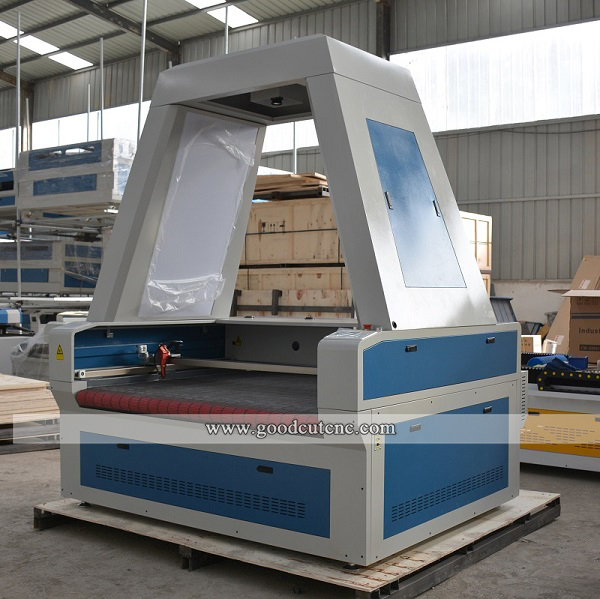

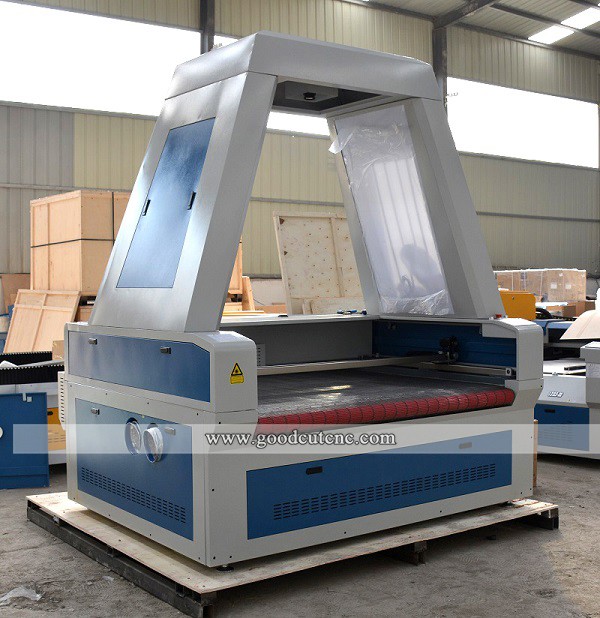

GC1390LA Co2 Laser Machine with CCD Camera Optical Image and Label Recognization System

Model: GC1290LA, GC1390LA, GC1610LA
CCD Camera Laser Cutting Machine With Optical Image and Label Recognition System
Laser tube brand: Beijing Reci EFR
Control system: DRW/ Ruida controller

EMAIL


FEATURES

This model is CO2 laser cutting machines with full frame CCD camera designed for efficient processing of printed fabric, leather, textiles and many more,to cut T-Shirt,Logo,shoe upper,leather wallet,key wallet,and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.


Configuration Instructions
1.laser head type:single head,double head, three-head,four-head.
2.laser power:80w,90w,100w,120w,130w,150w.
3.machine plate:honeycomb plate and knife plate.Different size could be custom-made.
4.motor :two-phase hybrid stepping motor and servo motor.
5.motor driver: two-phase hybrid stepping motor driver and servo motor driver.



PARAMETER

Model

GC1390LA

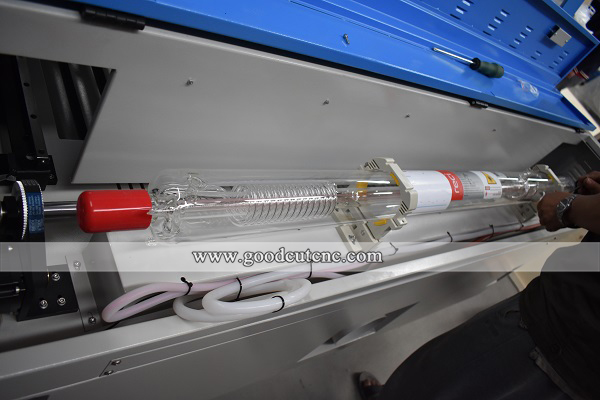

Laser type

RECI CO2 tube

Working area

1600*1000mm/1600*2500mm

Working table

Blade or honeycomb table

Laser power

Reci 130w/150w/180w/260w optional

Power Supply

220V/50Hz, 110V/60Hz

Min line width

≤0.15mm

Positon accuracy

0.01mm

Repetition accuracy

0.02mm

Cutting speed

600mm/s

Guide rail

Hiwin from Taiwan

Transmission method

Shanghai Fulong Belt Transmission

Drive motor

Leadshine stepper/Panasonic servo for optional

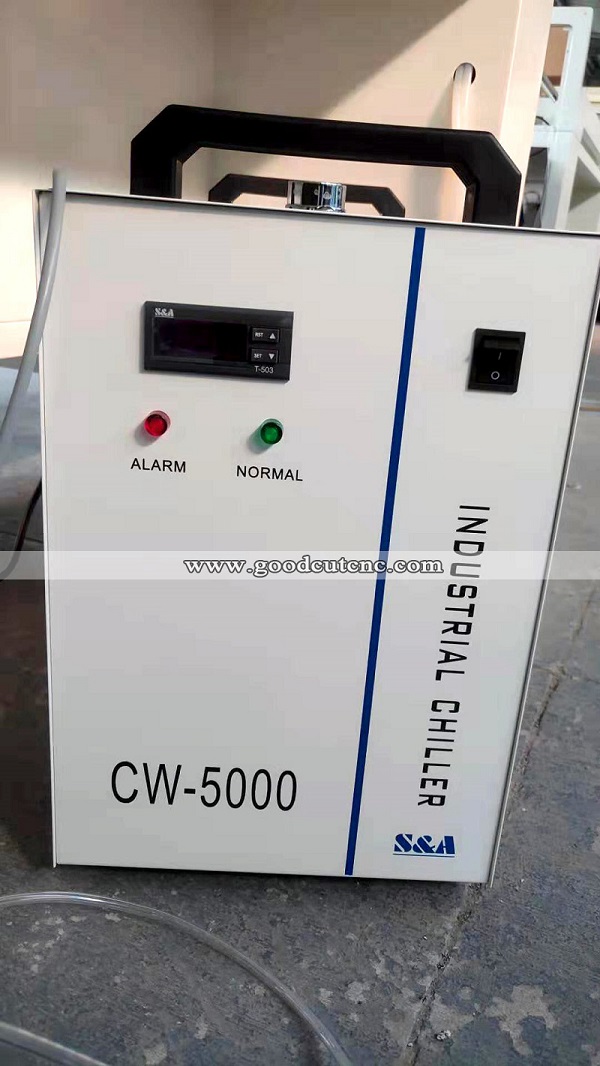

Cooling system

Water-cooling with industrial water chiller

Control system

Ruida DSP off-line

Control software

Coreldraw, Photoshop, AutoCAD, RDCAM

Graphic format support

PLT, DXF, BMP, JPG ,AI ,ect

Working environment

0-45ºC,

Operating Humidity

5-95%

Optional parts

Rotary device for cylinderical materials

Motorized up-down/lift table


APPLICATION


Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,

embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
>>Applicable Industry:

Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc

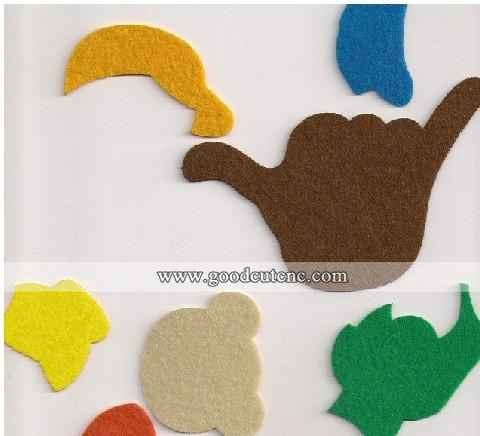

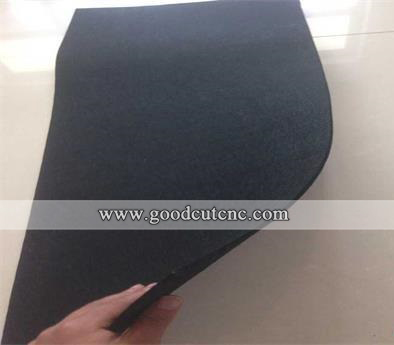

SAMPLE
