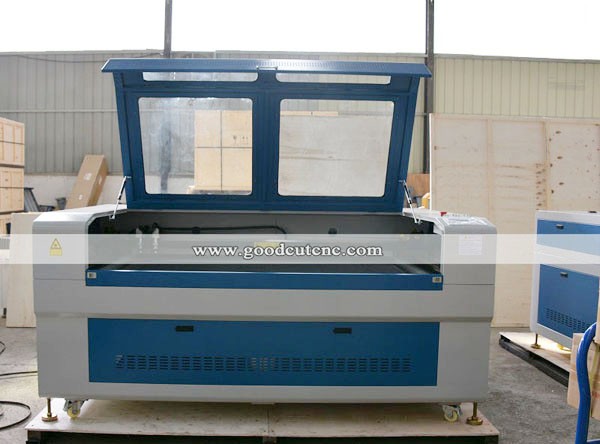

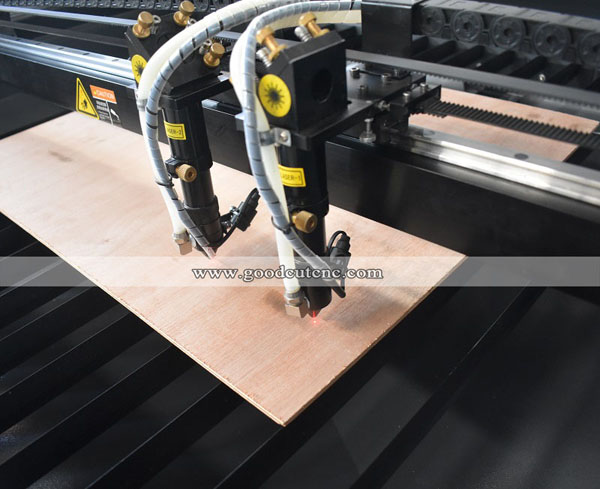

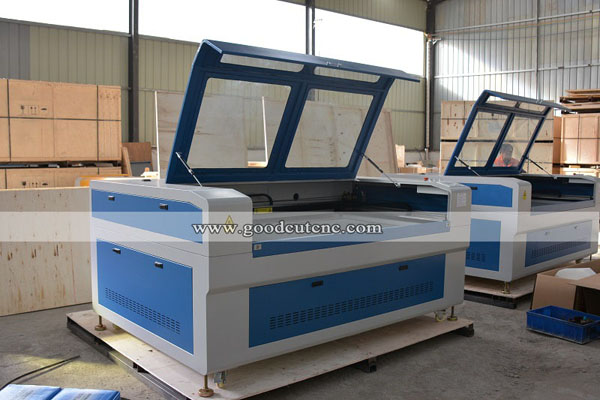

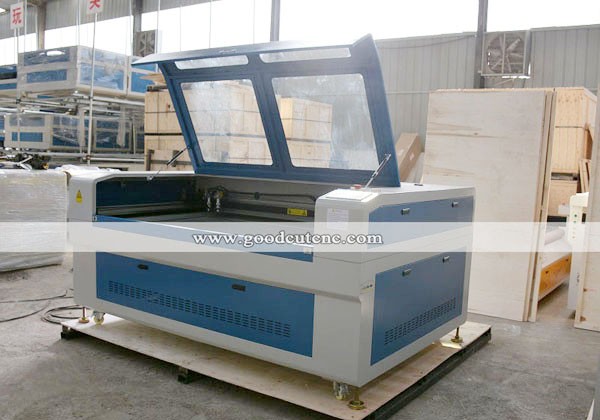

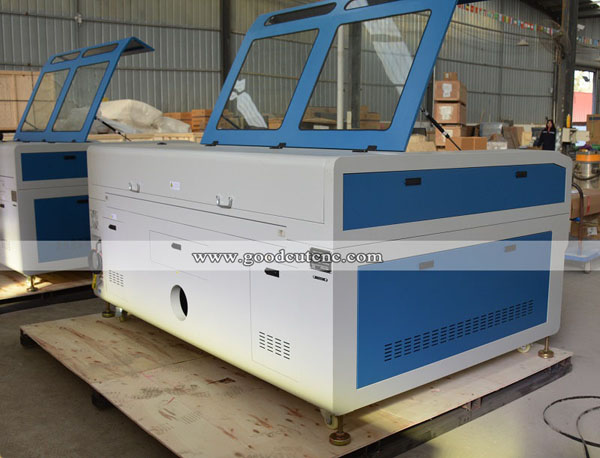

GC1410L Double Heads CO2 Laser Cutter Machine

GC1410L Double Heads CO2 Laser Cutter Machine

1400*1000 mm working size
80w/100w/130w/150w/300w Reci/EFRlaser tube;
Ruida controller;

GC1410L Double Heads CO2 Laser Cutter Machine

FEATURES

A.High speed laser cutting machine adopts the new high efficiency laser tube,the laser beam is more
stable than the traditional type ,and the life time of the laser tube can be over 10000 hours.
B.Compared with the ordinary laser machine, the series adopts more scientific design and high strength
steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from
distortion during long term work.
C.The humanized and modern appearance shows GoodCut CNC Machinery consistent humanity idea,
and it also makes the operation and maintenance quite easy.
D.Advanced DSP control system professional motion control chip, consecutive high speed curve cutting and the shortest path selection function improve the working efficiency

PARAMETER

Model	GC1410-2H
Engraving Area	1300x900MM / 1400*1000MM
Machine size	1700x1400x1120mm
cutting Speed	500mm/s
engraving speed	1000mm/s
laser tube power	80w/100w/130w/150W
Warranty	1 year
Laser wave length	10.6um
Resolution ratio	0.025mm
Minimum shaping character	Chinese character 2mm/ letter 1mm
Resetting positioning accuracy	±0.01mm
Voltage	Ac220v±10%,50HZ/60HZ
Operating Temperature	0℃-45℃
Operating humidity	5%-95%
Graphic Format Supported	BMP,HPGL (PLT), DXF, G-CODE, DST,AutoCAD, CorelDraw, CAD CAM, AI, Photoshop
software supported	Coreldraw,AutoCAD,Photoshop.llustrator etc
lens	reflect lens(3pcs)+import focus lens(1pcs)
guide Rail	Taiwan Hiwin square rails
Driver Type	leadshine stepper motor

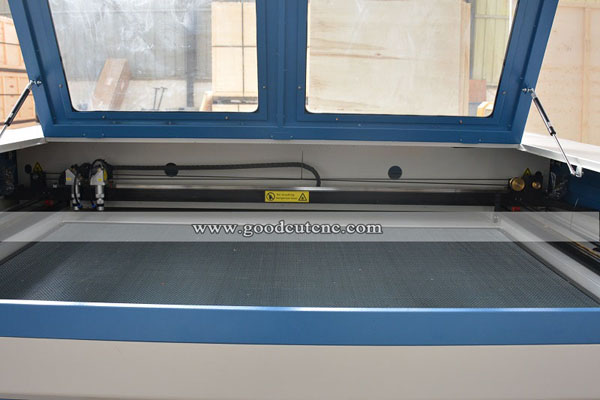

cutting table	knife blade cutting table or honeycomb table
cooling sytem	cw3000/cw5000/cw5200
software	Ruida control system
Opearate System	Win98/Win2000/WinXP/Win 7/ Win 8
interface	LCD screen with USB interface
Max Cutting thickness	Acrylic up to 25mm
pass through doors	Allow to cut extremely long materials
packing	plywood box package
Assistant equipment	exhaust-fan,air pump,industry chiller

APPLICATION

1.For engraving:All non-metals
2.For cutting:Most non-metals,such as Acrylic,PVC,rubber sheet,palstic,crystal,galss,bamboo,plywood,
oxhorn,figuline,leathe,cloth,etc.
