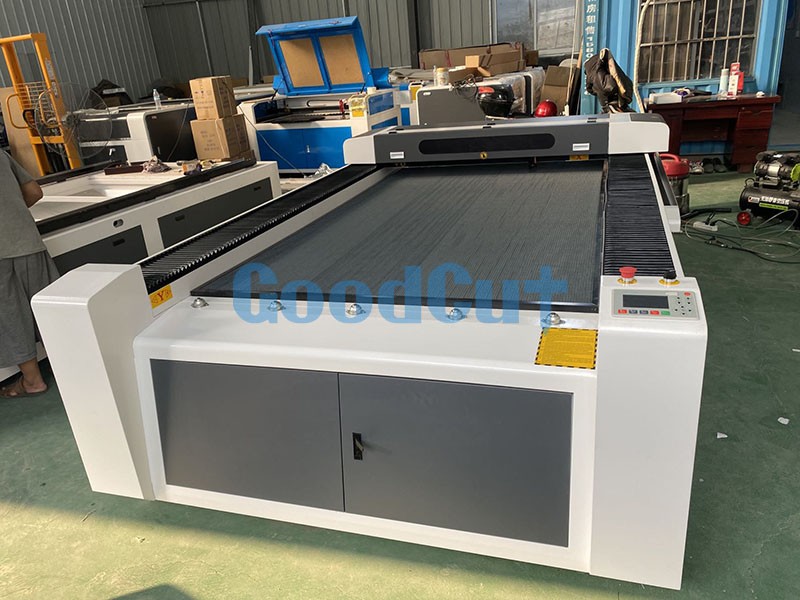

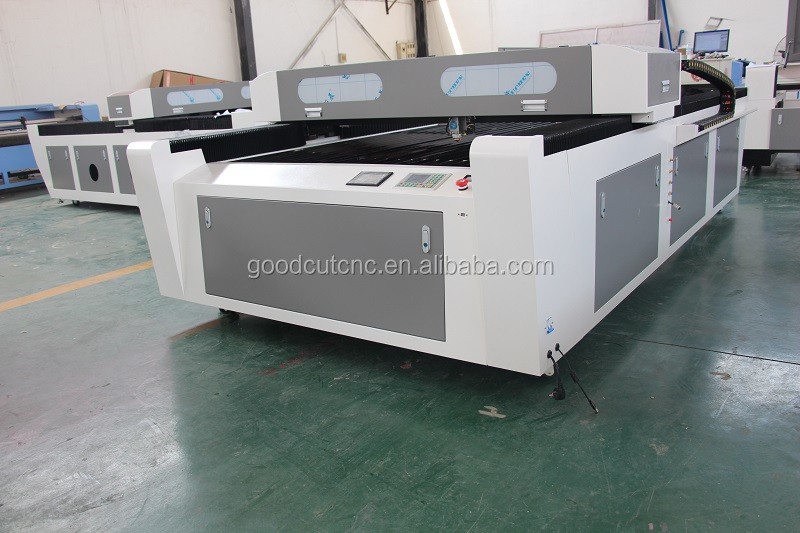

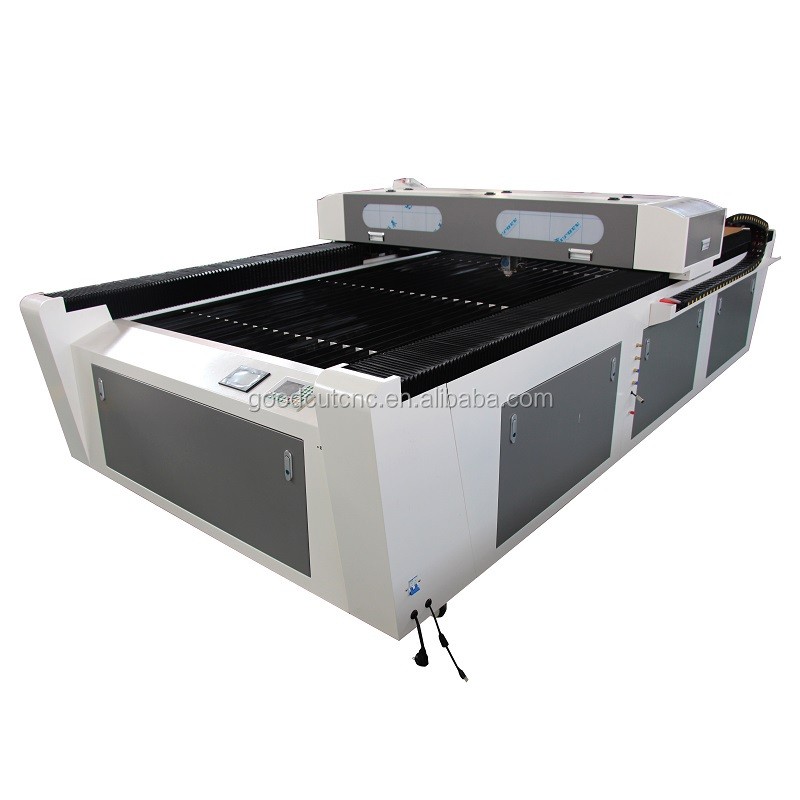

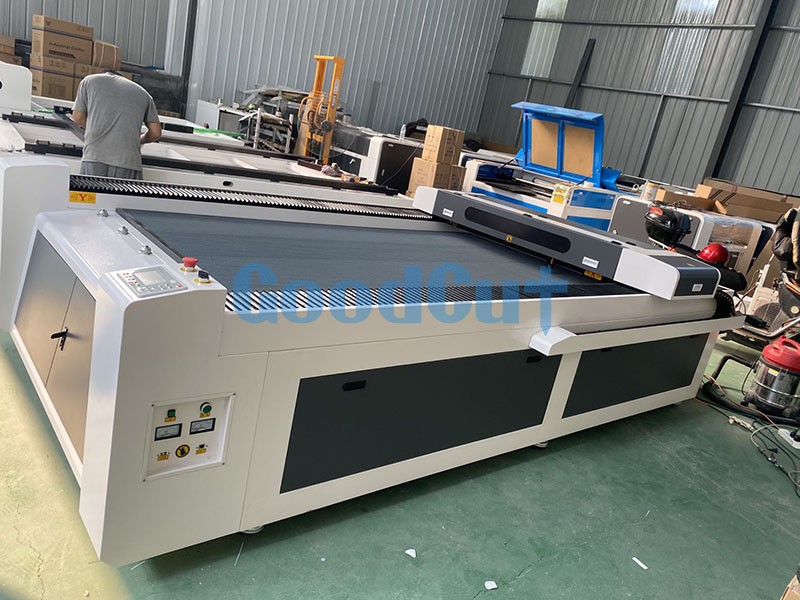

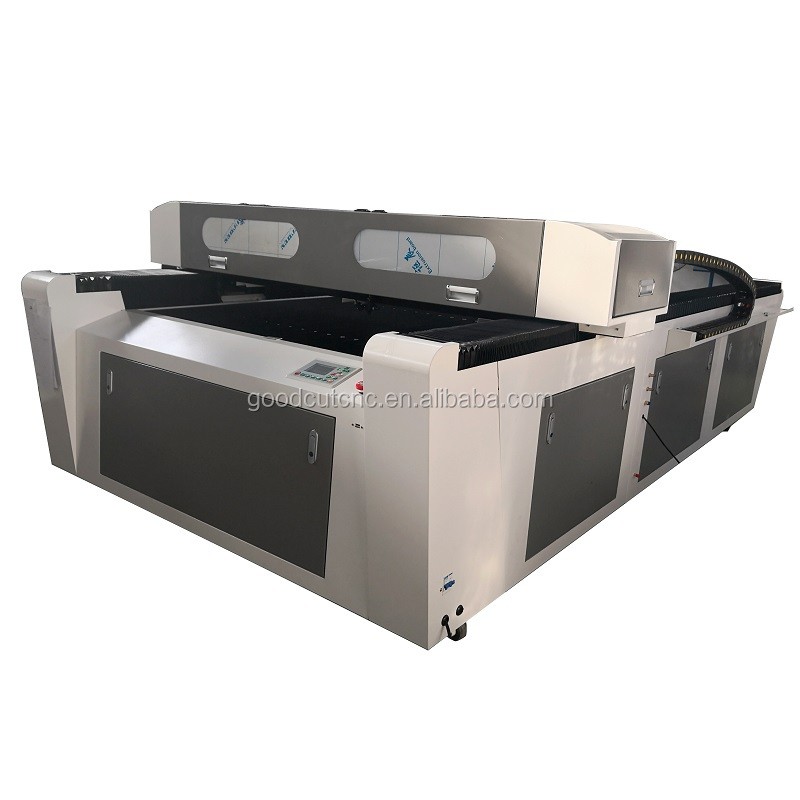

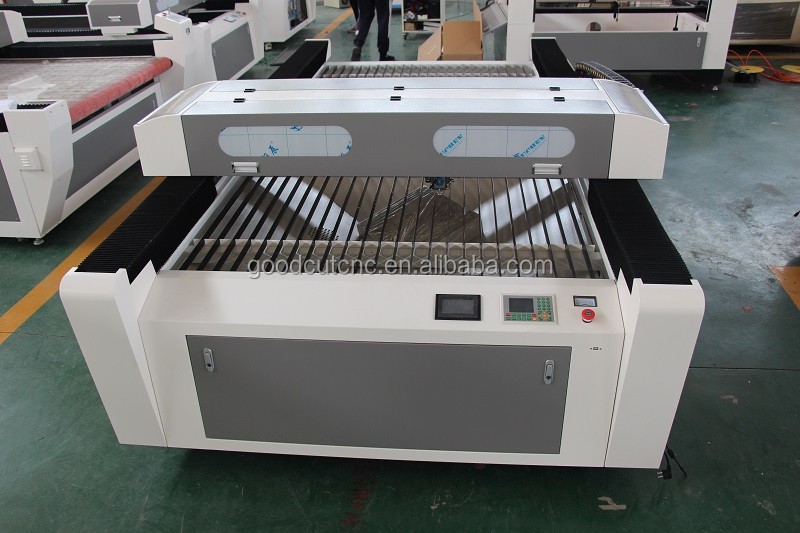

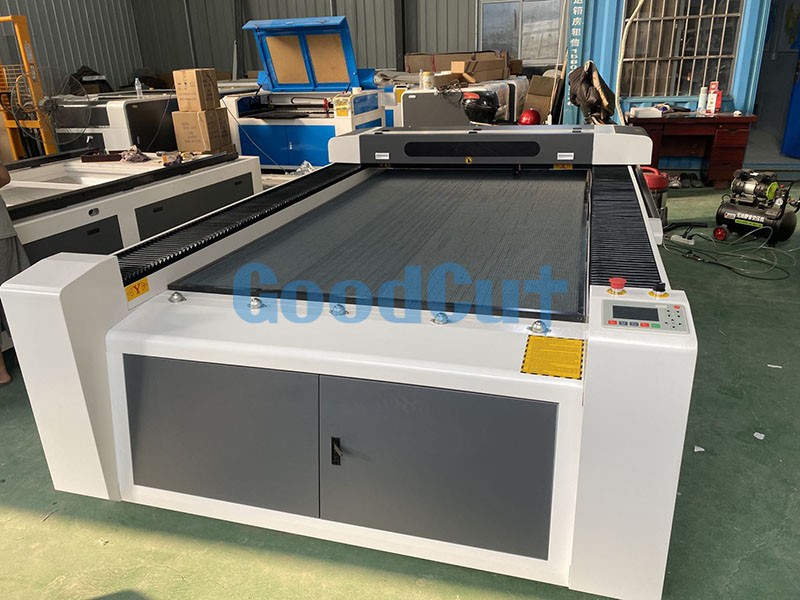

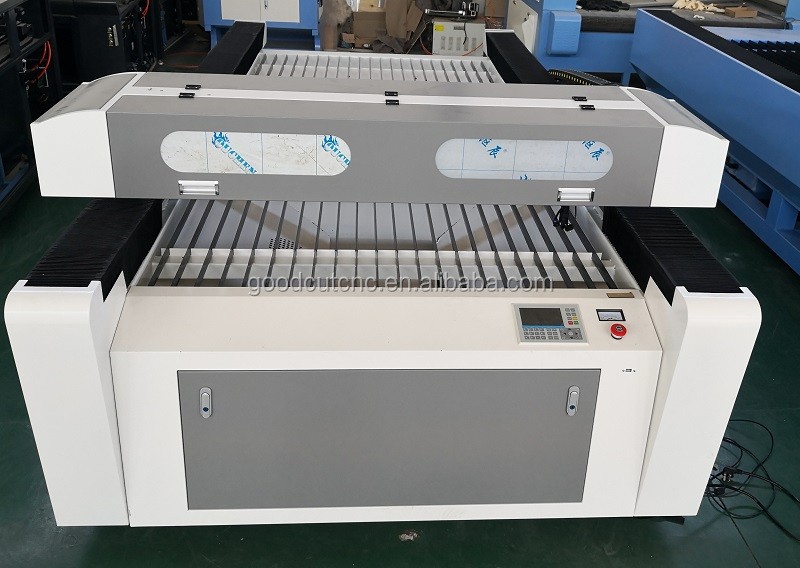

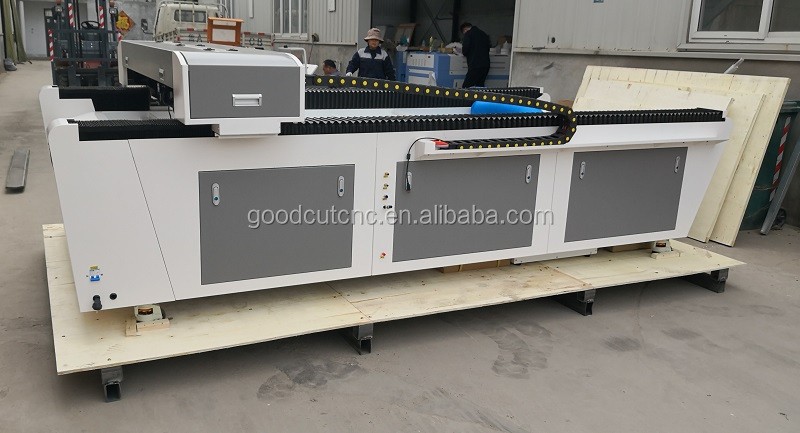

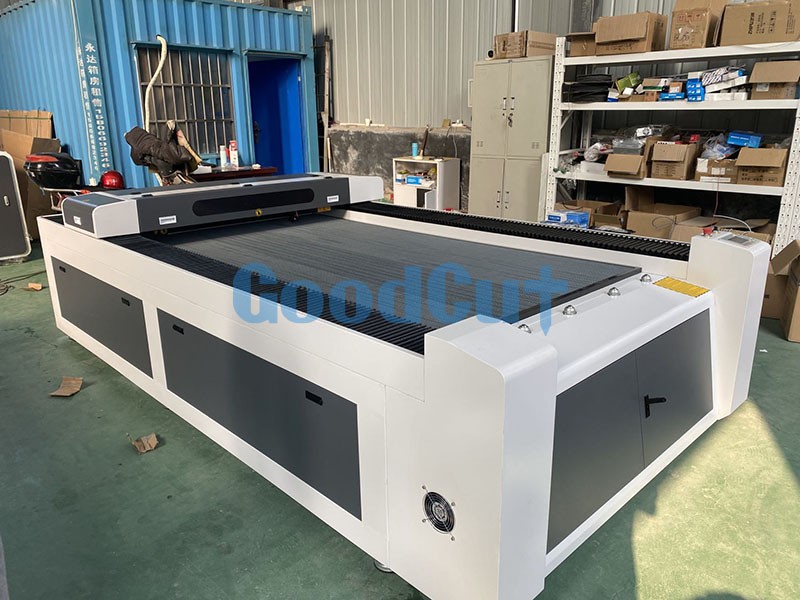

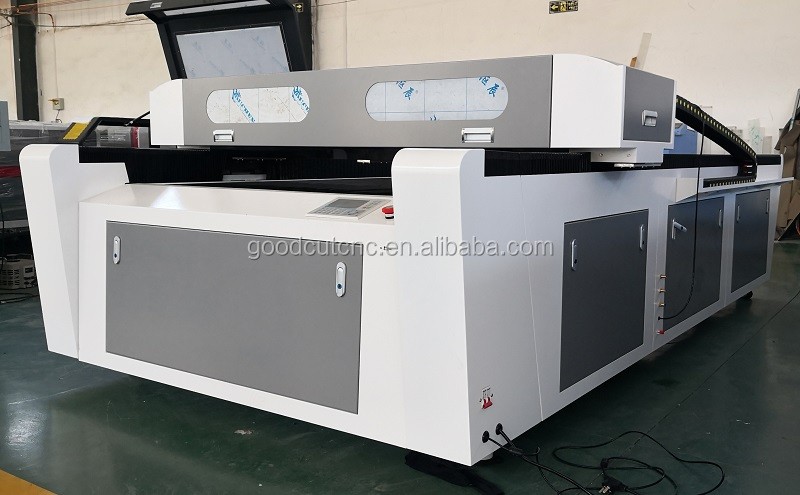

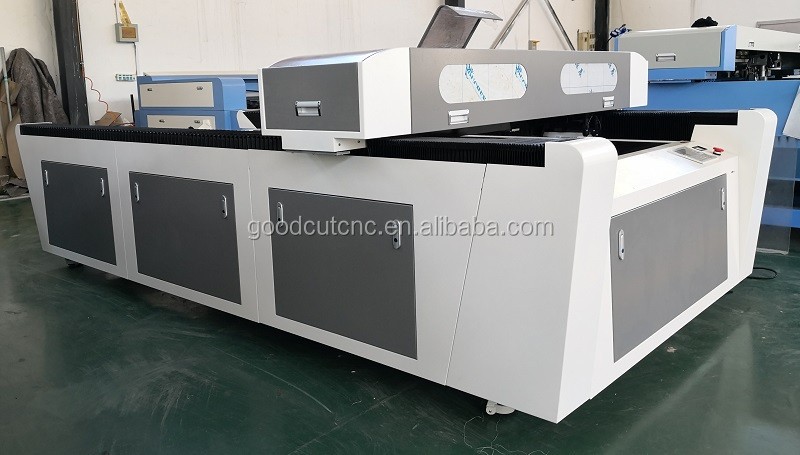

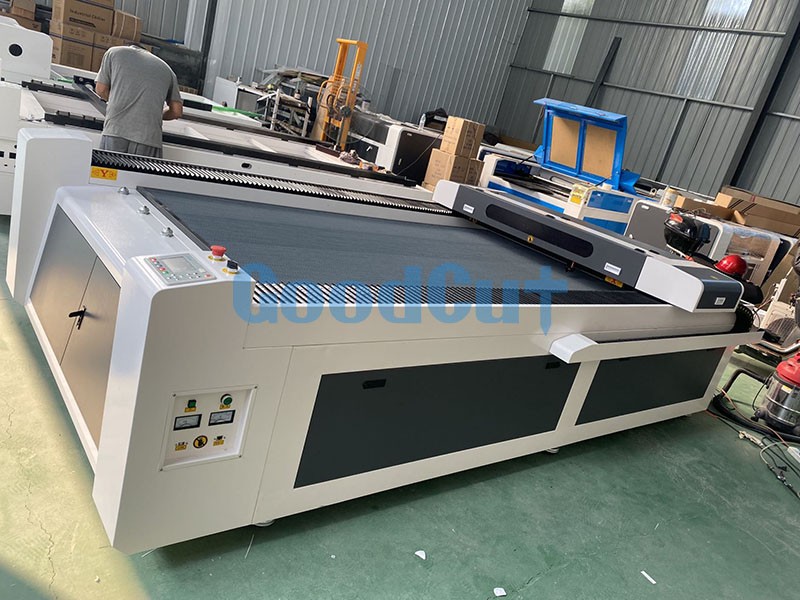

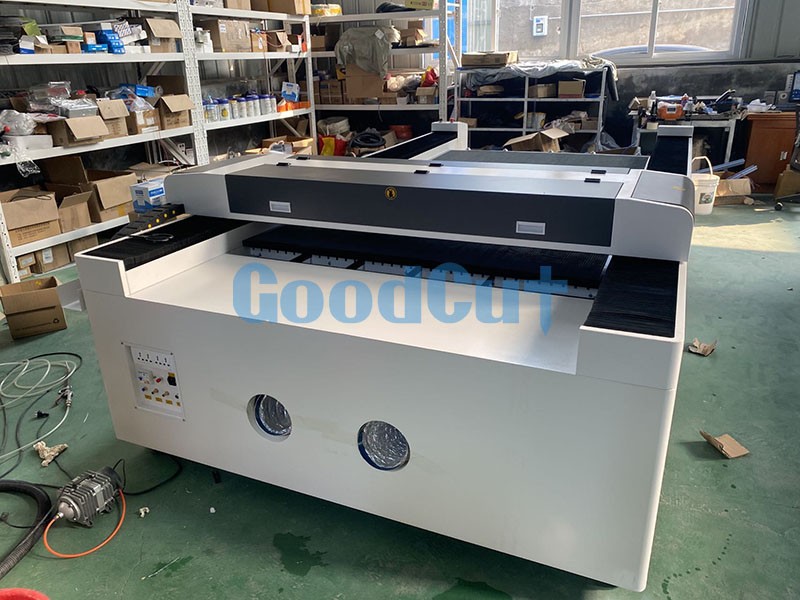

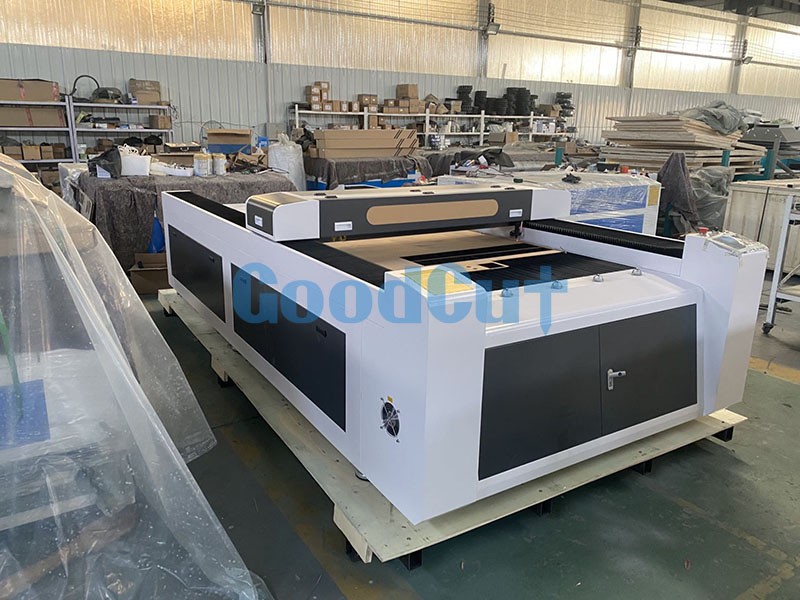

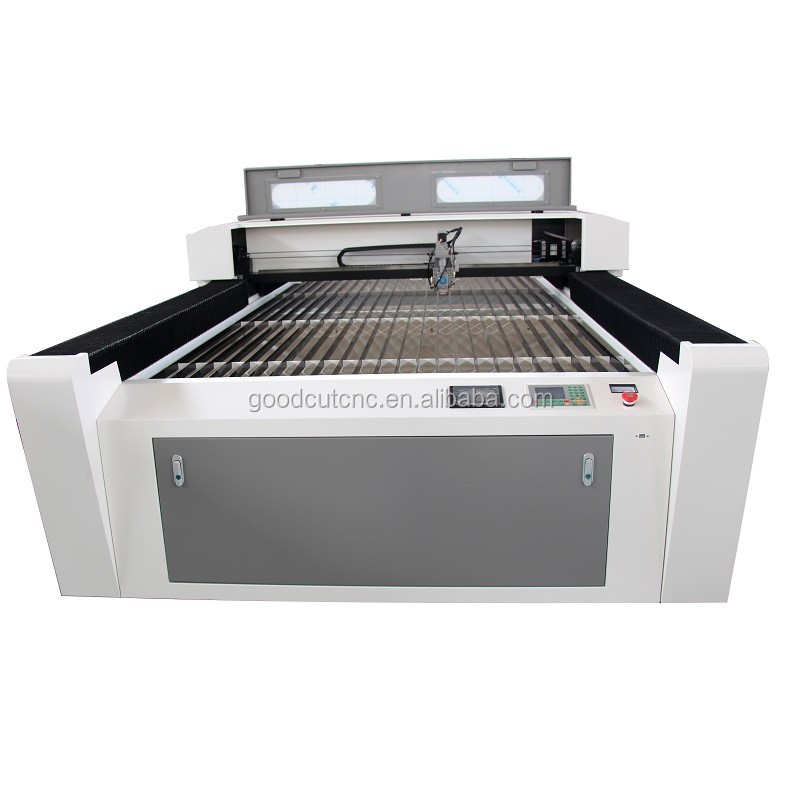

GC1325L CO2 Laser Cutter for Wood Acrylic Nonmetal

1300*2500 mm working size
80w/100w/130w/150w/300w Reci/EFRlaser tube;
Ruida controller;

EMAIL


Specification

Model

GC-1325

Work area

1300*2500 mm

Laser power

80w ( 100/130/150w 200w/ 300w option)

Laser type

co2

Water chiller

CW3000 (5000/5200 option)

Laser head No.

One

Linear rail

Taiwan Hiwin high quality square rail

Table

Blade & Honeycomb

Cooling mothod

Water cooling/water break protection

Resolution

±0.01mm

Laser output

0-100%

Operating temperature

0-45℃

Operating Humidity

5-95%

Working mode

Leadshine stepper motor

Gross power

1200w

Min shaping character

1*1mm English

Voltage

220V±10%, 50-60Hz, single phase

Resolution

4000DPI

Option 1

z axis motorized up-down

Option 2

Auto focus

Package

Plywood case

Machine size

1400*1000*1000mm

Package size

1500*1140*1210mm

N.W

240KGS

G.W

330KGS

Features:

  High Quality  CO2 Laser tube provides the Strong beam and Long service life,perfect wood cutting effect.

Rack and pinion gear transmission, high precision, high speed than belt transmission.

 We also have belt transmission machine. Price is lower.

Applicable materials:

wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,towers, glass and other nonmetal materials.
