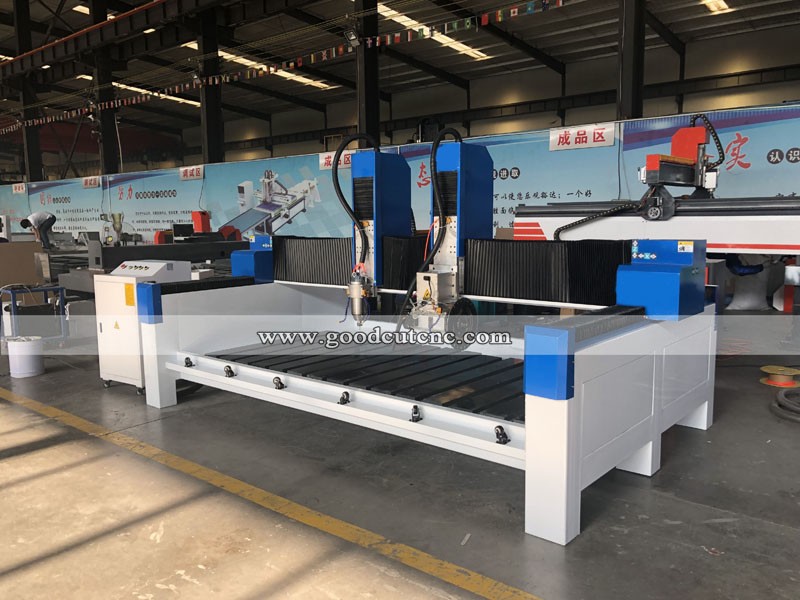

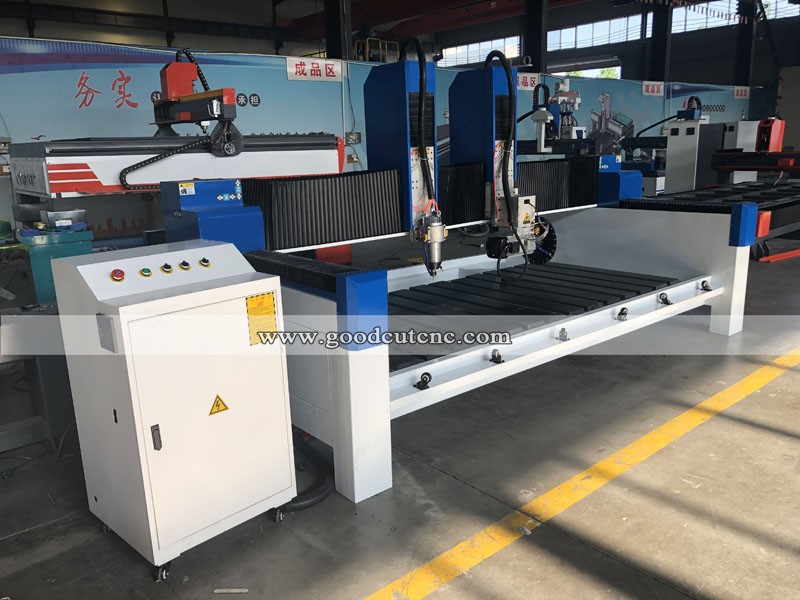

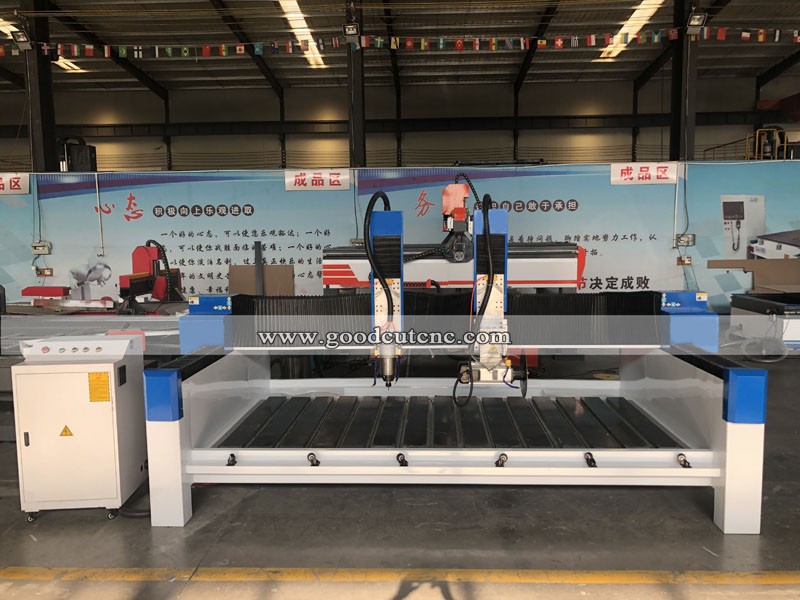

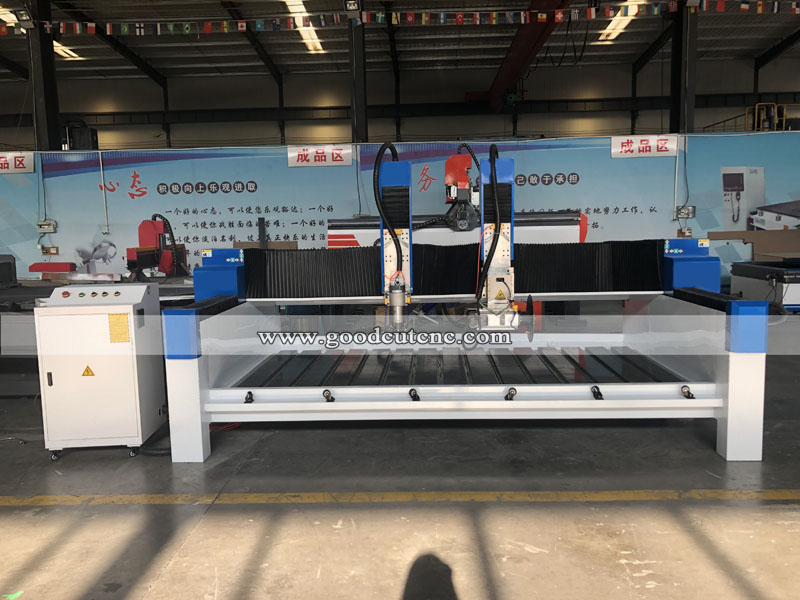

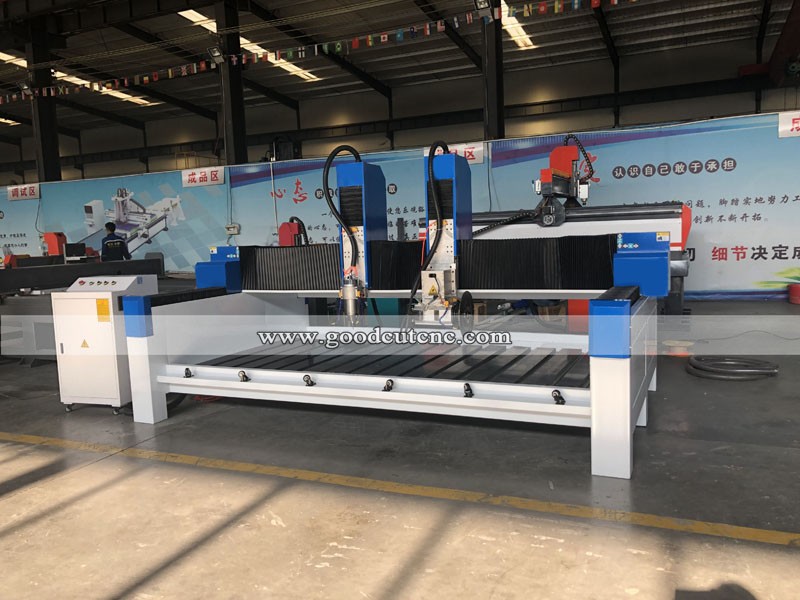

GC1325S Stone Cnc Router engraves Marble with Saw

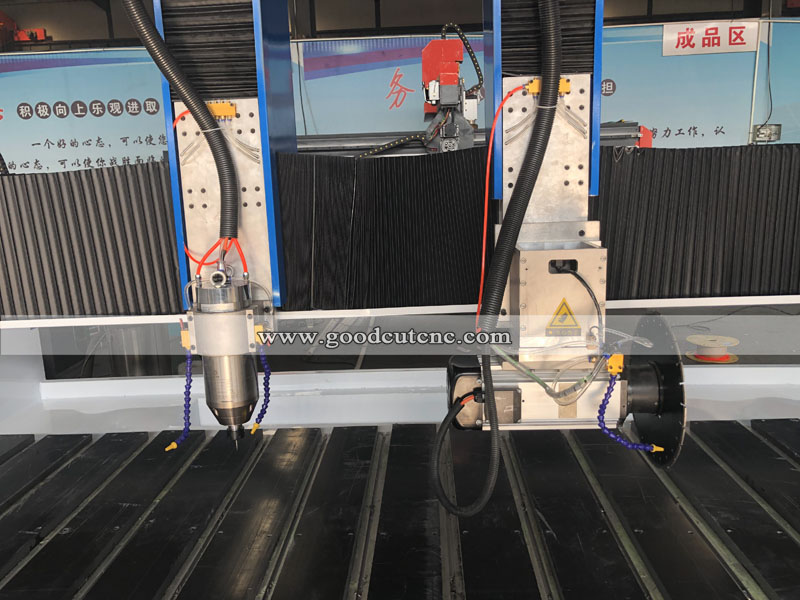

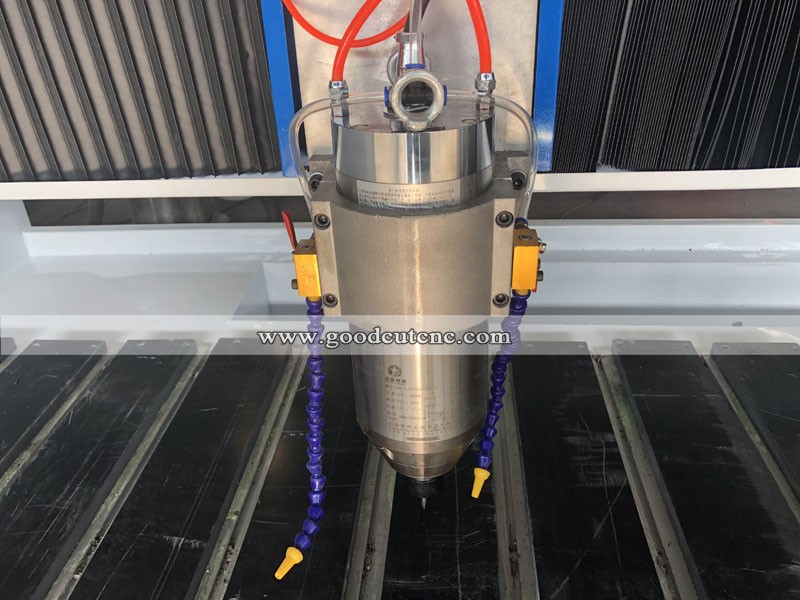

5.5kw water cooling spindle
Stepper motor and driver

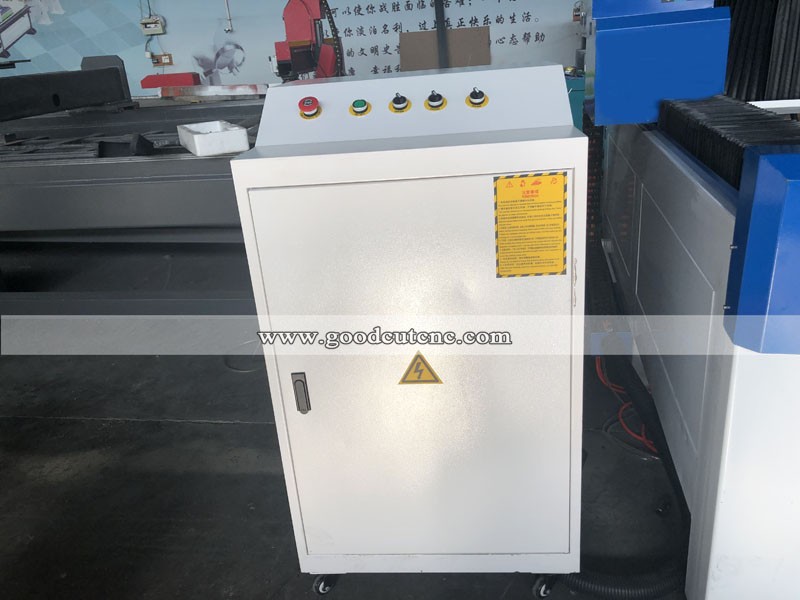

DSP Controller
Fuling inverter

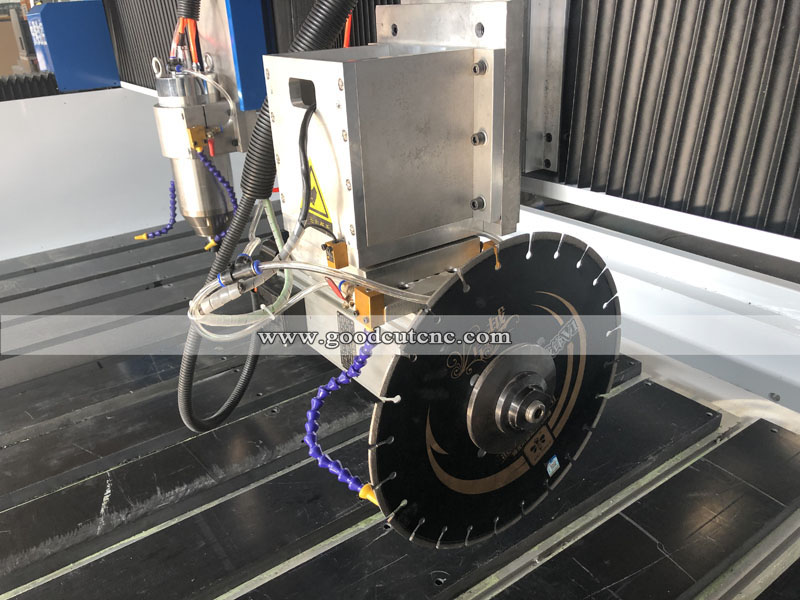

with saw

EMAIL



GC1325S Stone Cnc Router engraves Marble with Saw

fEATURES

1. CNC stone engraving machine has a heavy-duty steel table, very durable, and stable, strong enough to hold heavy stone/marble/granite, and engraving or cutting it;

2. Stone engraving machine has CNC kits of a powerful water cooling spindle, perfect working for stone;

3. It has a DSP A11 controller, hand-held, no need connecting to a computer and it is easy to operate; when engraving or carving stone/marble, you'll find it is very convenient, esp for beginners;

4. All parameters and accessories can be customized according to processing requirements, you can choose different CNC kits for this stone engraving machine with the help of our sales manager; CNC Stone engraving machine is a CNC stone router, we also call it CNC marble engraving machine, it is good at engraving works on stone/marble, and is also able to carve or cut stones with different bits;

PARAMETER

Description

Parameters

Model

GC1325S stone cnc router

Working Area

1300x2500x300mm

headsDouble heads with saw

Spindle power

5.5 KW

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.03mm

Table Surface

Water tank with sprayer pipe

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption (Without spindle)

5.5KW

Max. Rapid Travel Rate

15000mm/min

Max. Working Speed

12000mm/min

Cooling typeWater cooling connect with water pump

Spindle Speed

0-24000RPM

Drive Motors

Stepper motor

Working Voltage

AC380V/50/60Hz,3PH

Computer Interface

USB

Running Environment Temperature

0°C~45°C

Relative humidity

30%~75%

Machine details:


Controller: DSP, Mach 3, Weihong controller etc.


Mach3DSP rich auto (4)

Guide Rails

HIWIN Guide Rail.

Fast running speed and strong bearing capacity.

Hiwin rails 30mm


APPLICATION

Its major functions include embossing, lettering, hollowing out, cutting, seamless stitching, milling, grinding, etc. So it has wide applications in garden engineering, inscription, stone sculpture, craft, and artwork industries.

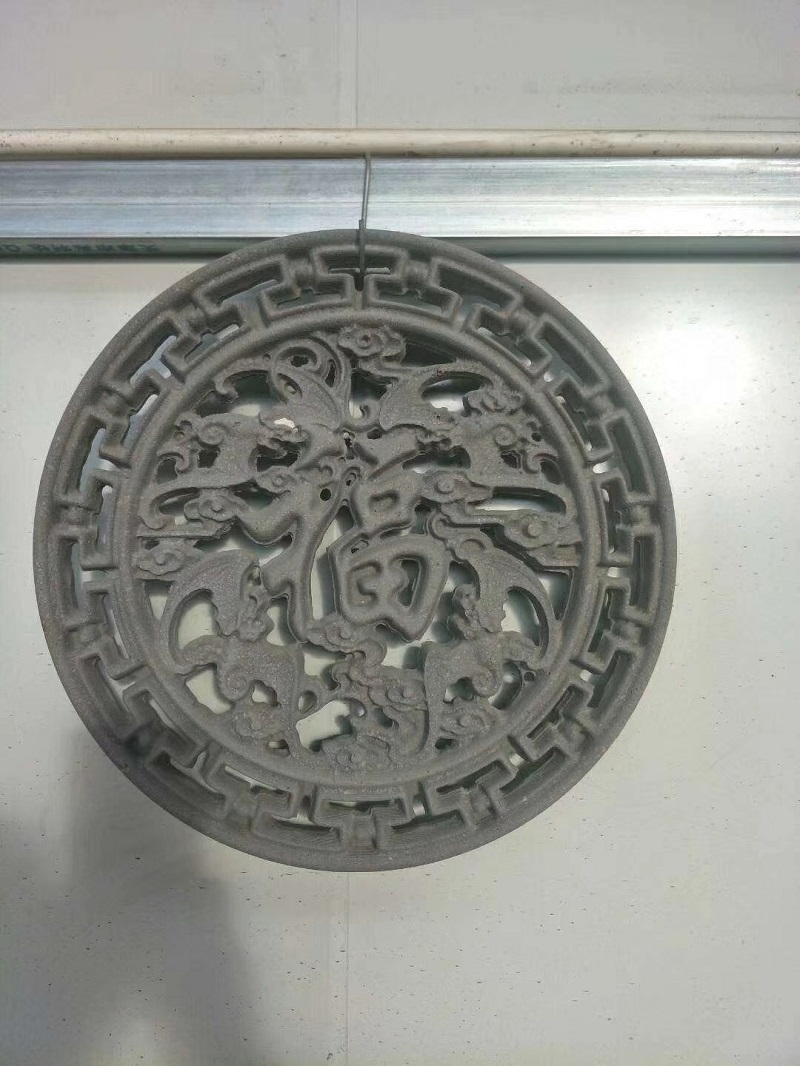

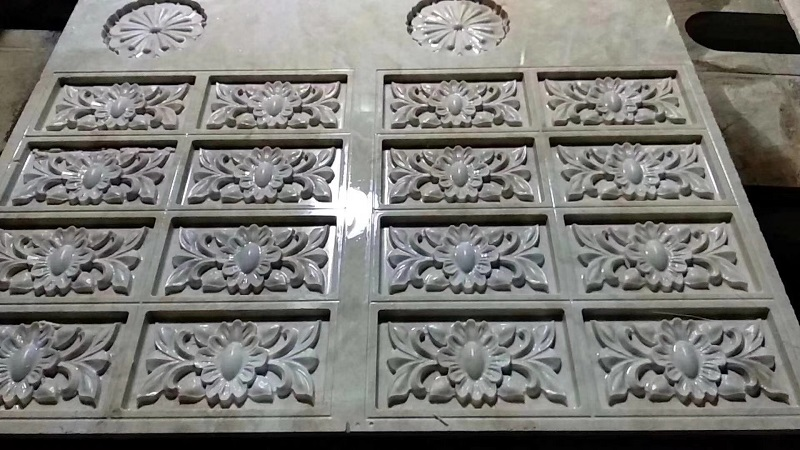

SAMPLE
