GoodCut Einscan HX Hybrid Blue Laser & LED Light Source Handheld 3D Scanner

GoodCut Einscan HX Hybrid Blue Laser & LED Light Source Handheld 3D Scanner

Scan Accuracy Up to 0.04mm
Scan Speed 1,200,000 points/s 20FPS
Hybrid Blue Laser & LED Light
Full Color

GoodCut Einscan HX Hybrid Blue Laser & LED Light Source Handheld 3D Scanner

Based on years of 3D measurement experience and market demand, we innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner.

The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users.

High efficiency and reliable result give EinScan HX more application possibilities.

Einscan HX 3d scanner (20)

Einscan HX 3d scanner (29)

Einscan HX 3d scanner (18)

Scan Mode	Rapid Scan	Laser Scan
Scan Accuracy	Up to 0.05mm	Up to 0.04mm
Volumetric Accuracy*	0.05+0.1mm/m	0.04+0.06mm/m
Scan Speed	1,200,000 points/s 20FPS	480,000 points/s 55FPS
Camera Frame Rate	55FPS	55FPS
Align Mode	Feature Alignment,Markers Alignment,Texture Alignment,Hybrid Alignment	Markers Alignment
Working Distance	470mm	470mm
Depth of Field	200mm-700mm	350mm-610mm
Max FOV	420mm*440mm	380mm*400mm
Point Distance	0.25mm-3mm	0.05mm-3mm
Light Source	Blue LED	7 Blue Laser Crosses
Safety	Eye-safe	Class I(Eye-safe)
Built-in Color Camera	Yes
Texture Scan	Yes	No
Connection Standard	USB3.0
Output Formats	OBJ;STL;ASC;PLY;P3;3MF
Dimensions	108mmx110mmx237mm
Weight	710g
Certifications	CE,FCC,ROHS,WEEE,KC
Recommended Configuration	OS:Win10,64 bit;Graphics card:NVIDIA GTX1080 and higher;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB

Einscan HX 3d scanner (7)

Einscan HX 3d scanner (5)

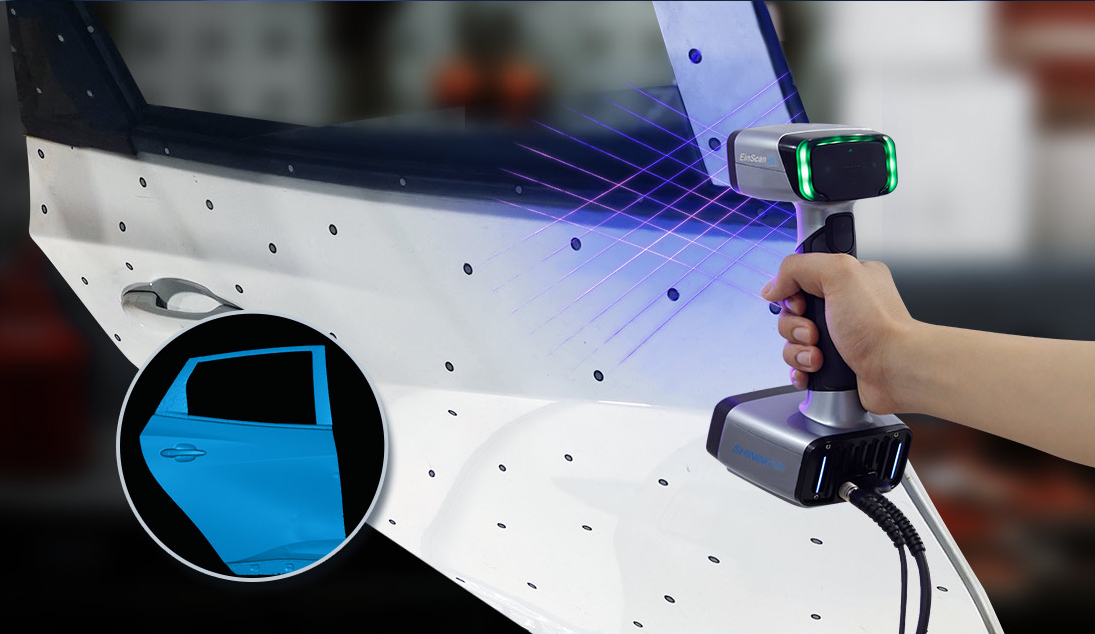

Hybrid Blue Laser & LED Light

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications.

LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

Einscan HX 3d hybrid blue laser and LED scanner Output STL Formats:

The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.

Minimum point distance 0.05 mm

Accuracy up to 0.04 mm under Laser Scan

Portable & Easy Operation

EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience.
