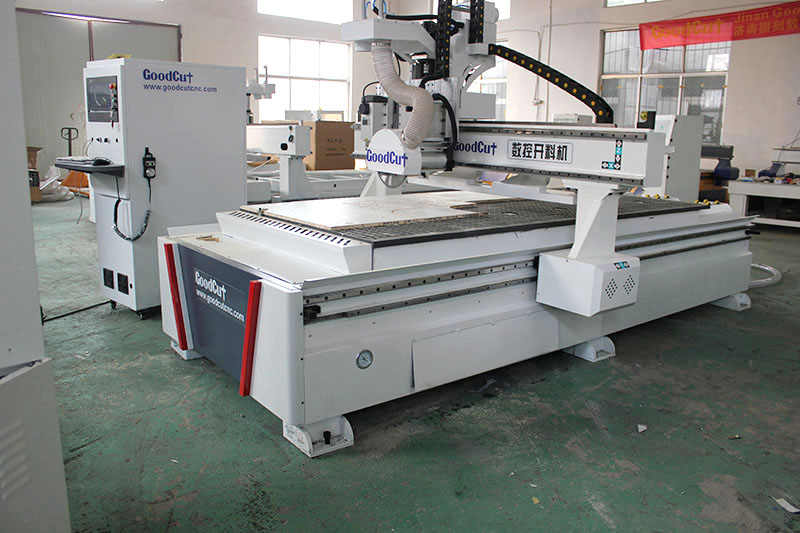

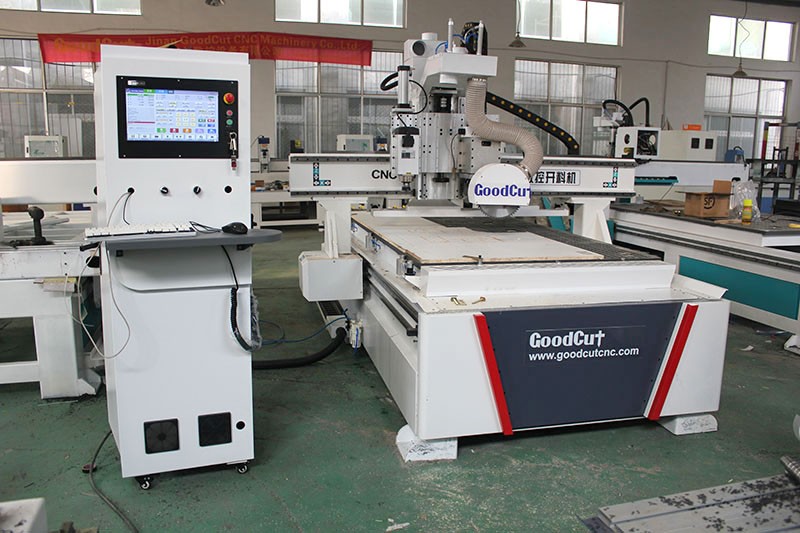

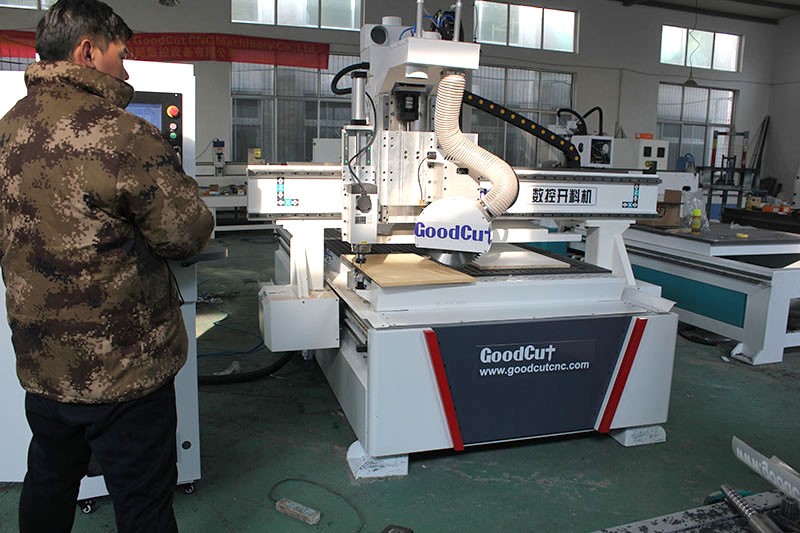

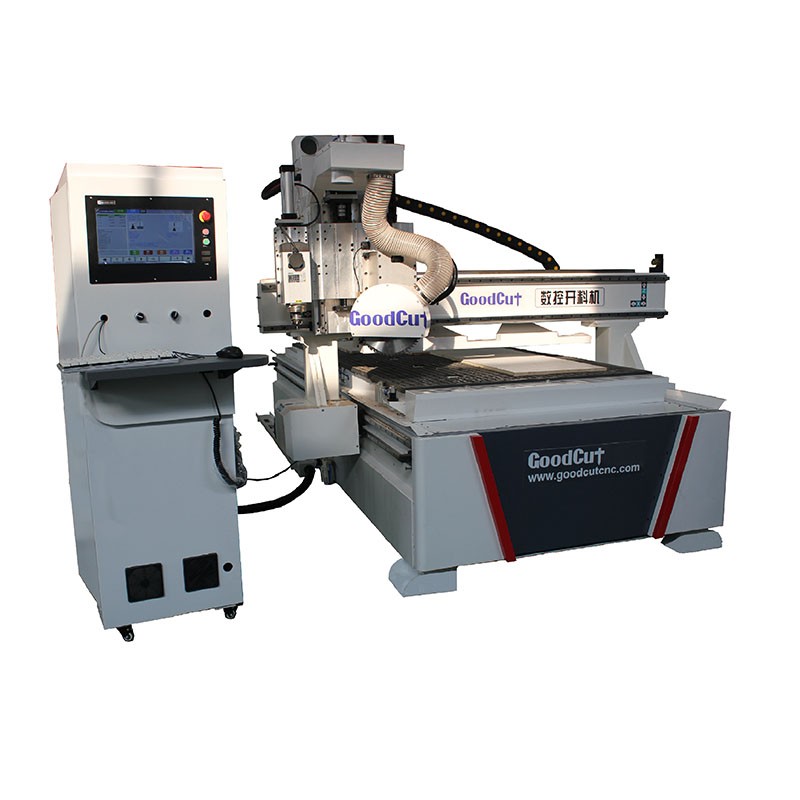

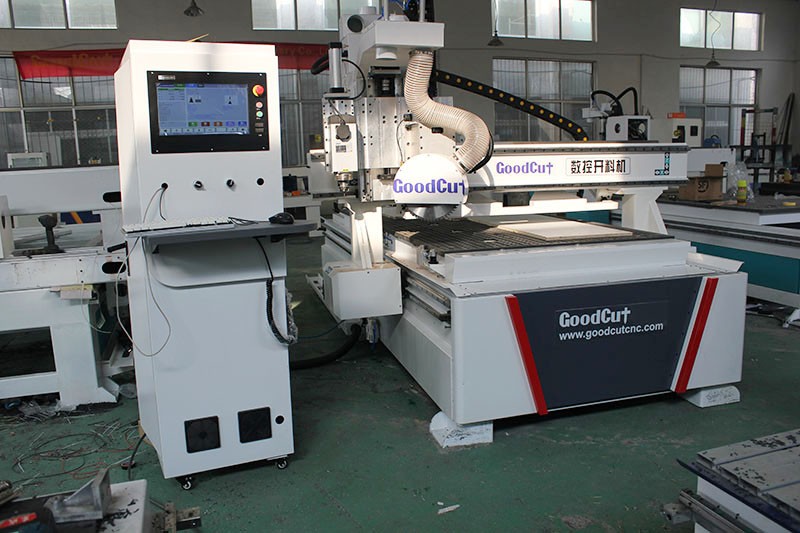

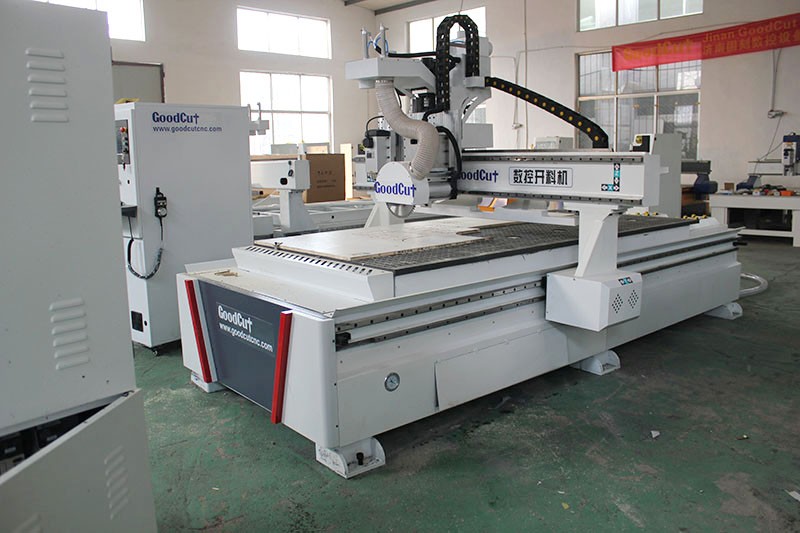

GC1325-P ATC CNC Router With Saw Blade

12pcs linear tool magazine
Automatic too changer
9kw ATC spindle

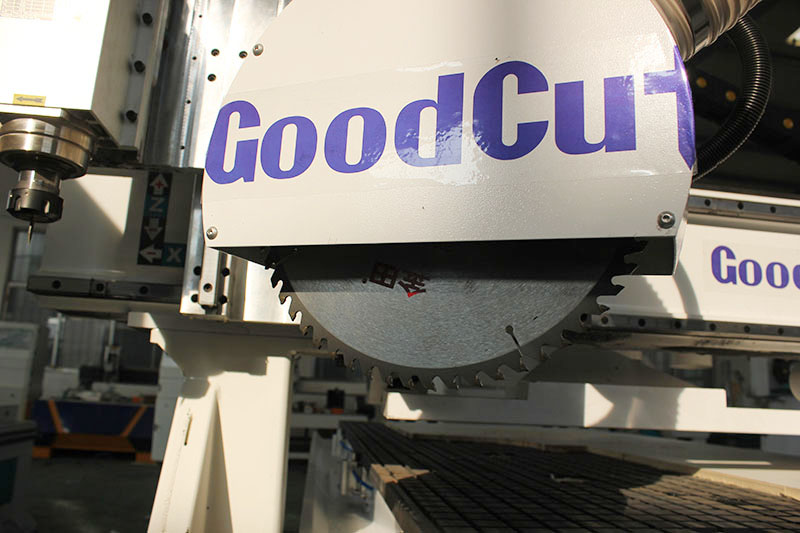

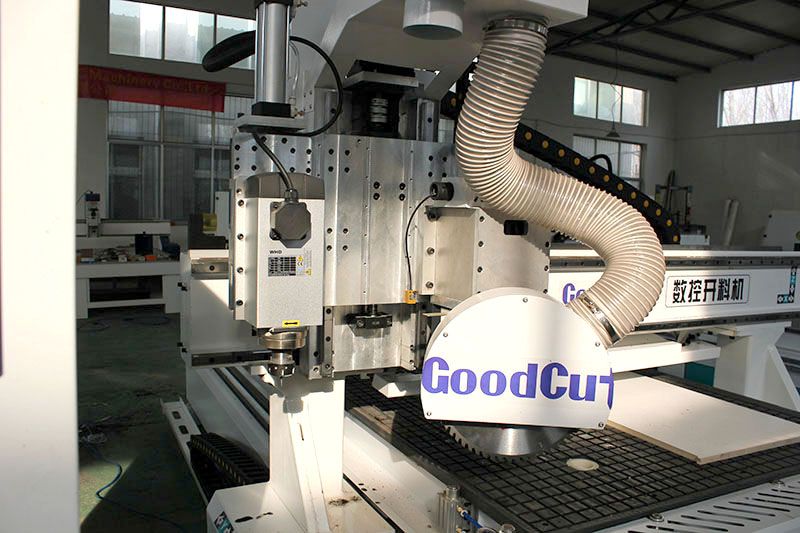

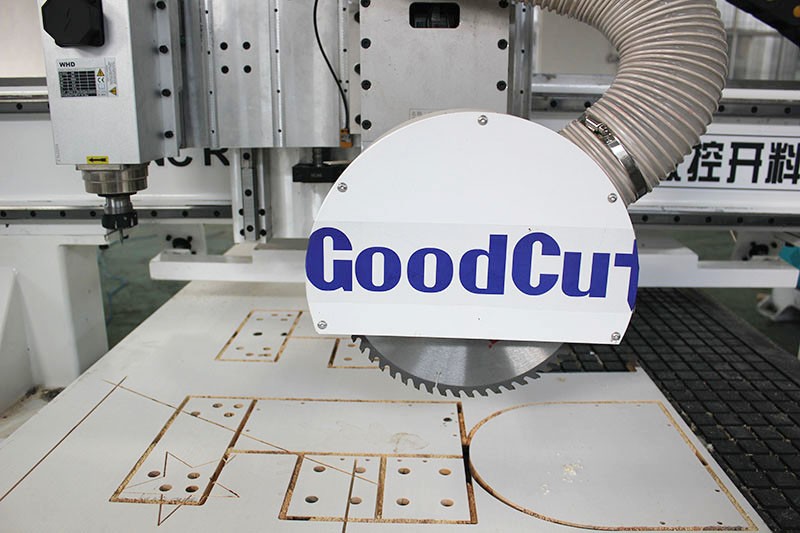

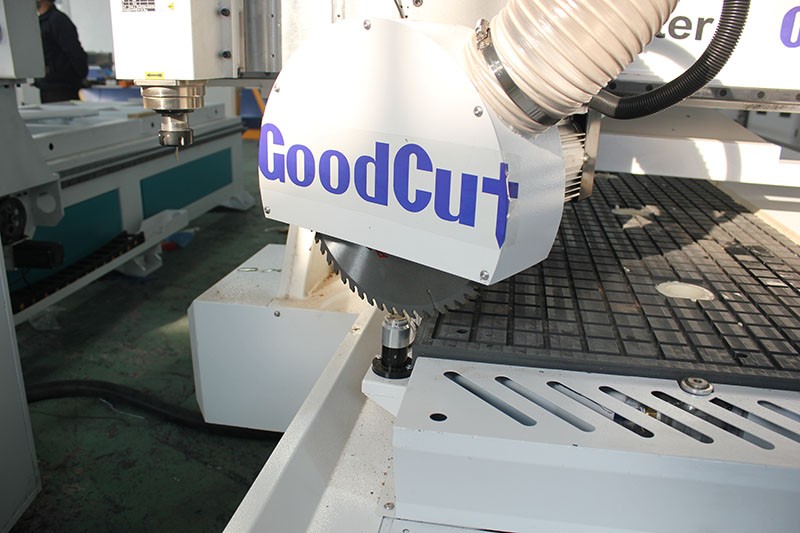

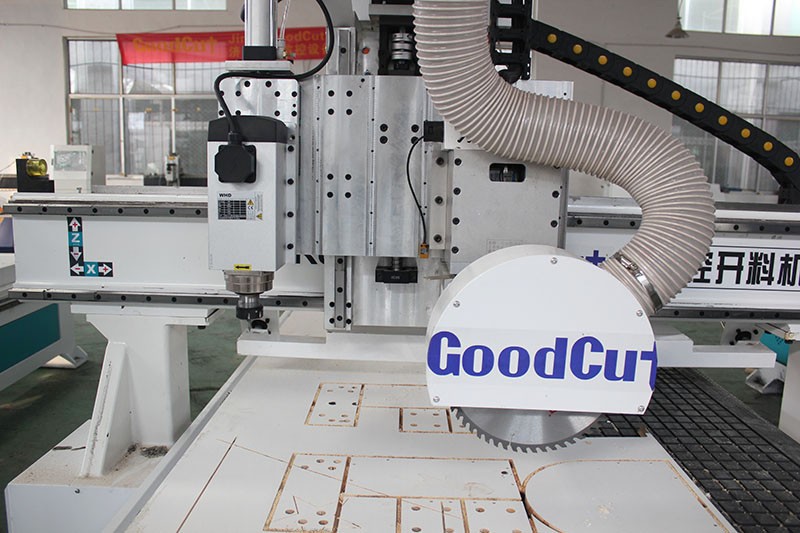

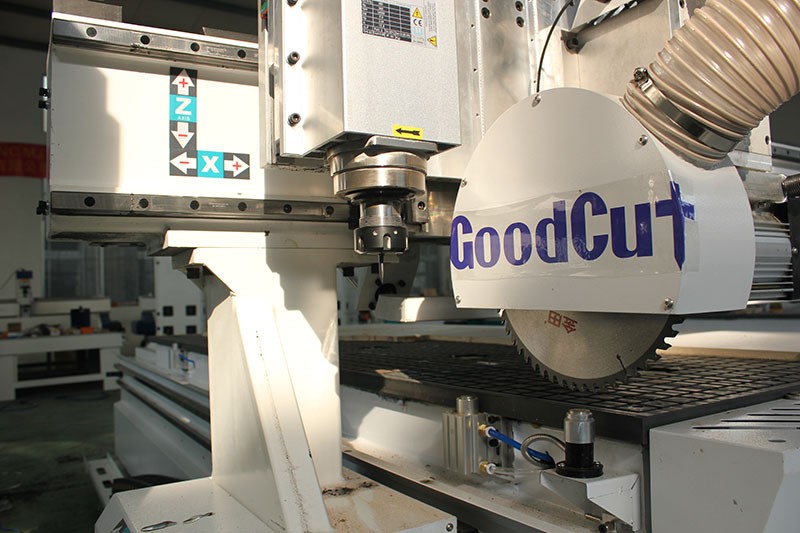

Saw Blade function high cutting speed

EMAIL




Automatic 3D Wood Carving CNC Router Woodworking Machine for Wooden Sculpture

 saw cnc router (31).jpg





Parameter :



The model

GC1325 ATC

XY working area

1300*2500* mm

Z working area

200 mm or more

Table size

1600*3500 mm

Max. speed

60 m/min

Max. working speed

30 m/min

Working delicacy

0.005 mm

Repositioning accuracy

0.05 mm

Table

Vacuum table , by suction

Command

G code*u00* mmg*plt

Surrounding for software

Ucancam

power

AC 380/50HZ/60HZ

Spindle

9 KW  air cooling spindle

Speed of spindle

0-24000 rpm/min

Work mode

SERVO motor , Y axis adopt double motor to drive .

Structure

8mm thickness welded steel tube,cast iron vertical shafts and steel gantry

Engraving software

Artengraver software

Control software

Taiwan SYNTEC controller system

 saw cnc router (12).jpg

Features :

 saw cnc router (17).jpgsaw cnc router (13).jpg

9.0kw HQD/HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry.

HSD or HQD 9KW(12 HP ) high frequency automatic tool changer spindle with 8-12 tool linear magazine





Except the spindle, we use high quality components on this machine like Japanese Yaskawa servo motors and servo drivers, Taiwan Hiwin linear rails and TBI ball screw, Taiwan Syntec 6MD control system and so on.

Maintenance free brushless Japan Yaskawa AC servo motors and drives



We also have some optional parts for you to choose: Chinese or Germany Becker vacuum pump, dust collector, mist cooling system, rotary system and so on. Some main parts on the machine can be changed according to your requirements.



Heavy bed body, the bed is treated by the furnace, not easy to deform.



With oil injection system, the drive part of the machine can be effectively lubricated.


Automatic tool calibration pad


6-zone vacuum table


Pneumatic material placement stops


Syntec industrial AC servo controller



ATC router (21)

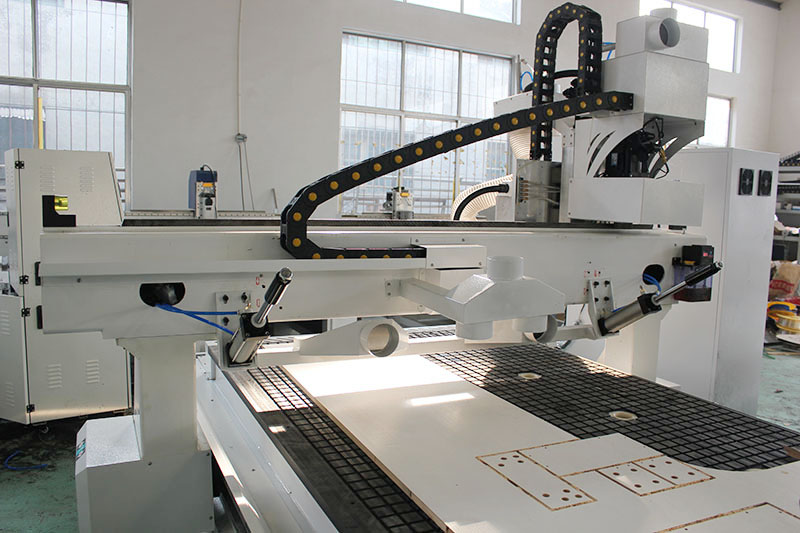

positioning air cylinder for quickly position



ATC (23)



 (2)

This is safe protecting system.

If there is person enter the working machine, machine will alarm.





 parts

Application:

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.





cnc router sample (3).jpg
