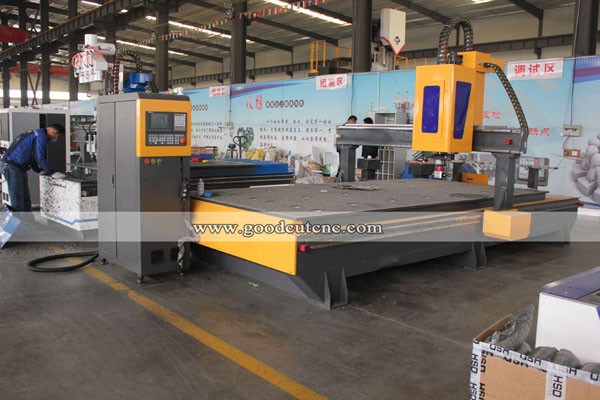

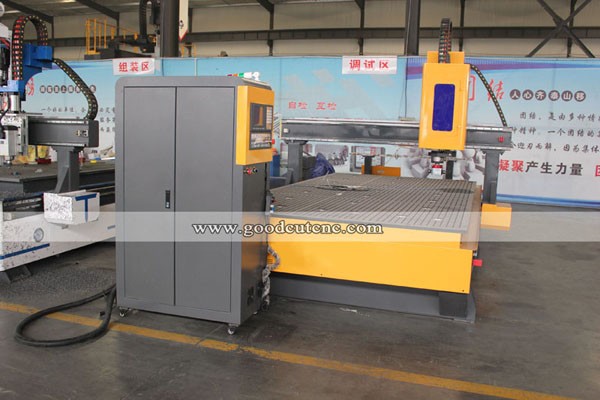

GC1325ATC-C CNC Router with Italy HSD C Axis Aggreate ATC Machine

working size:1300*2500mm
Italy HSD C Axis for Drilling
9kw Italy HSD Spindle
Taiwan Syntec controller
Linear 10pcs Tool Magazine

EMAIL

      <


Automatic 3D Wood Carving CNC Router Woodworking Machine for Wooden Sculpture

Parameter :


NO.

Description

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

2

Table Size

1300×2500mm

3

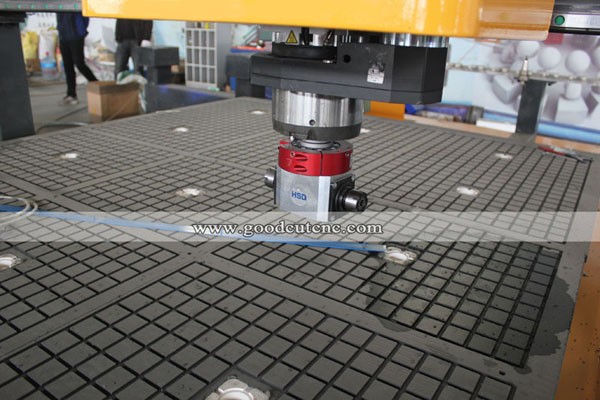

Spindle

Italy HSD951 9Kw air cooling spindle with C axis

Auto tool change

4

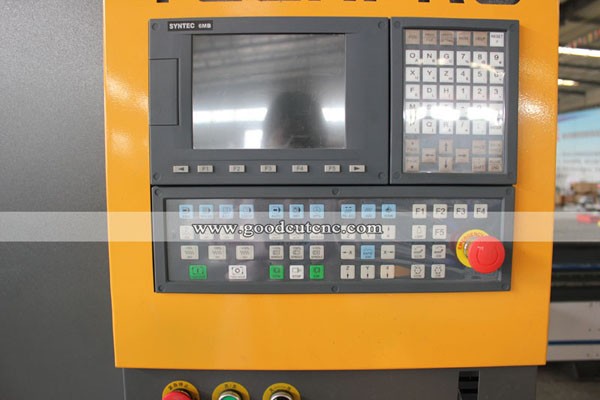

Operating System

Taiwan Syntec 60W-E control system

5

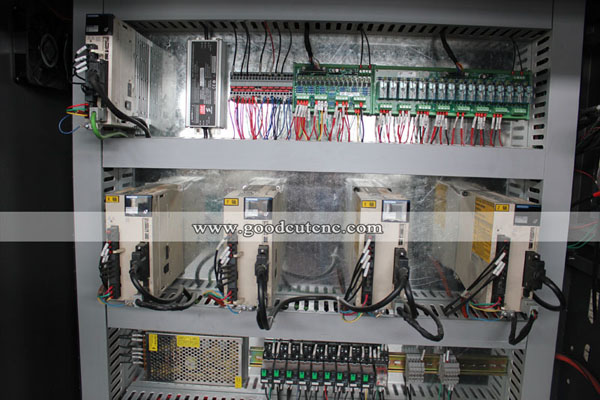

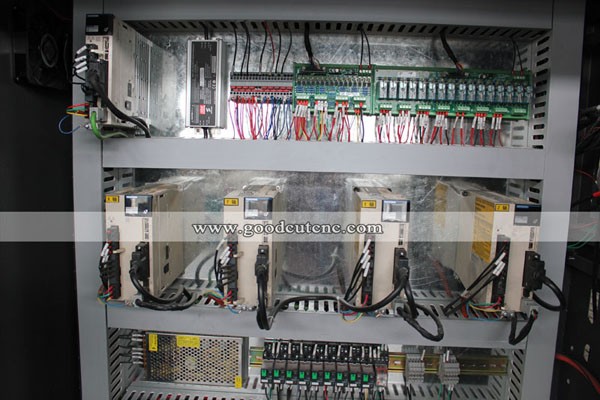

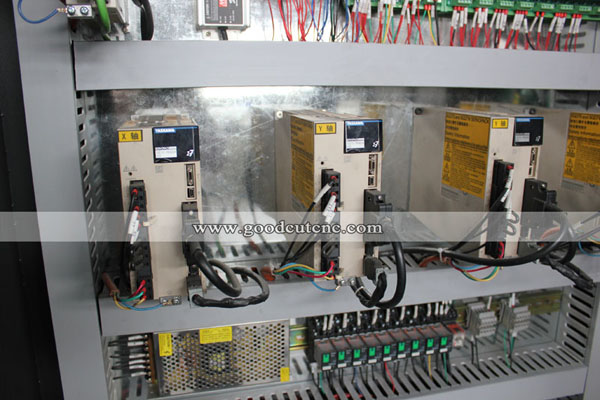

Motor

Japan Yaskawa 850w servo motor

C axis 400w

6

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings 30mm

7

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

8

Tool magazine

Linear tool changer, 10pcs

Include 2 pcs angle head tool holders

9

Tool shaft

HSD manual adjustment Angle saw blade milling cutter dual purpose tool shaft

10

Table

Vacuum table, 8 pcs adsorption

12

Vacuum pump

7.5kw vacuum water cooling pump

13

Dust collector

5.5kw dust collector

14

Inverter

Delta inverter





Features :


1) Realizing Multi-function: this machine was designed with HSD aggregate
head to realize multi function.


2) Improving working efficiency: Designed with linear tool change magazine to promote the working efficiency. Various of tools can be changed automatically in the engraving process.


3) In addition to the typical application of ATC CNC machines, the machine can also be used for milling, boring and drilling.


4) Supporting customized services: The machine’s working size can be made to larger or smaller; Rotary device can be added on the CNC Machines; The spindle is allowed for swing 180 degree to carve three-dimensional objects and molds.


5) Please notice that all the specifications of machine can be designed and made according to your own actual requirements.

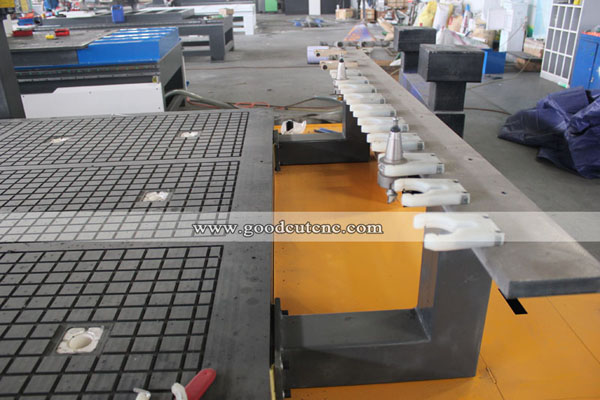

Linear tool magazine, with Tool holders x 6pcs and Toolholder fork x 8 pcs, effectively improve working efficiency.




Application:

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
