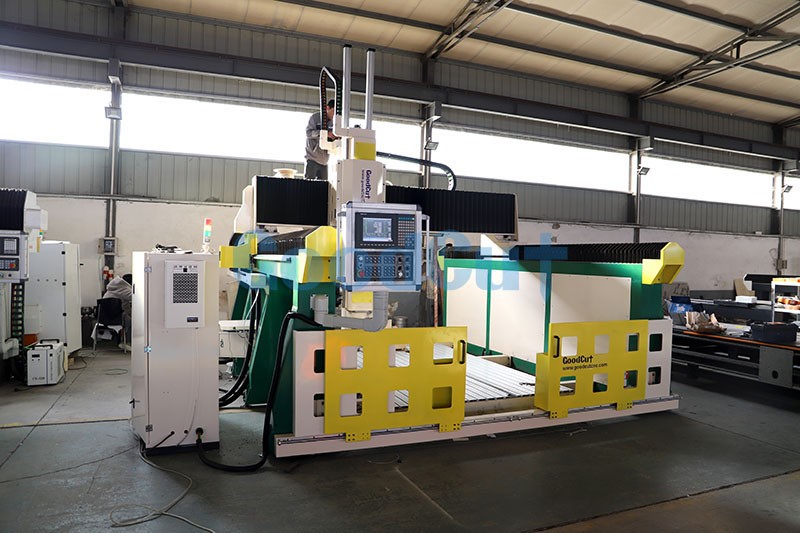

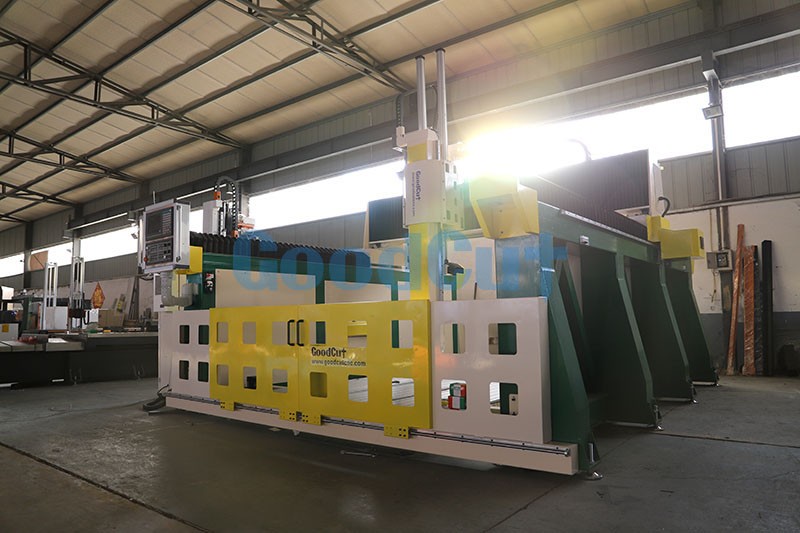

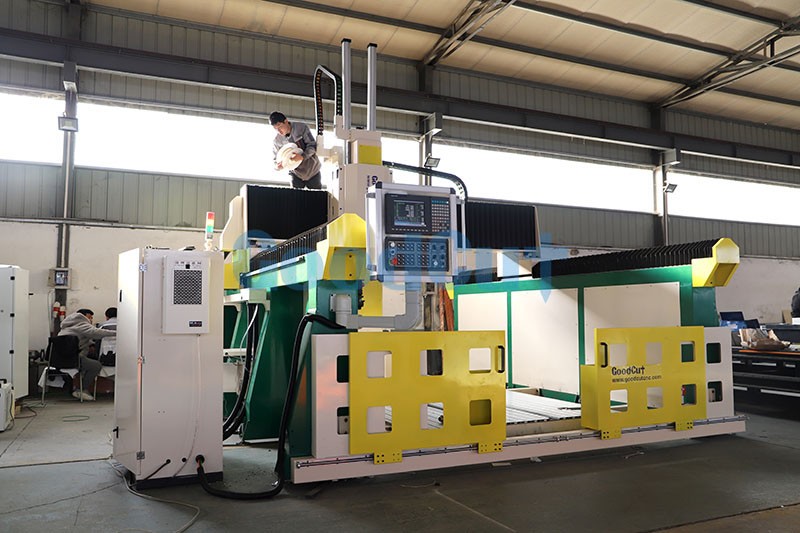

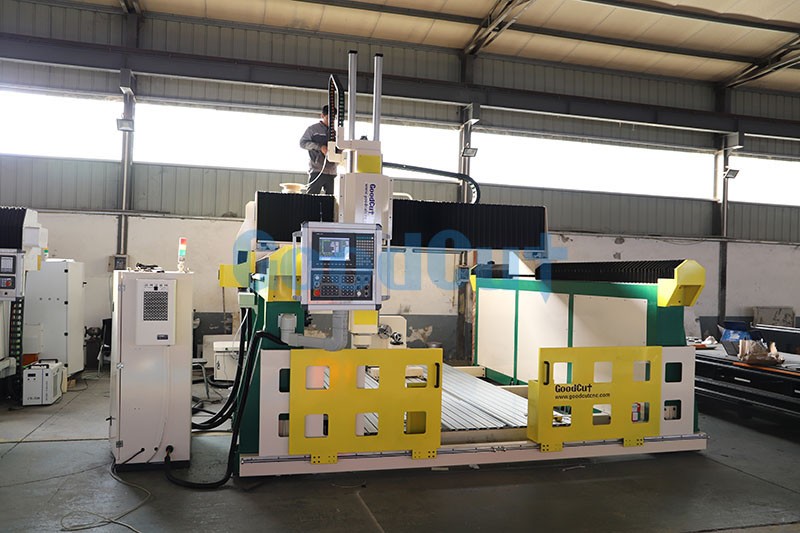

GC1325-5 Axis CNC Router for Wood EPS Foam 3d Carving Milling

5 axis / 6 axis cnc router machine

with swing head

High z axis for engraving

EMAIL

Good price hot sale 5 axis cnc router machine with high quality parts for wood working

5 axis router (21)5 axis router (29)5 axis router (26)5 axis router (16)5 axis router (11)





Features :

This is a 5 axis CNC router specially designed for engraving complex three-dimensional workpieces. This 5-axis CNC router has the characteristics of integrated casting, good rigidity, good stability, high processing accuracy, stable operation, convenient operation, and powerful functions.

* With SYNTEC control system, high machining accuracy and high performance.
* High Z-axis travel, so that very suitable for processing large-scale three-dimensional surface.
* Auto tool change, greatly improve the quality and efficiency.

 5 axis router (12)

Standard Configuration of 5 Axis CNC Router:

1.Working size:1300*2500*1000mm, A Axis: ±120°,C Axis: ±213°

2.Taiwan SYNTEC control system

3.Italy HSD 7.0KW air cooling spindle

4.Double pendulum head type HS300

5.Japan YASKAWA servo driver and motor

6.Taiwan HIWIN linear guide

7.Taiwan TBI ball screw for Z axis

8.Japan Shimpo reducer

9.Working voltage:380V,3PH/220V,3PH 50HZ/60HZ

5 axis router (21)



1.Adopt industrial heavy-duty structure design, ensure the strength and rigidity of the machine body.
2.Stanard with independent 6 zone matrix vacuum table with high strength. suitable for different size processing.
3.Adopt gantry transmission structure, to ensure fast speed and high efficiency.
4.Adopt Japan THK high precision linear rail with lubrication system, more wearable.
5.Configuration with Japan Yaskawa servo motor, to ensure the transmission stronger and noise lower.
6.Independent control cabinet, spearation of strong electricity and weak electricity to make the maintenance more convenient
7.Taiwan Syntec 60WE control system
8.

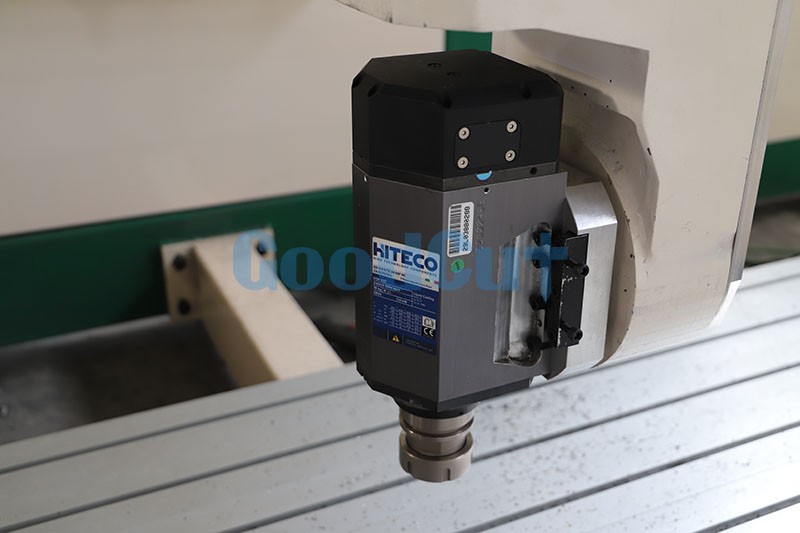

10KW hiteco 5axis spindle



 Parameter

DescriptionParameter
working area1300x2500mm
Table structureWeld Steel Movable Table
Z StructureTaiwan Guide rail: Z #30 Ball screw (3210)
X, Y StructureTaiwan Guide rail:#40 Ball screw (4040)
Control systemTaiwan Syntec 5 axis control system
Spindle

10KW hiteco 5axis spindle

InverterDelta inverter
Motor and driverJapan-made YASKAWA
ReducerJapan SHIMPO
CommandG code



Spindle

10KW hiteco 5axis spindle



5 axis router (27)



Movement type

Movable table



5 axis router (23)

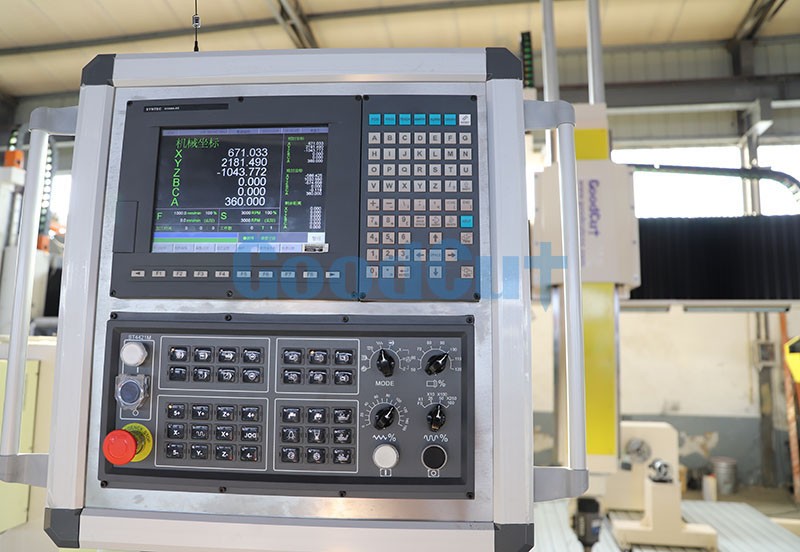

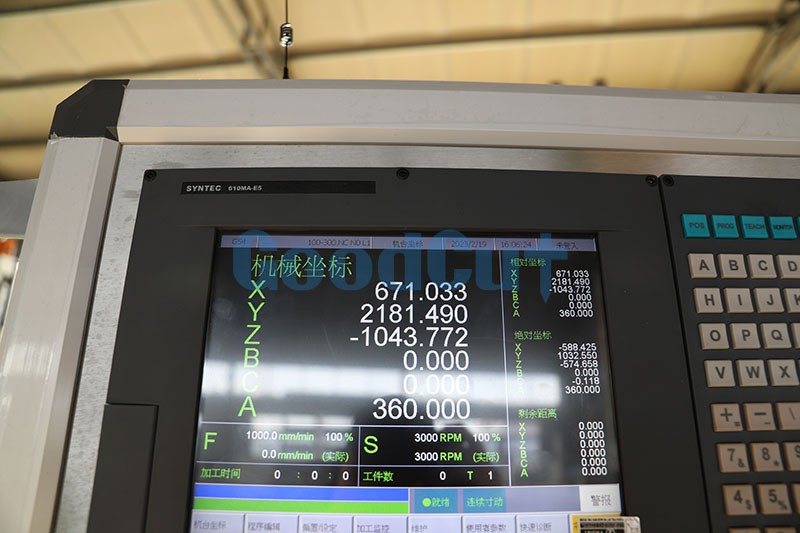

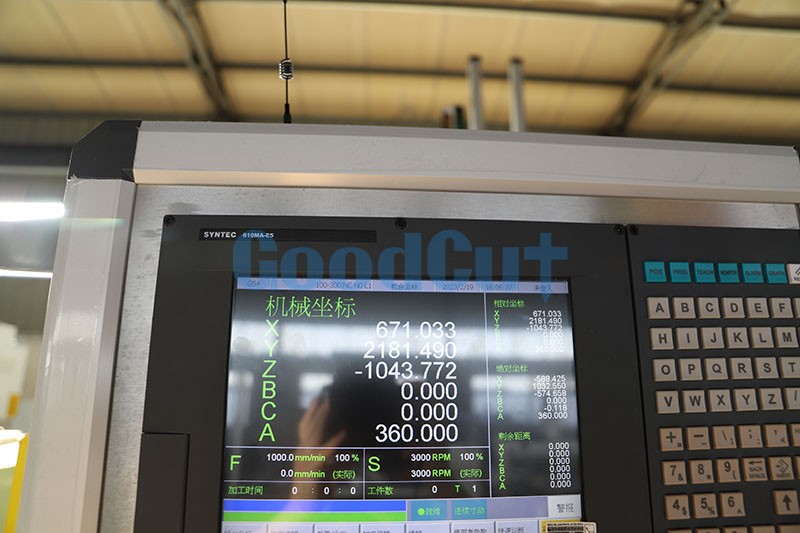

Taiwan's  Syntec systems

safe and reliable operation, read code speed and efficient, and have online simulation capabilities, online monitoring, to ensure the efficient and safe processing

5 axis router (29)



Japan Yakawa servo motor and driver:

With highly control precision and high speed, reliable and stable;



Taiwan Delta Inverter:

Guarantee the variety working speed and protect the spindle very well;

Japan SHIMPO

4 aixs (3)

Application of High accuracy wooden carving woodworking 5 axis cnc wood router machine:

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

5 axis router (12)5 axis router (13)
