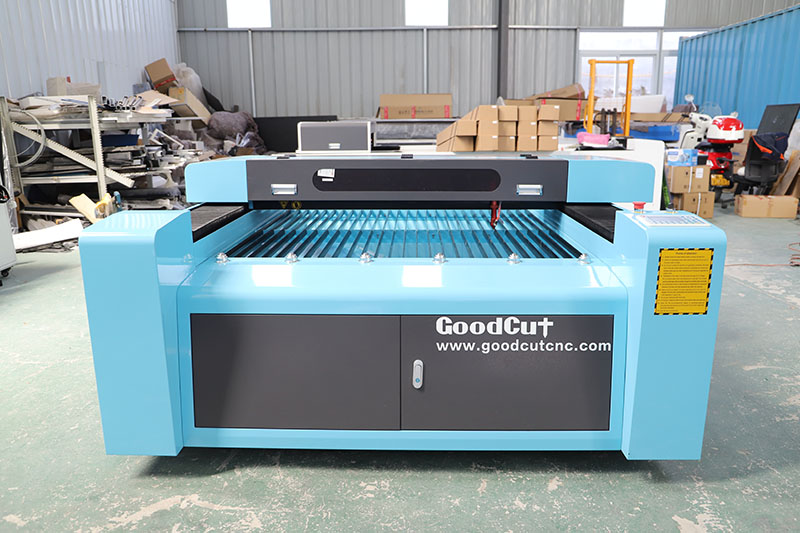

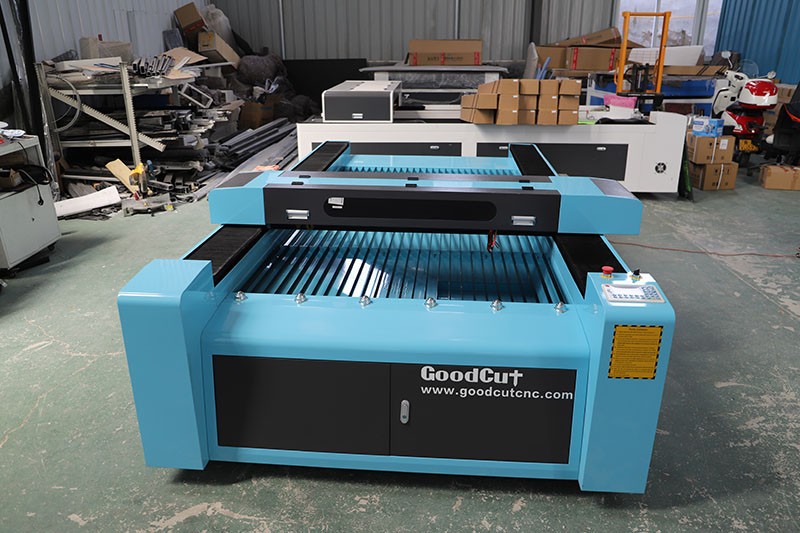

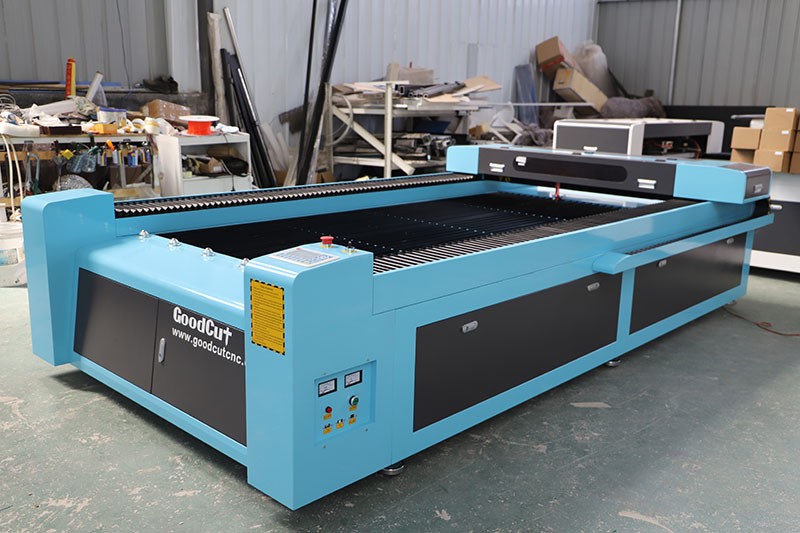

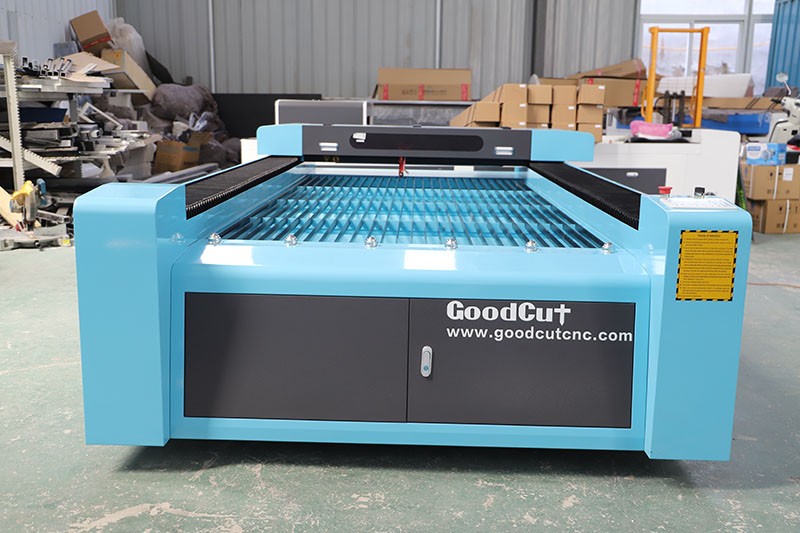

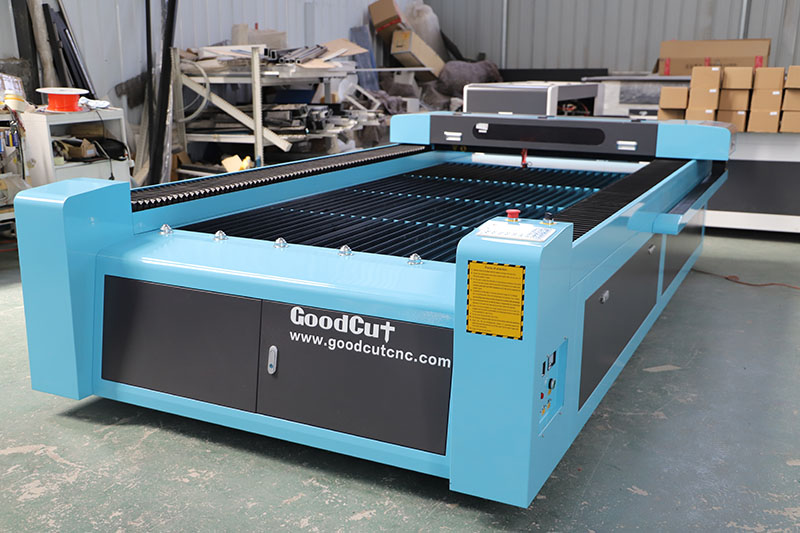

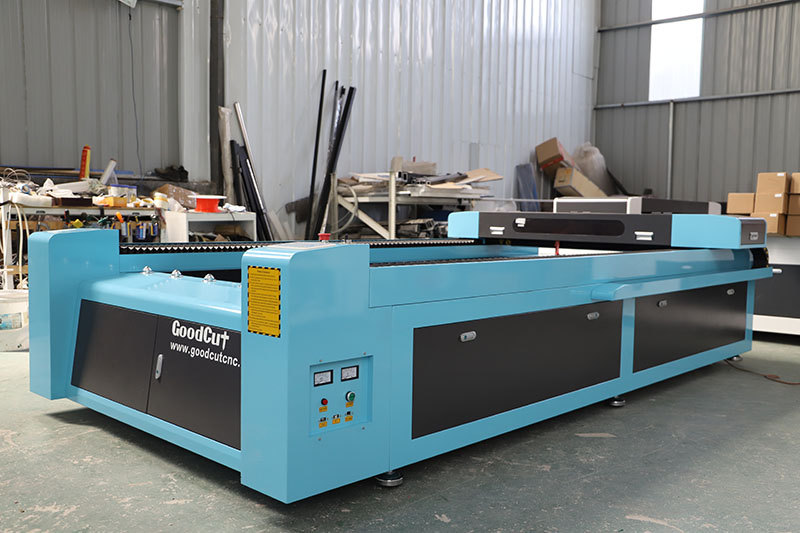

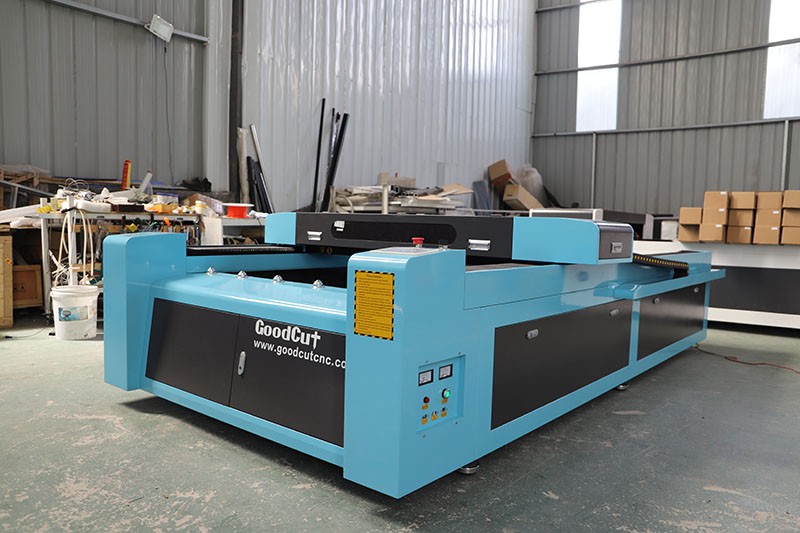

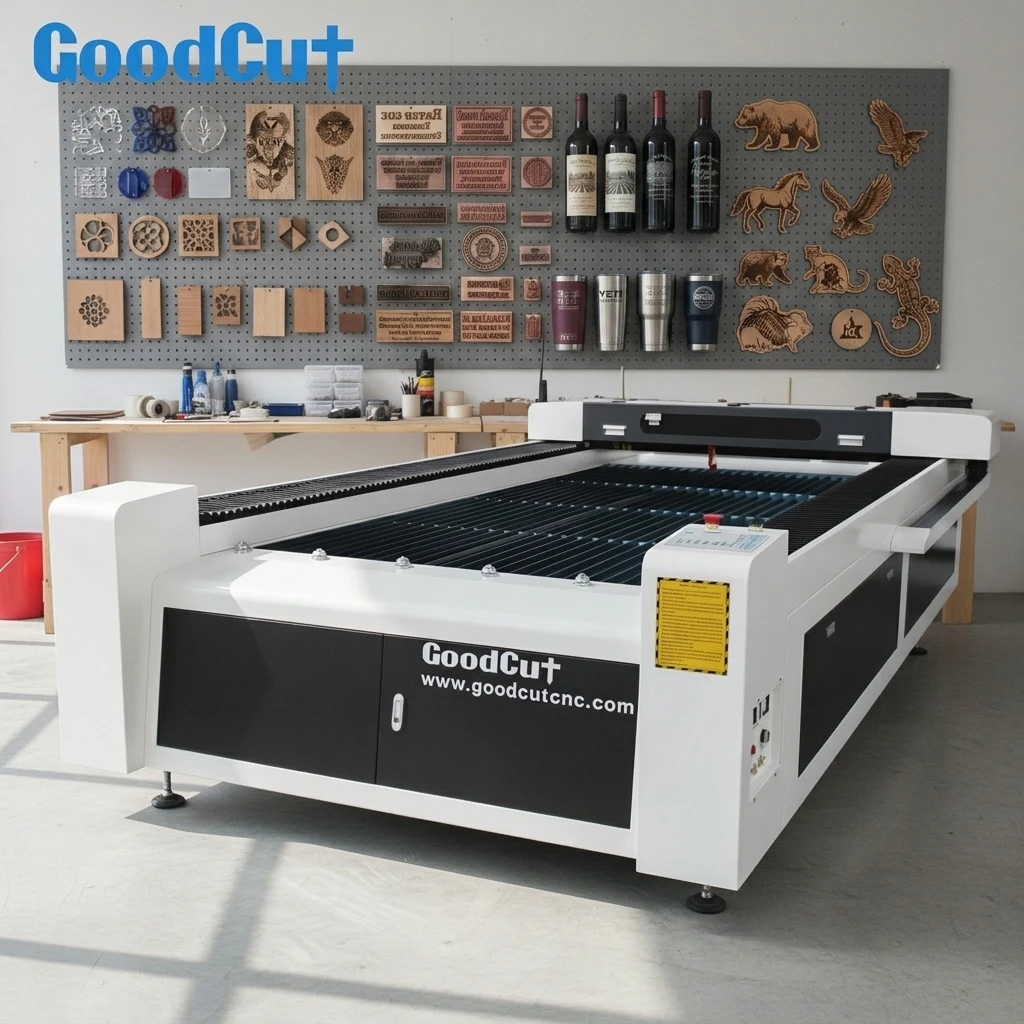

GC1325LG High Quality CO2 Laser Machine for Wood Acrylic

GC1325LG High Quality CO2 Laser Machine for Wood Acrylic

1300*2500 mm working size
100W/130W/150W/180W/300W/500W
Ruida controller
Water Cooling
EFR/Reci Laser Tube

Feartures

The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.

Parameters

Technical Parameters
Model	GC1325LG
Laser type	Co2 laser
Laser power	130 / 180 / 300 / (optional)
Working area	1300x2500mm (others could be customized)
Max cutting thickness	Depends on laser power and material.
Laser optical component	II-VI lens and mirror (USA)
Laser tube	RECI or EFR glass tube
Drive	Leadshine stepper motor
Transmission	Hiwin Linear guide rail and belts transmission
Auto focus	Yes (cutting metallic materials)
Fixed laser beam optical path	Yes (5 laser mirrors and 1 lens)
Cooling way for lens & mirror	Air cooling or water cooling (optional)
Camera orientating system	Optional (this function can work in with UV printing machine, working video: https://youtu.be/zcZorfFwTPc)
Resolution ratio	0.025 mm
Min shaping character	Chinese 2mm / English Letter 1mm
Re-positioning accuracy	+/- 0.01mm
Graphic format supported	DXF DWD JPEG PCX AI TIFF PLT CDR BMP GIF
Gross power	<2500w, 220v, 50/60hz
Gross weight	900 KG
Machine dimension	316021001100mm
Package size	371022601290mm
