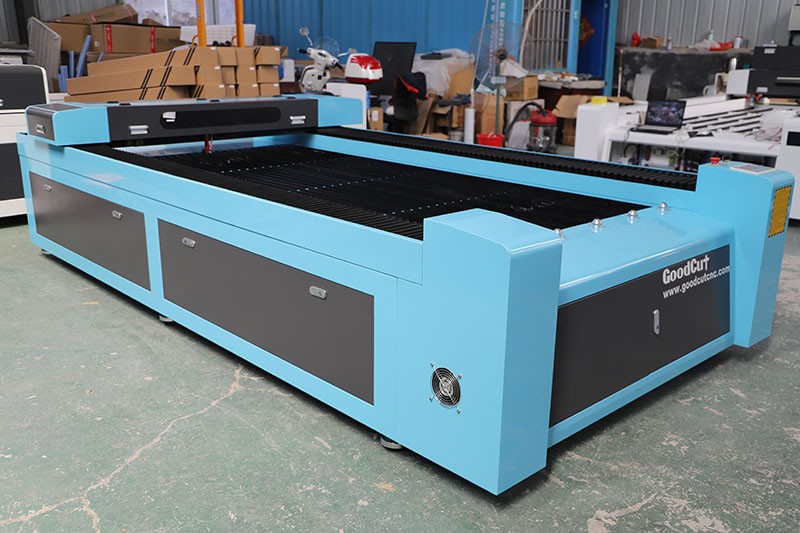

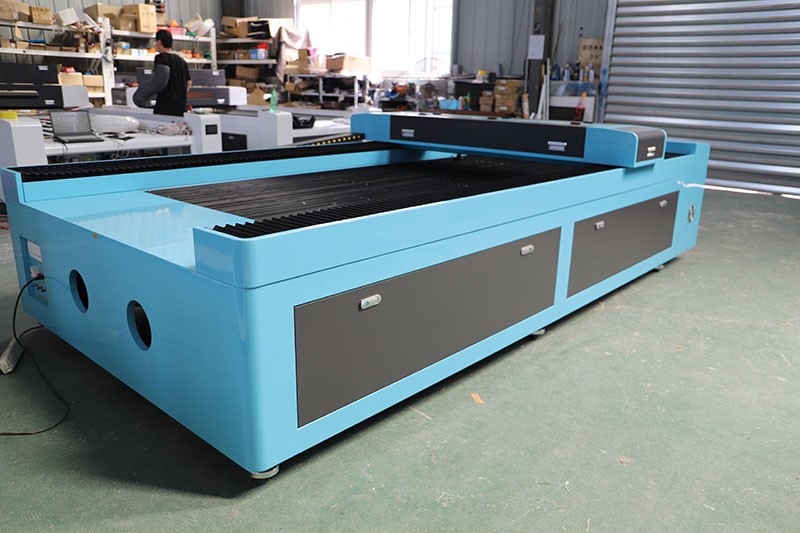

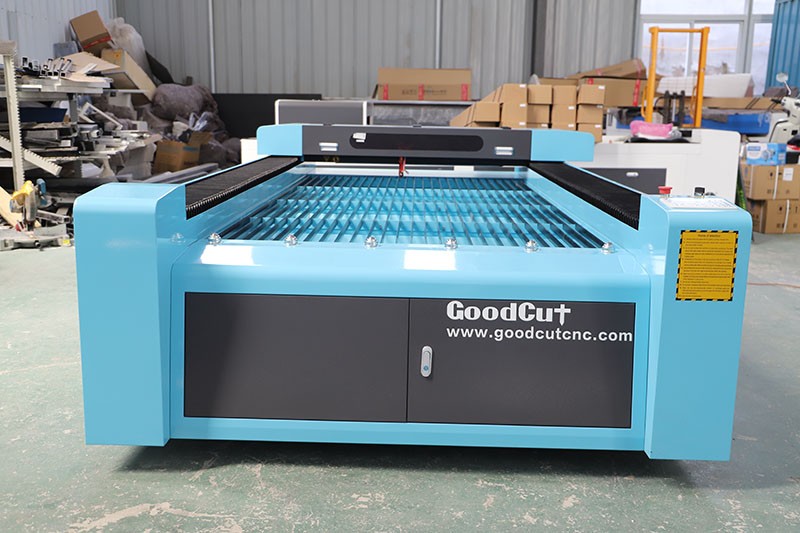

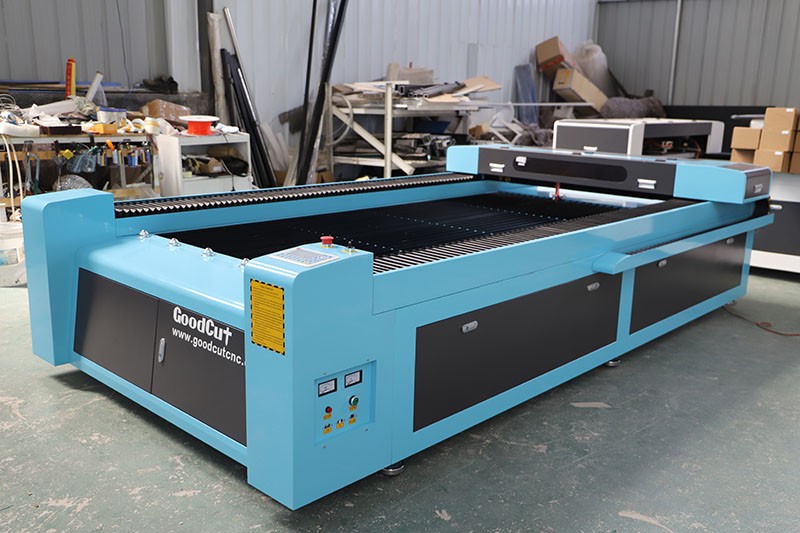

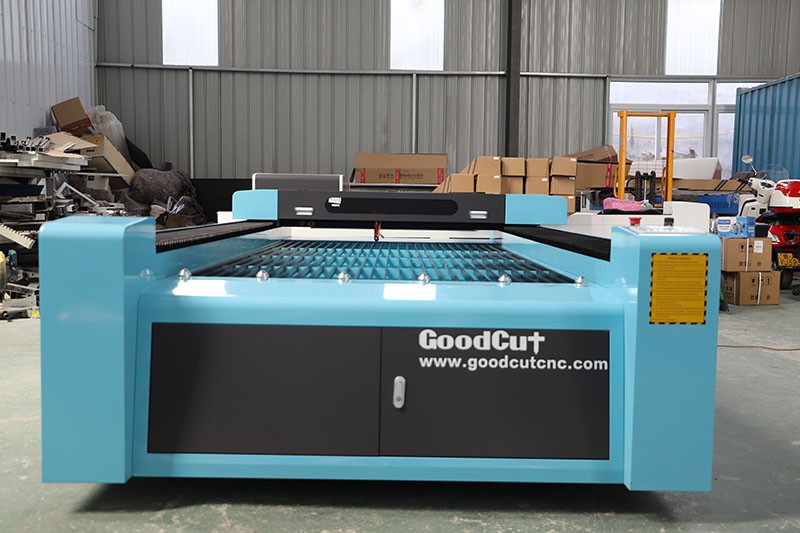

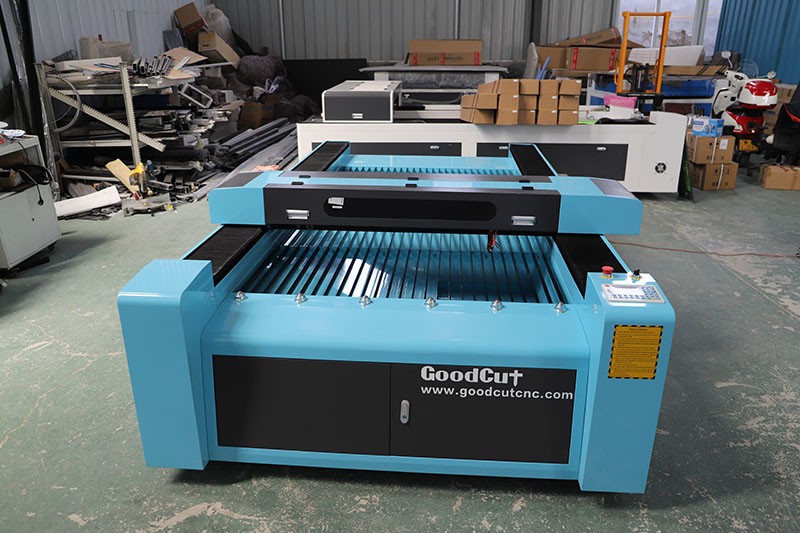

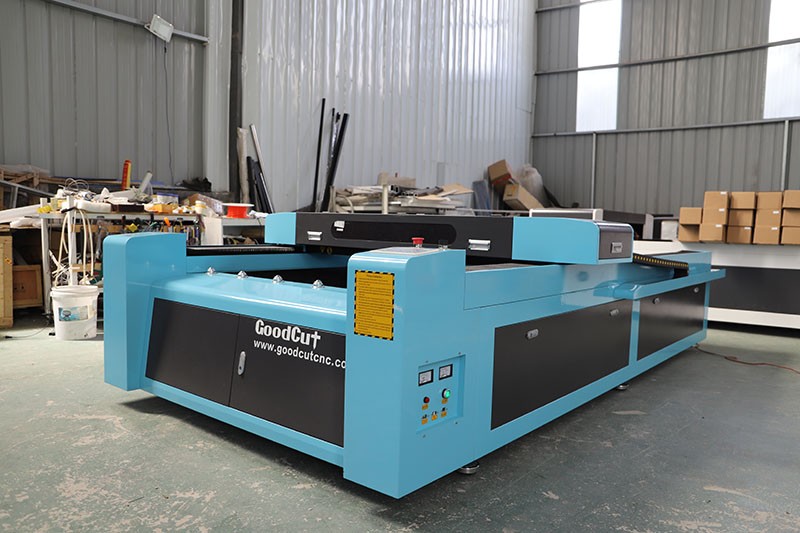

GC2030LG CO2 Laser Machine for Wood Acrylic

2000*3000 mm working size
100W/130W/150W/180W/300W/500W
Ruida controller
Water Cooling
EFR/Reci Laser Tube

EMAIL



GC1325LG High Quality CO2 Laser Machine for Wood Acrylic

                                                                                                                                                                 Feartures

The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.

Parameters


Technical Parameters

Model

GC2030LG

Laser type

Co2 laser

Laser power

130 / 180 / 300 /  (optional)

Working area

2000x3000mm (others could be customized)

Max cutting thickness

Depends on laser power and material.

Laser optical component

II-VI lens and mirror (USA)

Laser tube

RECI or  EFR glass tube

Drive

Leadshine stepper motor

Transmission

Hiwin Linear guide rail and belts transmission

Auto focus

Yes (cutting metallic materials)

Fixed laser beam optical path

Yes (5 laser mirrors and 1 lens)

Cooling way for lens & mirror

Air cooling or water cooling (optional)

Camera orientating system

Optional (this function can work in with UV printing machine,
working video: https://youtu.be/zcZorfFwTPc)

Resolution ratio

0.025 mm

Min shaping character

Chinese 2mm / English Letter 1mm

Re-positioning accuracy

+/- 0.01mm

Graphic format supported

DXF DWD JPEG PCX AI TIFF PLT CDR BMP GIF

Gross power

<2500w, 220v, 50/60hz

Gross weigh

1000 KG

Package size

4600*2400*1500mm


sample
