GC6090 Cnc Router With Moving Table Water Tank for Soft metal Aluminum

Working size: 600*900mm
High pricision
Table moving
With water tank
For engraving soft metal materials

EMAIL



fEATURES


1. The machine whole cast iron body, movable table, chassis stability high load bearing, used for a long time never deformation, ensure the accuracy of metal processing requirements

2. Special metal spindle optional spindle has permanently power, long life, big power, the machining accuracy increase of 20%

3. Adopt imported ball screw, occlusive close, effectively meet the precision requirement of and improve the metal processing

4. Taiwan HINWIN square rails,support moving table,improving precision greatly,senke sample tested minimum forming 0.5 MM!

5. T-slot table,suitable for all kinds of materials, clamp help fixed carving materials

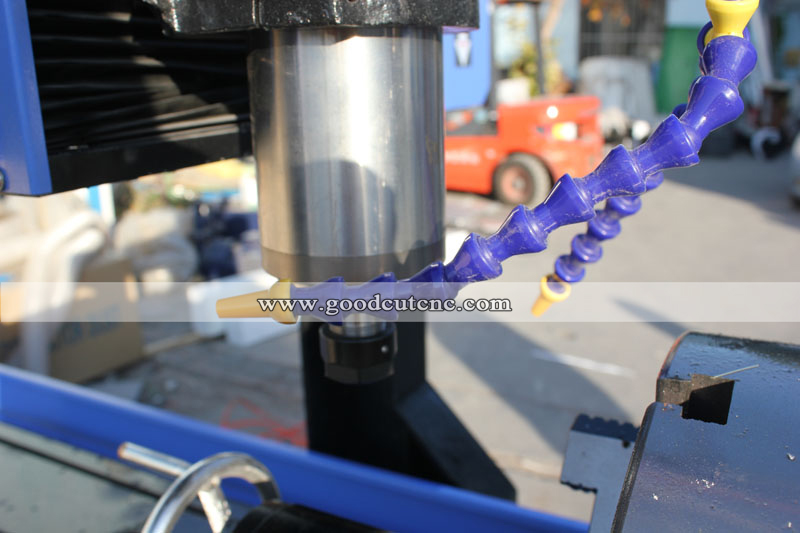

6. The machine with the sink, faucets and water pump matching accessories, can give the machine cooling in time, effective protection of the main shaft, the material, cutting tool





PARAMETER

Working area

600*600*150mm (can be customized)

Table

Aluminum profile T-slot working table with PVC protection

Spindle power

1.5kw water cooling,24000rpm(Option:HSD air cooling spindle)

Motor system

Stepper motor system(Option:servo motor)

Control system

DSP (Option:Mach3 /Ncstudio)
with USB interface

Transmission

TBI ball screw from Taiwan

Rail way

HIWIN linear guide

Inverter

1.5kw Fuling inverter(Option:Delta inverter fromTaiwan)

Driver

Leadershine driver(top brand in China)

structure

Cast iron bed

Speed

Max travelling speed:6000mm/min
Max working speed: 5000mm/min

Switch

Japanese OMRON Switch

Cable

Highly flexible towline;fire-resistant double-sheathed cable

Software

Type3,Artcam

Package

Plywood case

Working voltage

AC220V/1PH/50Hz (option:380V)

APPLICATION

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, couches, stools, benches, beds, desks, night stands, bunks, cupboard, tea boards Decoration industry: door frames, handrails, building columns, pillars, table legs, chair legs, photo frames, mirror frames, screens, lights, holiday decorations Craft industry: artworks, gifts, souvenirs, clock frames, stamps, badges, medals, trophies, holiday ornaments

Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights Mold industry: wood mold, foam mold and metal mold

Musical instrument industry: 3D surface carving, shape cutting, guitar, bass, violin, viola, violoncello, erhu, and other string instrument

Other: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers
