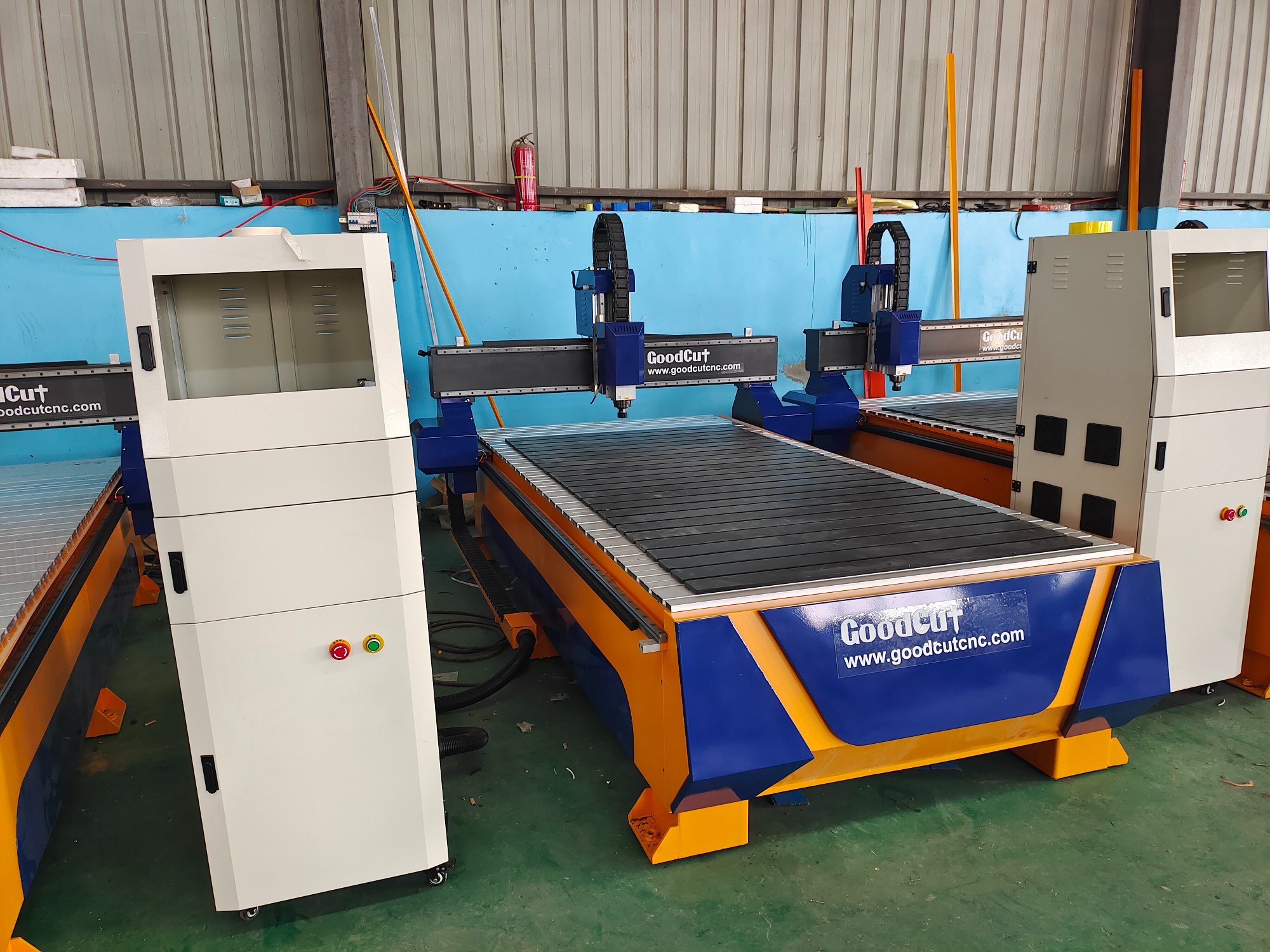

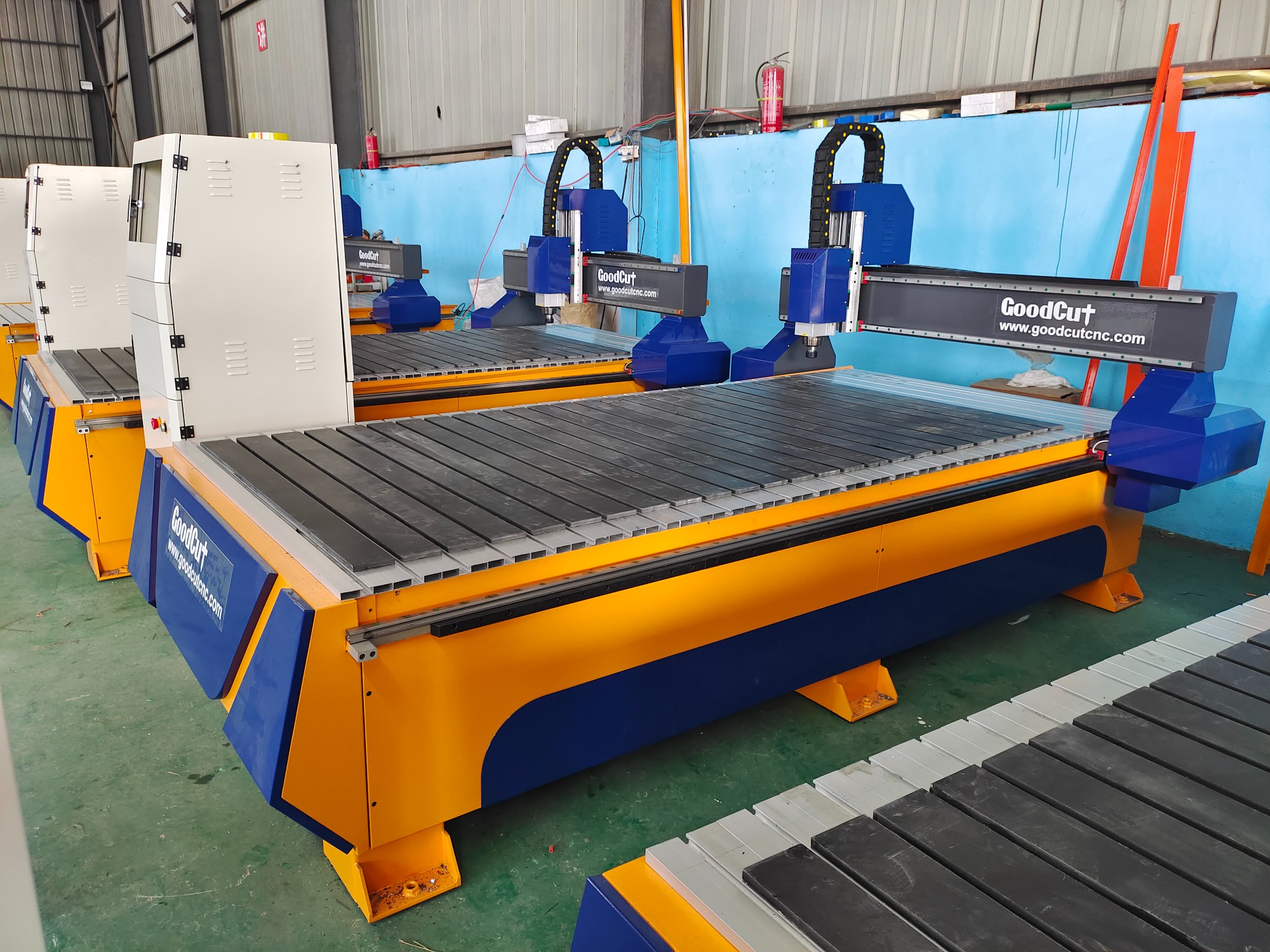

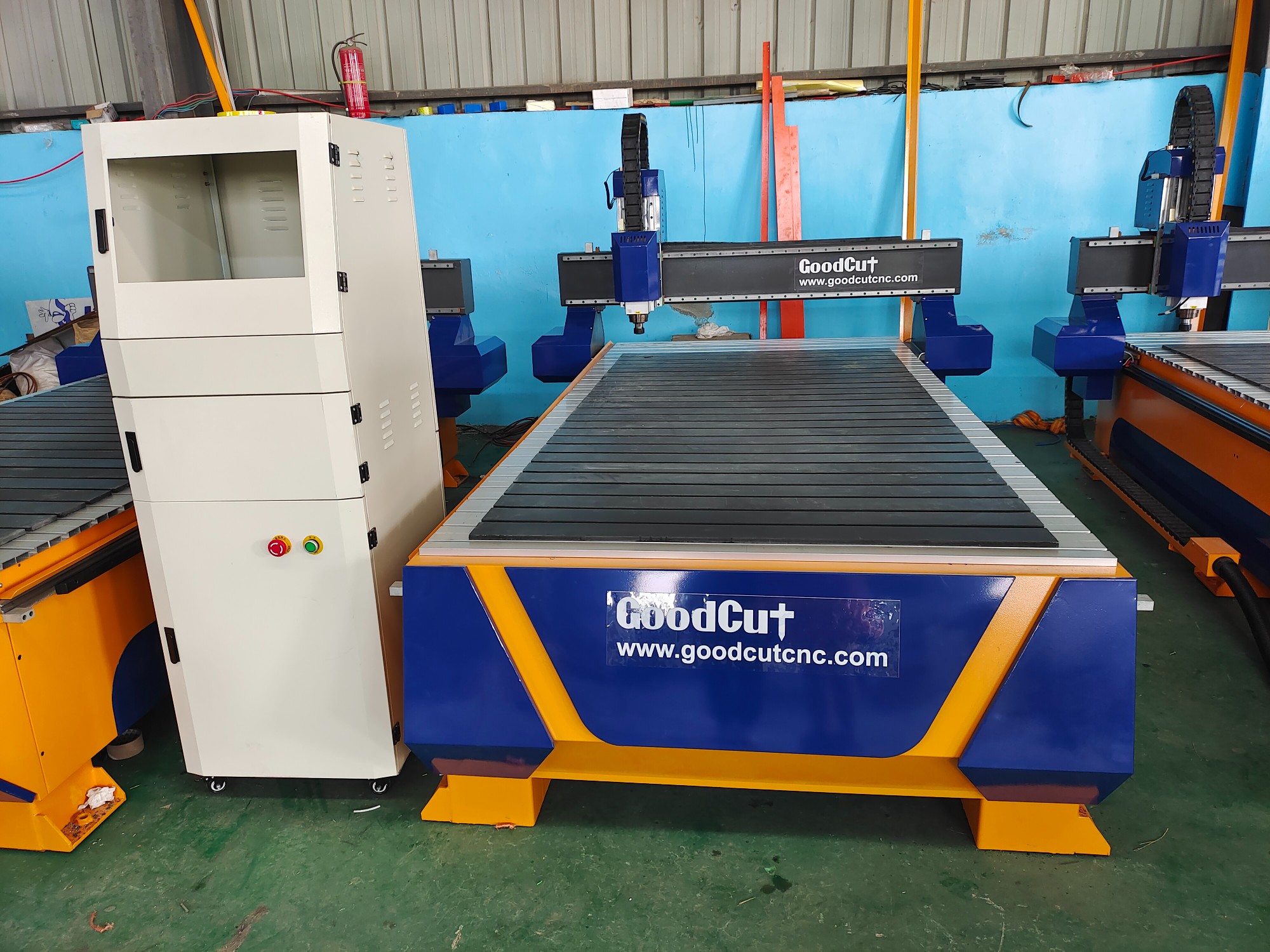

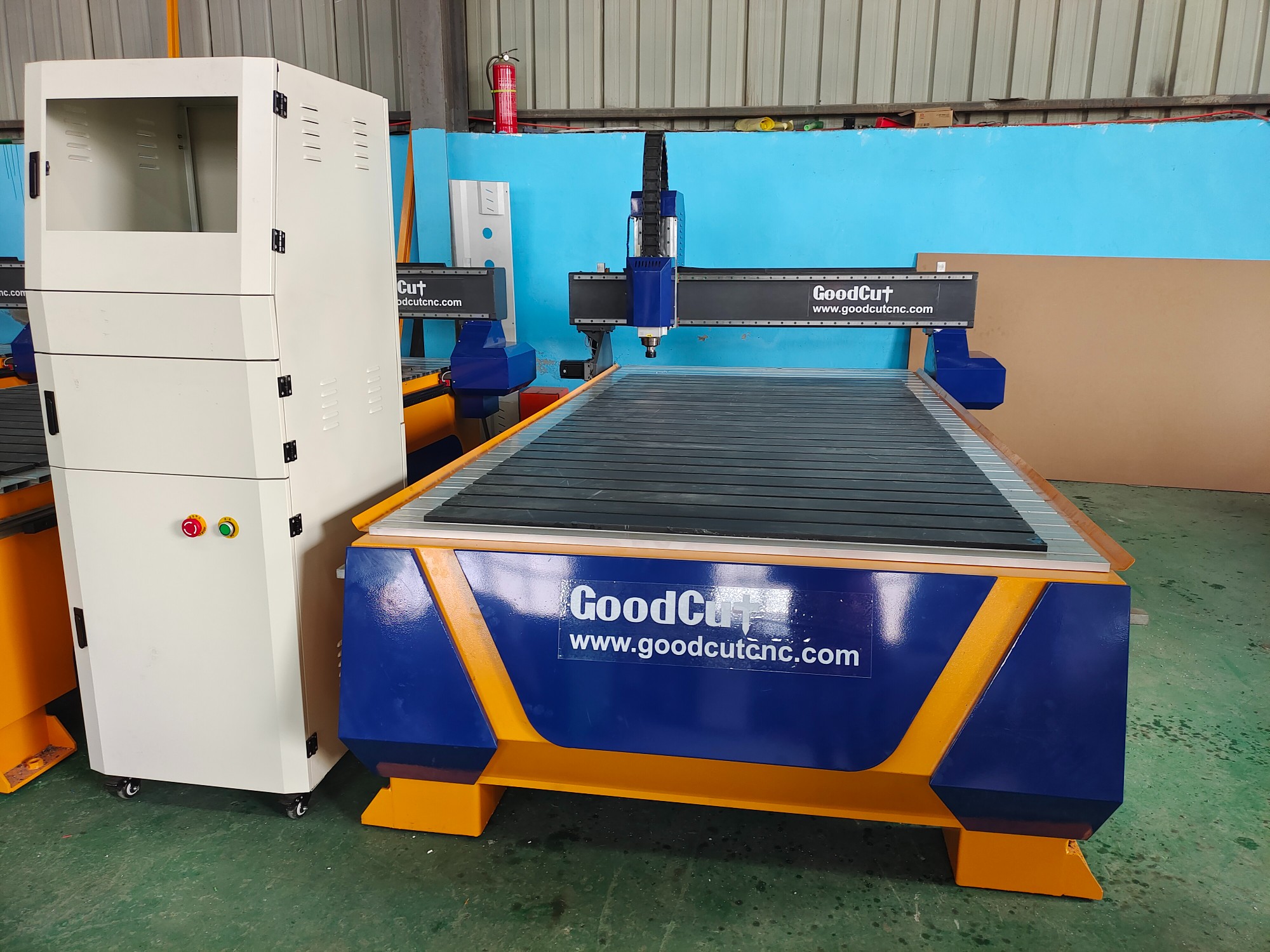

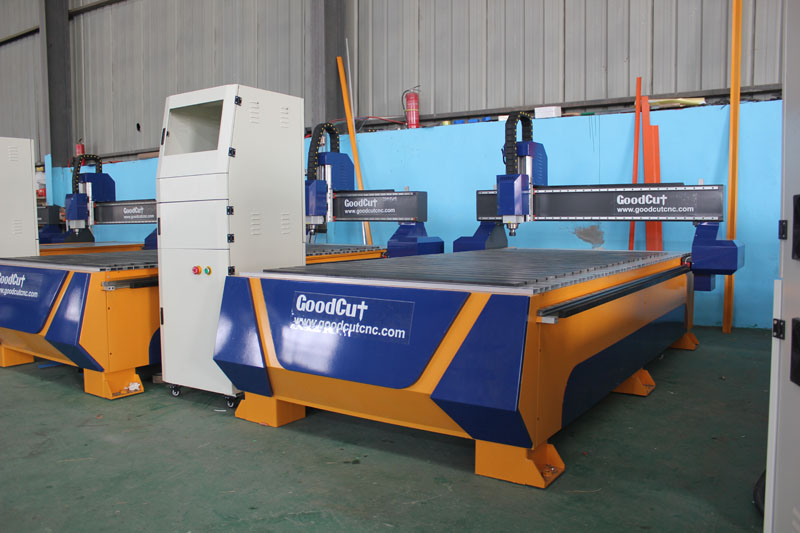

GC1325N High Quality CNC Router

Motor: leadshine stepper motor and driver.

EMAIL

   1300*2500mm 4*8ft cnc milling router machine for 3d woodworking furniture





Features :



1. Imported original TBI 20 square guide rails, longer life and smooth moving,

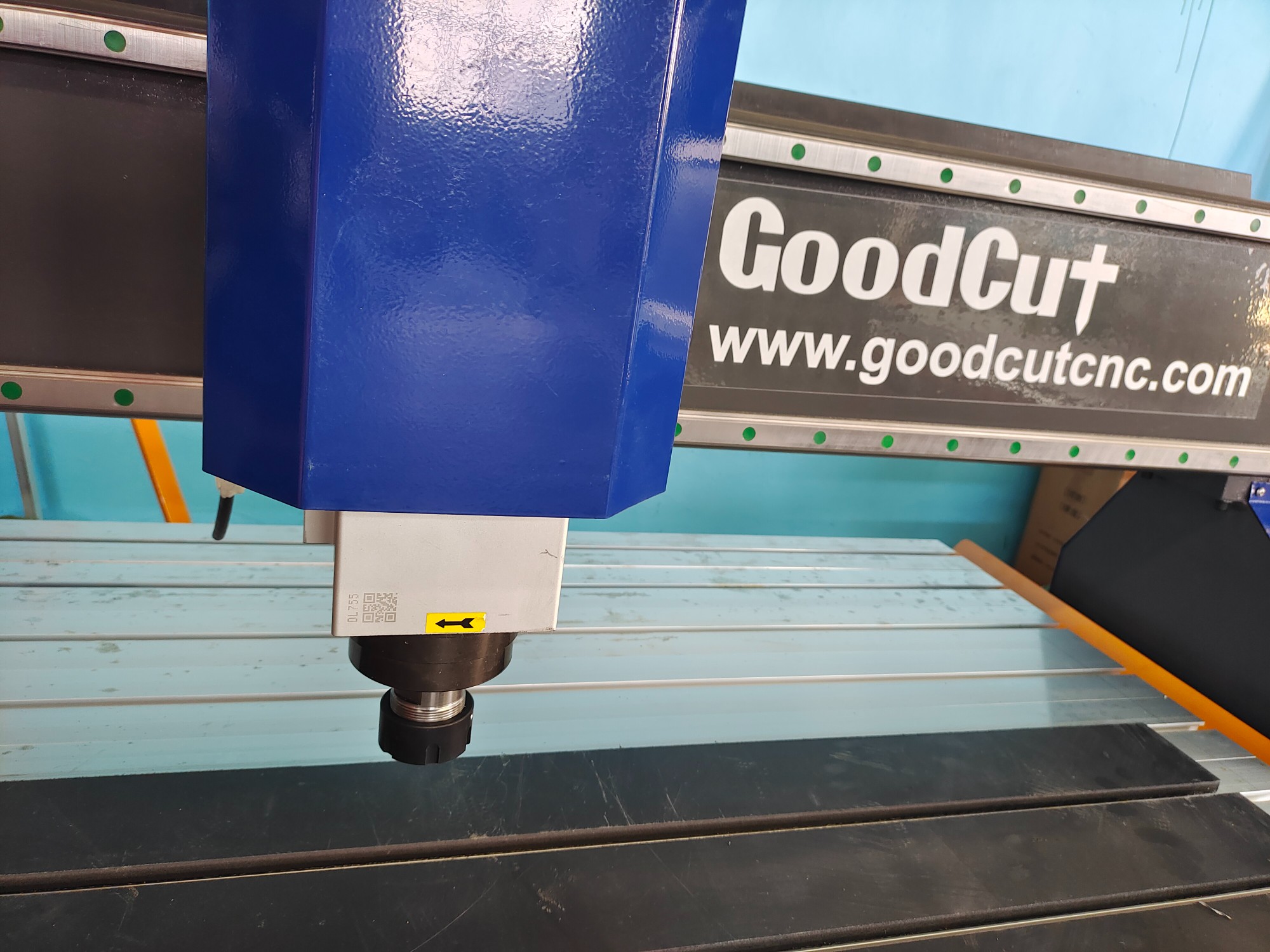

2. Chinese best water cooling spindle with 24000rpm,

3. Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger

power,longer lifetime,and it makes the machine more stable.

4. With DSP control system, It can support offline operation. easy to operate.

5. Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful.

For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.


Technical Paraments of CNC Router 1325:

Model

1325  CNC Router machine

Working Area

1300*2500×200mm

Spindle

3KW/4.5KW/6.0KW Water-cooling or Air-colling

Working Mode

Leadshine Stepper Motor (Servo motors,hybrid Servo motor is optional)

Control System

NC Studio /Mach 3 /DSP controller

Drive Mechanism

Gear-wheel on X Y axis

Table Surface

Vacuum table(Aluminume table for optional)

Frame

Wholly Steel Structure

Packing Size

3700*2050*1930mm

Lubrication System

Oil lubrication system

Net weight/ Gross Weight

1350kg/ 1550kg


Application:

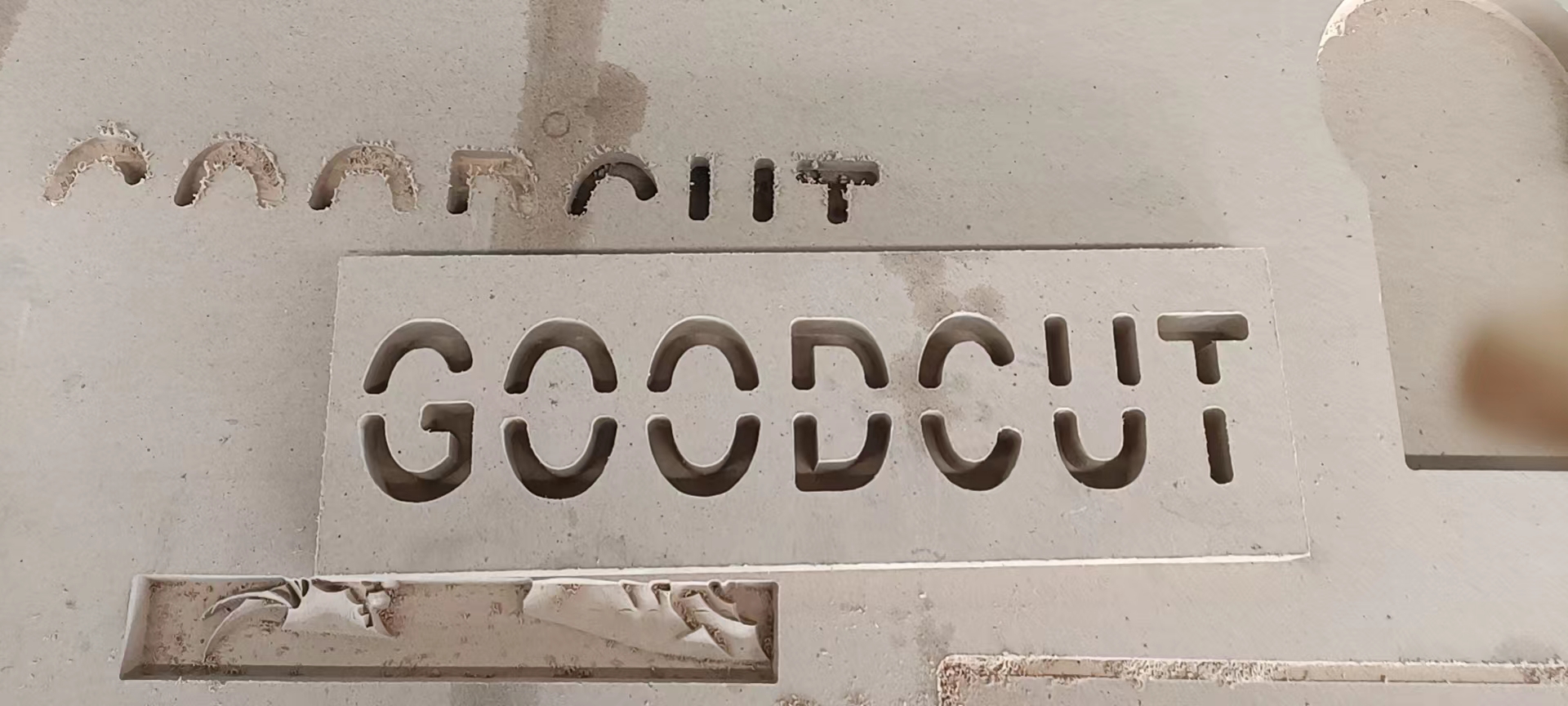

 Advertising industry: acrylic cutting, MDF engraving cutting and engraving, wood decoration products making. Recommend model GC1325 cnc wood router.

wood door: MDF and wood door engraving, recommend model: GC1325 cnc router

wood furniture: cabinet door making with complicated design, recommend model:
Multi- heads pneumatic ATC router cnc, Linear auto tool changing cnc router, Carousel wood cnc router with 12 disc tools

Panel furniture: wood panel cabinet making, recommend model: automatic loading unloading penal processing cnc router with drilling/boring bits.






COMPANY INFORMATION

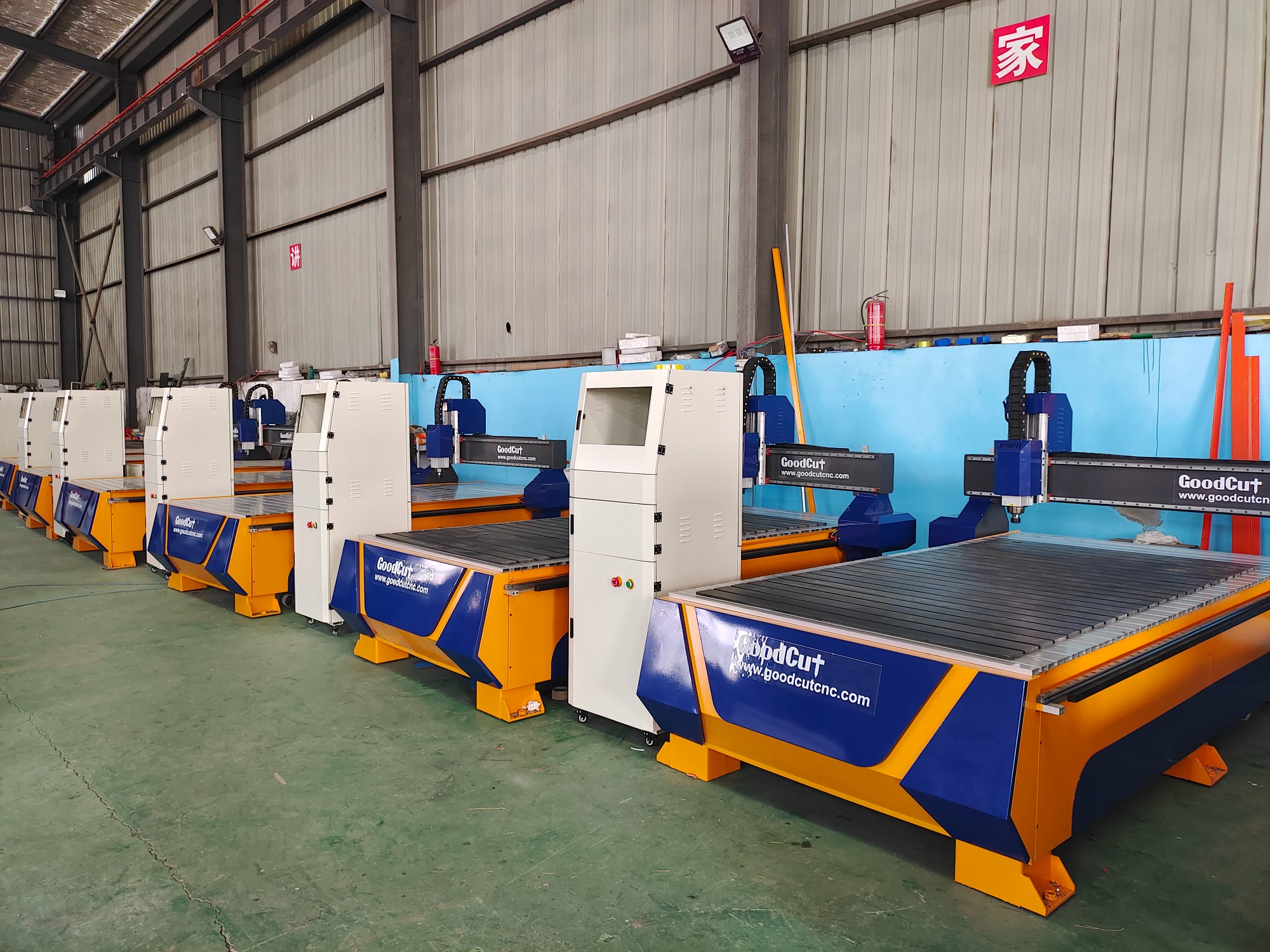

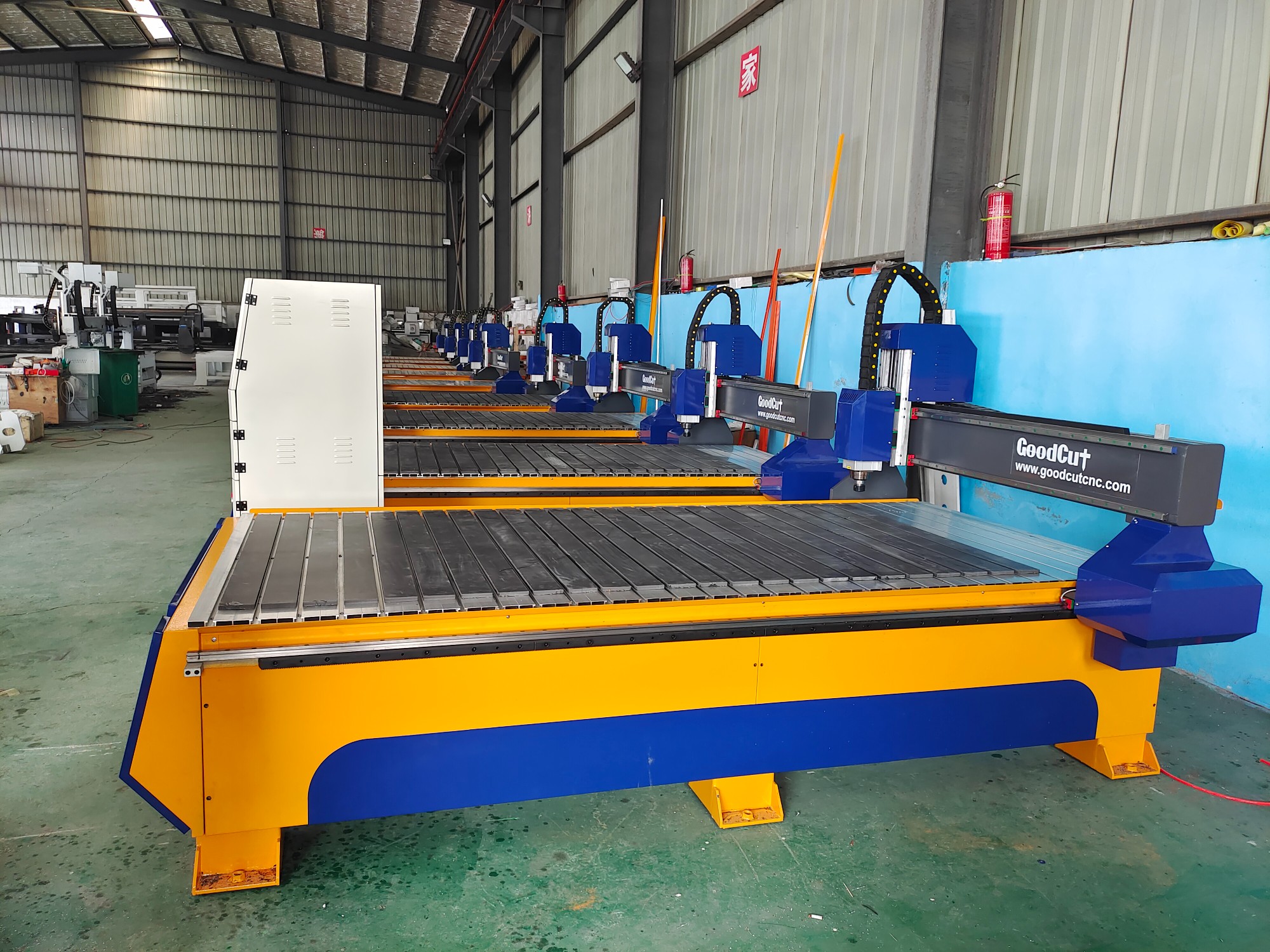

The company's workshop
