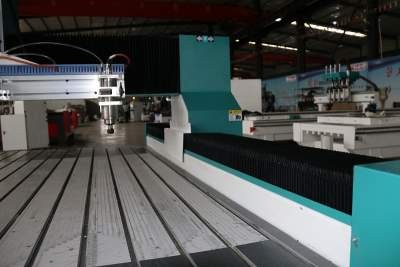

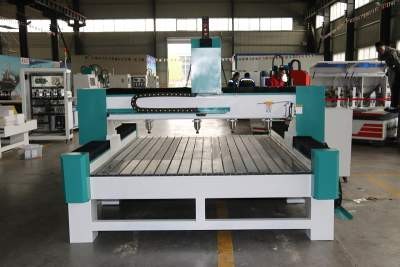

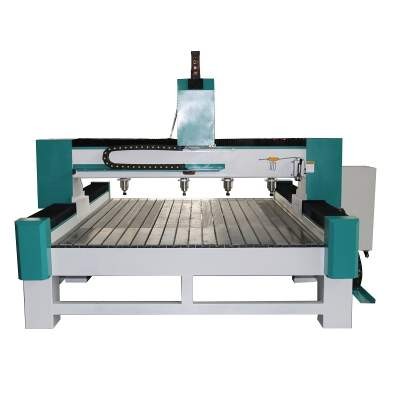

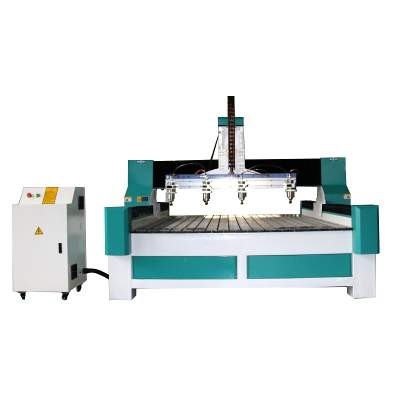

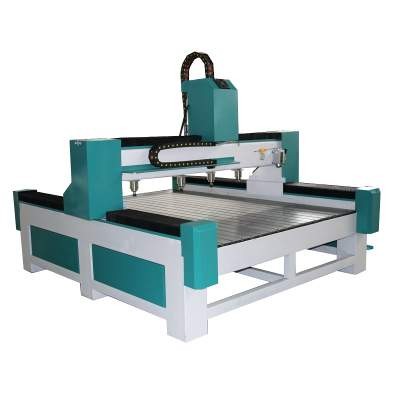

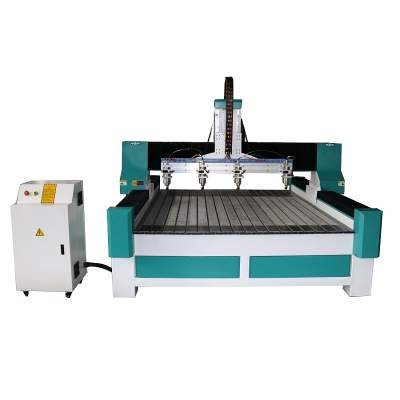

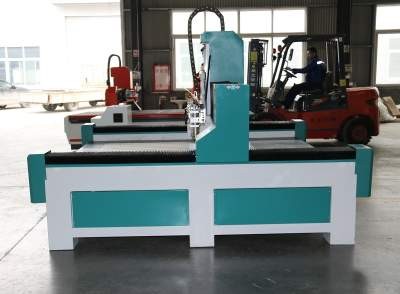

GC1325-4H Multi-Head CNC Router

1300x2500mm, option: 1500*3000mm, 2000*3000mm; 2000*4000mm, etc.
4x3.5kw HQD air cooling spindle, ER20
Control system:DSP

EMAIL


fEATURES

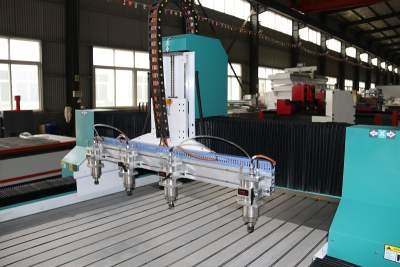

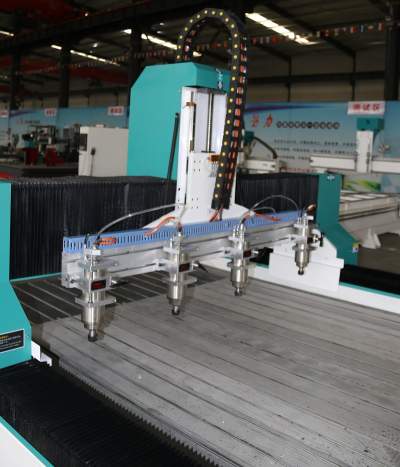

This is a multi-spindle engraving machine with 4 spindles. The 4 spindles are automatically changed according to the processing requirements, which greatly saves the time of manual tool change and also improves the production efficiency accordingly.

1. With air cooling spindle, and the working speed can reach to 18000RPM for per minutes.

2. 4 spindles CNC is much more economic than ATC, so it is good model to choose if you are in furniture industry.

3. With heavy-duty frame and gantry; the machine was designed for durable.

4. Adopting automatic tool sensor, it can save more time and increase efficiency.




PARAMETER

Description

Parameters

Model

1300x2500mm, option: 1500*3000mm, 2000*3000mm; 2000*4000mm, etc.

Working Area

1300x2500x300mm

Spindle power

4x3.5kw HQD air cooling spindle, ER20

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.03mm

Table Surface

Water tank with sprayer pipe

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption (Without spindle)

5.5KW

Max. Rapid Travel Rate

15000mm/min

Max. Working Speed

12000mm/min

Cooling typeWater cooling connect with water pump

Spindle Speed

0-24000RPM

Drive Motors

Stepper motor

Working Voltage

AC380V/50/60Hz,3PH

Computer Interface

USB

Running Environment Temperature

0°C~45°C

Relative humidity

30%~75%

Delivery time

7-10 working day


Machine details:


Controller: DSP, Mach 3, Weihong controller etc.


Mach3DSP rich auto (4)

Guide Rails

HIWIN Guide Rail.

Fast running speed and strong bearing capacity.

Hiwin rails 30mm


APPLICATION

Its major functions include embossing, lettering, hollowing out, cutting, seamless stitching, milling, grinding, etc. So it has wide applications in garden engineering, inscription, stone sculpture, craft, and artwork industries.
