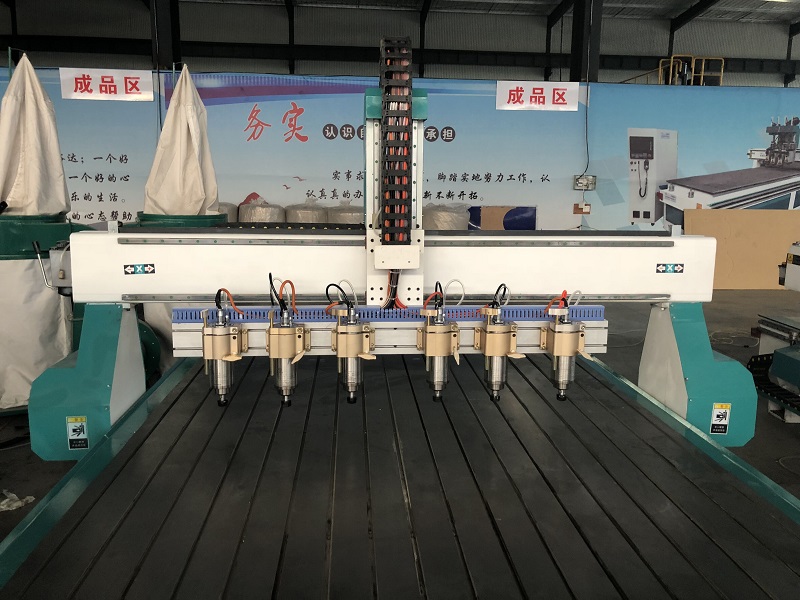

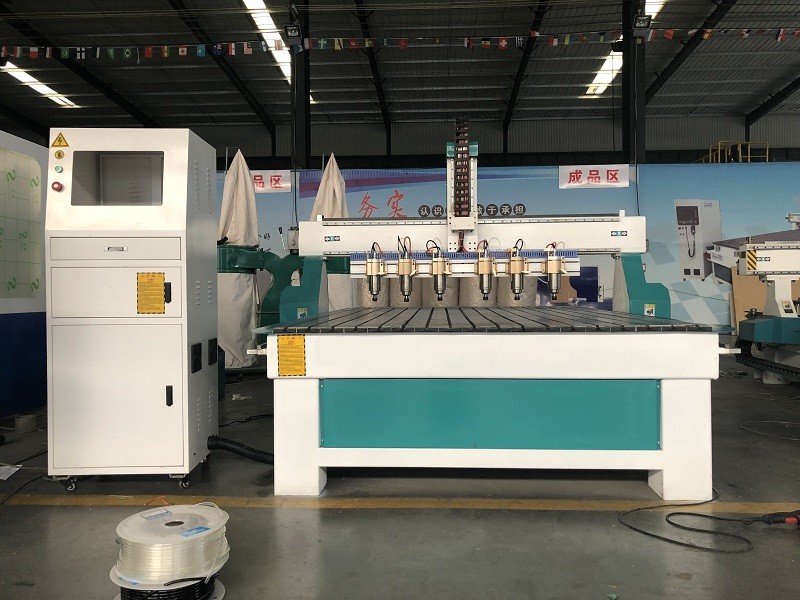

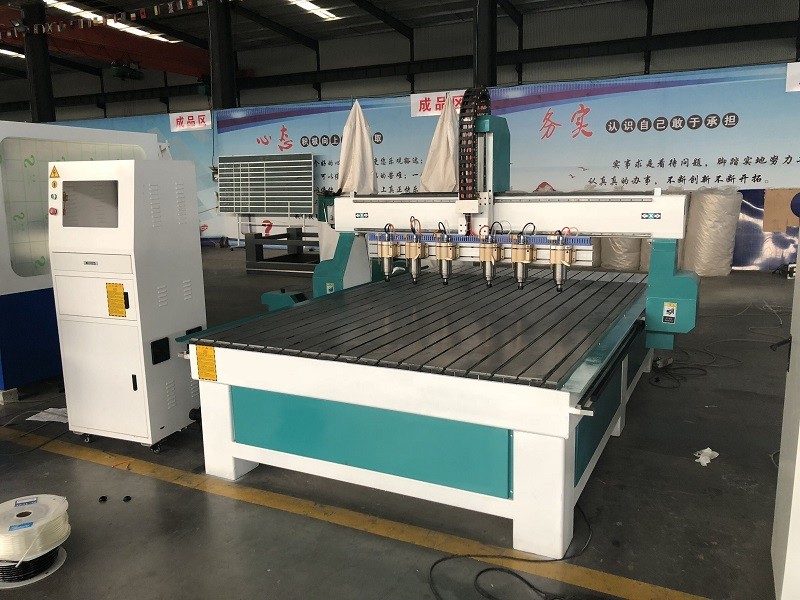

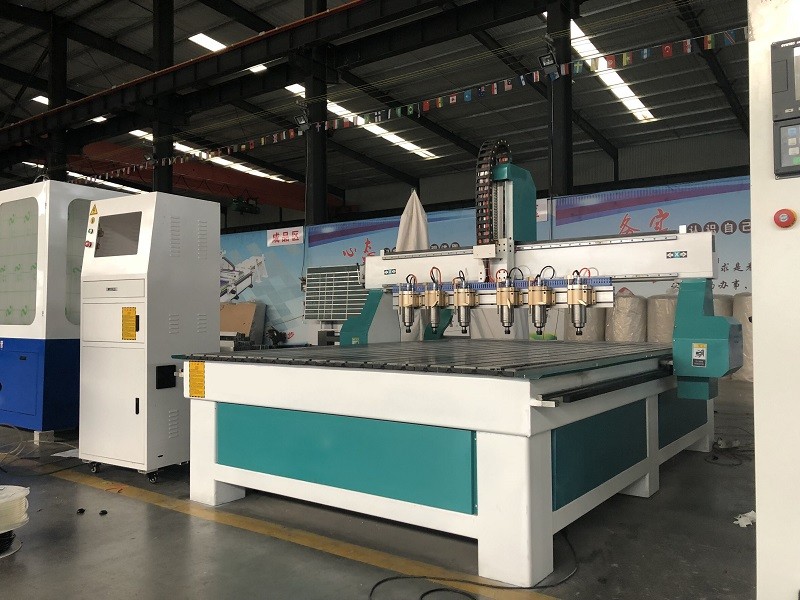

GC1530-6H Multi-Head CNC Router

Model: GC1530-6H
Spindle: 3.2kw 4.5kw 5.5kw, 6kw HQD/HSD water/air cooled spindle

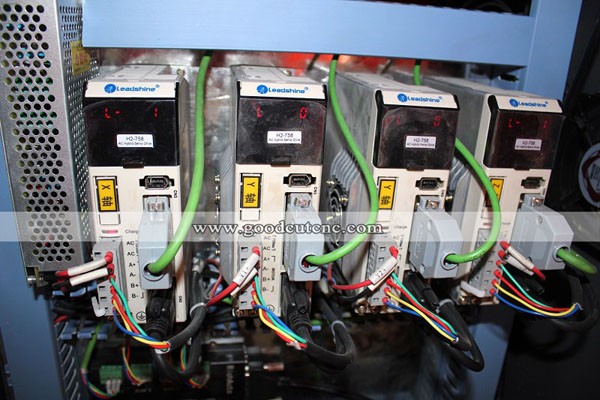

Motor and Driver: Leadshine/ Taiwan Delta/ Japan Yaskawa
Control system: DSP/ NC studio/ Mach3

EMAIL


fEATURES

Distinct from other multi spindle woodworking machines, this machine is equipped with 8 spindles. The amount of spindles can be added to 8 sets or more. Multi-spindle can work simultaneously, which can greatly improve the efficiency of working.

1. Manufactured with removable T-slot table and rotary device, it can realize multi functions to process 3D or 4D figures.

2. Customer can choose to process different kinds of materials with them or not.

3. Taking 2036 Multi Spindles CNC Router Machine and 0809 Multi-head 4 axis CNC Router for instance, the working area can be designed to larger or smaller.

4. All the specifications of this rotary CNC router machine can be made following your actual requirements.





PARAMETER

Description

Parameters

Model

1300x2500mm, option: 1500*3000mm, 2000*3000mm; 2000*4000mm, etc.

Working Area

1300x2500x300mm

Spindle power

6x3.5kw HQD air cooling spindle

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.03mm

Table Surface

Water tank with sprayer pipe

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption (Without spindle)

5.5KW

Max. Rapid Travel Rate

15000mm/min

Max. Working Speed

12000mm/min

Cooling typeWater cooling connect with water pump

Spindle Speed

0-24000RPM

Drive Motors

Stepper motor

Working Voltage

AC380V/50/60Hz,3PH

Computer Interface

USB

Running Environment Temperature

0°C~45°C

Relative humidity

30%~75%

Delivery time

7-10 working day


Machine details:

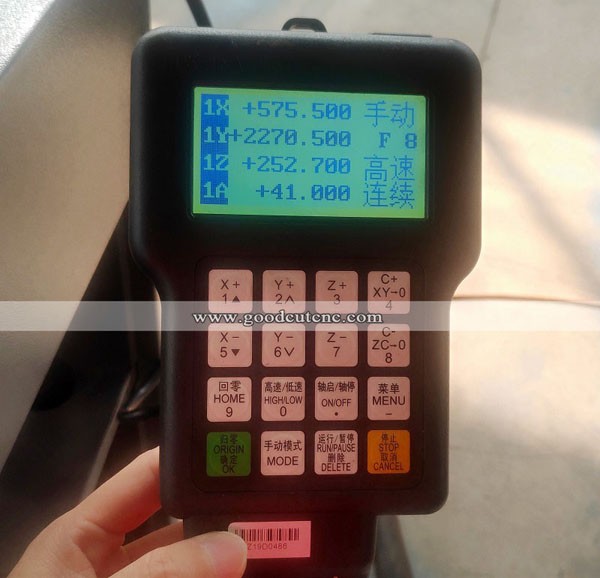

Controller: DSP, Mach 3, Weihong controller etc.


Mach3DSP rich auto (4)

Guide Rails

HIWIN Guide Rail.

Fast running speed and strong bearing capacity.

Hiwin rails 30mm


APPLICATION

Its major functions include embossing, lettering, hollowing out, cutting, seamless stitching, milling, grinding, etc. So it has wide applications in garden engineering, inscription, stone sculpture, craft, and artwork industries.
