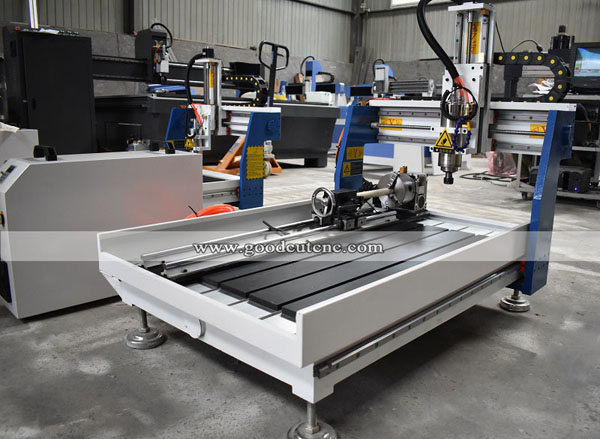

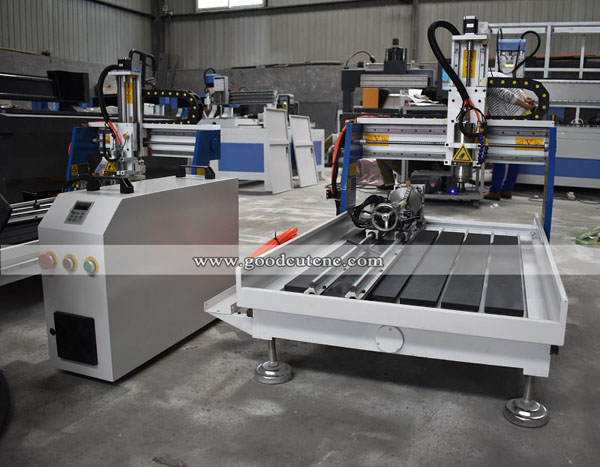

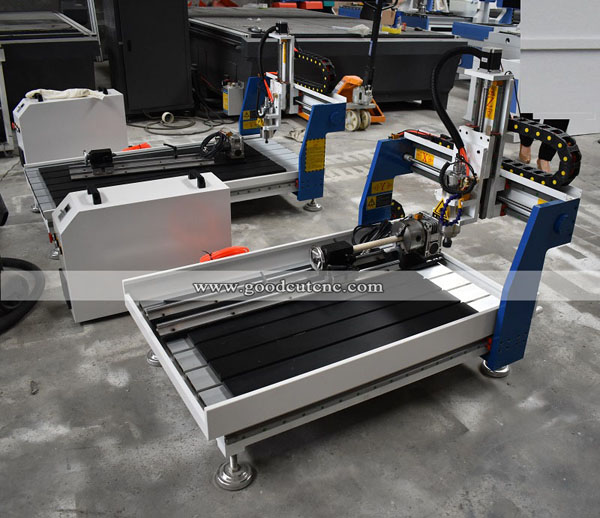

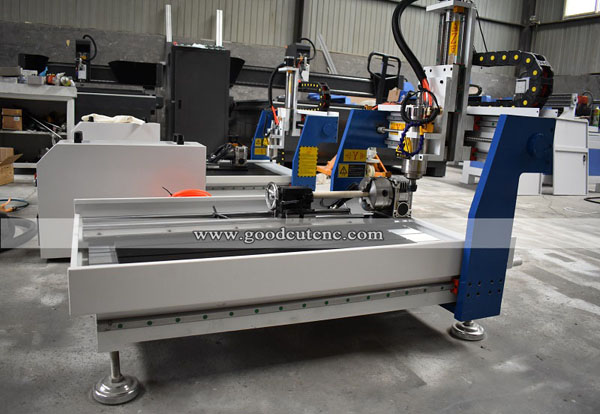

GC6090D Desktop CNC Router For Woodcrafts

Aluminum pvc table T slot
DSP/Mach3 control system
600x900mm working area
Leadshine motor

EMAIL


1. Structure: thickened bed without deformation, small shaking when working, fine engraving effect

2. Drive: Weishi servo, strong power, smooth transmission, small heat, good closed-loop control, can be used for a long time without stopping.

3. Control system: DSP control system, strong anti-interference ability, stability, can control more parameters.

4. Transmission: screw transmission, high efficiency, high precision

5. Guide rail: Taiwan square straight line 30 increase guide rail, high precision, good stability

6. Main shaft: constant power frequency conversion cooling main shaft, low noise (seiko).

7. Oil filling: automatic oil filling system.

8. Transmission: High precision flange 80/ reducer, wear-resistant, strong strength, long-term use is not easy to wear

High speed, high precision and good stability.

Applicable scope: stone, jade, metal, wood, etc

PARAMETER

Description

Parameters

Model

GC-6090

X, Y working area

600mm*900*150mm

Feeding height

150mm

Structure

Aluminum casting structure Gantry moving type

Movement part

X Y Z-----1605 ball screw;

X &Y axis: 20 round rails;   Z axis:12 round shaft

Motor

X Y:57BYG76;    Z:57BYG56

Driver

YOKO 2608/ Leadshine860H

Spindle power

1.5kw water cooling spindle

Working speed

0-4000mm/min

Control system

Mach3 controller

Command code

HPGL, G-code

Working precision

0.05mm/300mm

Repeatability

0.01mm

Power

AC220V+10% 50-60Hz

Compatible software

Type3/Artcam/UG/pro-E/Mastercam/UcancamV8 etc

APPLICATION

Its major functions include embossing, lettering, hollowing out, cutting, seamless stitching, milling, grinding, etc. So it has wide applications in garden engineering, inscription, stone sculpture, craft, and artwork industries.
