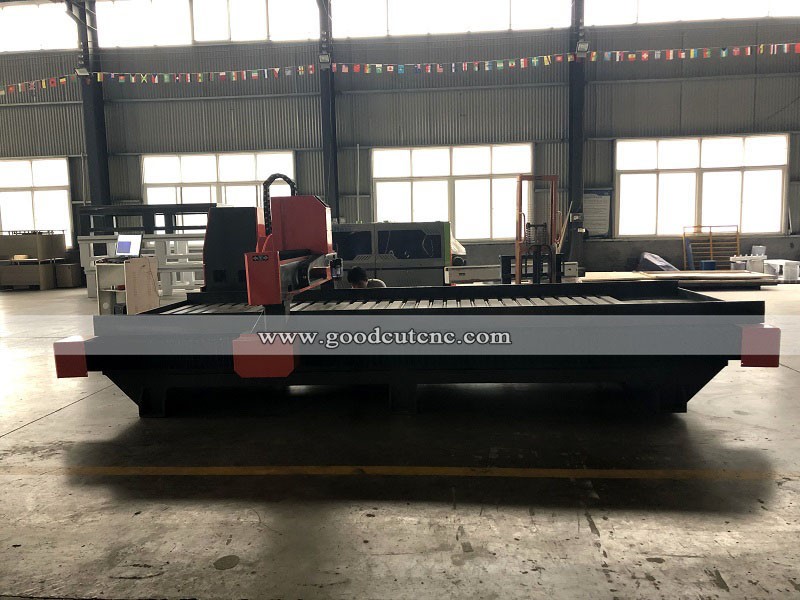

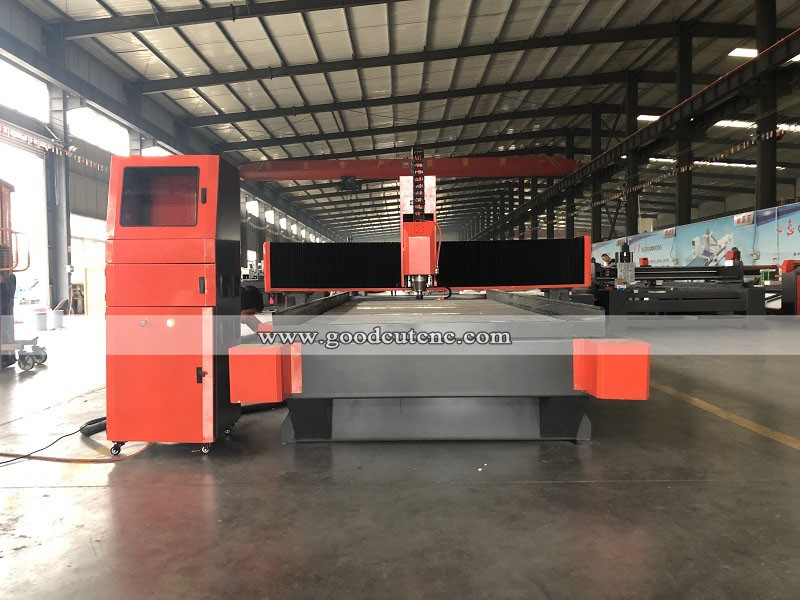

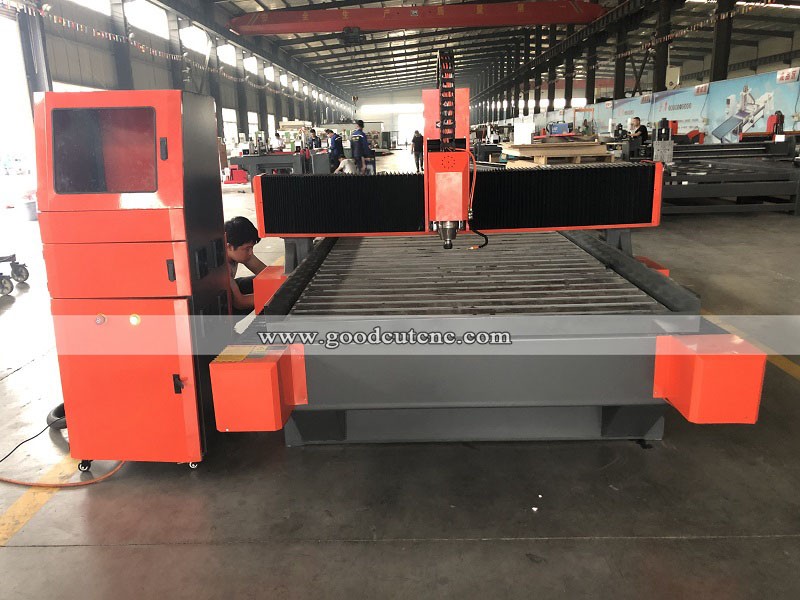

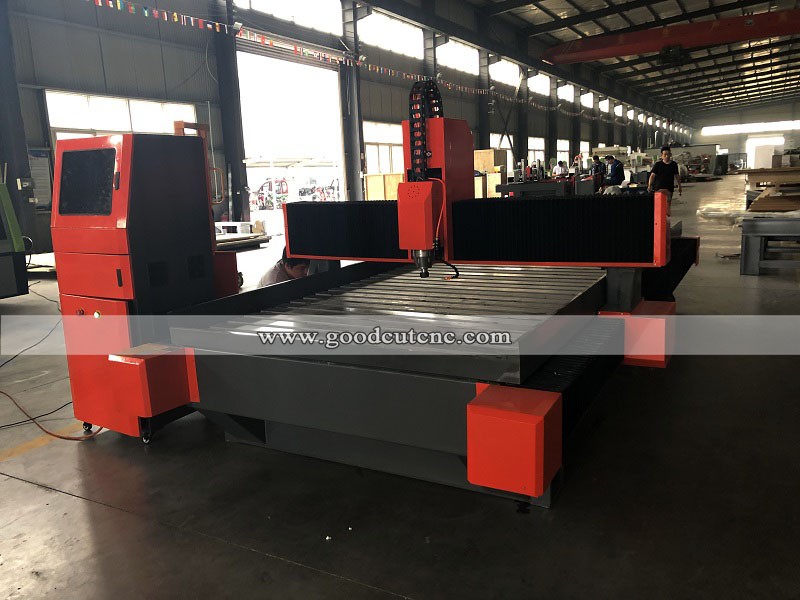

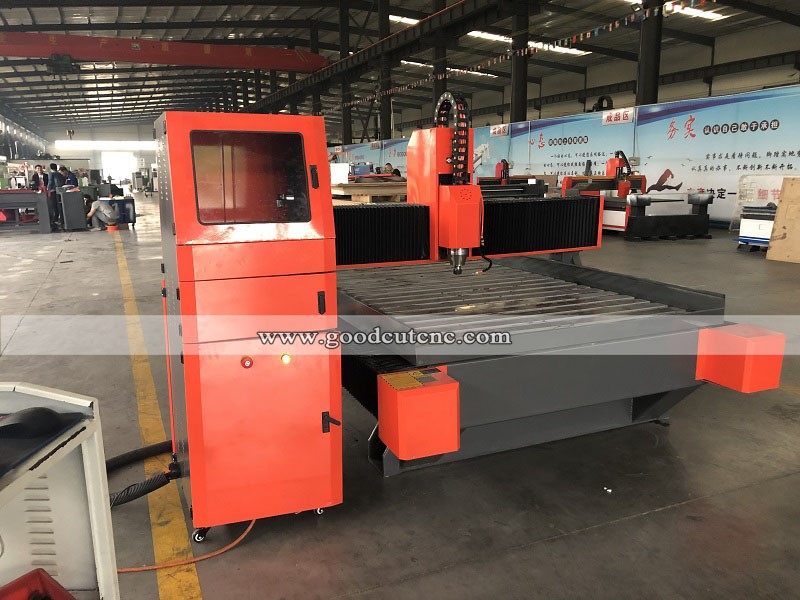

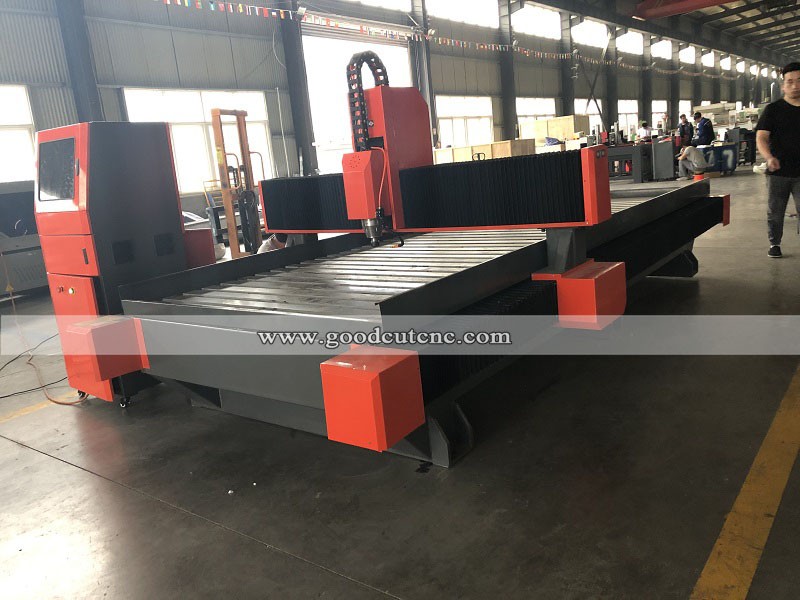

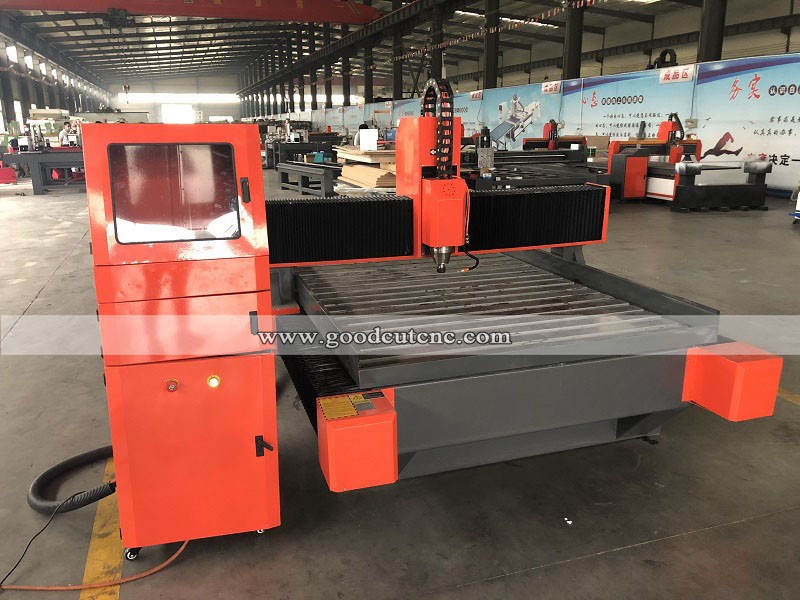

GC1540W CNC Metal Router for Aluminum Soft Metal

Working area: 1500*4000mm
5.5kw/7.5kw water cooling spindle
Servo motor and driver
3 axis screw drive
material: aluminum copper

EMAIL



fEATURES

1.Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger, stability.

2.High accuracy X,Y,Z 3 axis ball screw transmission, high accuracy helical gear rack transmitting, more stability, high precision stability.

3.Configured advanced DSP control system on line special controlling system, indepent power supply, qualick calcaulation, strong anti-interferencess peroformance, Own more powerful application performance.

4. This machine adopt servo motor.

5.Has power off restoration,continue processing at break point, auto tool height adjusting device, repeat processing, support 9 coordinates setting, user friendly design.

6.Standard configured 380V 5.5KW /7.5kw water cooling spindle high power, high efficiency.

7.Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc.

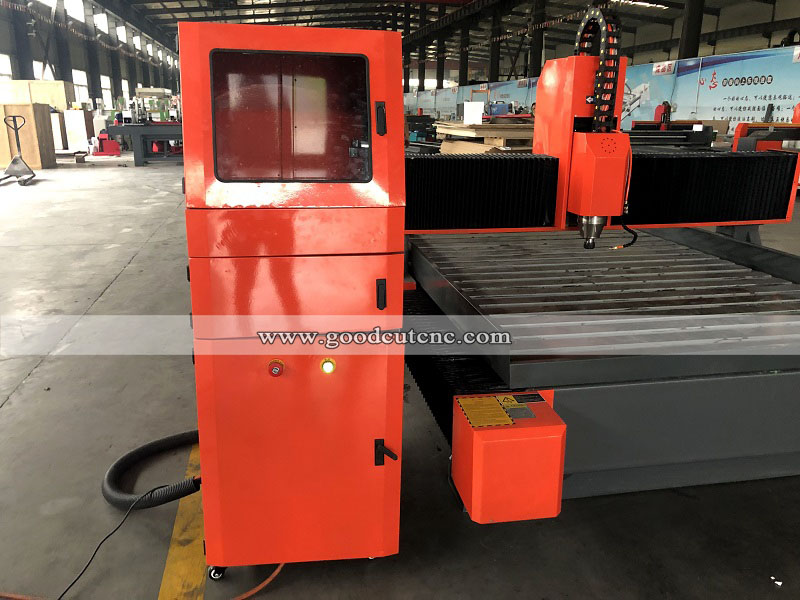

8.Independent control cabinet, Stronger power and weak power separate, maintenance easily.

9.Can optional the vaccum system and dust collector system.


PARAMETER

Model No.

1540 metal cnc router

Table Size

1500mm*4000mm

Max. feeding height of Z axis

200mm

Table Structure

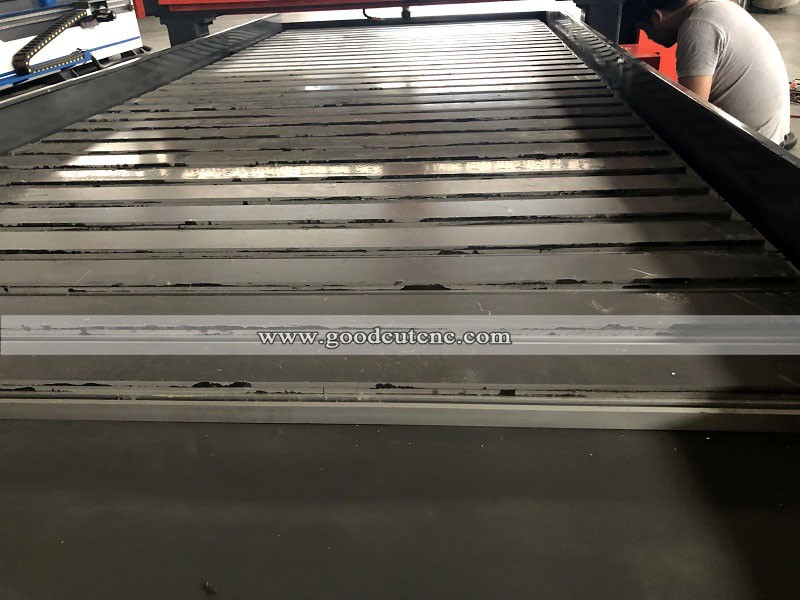

Aluminum pvc table T slot

Machine body

heavy duty frame

X Y Z axis Transmission

3 axis by ball screw transmission

Spindle Power

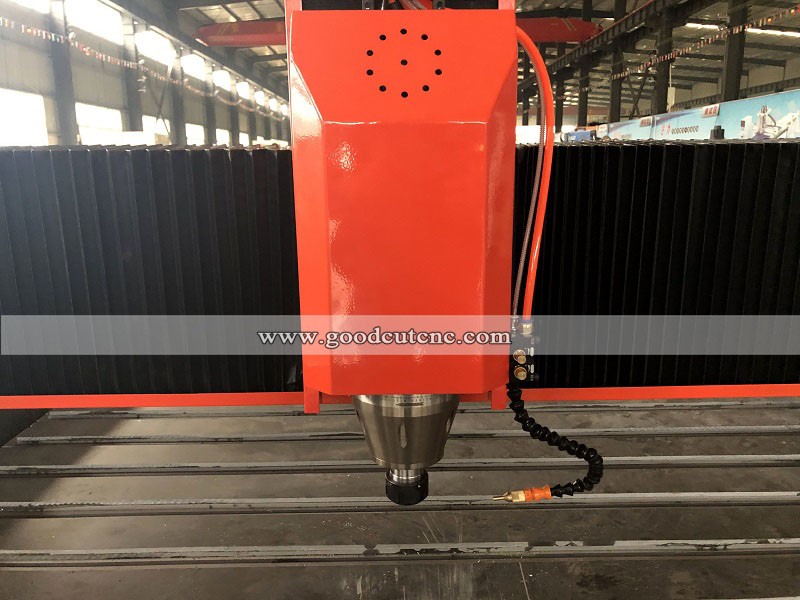

5.5/7.5kw water cooling spindle

Max.Spindle Speed

24000 rpm/min

Max. Traveling Speed

25000mm/min

Max. Working Speed

12000mm/min

Processing Accuracy

±0.025mm

Reposition Accuracy

≤0.025mm

Driving System

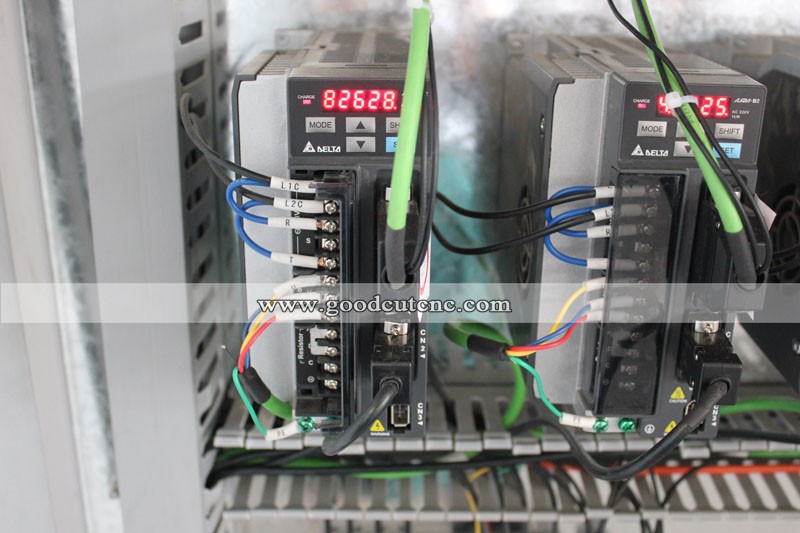

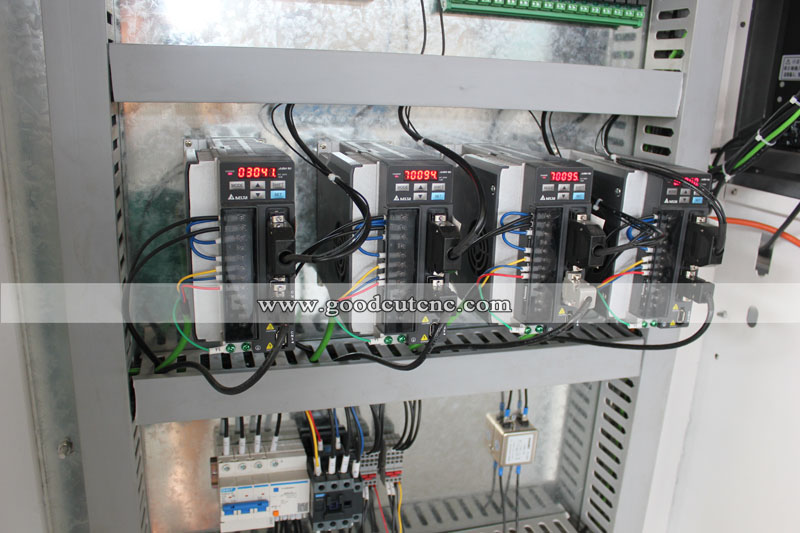

Servo motor and driver

Command Language

HPGL, G Code

Control System

NCSTUDIO/MACH3/DSP

Working Voltage

AC110/220V, 50/60HZ

Net Weight/Gross Weight

1350KGS

Package Dimension

3300x1950x1950mm

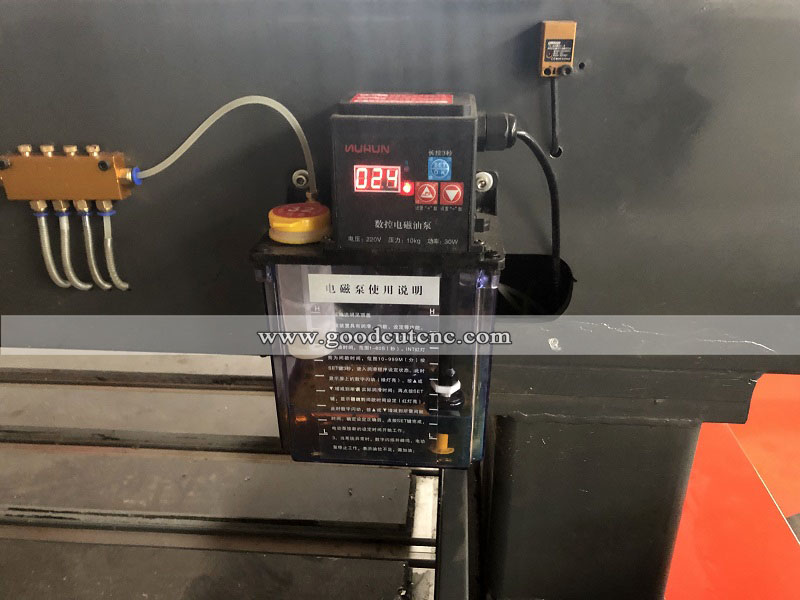

Machine details:


Controller: DSP, Mach 3, Weihong controller etc.


APPLICATION

Its major functions include embossing, lettering, hollowing out, cutting, seamless stitching, milling, grinding, etc. So it has wide applications in garden engineering, inscription, stone sculpture, craft, and artwork industries.
