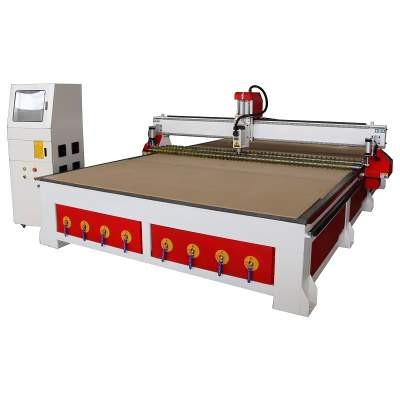

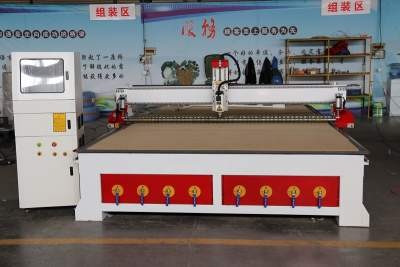

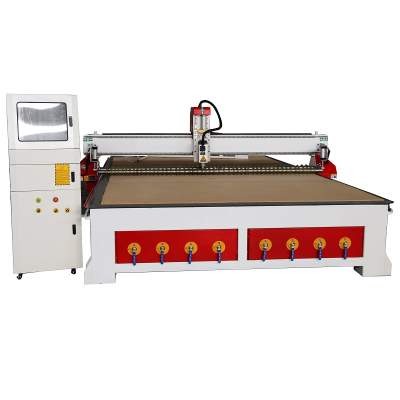

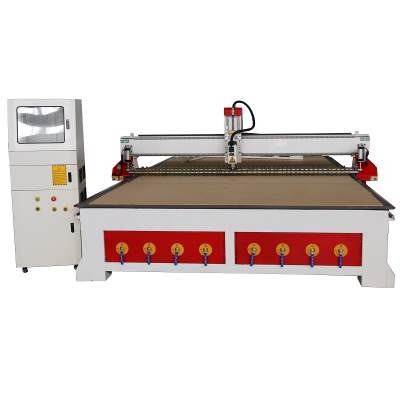

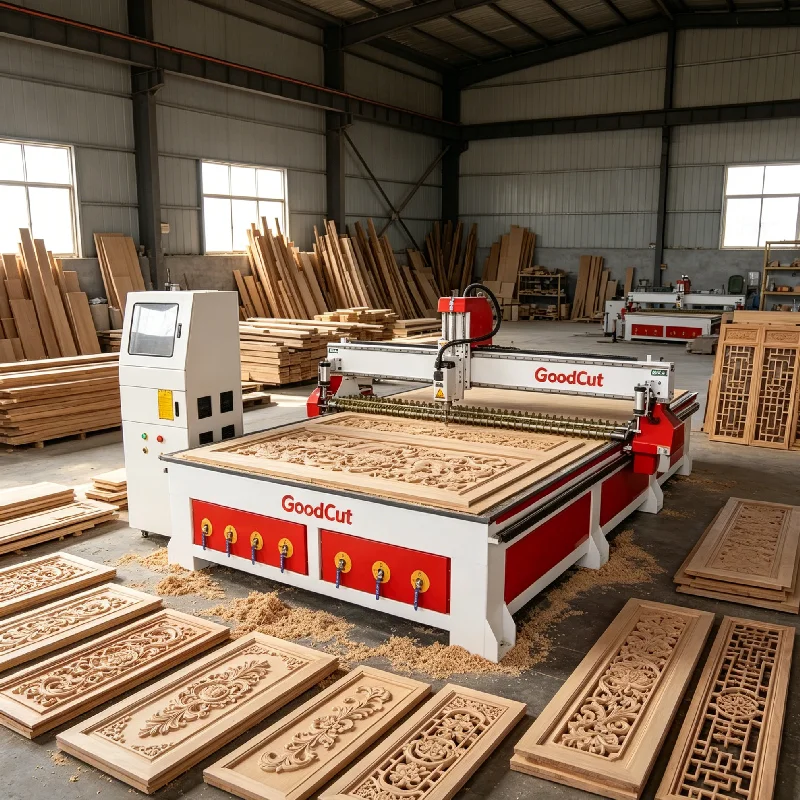

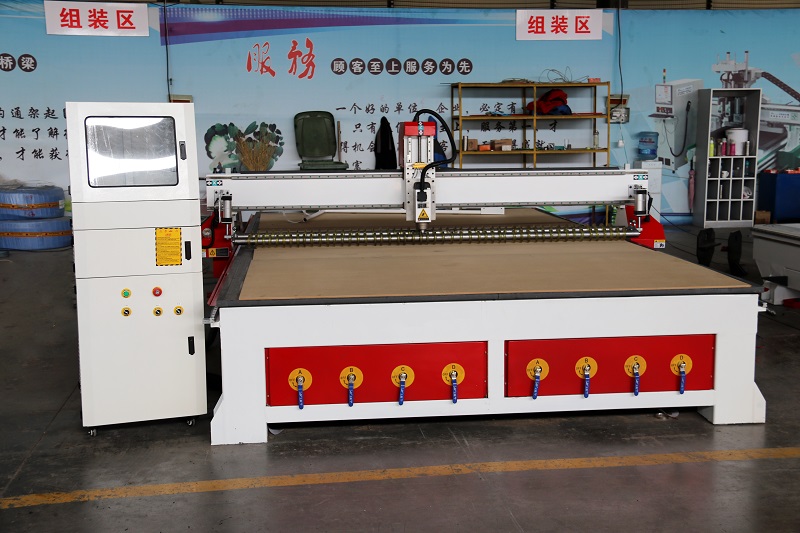

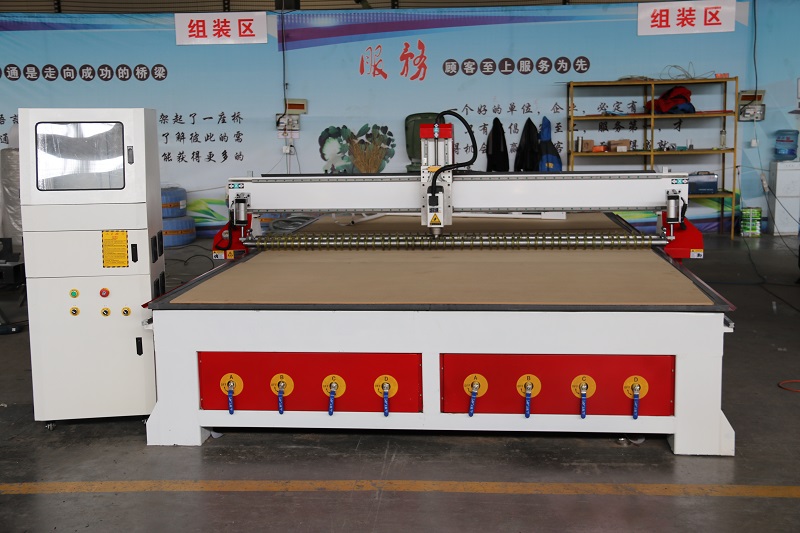

GC2030H Big size CNC Router With 2m*3m Working Size

2000*3000mm working size;

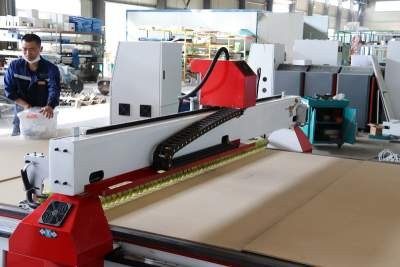

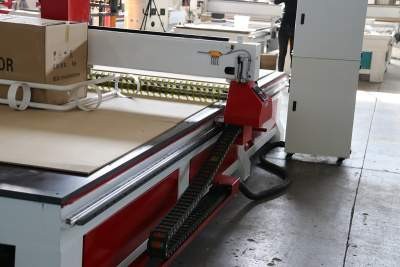

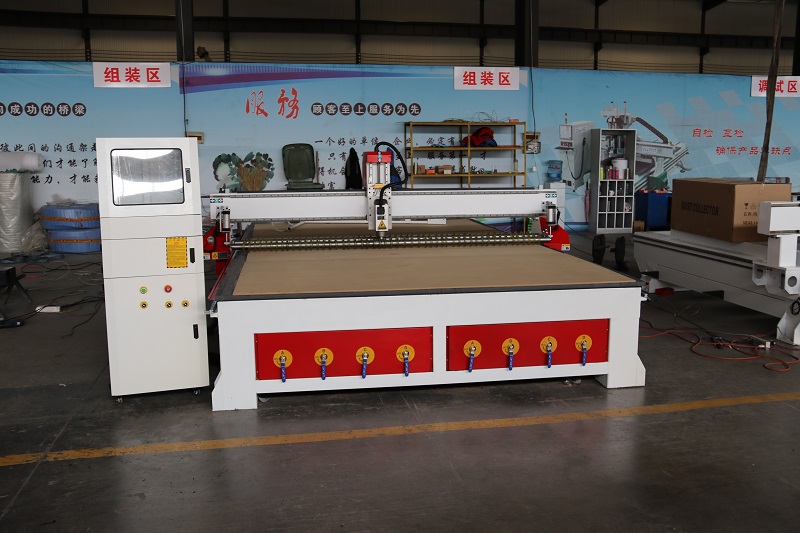

With pinch roller

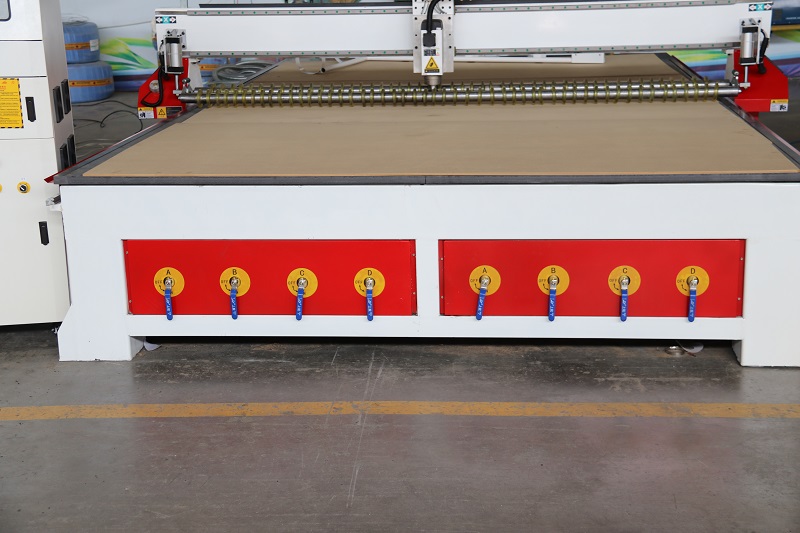

Vacuum absorbed table
Woodworking

EMAIL


fEATURES

CNC Wood Door Making machine is a 3 axis cnc router machine for cabinet door making with T-slot vacuum table. Table size 5x10ft is big enough for common Polywood or MDF Engravng & Cutting; It fixes the workpieces more firmly, saves time and improves production efficiency. CNC Wood Door Making machine is Equipped with original HSD/HQD spindle, it ensures the CNC wood router have a high speed and quality

1. CNC Wood Door Making machine is equipped with HSD/HQD spindle, and it ensures the high speed and quality of this CNC wood router.

2. With a heavy-duty frame and gantry, it makes the machine run more stably.

3. Adopting servo system, it makes the machine has a longer service life.

4. Adopting DSP control system, and it is very easy to learn and operate.



PARAMETER

Description

Parameters

Model

GC2030H cnc router

Working Area

1300x2500x200mm

Spindle power

6 KW

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.03mm

Table

Vacuum Table

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption (Without spindle)

6KW

Max. Rapid Travel Rate

15000mm/min

Max. Working Speed

12000mm/min

Cooling typeWater cooling connect with water pump

Spindle Speed

0-24000RPM

Drive Motors

Leadshine Stepper motor/Servo motor

Working Voltage

AC380V/50/60Hz,3PH

Computer Interface

USB

Running Environment Temperature

0°C~45°C

Relative humidity

30%~75%

Delivery time

7-10 working day


Machine details:


Controller: DSP, Mach 3, Weihong controller etc.


Mach3DSP rich auto (4)

Guide Rails

HIWIN Guide Rail.

Fast running speed and strong bearing capacity.

Hiwin rails 30mm


APPLICATION

Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard

Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA

Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones Soft metal: aluminum, brass, copper, mild steel

Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite
