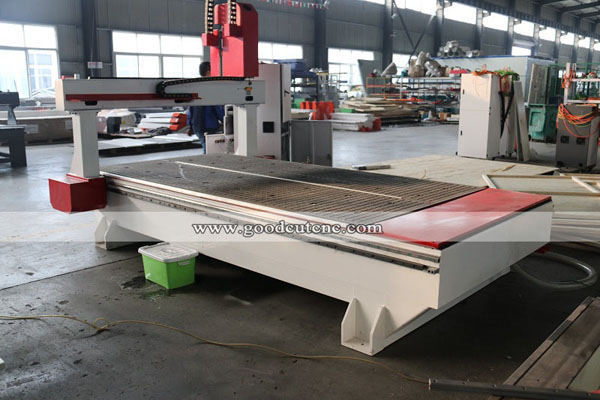

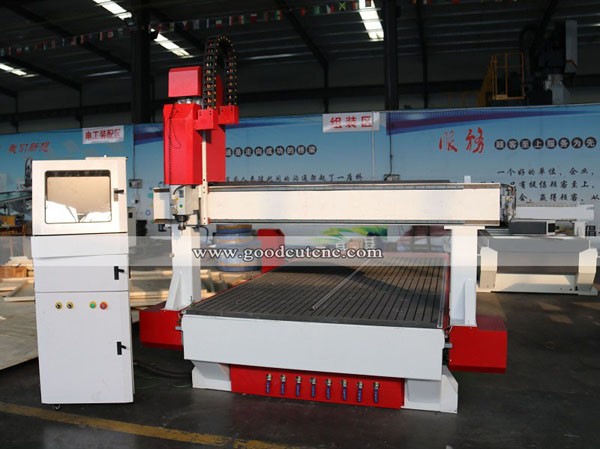

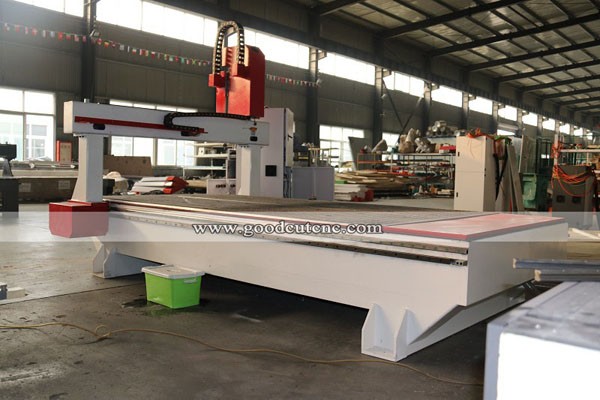

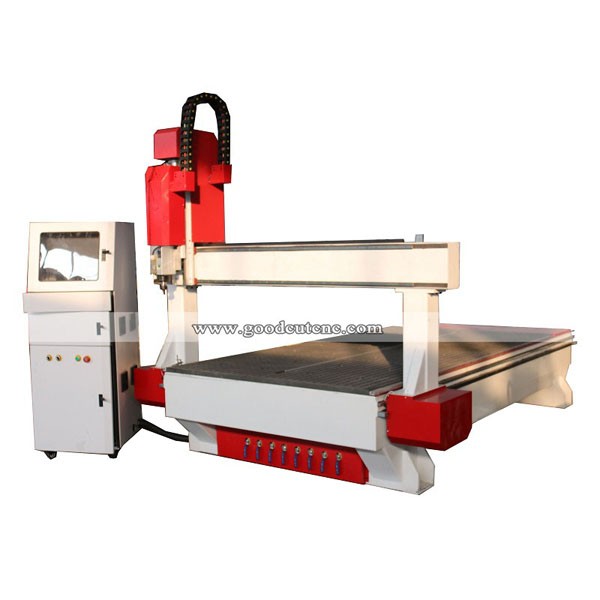

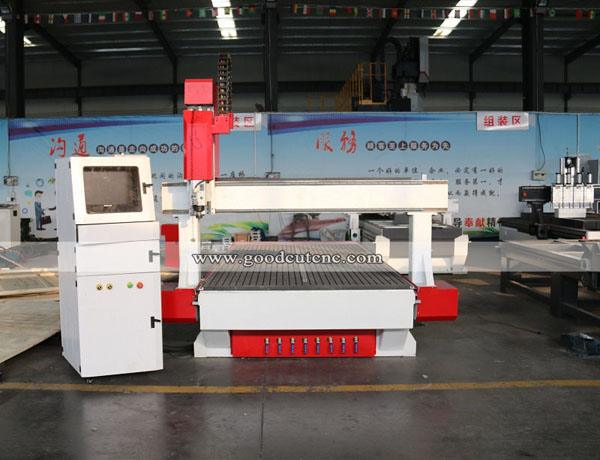

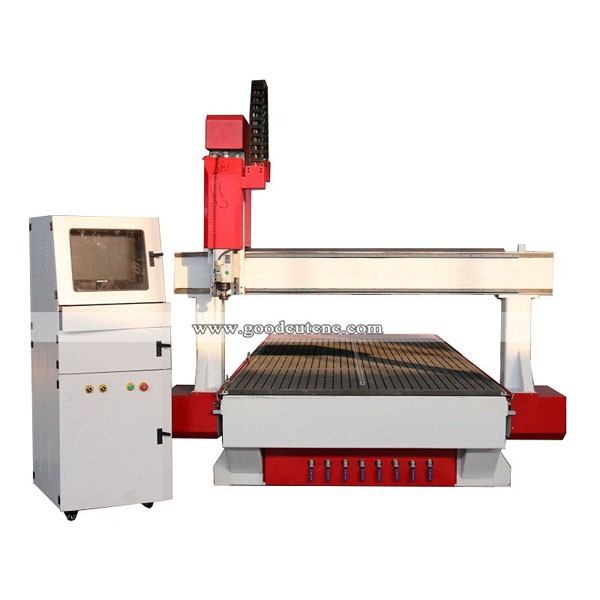

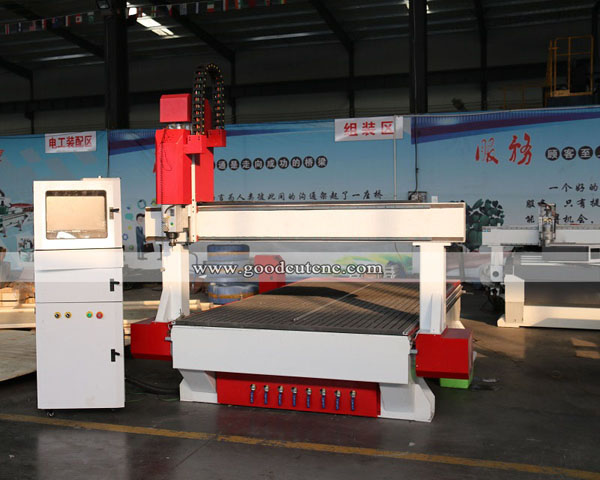

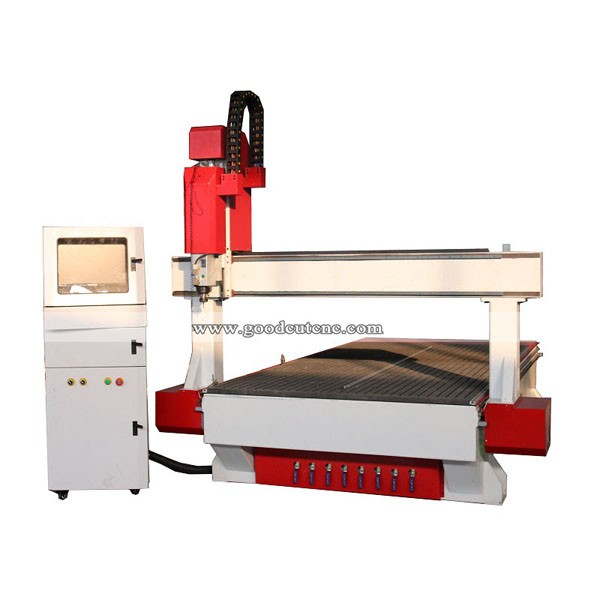

GC2030VH Big size CNC Router With 1.5m*3m Working Size - 副本

1500*3000mm working size;
With pinch roller
Vacuum absorbed table
Woodworking

EMAIL

fEATURES

CNC Wood Door Making machine is a 3 axis cnc router machine for cabinet door making with T-slot vacuum table. Table size 5x10ft is big enough for common Polywood or MDF Engravng & Cutting; It fixes the workpieces more firmly, saves time and improves production efficiency. CNC Wood Door Making machine is Equipped with original HSD/HQD spindle, it ensures the CNC wood router have a high speed and quality

1. CNC Wood Door Making machine is equipped with HSD/HQD spindle, and it ensures the high speed and quality of this CNC wood router.

2. With a heavy-duty frame and gantry, it makes the machine run more stably.

3. Adopting servo system, it makes the machine has a longer service life.

4. Adopting DSP control system, and it is very easy to learn and operate.



PARAMETER

Descriptions

Parameters

Model

GC1325VH

GC1525 1530VH

GC2030VH

GC2040VH

Custom made

Working area

1300*2500mm

1500*2500mm

1500*3000mm

2000*3000mm

2000*4000mm

Custom made

Accuracy

±0.03mm

Table Surface

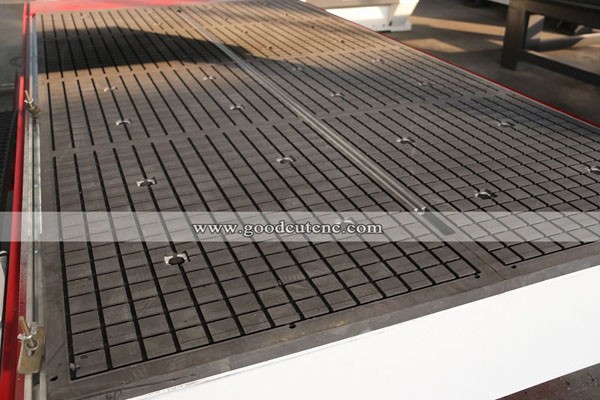

Vacuum & T-slot Combined (or T-slot Table, or vacuum table )

Frame

Thicken steel Square Tube Heavy structure , 8mm thicken steel

X, Y Structure

Gear and rack transmission, Taiwan PMI/HIWIN Linear Rail 20mm

Z Structure

Taiwan TBI Ball Screw, Taiwan PMI Linear Rail

Max. Rapid Travel Rate

60000mm/min

Max. Working Speed

25000mm/min

Spindle Power

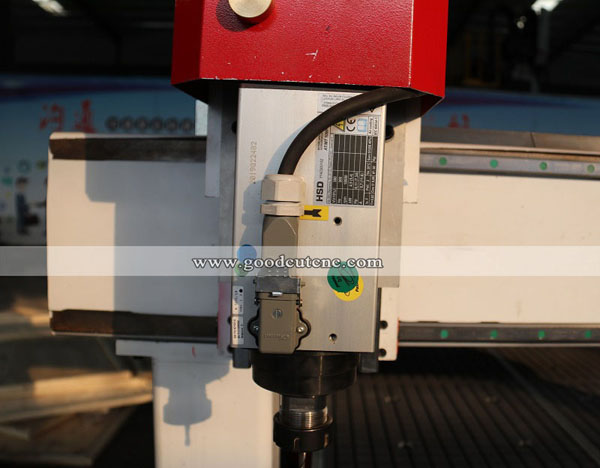

3.2kw, 4.5kw, 6kw HQD or CC Spindle (Italy HSD for Optional)

water cooled spindle or air cooled spindle

Spindle Speed

0-24000RPM, 0-18000RPM

Drive Motors

Siemens 808D 808AD

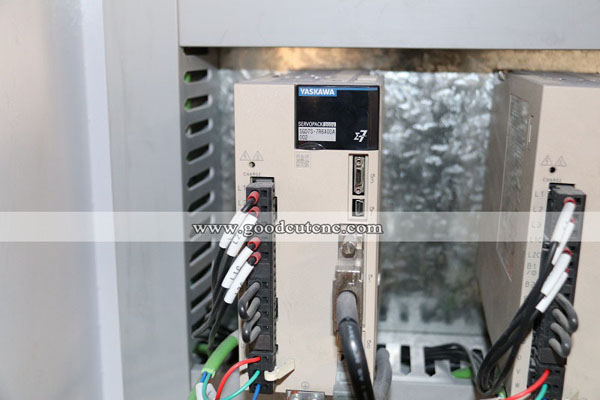

Leadshine 450B motor, MA860H driver, Delta, Japan Yaskawa servo motor and driver , Panasonic

Working Voltage

220v/380v Custom made

Command Language

G Code

Operating System

DSP, Nc-studio, Weihong, Taiwan SYNTEC control system,  German Siemens

Computer Interface

USB interface

Collet

ER25

Inverter

Fuling or Taiwan Delta

Software

Vectric Aspire/Type 3 /Artcam /Ucancam

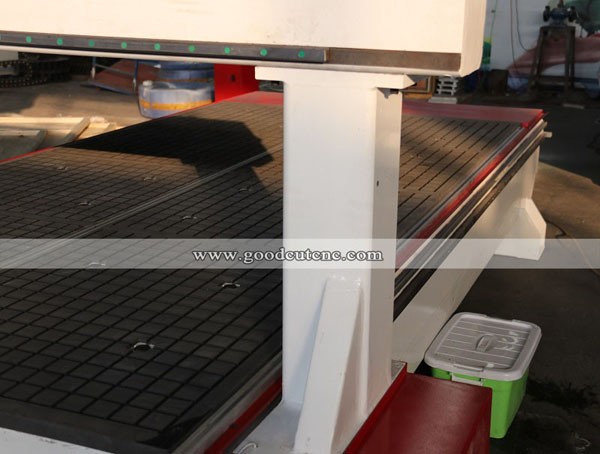

Guide Rails

HIWIN Guide Rail.

Fast running speed and strong bearing capacity.

Hiwin rails 30mm


APPLICATION

Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard

Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA

Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones Soft metal: aluminum, brass, copper, mild steel

Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite

SAMPLE
